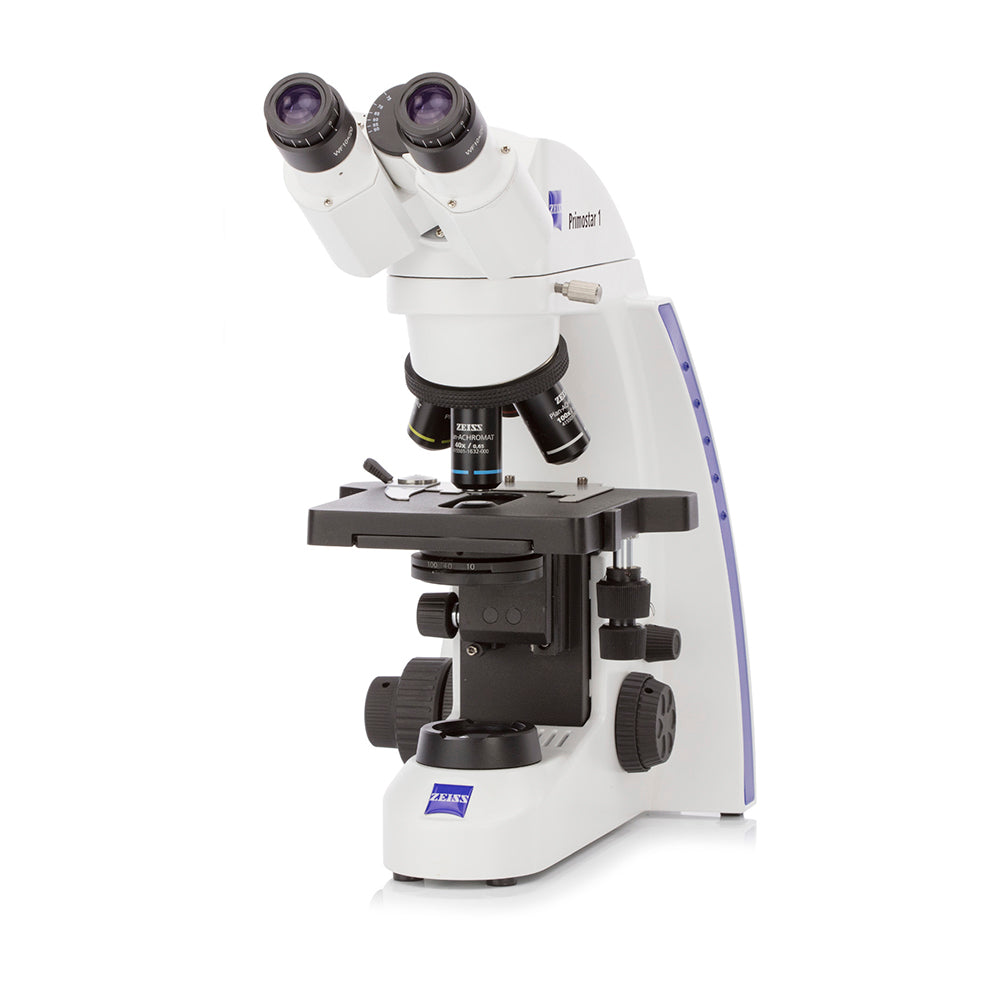

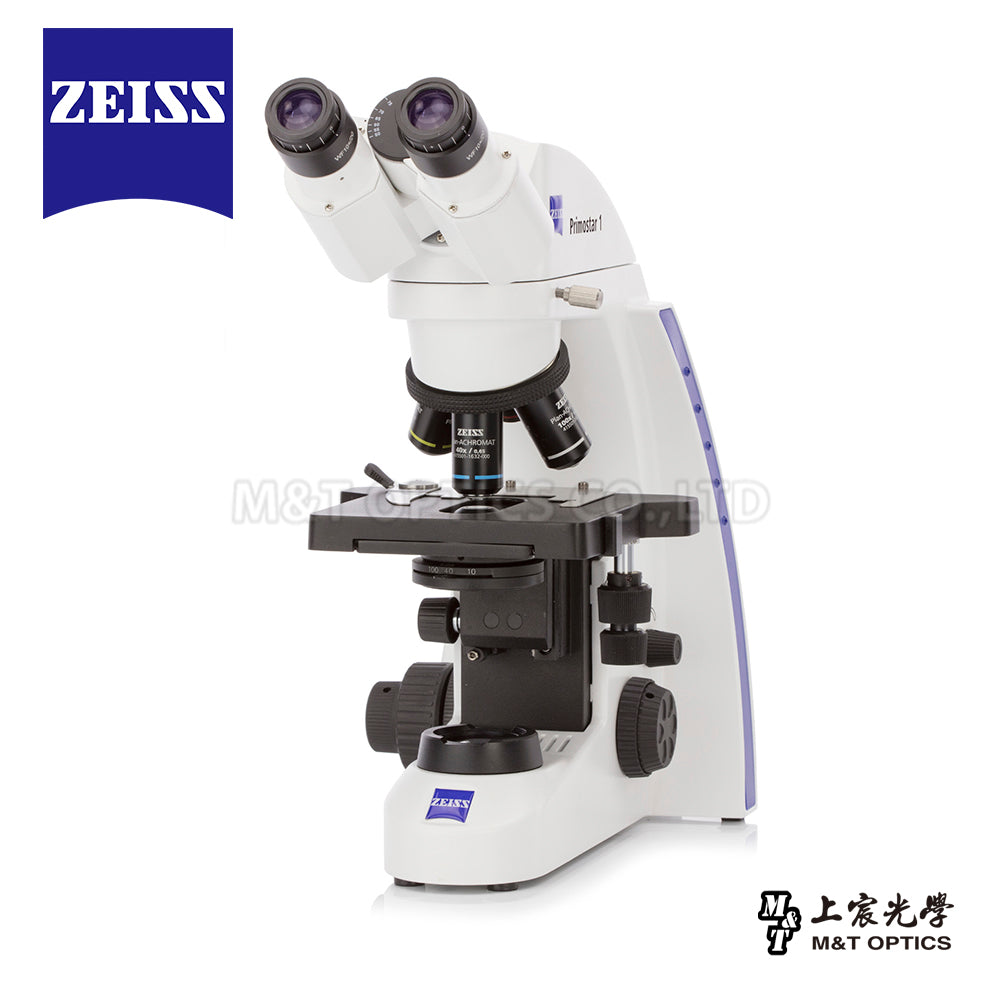

ZEISS PRIMOSTAR1-LED binocular compound biological microscope
Order number
Binocular type 400X: 2230700409 and Binocular type 1000X: 2230700414
Couldn't load pickup availability
Product specifications
|
model
|
Primo Star 1 |
|
Product Code
|
400 times (2230700409), 1000 times (2230700414) |
|

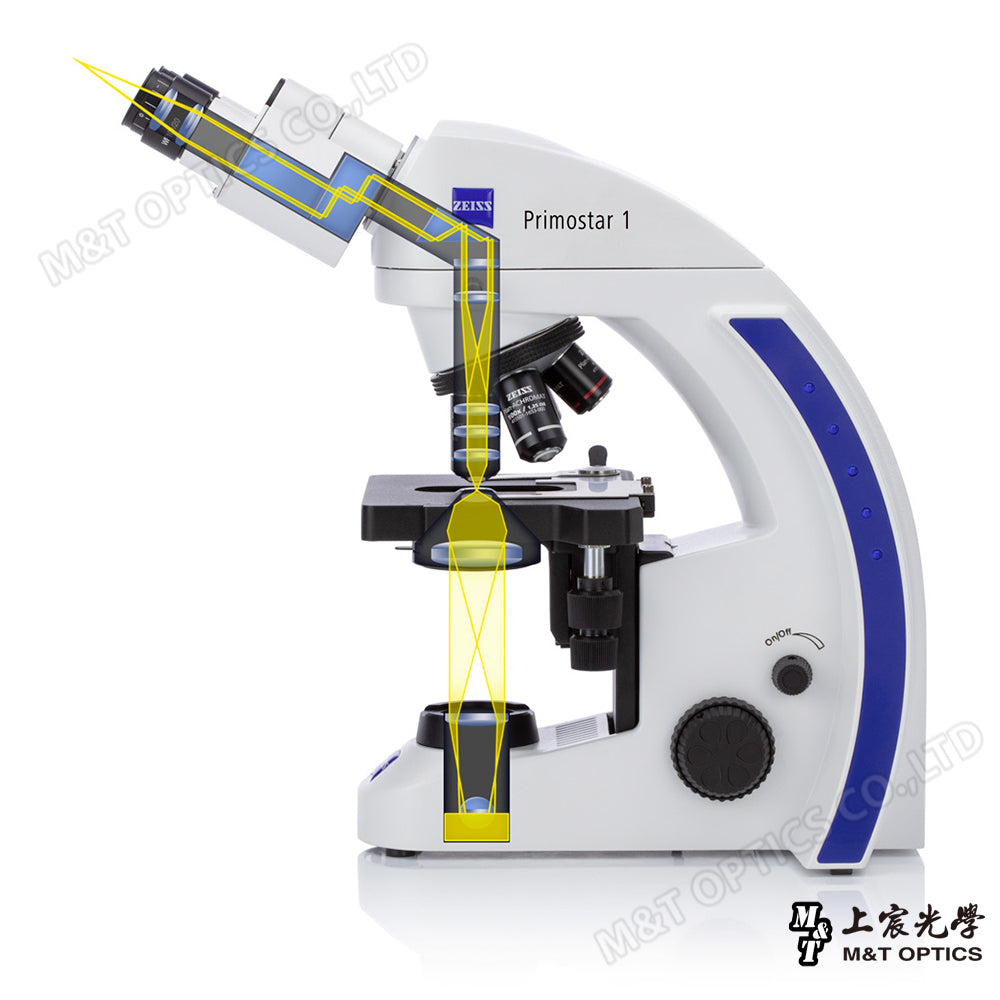

Optical system
|
Infinity parallel optics |
| magnification | 40X to 1000X requires an optional 100x objective lens |
|
Observation head
|
Binocular 30° visual tilt angle |
|
pupillary distance
|
Adjustable pupil distance from 48 to 75mm |
|
eyepiece
|
WF10X field of view 20mm, diopter can be adjusted individually, quantity 2 |
|
Parallax adjustment
|
Independently located on the eyepiece, adjustable range plus or minus 5 |
|
Connect objective lens
|
ZEISS PRIMO PLAN－ACHROMAT 4X, 10X, 40X, optional 100X (oil) |
|
nose chakra
|
Inward-inclined 4-hole |
|
Focusing system
|
Coarse and fine focus adjustment, Z-axis travel 15mm, coarse adjustment accuracy 5mm per revolution, fine adjustment accuracy 0.5mm per revolution, with elastic wheel and limit device |
|
Stage
|
Rackless mechanical stage size 140x140mm, XY travel 75x40mm |
|
condenser
|
Abbe condenser, specification N.A.0.9 |
|
aperture
|
Segless diaphragm, built into condenser |
|
light collector
|
Fixed Coral lighting |
|
Transmitted light source
|
3W LED light source circuit, color temperature 3200K, five-stage LED light source brightness display on the side of the mirror body |
|
epi light source
|
None, optional extras |
|
Polarizing system
|
None, optional extras |
|
power supply
|
External DC12V power supply, applicable voltage is 100 to 240 V |
|
physical dimension
|
190 mm × 400 mm × 390 mm |
