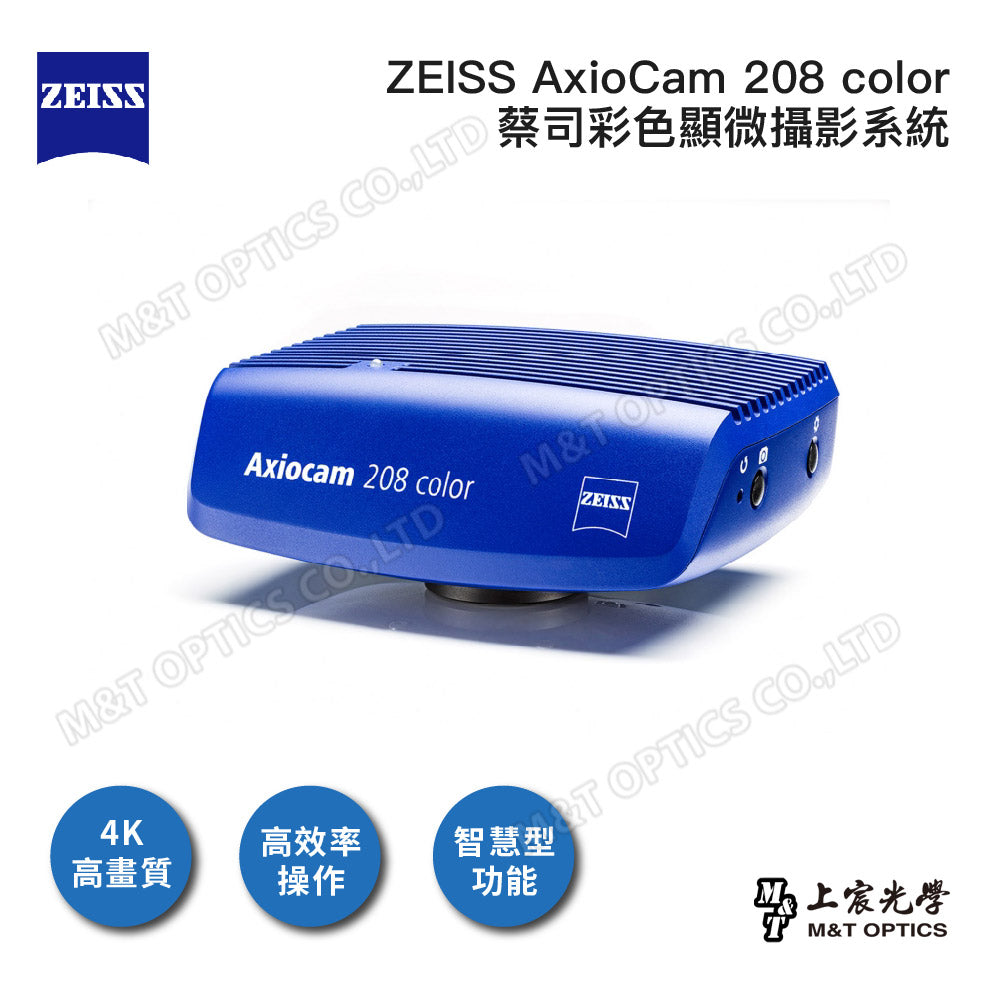

ZEISS AxioCam 208 color Zeiss color photomicrography system (company warranty)

Order number

2230700336

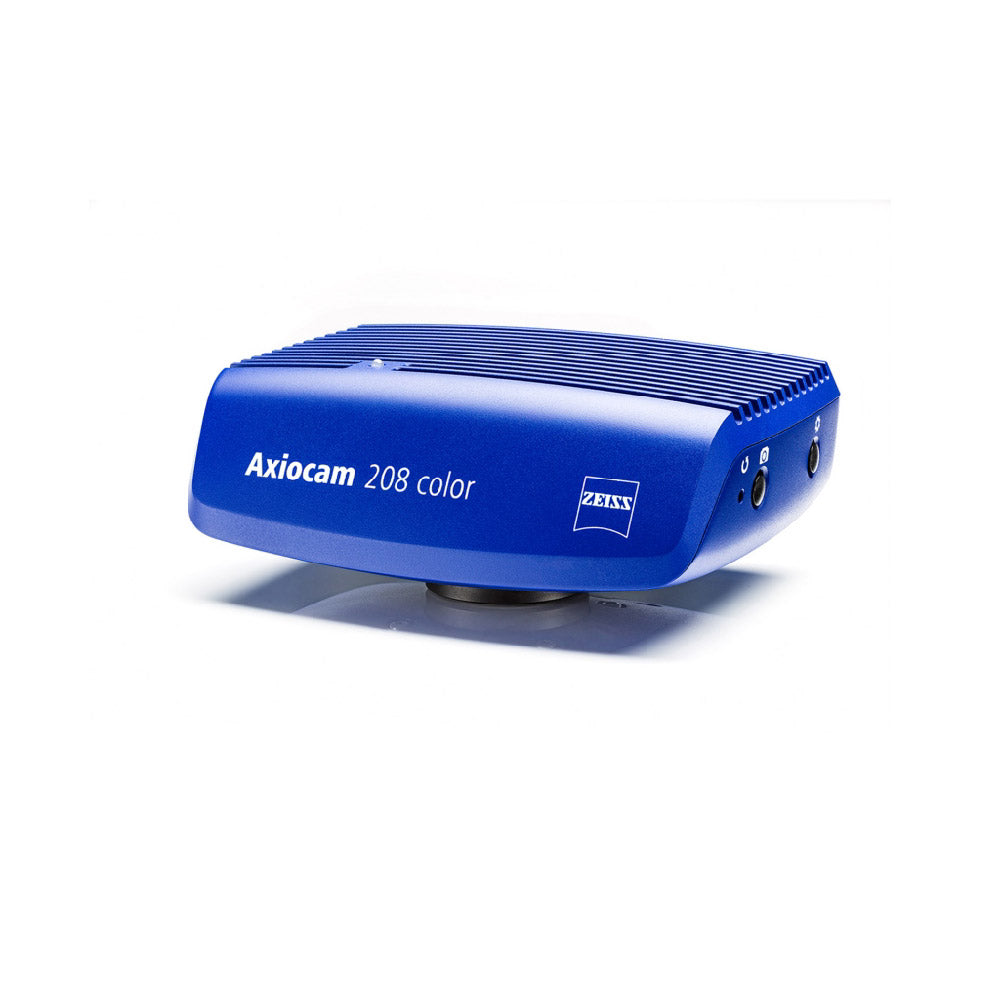

ZEISZEISS AxioCam 208 color Zeiss color photomicrography system

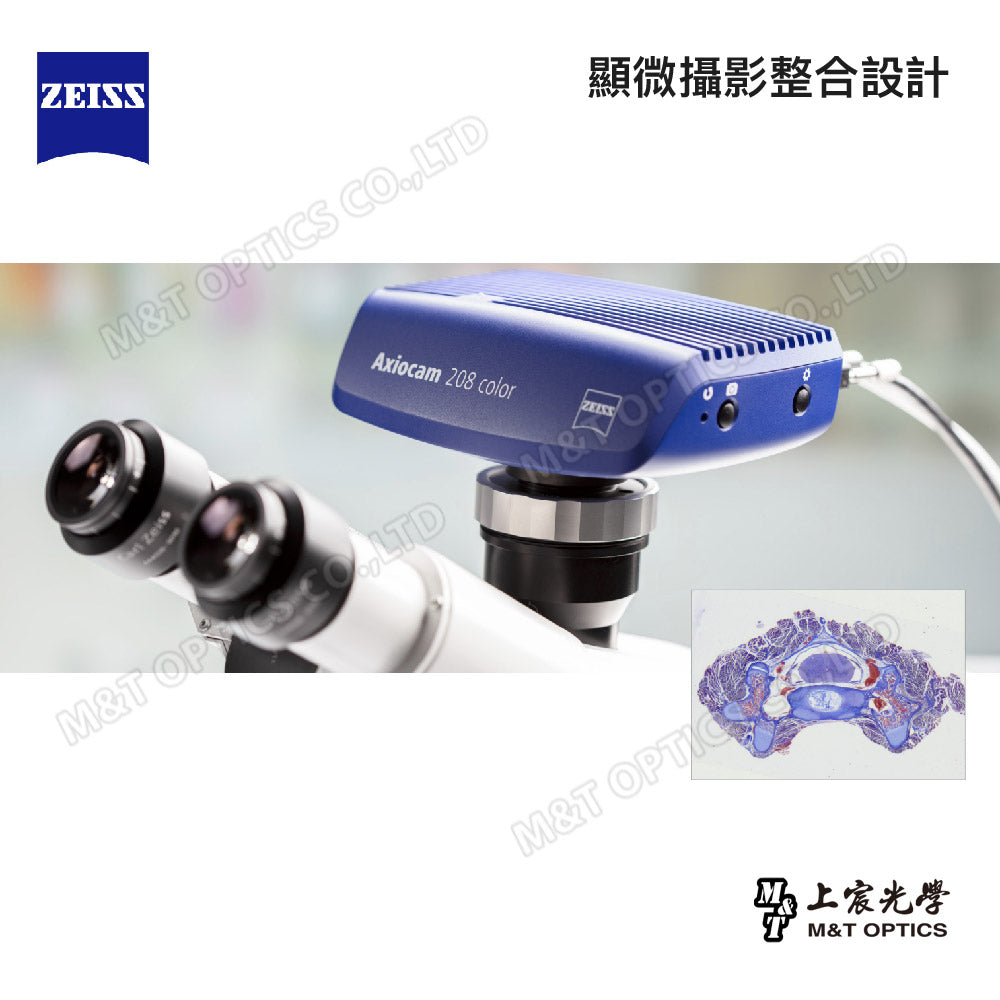

Microphotography integrated design

For teaching or daily experimental applications, enjoy efficient and easy operation, newly designed for microscope intelligence.

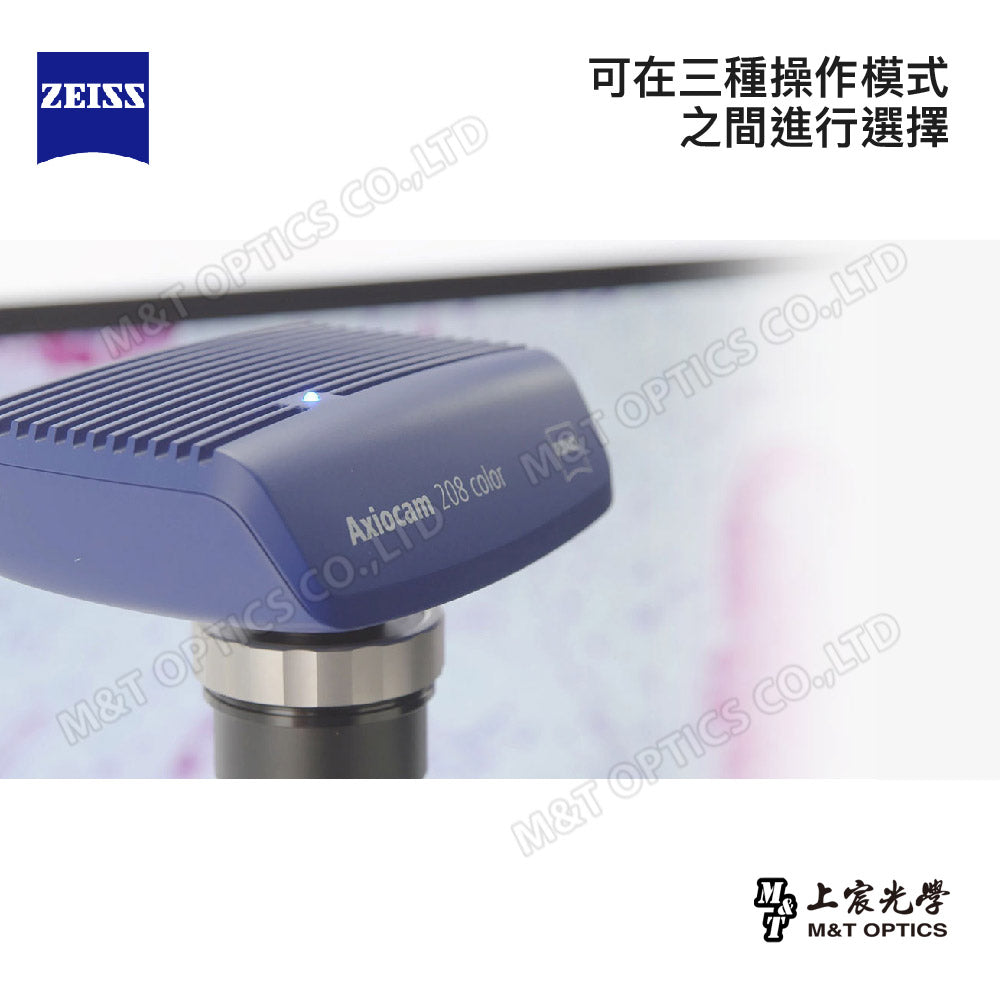

You can choose between three operating modes:

  • In standalone mode, using the HDMI output, you can acquire microscope images without a computer. The photography system automatically adjusts brightness and white balance, and provides instant image enhancement functions such as sharpening, noise reduction, and HDR high dynamic range. Obtaining digital data from specimens has never been easier.
  • Alternatively, you can connect the CMOS camera system via USB or network and control it with the easy-to-use original Labscope application. Since you can connect multiple camera systems to the network, Axiocam 208 color is an ideal solution for digital biology classroom applications and Internet laboratories.
  • In addition, you can choose to use the powerful original imaging software ZEN with Axiocam 208 color.

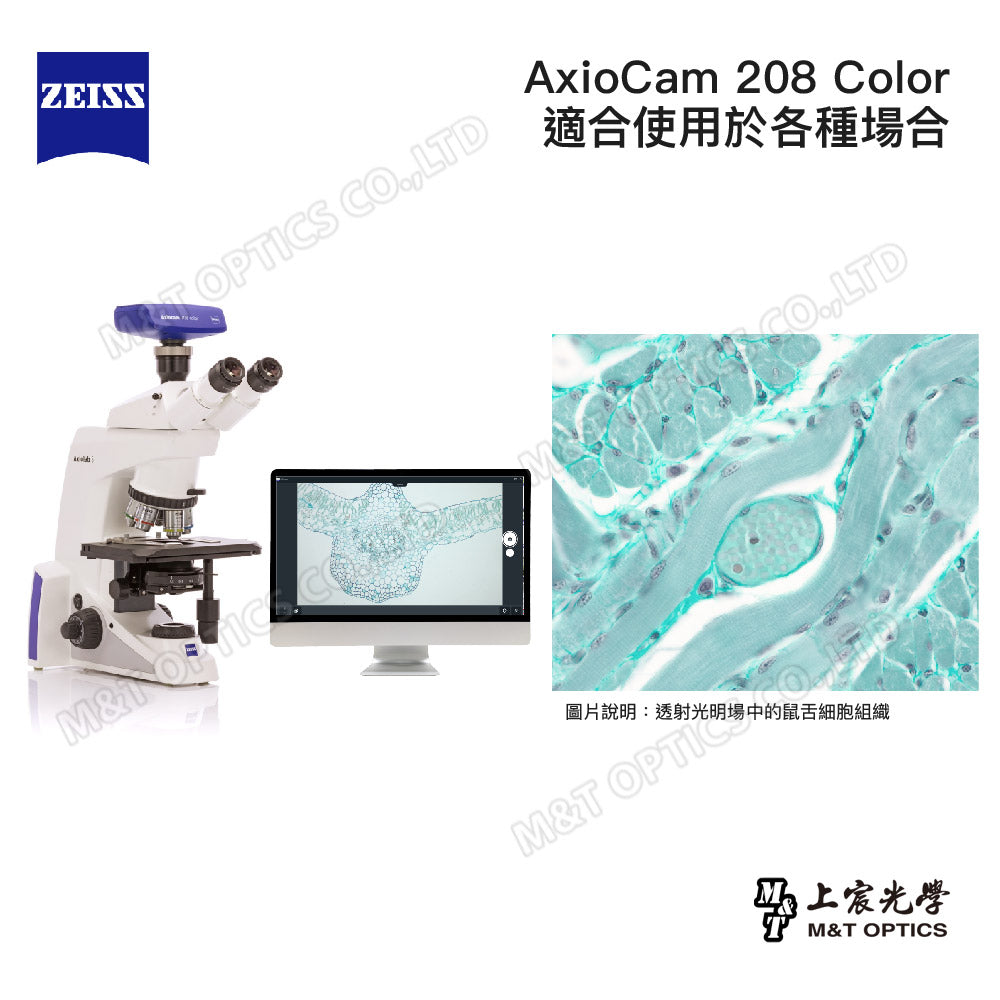

208 Color Suitable occasions for use

  • Microscopes that need to store microscopic images and shooting parameters
  • Education/Research/Distance Learning
  • A large number of microscopic image sampling routines
  • Materials Science Research
  • Quality Confirmation/Quality Control
  • Fast, high-resolution real-time imaging for collective observation

About smart digital imaging information

With the next-generation Zeiss smart microscope, storing digital image information of samples has never been easier. Axiocam 208 color is an 8-megapixel color microscope photography system specially developed for ZEISS smart microscopes. It is suitable for biotechnology industries, education, research units, etc. that often need to store large amounts of microscope digital image information files quickly and support daily applications in all laboratories. Axiocam 208 color

Operators available:

  • Clear, detailed real-time images
  • Accurately identify images with high color fidelity
  • True 4K resolution
  • High pixels still deliver an excellent 30 fps frame rate
  • Automated performance, simple operation
  • Use mouse and keyboard for intuitive screen display and independent operation control without a computer
  • Compatible with Wi-Fi and controlled wirelessly using the Labscope app

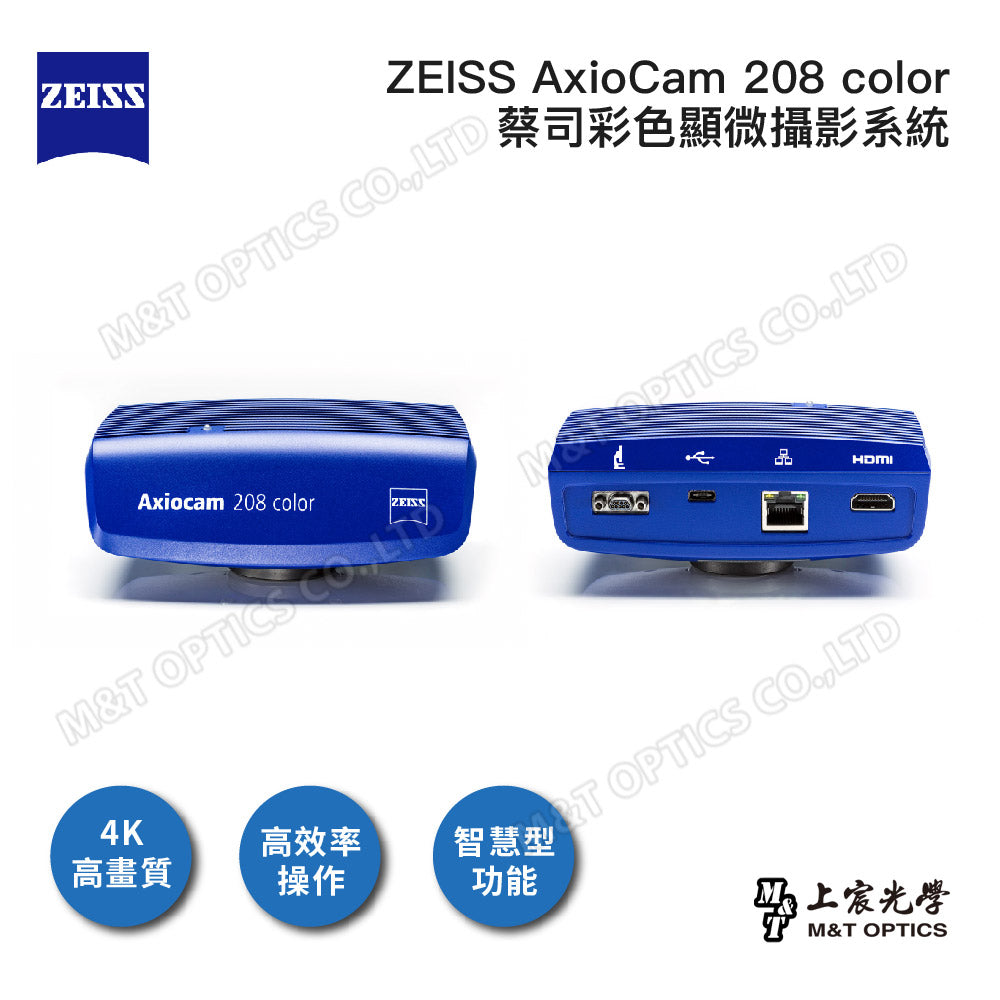

  • Multiple ports: Ethernet, USB 3.0, HDMI

Advantages of Axiocam 208 color

  • Full 4K resolution delivers an outstanding 30 fps frame rate.
  • True image color rendering.
  • Instant image enhancements like sharpening, denoising and HDR.
  • When used in stand-alone mode, the image can be saved on a USB flash drive, or the original Labscope imaging software or the paid professional version of ZEN analysis and control software can be downloaded and used.
  • Simple and easy digital file recording—especially suitable for education, digital classrooms, distance learning and daily image file processing.
  • Use Ethernet or USB 3.0 as the data transfer port. The optional WiFi device works with the free downloadable Labscope APP to control and transmit data wirelessly.
  • Try to record as realistically as possible the image of the sample you see in the eyepiece.
  • You can use a mouse and keyboard without a computer, and control the camera system independently through the screen display intuitively.
  • Connect directly to the screen via HDMI cable to display live images, for searching and focusing and viewing captured images.
  • Use TWAIN drivers to securely transfer image data to TWAIN-compliant 3rd-party software solutions.

Next generation microscope + smart photomicrography system

Increase your productivity and reduce time to results Use AxioCam 208 color with an AxioLab 5 or AxioScope 5 light microscope to experience the full power of a smart microscope. The photography system itself controls the microscope's illumination and provides an instant readout of the microscope's status.

We benefit from:

  • The automatic adjustment of the photographic system enables high color and contrast reproducibility.
  • An integrated system that saves you space and money without the need for an additional computer.
  • Image data integrity because all bit data, including scaling, is automatically stored with your image and can be restored at any time.
  • To get started... just press the Snap button.

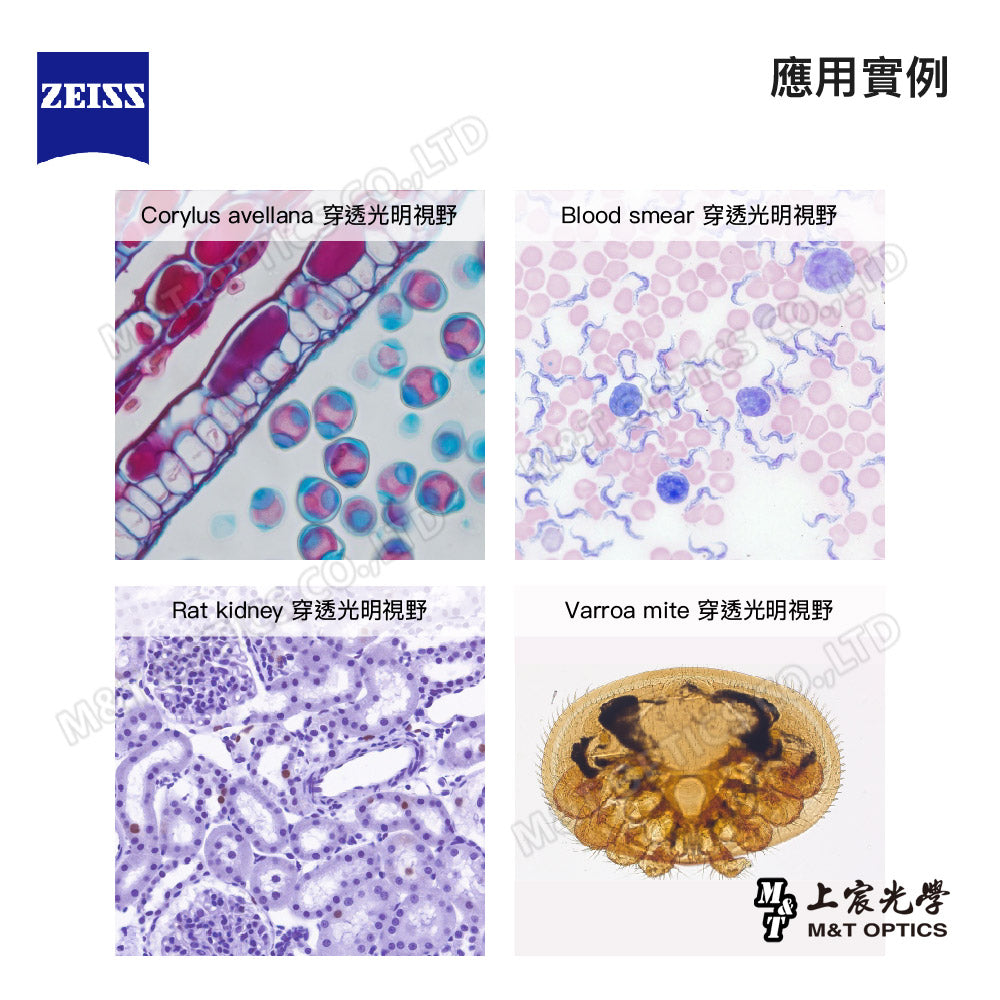

Applications

HDMI independent photography system operation and WiFi wireless remote control

• Suitable for routine laboratory work: such as imaging data recording, quality inspection and certification, etc.

•Integrate monitors, multimedia projectors or multiple tablets for classroom microscope demonstrations

You can also use smart digital microscopes without a computer. The AxioCam microscopy system allows you to view real-time microscope images directly on a monitor using the HDMI port. You can use the remote control to trigger image capture and save the images to an SD memory card inserted into the device.

Alternatively, you can connect the photography system remotely from your tablet via a wired or wireless network.

Like all other AxioCams, the AxioCam 208 can be operated from a computer via a USB port.

Benefits of HDMI independent photography system operation:

  • Display live images directly on a monitor or projector without a computer
  • Wirelessly control photography systems and microscope light sources via tablets
  • Can be connected to the photography system simultaneously from multiple sets of devices
  • The remote connection remote control photography system can be operated using your familiar computer or tablet connection

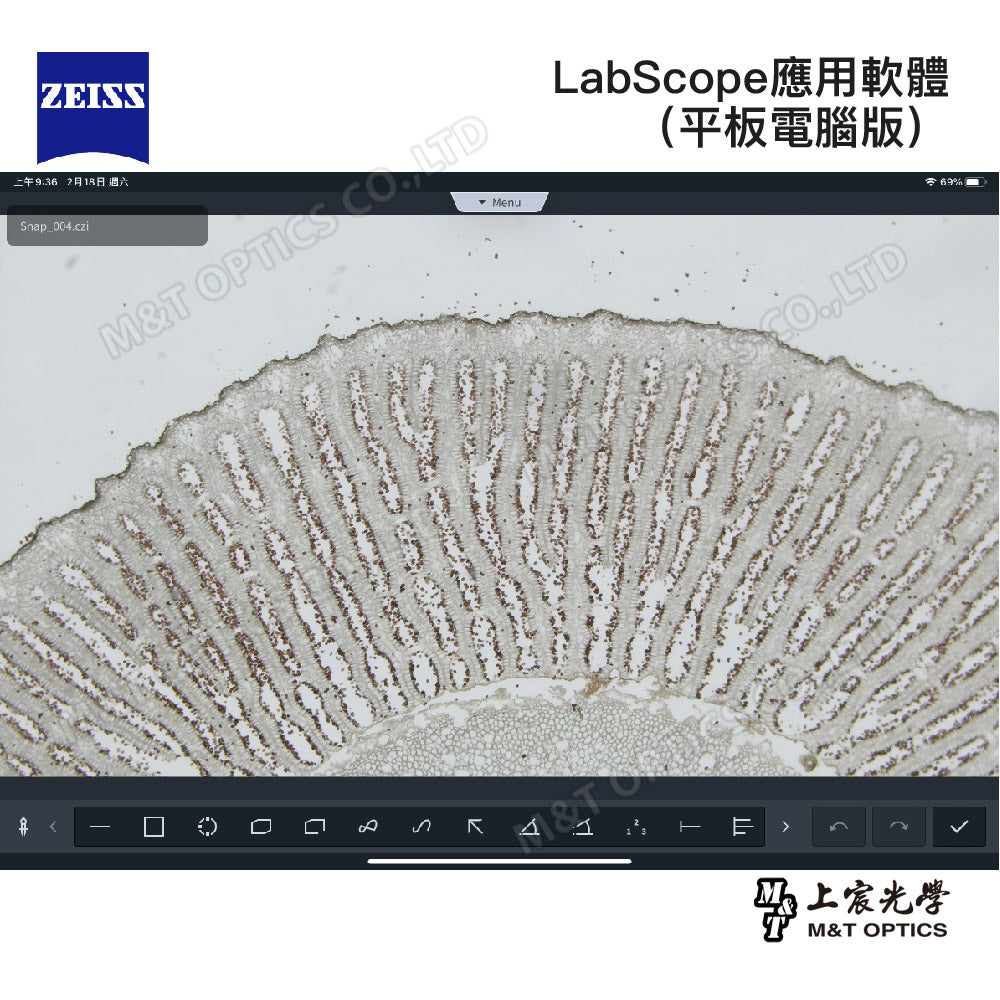

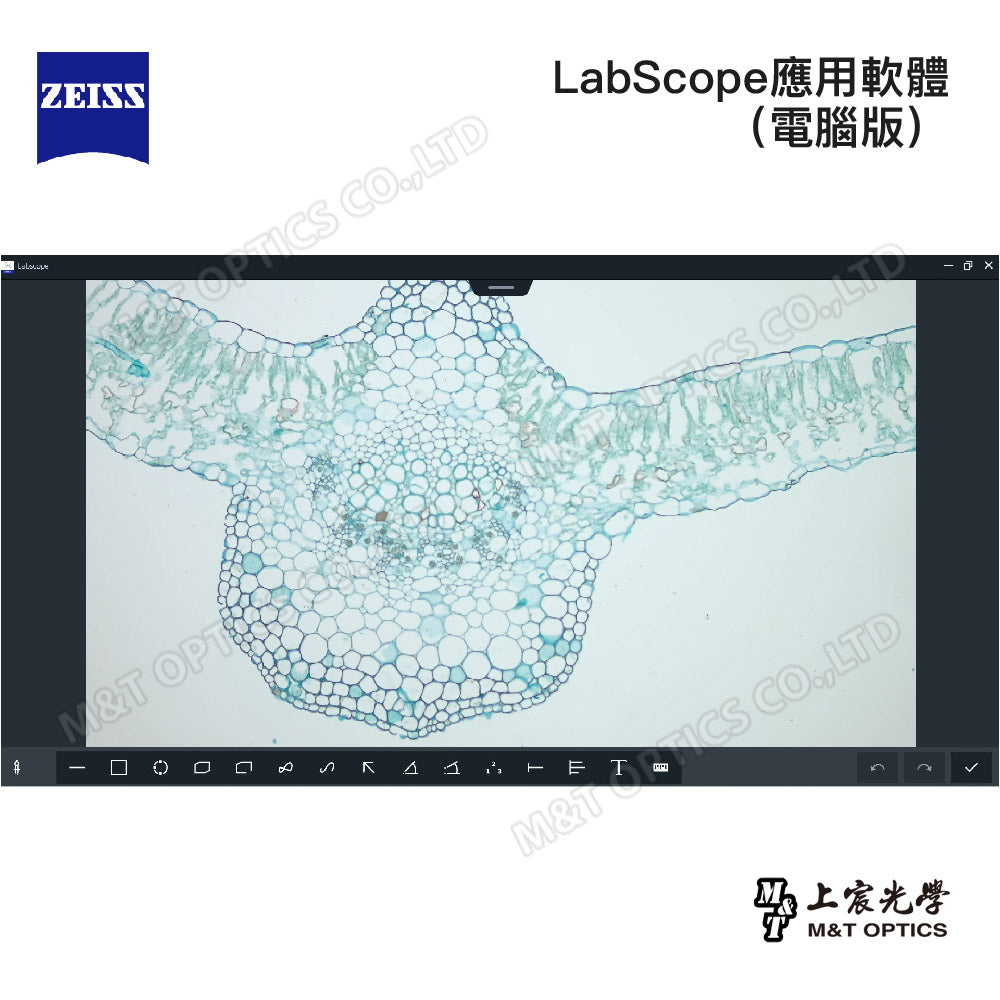

LabScope application software

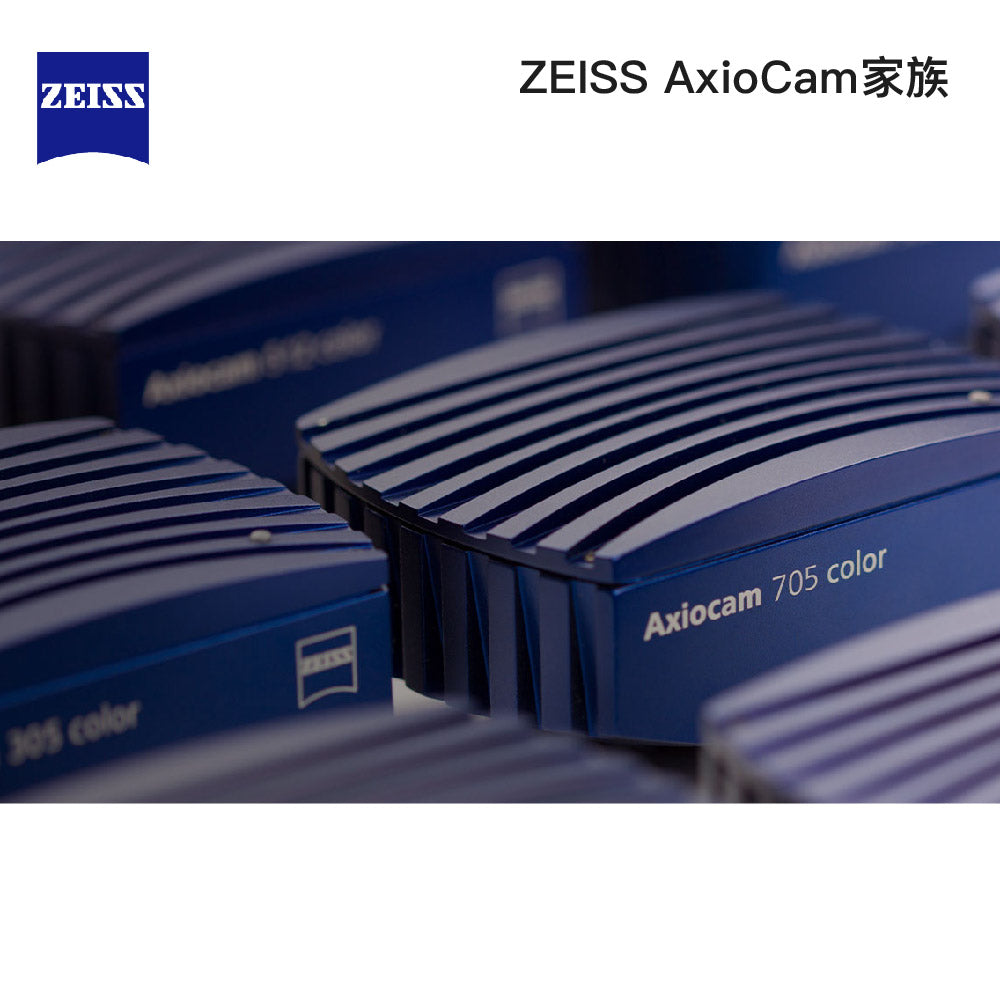

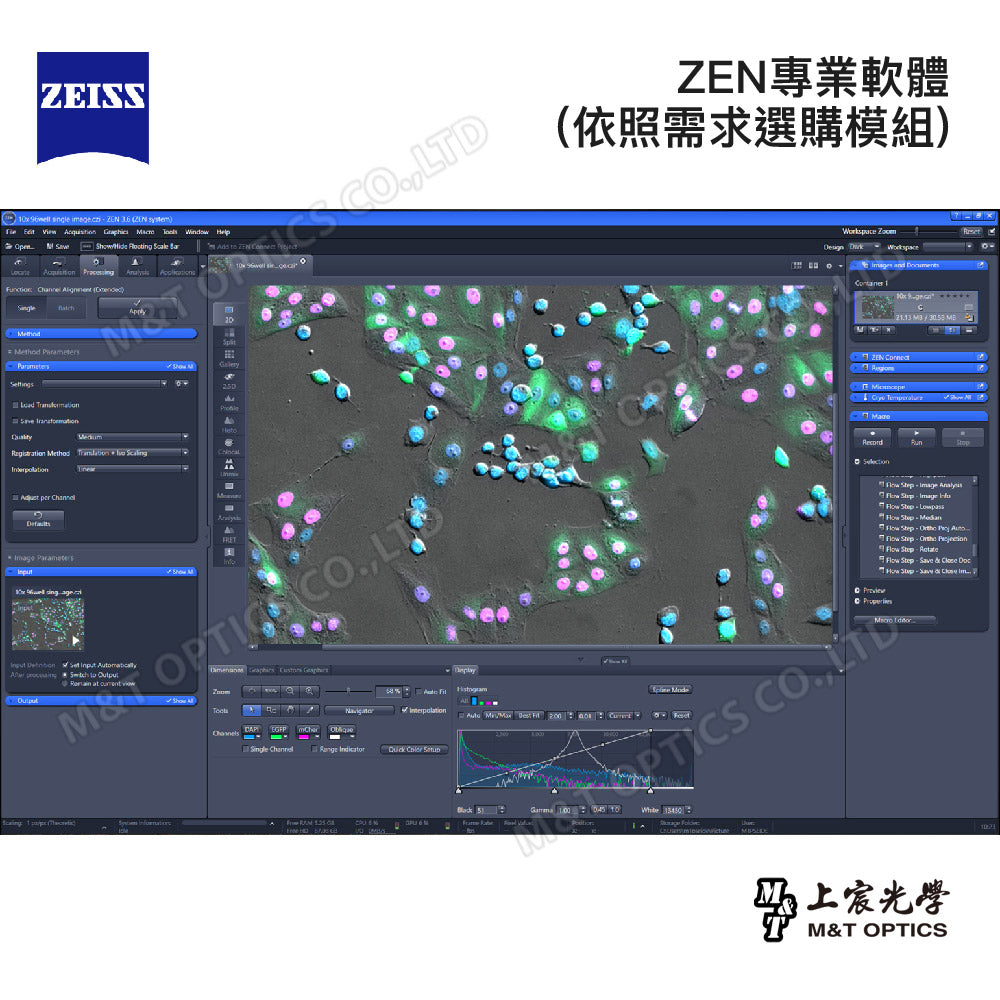

ZEN professional software (optional modules according to needs) ZEISS AxioCam family Product specifications

Photosensitive element
SONY CMOS, rolling shutter
Photosensitive element 7.1 mm × 4.0 mm equivalent to 1/2.1″ diagonal 8.1 mm
Number of pixels 8.3 MP: 3840 (H) × 2160 (V), Ultra HD 4K
Pixel size 1.85 μm × 1.85 μm
Spectral sensitivity About 400nm – 700nm, infrared filter
Sample bit depth 8 bits
Exposure time range 61 μs – 1 s
Analog gain 1× – 22× adjustable
Output interface HDMI, USB 3.0 Type C, Ethernet, Micro-D
Image output frame rate HDMI:30fps / Ethernet :30fps / USB 3.0: Up to 30 fps
power input Power consumption 9W, external power supply included
Matching App ZEN blue, ZEN core, Labscope
