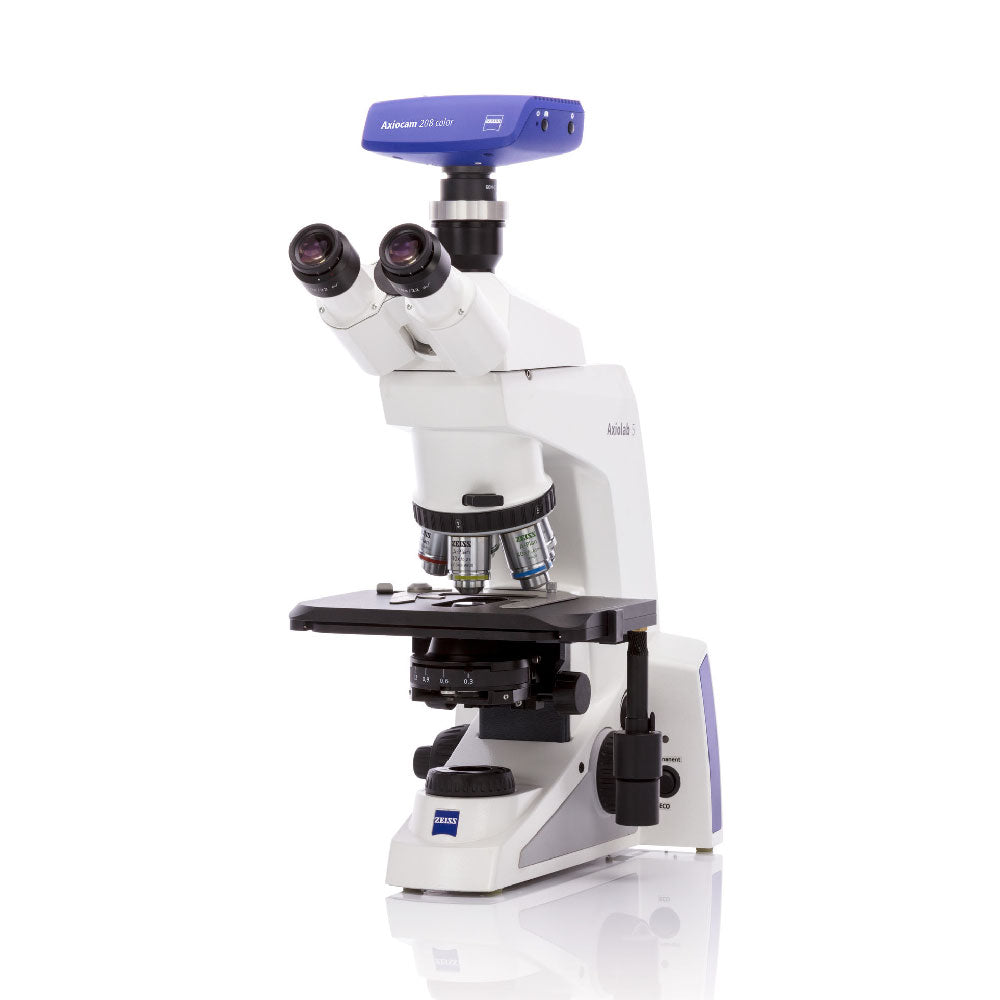

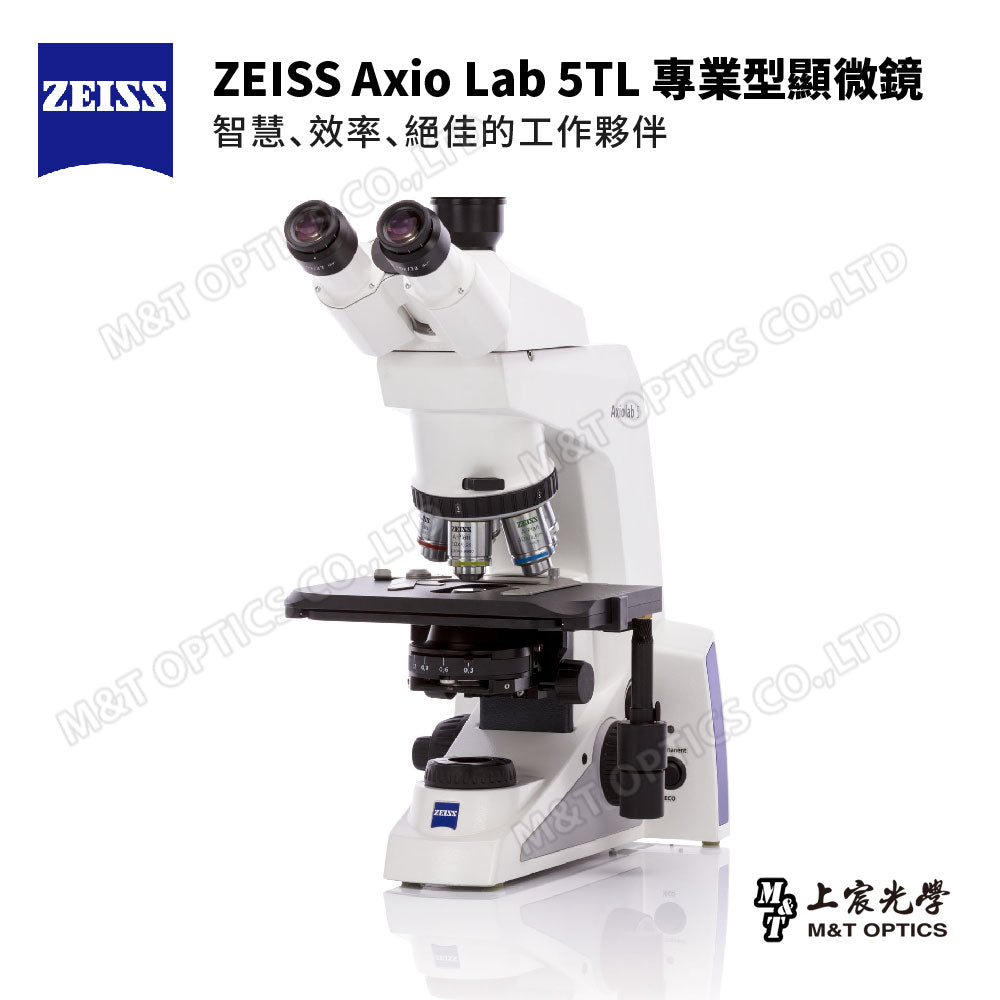

Wisdom, efficiency, and an excellent working partner

Tailor-made for laboratory workers who work with microscopes every day, with its compact appearance and excellent ergonomics, ZEISS Axiolab 5TL maximizes your work efficiency and working space. Control everything in one hand, including lighting, focusing, and stage movement. The bright, reliable, and excellent color-rendering transmitted LED light source, combined with the exquisitely crafted lens, brings you bright and sharp images.

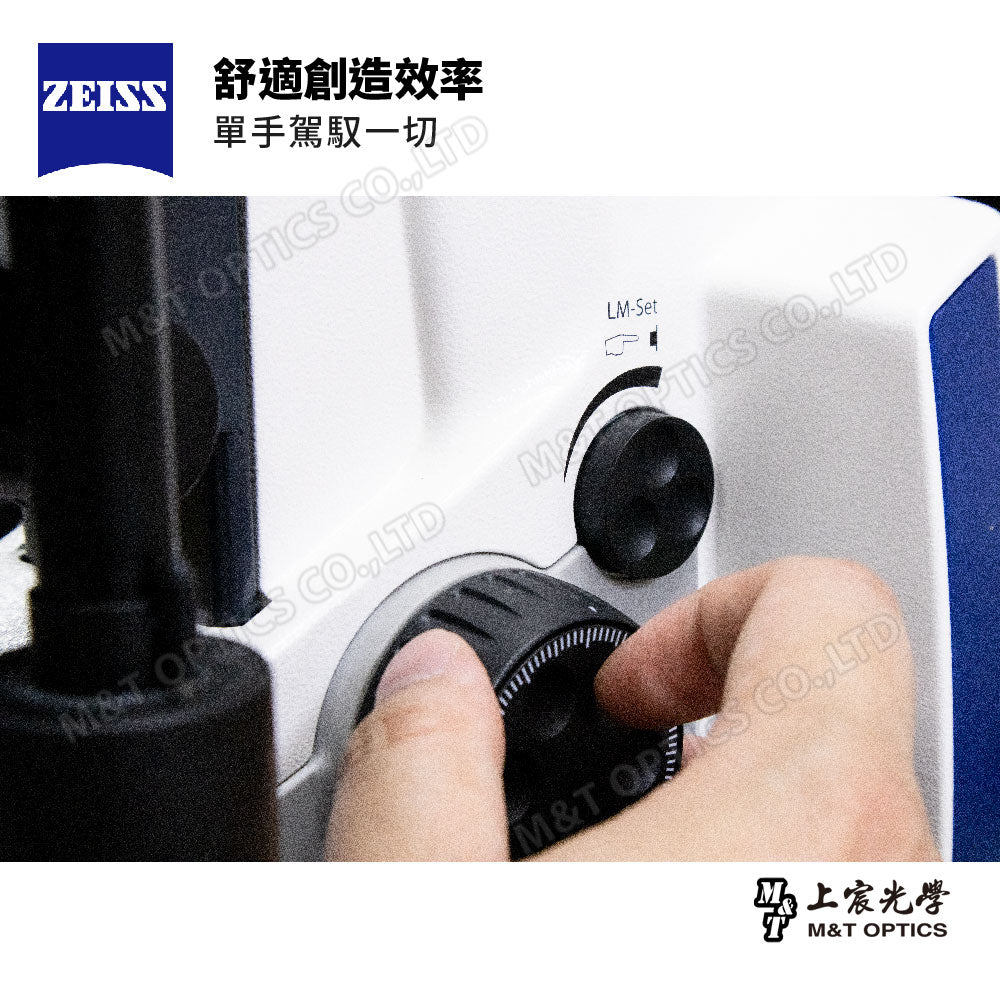

Comfort creates efficiency

All operations can be controlled with one hand, and the ergonomic design optimizes the user experience. The arm fits the table during operation. It is equipped with a large field of view eyepiece and an observation head with adjustable height and eye distance, so that continuous use will not cause fatigue. The stage is equipped with a slide clamp and a micro-movement mechanism, and the knob damping is just right. When moving the stage, it feels smooth and the operation is precise. Zeiss' thoughtful and ingenious design guarantees efficient and comfortable work.

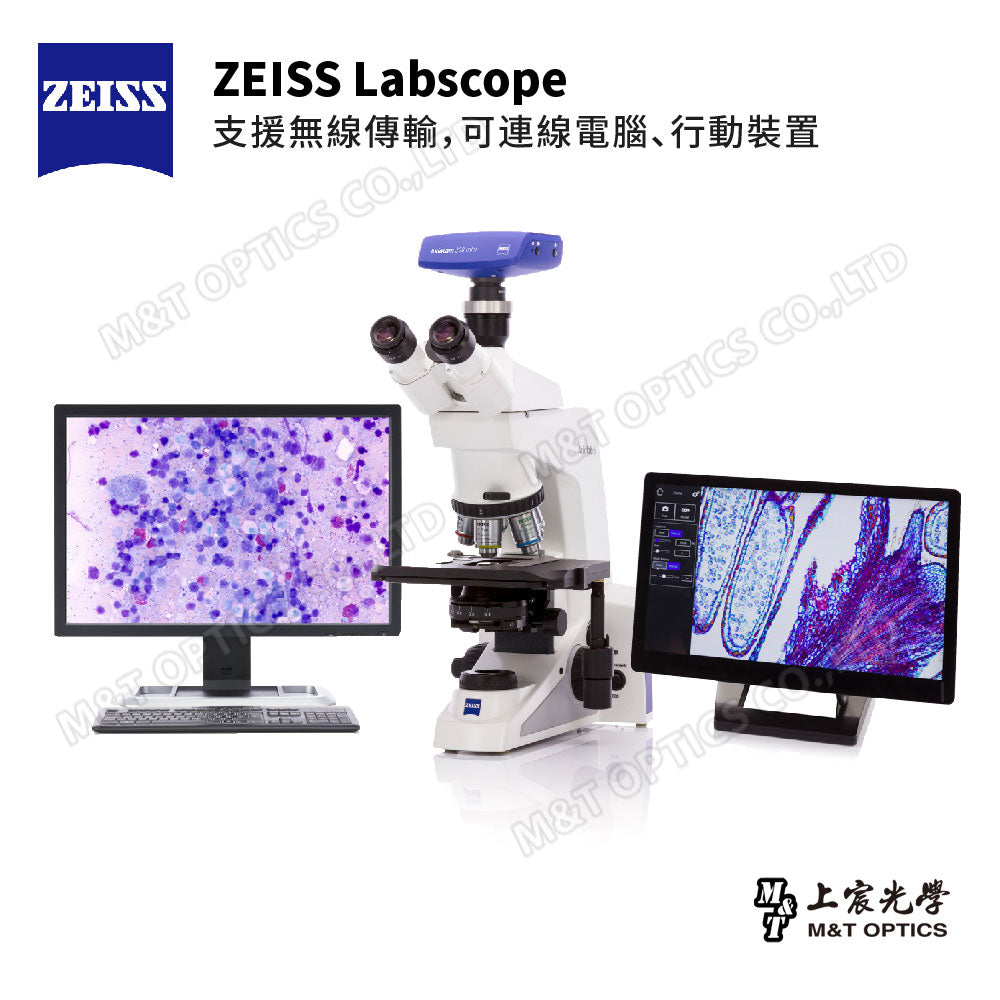

Supports multiple platforms and wireless transmission records

WiFi can connect multiple computers and mobile devices at the same time, making it convenient for teaching, sharing images or backing up data. It can shoot continuously and quickly, and all image files will record complete information, including objective lenses, camera systems, measurement scales, etc. It can be reviewed at any time, and subsequent comparison and calculation of image data can be achieved.

Professional grade objective lens and encoding system

A-Plan professional-grade objective lenses are used, and each objective lens has a specific code so that the microscope can recognize the objective lens. When switching the magnification, the lighting system automatically switches to the last memorized brightness, and the camcorder automatically calculates the magnification and establishes a scale.

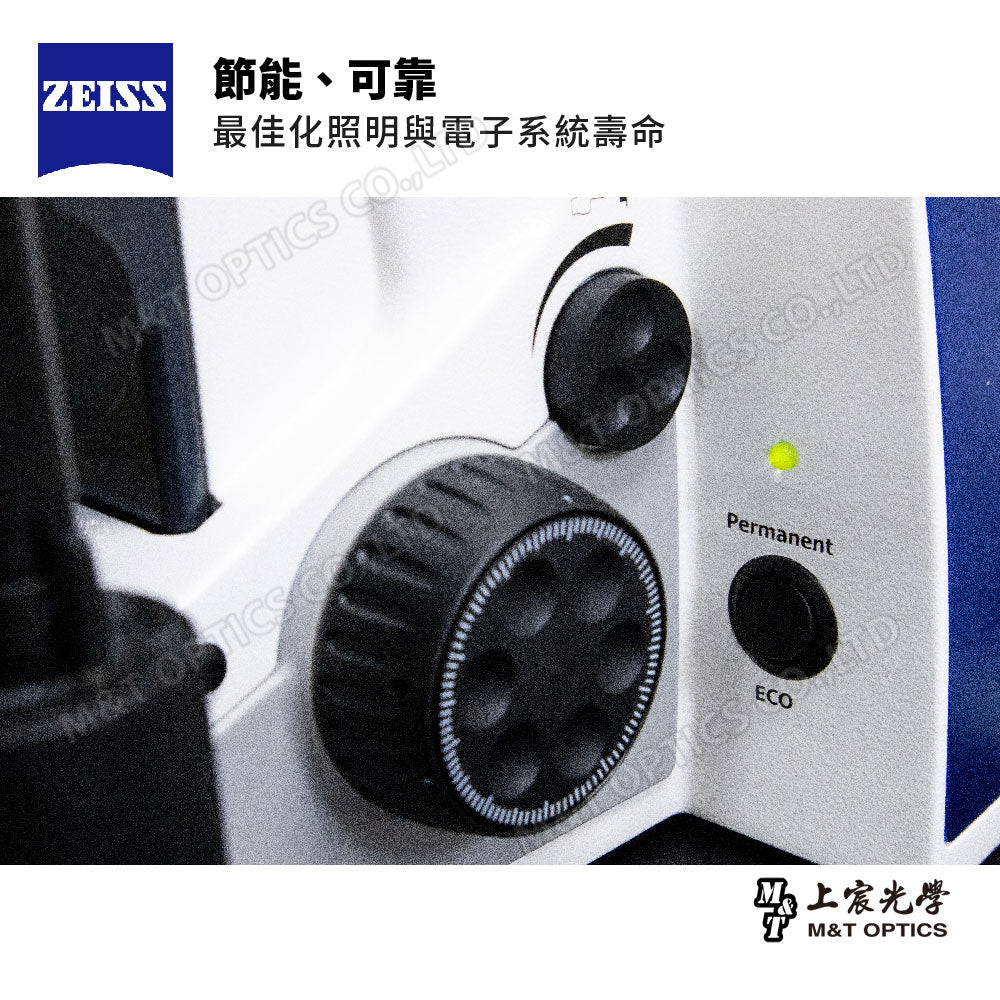

Light source management system

During use, the brightness of the light source can be memorized according to the corresponding nose wheel position, and the memory can be updated immediately by pressing and holding the dimmer button. It is also equipped with an energy-saving mode, which automatically enters standby after 15 minutes of stopping use of the microscope, saving power and optimizing the life of the lighting and electronic systems. Compared with traditional halogen lamps, LED light sources have a longer service life and eliminate the heat generated by the light source.

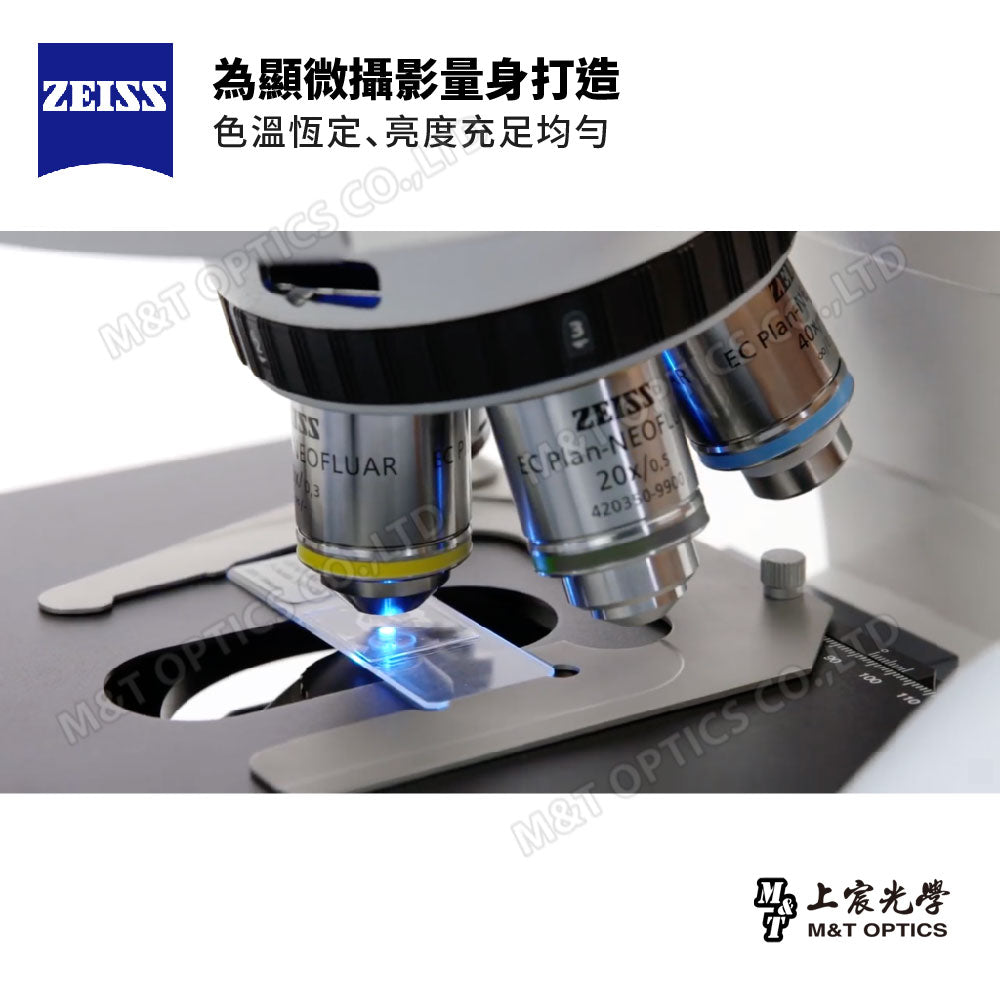

Illumination system tailor-made for photomicrography

Penetrating LED light source illumination provides sufficient and uniform brightness at every magnification, and has excellent color rendering, faithfully presenting sample colors. The photosensitive element maintains parfocus with the naked eye, so there is no need to refocus when photographing samples. Present the most perfect, visual-like images on your camcorder.

Next generation smart microscope

Different from traditional laboratories, Zeiss smart microscopes extremely simplify laboratory workflow. After discovering the target, just press the button to record. Even without an external screen, you can work smoothly and record observations.

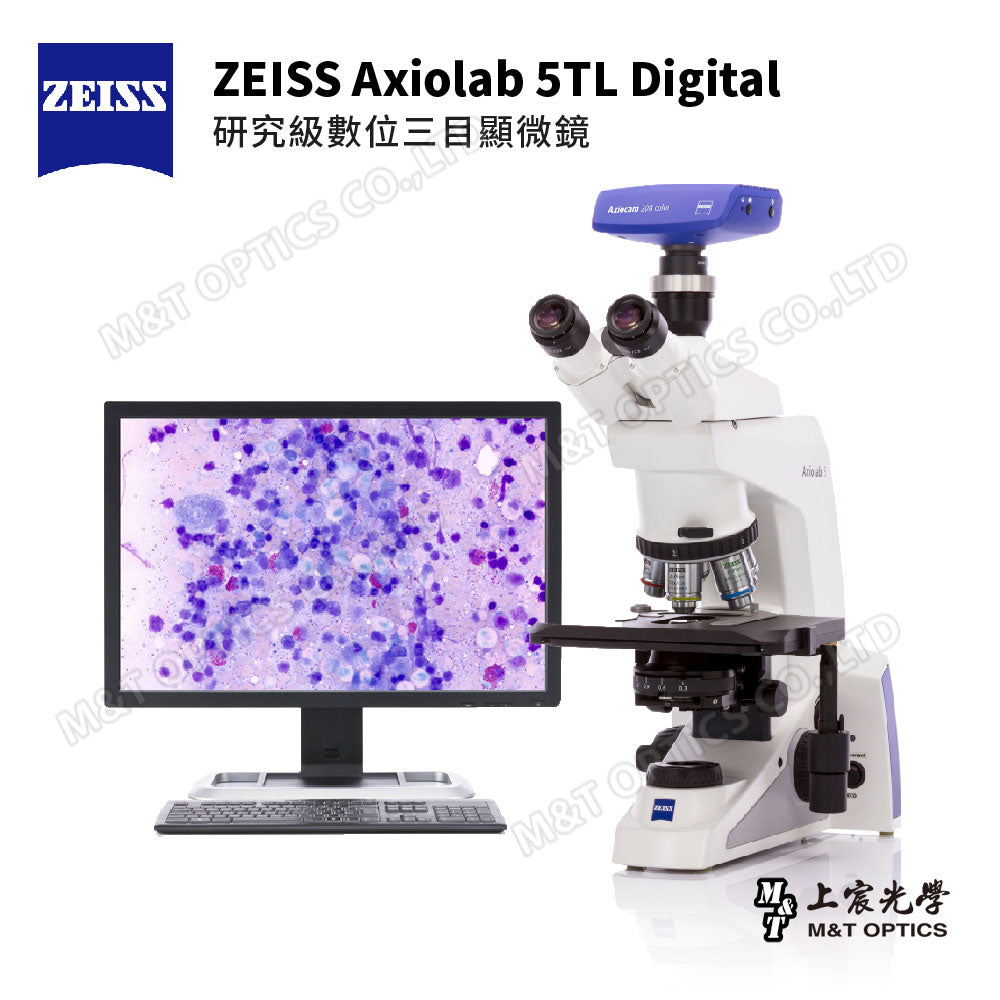

Various digital recording functions and embedded camera system

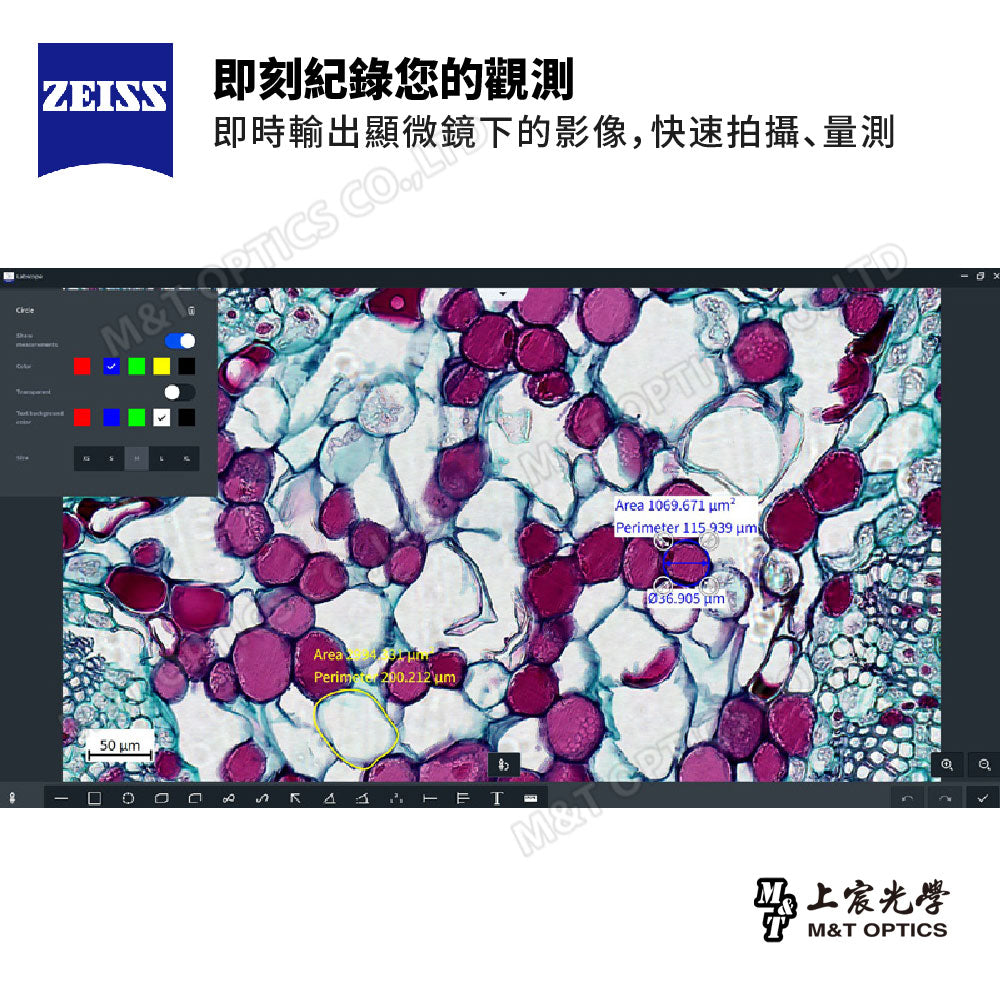

ZEISS Axiolab 5TL Digital can instantly output images under the microscope for fast photography, video recording and image processing. The operation interface has built-in scale, measurement and up to 15 kinds of labeling functions, which are fully prepared for the subsequent scientific analysis. You can also use a variety of different preset templates to quickly compile observation reports for easy sharing and recording, and even You don't need a computer, you just need to use an HDMI cable to connect the screen, and you can use your mouse to directly control the system built into the camcorder to take photos and videos, and record them on a flash drive.

Split windows for image comparison

The image file and the real-time microscope screen can be opened at the same time, and the two screens can be displayed at the same time to compare samples with each other and facilitate teaching demonstrations. When shooting, you can also capture the images in the split screen, output the observation report and annotate it.

AI artificial intelligence cell counting and coverage calculation

The AI ​​artificial intelligence cell counting and real-time calculation and analysis of plate cell coverage, which have been trained by Zeiss global database, have achieved ultra-fast computing power with just one click. Not only is the accuracy extremely high, but the repeatability has also been verified by a large number of global professionals. Tested by users, it improves work efficiency and reduces the chance of personnel making mistakes when performing repetitive work.

Virtual laser pen function

The virtual laser pen function can be activated, and the light point of the virtual laser pen can be projected onto a large screen or other connected device with a finger or cursor on the connected device, which is convenient for teaching and guidance, especially when explaining small structures and Interesting details for the occasion.

Tablet Micrograph-Augmented Reality Imaging Application

The auxiliary function of AR augmented reality technology is introduced, combined with the rear lens image of the tablet, allowing you to instantly compare the microscopic image being taken with a book or chart, or overlay it on a white paper to draw your own Observe the sample structure.

ZEISS Axiolab 5TL Digital Parts Description

Observation sample sharing

Red Bone Marrow - Penetrating Light Field Observation

Observation sample sharing

Blood smear - viewed through light field

Observation sample sharing

Rat Retina - Observation Through Bright Field

Observation sample sharing

Rat Tongue – Observation through light field of view

Observation sample sharing

Blood Vessels - Observation Through Light Field

ZEISS Axiolab 5TL Digital Microscope Dimensional Drawing

ZEISS Axio Lab 5 series microscope configuration diagram

Product specifications

brand	ZEISS
Three-eye viewing tube	pour Tilt 30 degrees to adjust the interpupillary distance and observation height horizontally, and the light split is 50:50
penetrating light source	LED Kohler modular
eyepiece	W PL 10x22 Br. Field of view 22mm
objective lens	APlan M27 professional grade objective lens optional installation
condenser	NA.0.9/1.25 H
nose chakra	M27 five-hole type, built-in encoder
Integrated mirror body	Built-in camera shooting button, camera control and power supply connection port, light source management system, objective lens synchronization encoding system
microphotography system	Additional purchase: ZEISS AxioCam 208C original color microscope camera
Software integration	The Zeiss original Labscope APP supports iPad, and there is also a computer application software that can control the microscope light source and memorize the objective lens ratio and size and perform measurements through the original camera.
