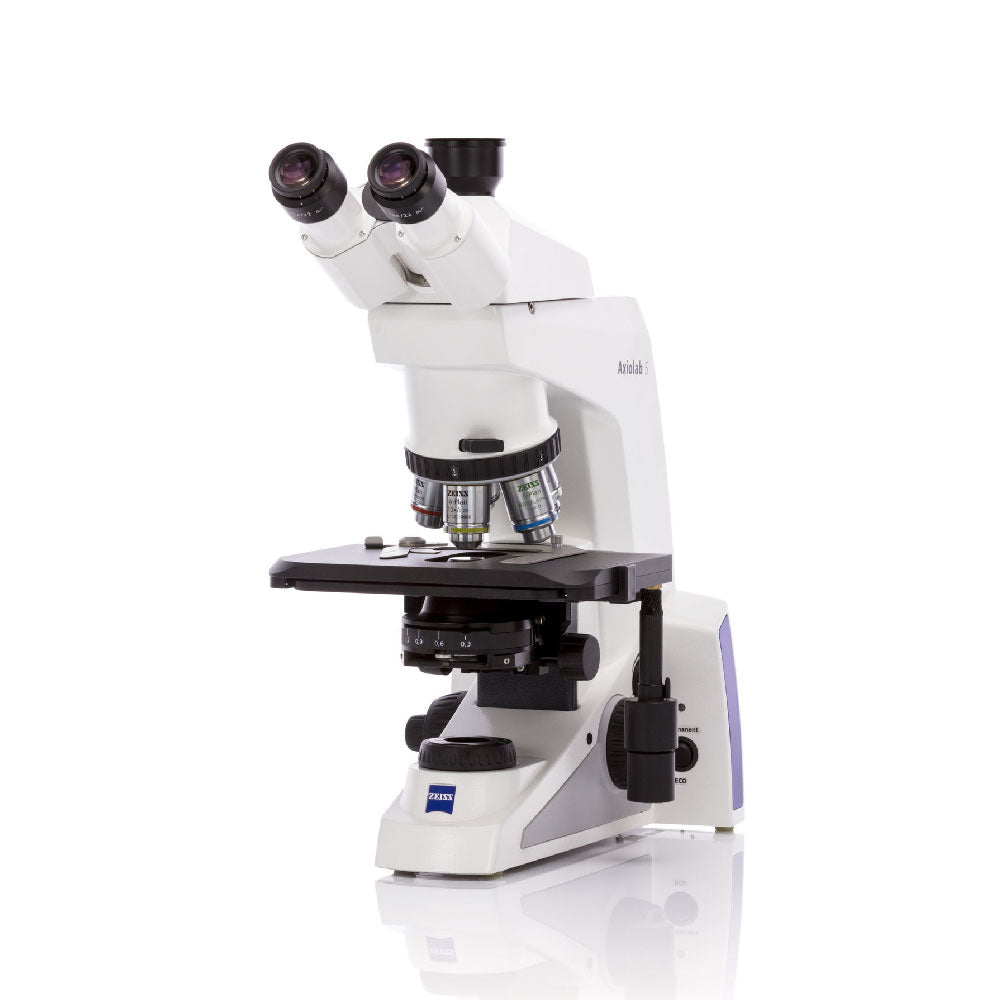

Wisdom, efficiency, and an excellent working partner

Tailor-made for laboratory workers who work with microscopes every day, with its compact appearance and excellent ergonomics, ZEISS Axiolab 5TL maximizes your work efficiency and working space. Control everything in one hand, including lighting, focusing, and stage movement. The bright, reliable, and excellent color-rendering transmitted LED light source, combined with the exquisitely crafted lens, brings you bright and sharp images.

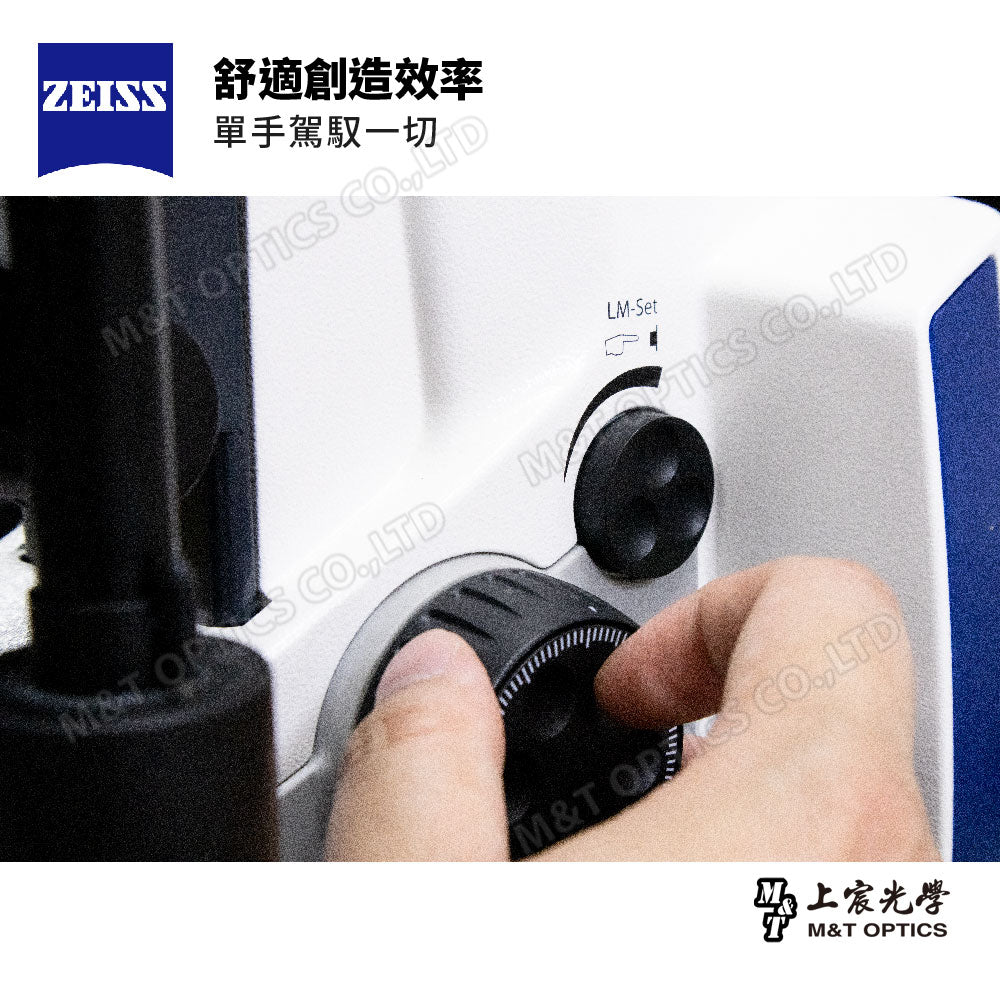

Comfort creates efficiency

All operations can be controlled with one hand, and the ergonomic design optimizes the user experience. The arm fits the table during operation. It is equipped with a large field of view eyepiece and an observation head with adjustable height and eye distance, so that continuous use will not cause fatigue. The stage is equipped with a slide clamp and a micro-movement mechanism, and the knob damping is just right. When moving the stage, it feels smooth and the operation is precise. Zeiss' thoughtful and ingenious design guarantees your efficient and comfortable operation.

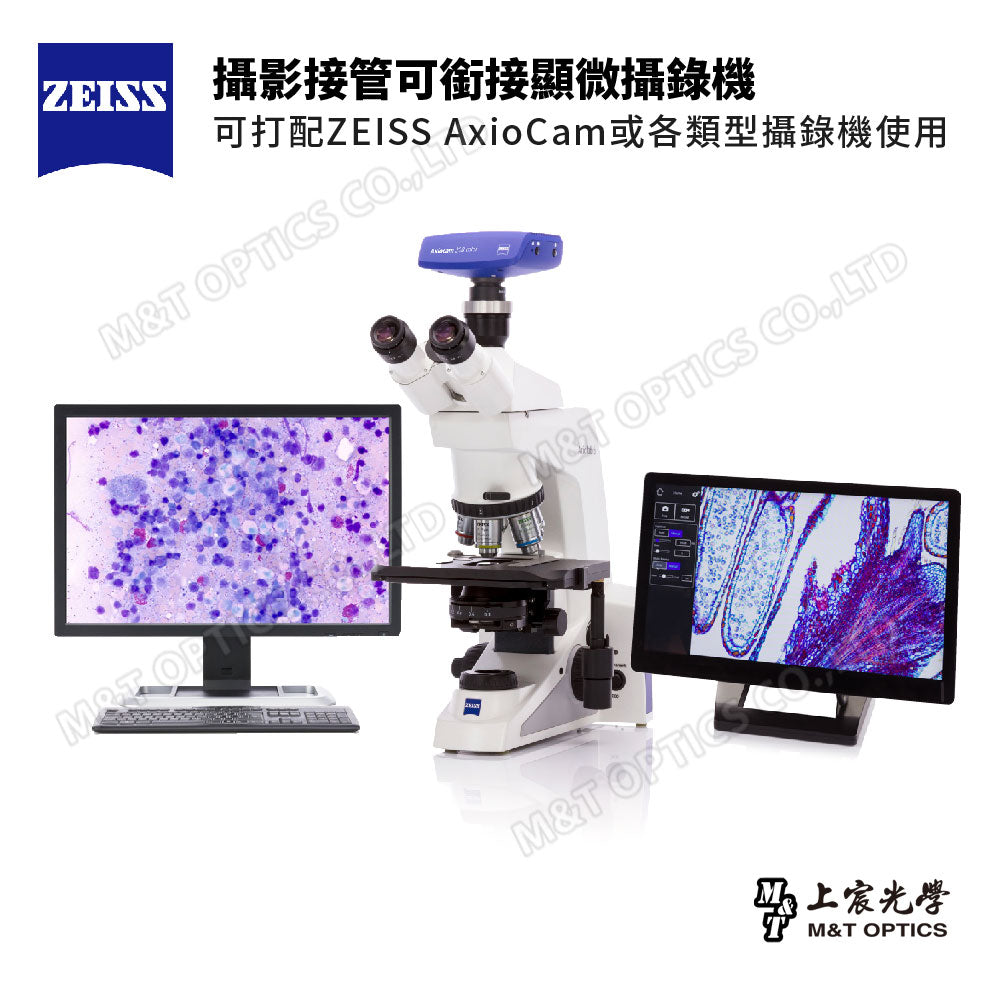

Trinocular observation head

The top of the observation head is equipped with a photography connection, which is suitable for various types of photomicroscopes and video recorders. Paired with the Zeiss 208 camcorder, you can record with one click, automatically calculate the magnification, operate without a computer, and optimize space applications.

Purchase a microscope camera

Click here to enter the " microscopic camcorder classified store " and choose a suitable camcorder model according to your personal needs. If you need more detailed explanation or make an appointment for testing, please call or email Shangchen Optics. Contact number: 02-2521-1972, customer service email: cs@mtoptics.com

Professional grade objective lens and encoding system

A-Plan professional-grade objective lenses are used, and each objective lens has a specific code so that the microscope can recognize the objective lens. When switching the magnification, the lighting system automatically switches to the last memorized brightness, and the camcorder automatically calculates the magnification and establishes a scale.

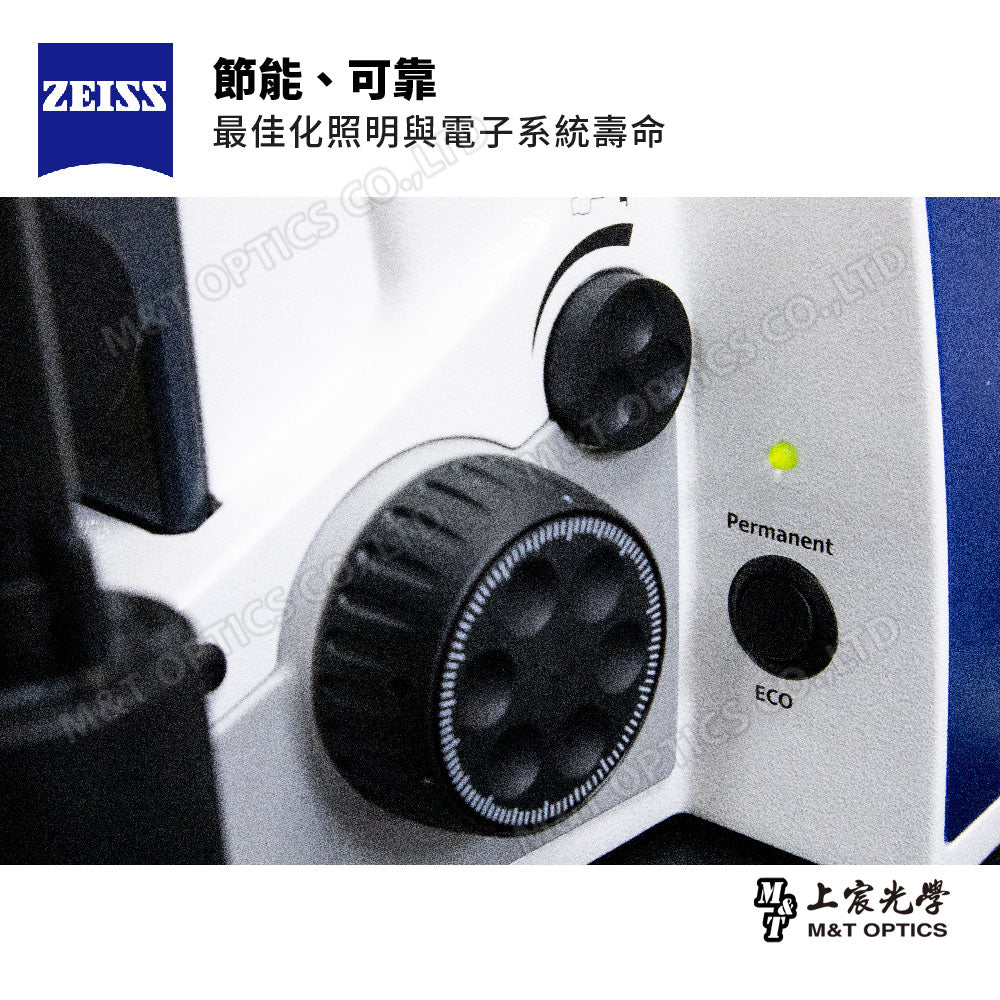

Light source management system

During use, the brightness of the light source can be memorized according to the corresponding nose wheel position, and the memory can be updated immediately by pressing and holding the dimmer button. It is also equipped with an energy-saving mode, which automatically enters standby after 15 minutes of stopping use of the microscope, saving power and optimizing the life of the lighting and electronic systems. Compared with traditional halogen lamps, LED light sources have a longer service life and eliminate the heat generated by the light source.

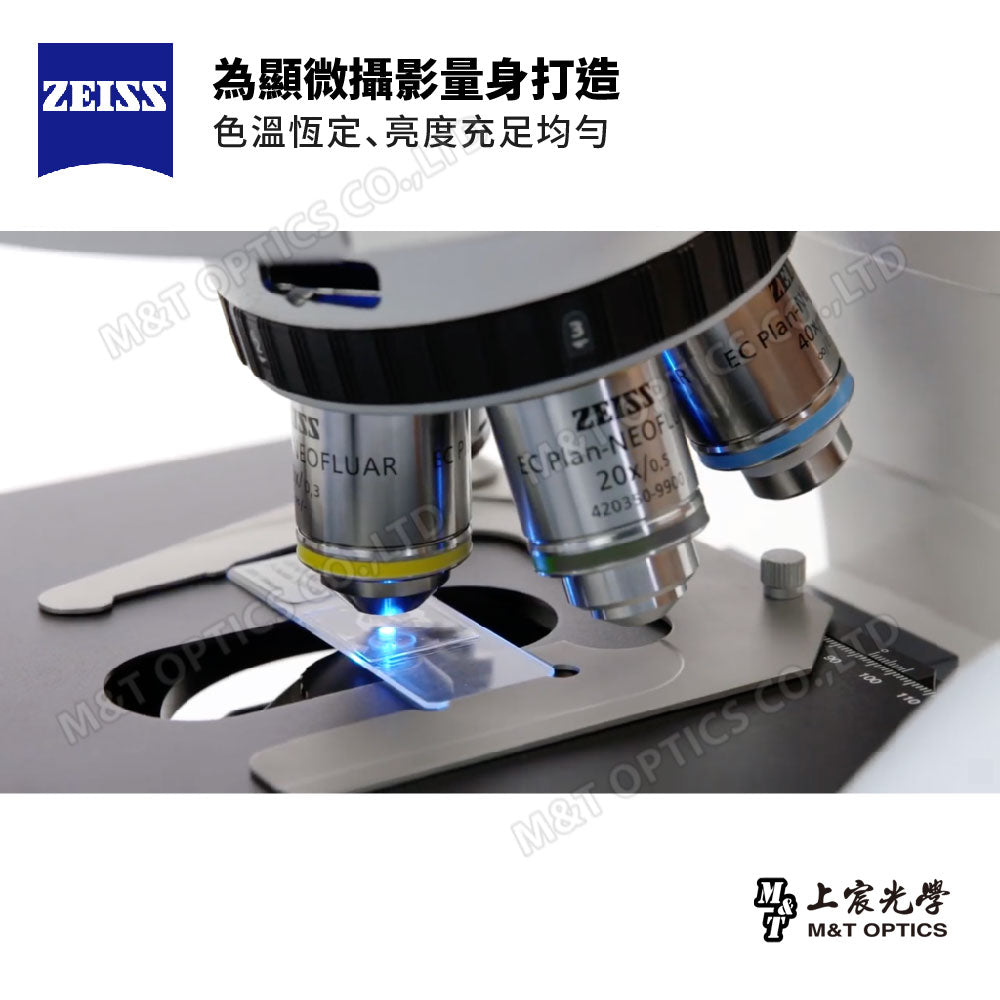

Illumination system tailor-made for photomicrography

Penetrating LED light source illumination provides sufficient and uniform brightness at every magnification, and has excellent color rendering, faithfully presenting sample colors. The photosensitive element maintains parfocus with the naked eye, so there is no need to refocus when photographing samples. Present the most perfect, visual-like images on your camcorder.

ZEISS Axiolab 5TL Parts Description

Observation sample sharing

Red Bone Marrow - Penetrating Light Field Observation

Observation sample sharing

Blood smear - viewed through light field

Observation sample sharing

Rat Retina - Observation Through Bright Field

Observation sample sharing

Rat Tongue - Observation through light field of view

Observation sample sharing

Blood Vessels - Observation Through Light Field

ZEISS Axio Lab 5TL Microscope Dimensional Drawing

ZEISS Axio Lab 5 series microscope configuration diagram

Product specifications

brand	ZEISS
Three-eye viewing tube	pour Tilt 30 degrees to adjust the interpupillary distance and observation height horizontally, and the light split is 50:50
penetrating light source	LED Kohler modular
eyepiece	W PL 10x22 Br. Field of view 22mm and above
objective lens	Aplan 100x／1.25,WD0.22mm
condenser	NA.0.9/1.25 H
nose chakra	M27 five-hole type, built-in encoder
Integrated mirror body	Built-in camera shooting button, camera control and power supply connection port, light source management system, objective lens synchronization encoding system
microphotography system	Additional purchase: ZEISS AxioCam 208C original color microscope camera
Software integration	The Zeiss original Labscope APP supports iPad, and there is also a computer application software that can control the microscope light source and memorize the objective lens ratio and size and perform measurements through the original camera.
