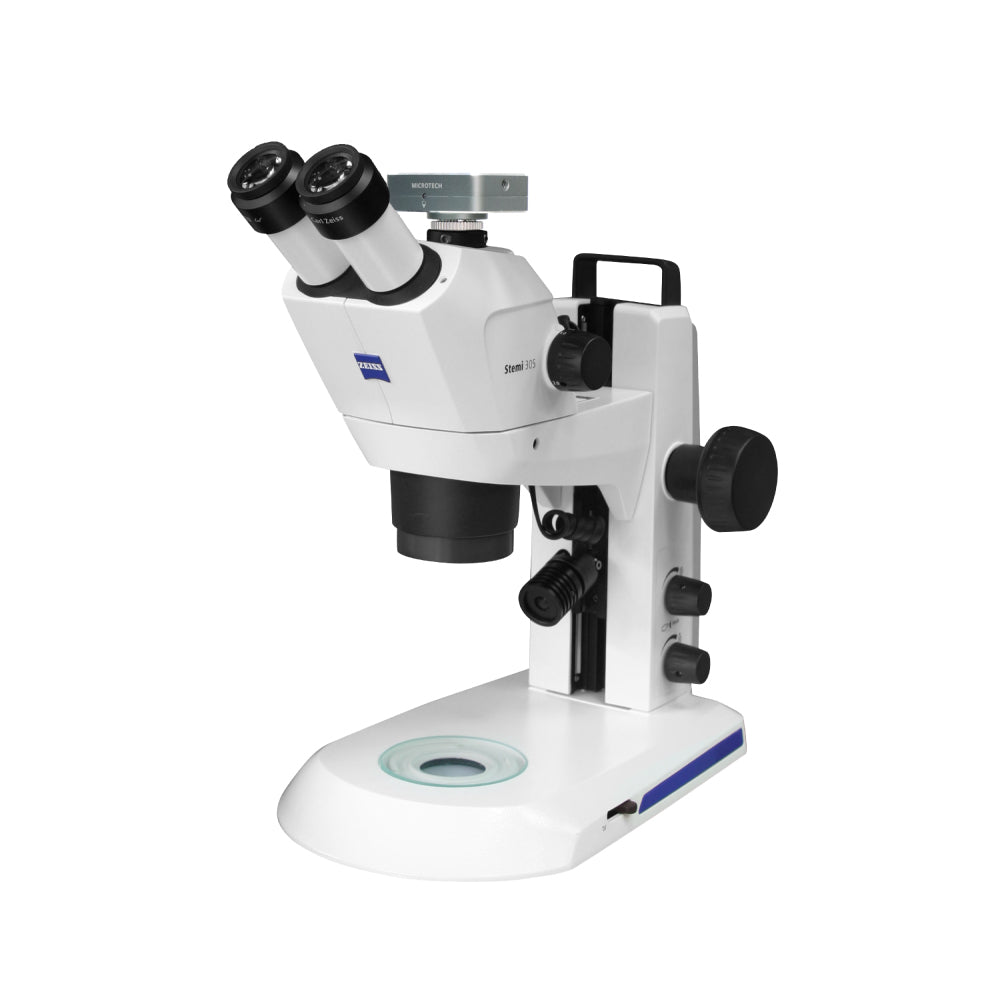

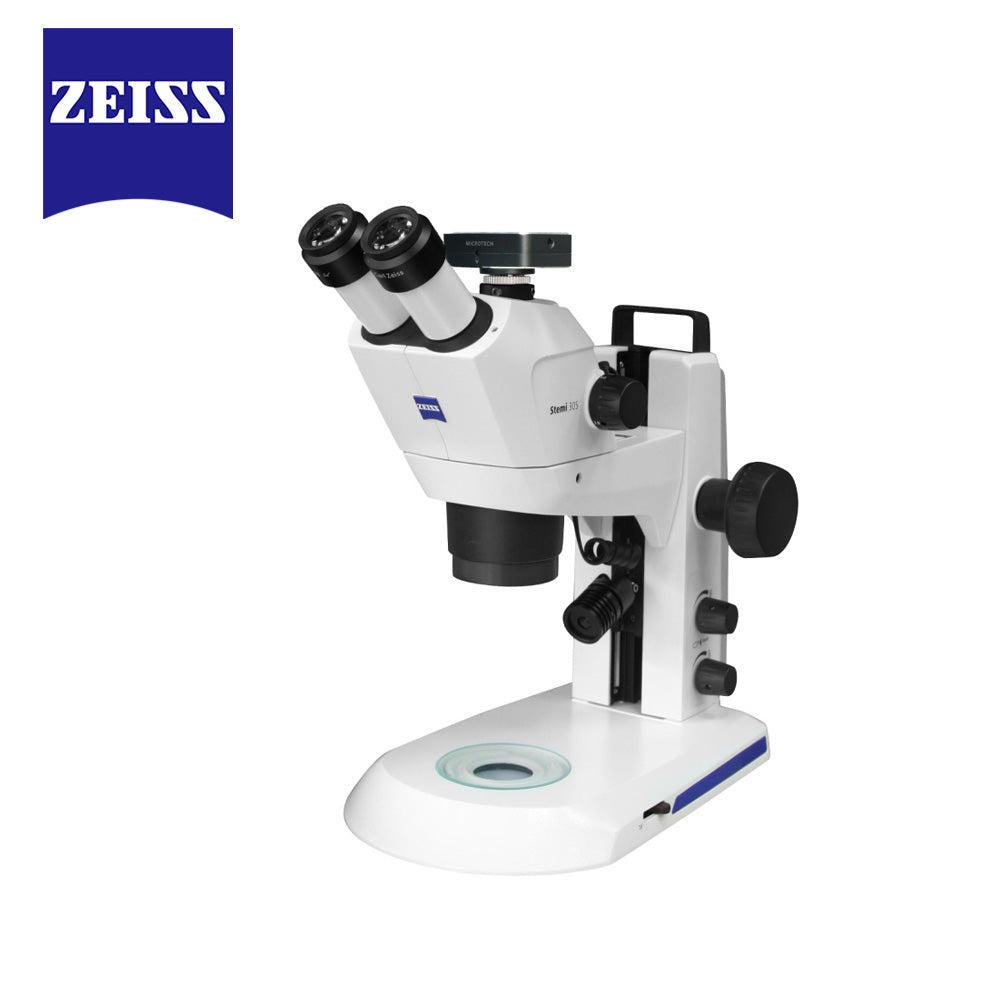

ZEISS STEMI 305T K EDU WiFi Trinocular Stereo/Dissecting Microscope (Wireless Type) - Product of Zeiss Taiwan Company
Order number
2230700136+2244500023
Couldn't load pickup availability
Product specifications
| Microscope body | |
| form | Greenough design, binocular stereo microscope |
| Visual tilt angle | The observation tube is tilted 45 degrees, and the distance between the eyes can be adjusted from 55-75mm. |
| Zoom ratio | Zoom ratio 5:1, without auxiliary lens and 10x eyepiece, the standard total magnification range is 8x to 40x (inclusive) |
| Objective lens magnification | 0.8x, 1x, 2x, 3x, 4x (with freeze-frame positioning assistance) |
| working distance | 110mm or more (without auxiliary mirror) |
| Eyepiece form | Binocular type, a pair of 10x eyepieces, super wide field of view 23mm, the diopter of both eyes can be adjusted independently on the eyepieces |
| Vertical down-light LED light | There is a built-in vertical down-emission LED light source at the objective lens end, and the power supply can be directly connected to the original base for dimming, so that fine reflective surfaces can be observed. |
| EDU focusing base | |
| light source | LED upper and lower independent light sources, built-in upper and lower light source dimmers, are installed on the side of the square column below the focus lifter. The dimmer can be used as a power switch, and can also adjust the brightness of the upper, lower, or both upper and lower light sources. |
| Light source adjustment | The side-reflective light source is equipped with a single projection as standard or an optional double coil tube. The lamp holder is fixed on the front of the machine column and can slide up and down with a slide rail, and the light guide angle can be adjusted. |
| Light source standard | Standard single-tube side projection light source, adjustable focusing or astigmatism |
| LED color temperature | At least 5600K, lifespan at least 25,000 hours, brightness will not decay |
| Countertop size | D310mm x W200mm x H35mm |
| work surface | D195mm x W160mm |
| Filter or polarizer | The base can place a 45mm filter or polarizer (optional) |
| penetrating light | Switchable between bright field and dark field functions (standard configuration) |
| power supply | Integrated upper and lower light source power supplies, eliminating the need for external power supplies |
| Camcorder specifications |
|
| Image quality | 8,000,000 pixels |
| Photosensitive element size | Photosensitive element 1/1.8" |
| output method | Can be connected to mobile phones, tablets and computers, and can switch USB transmission |
| System compatibility | Supports Apple iOS and Android dual systems |
| photography | Video microscopic images can be taken |
| Measurement | Scale and dimensions can be marked (MicroCam V5 software required) |
