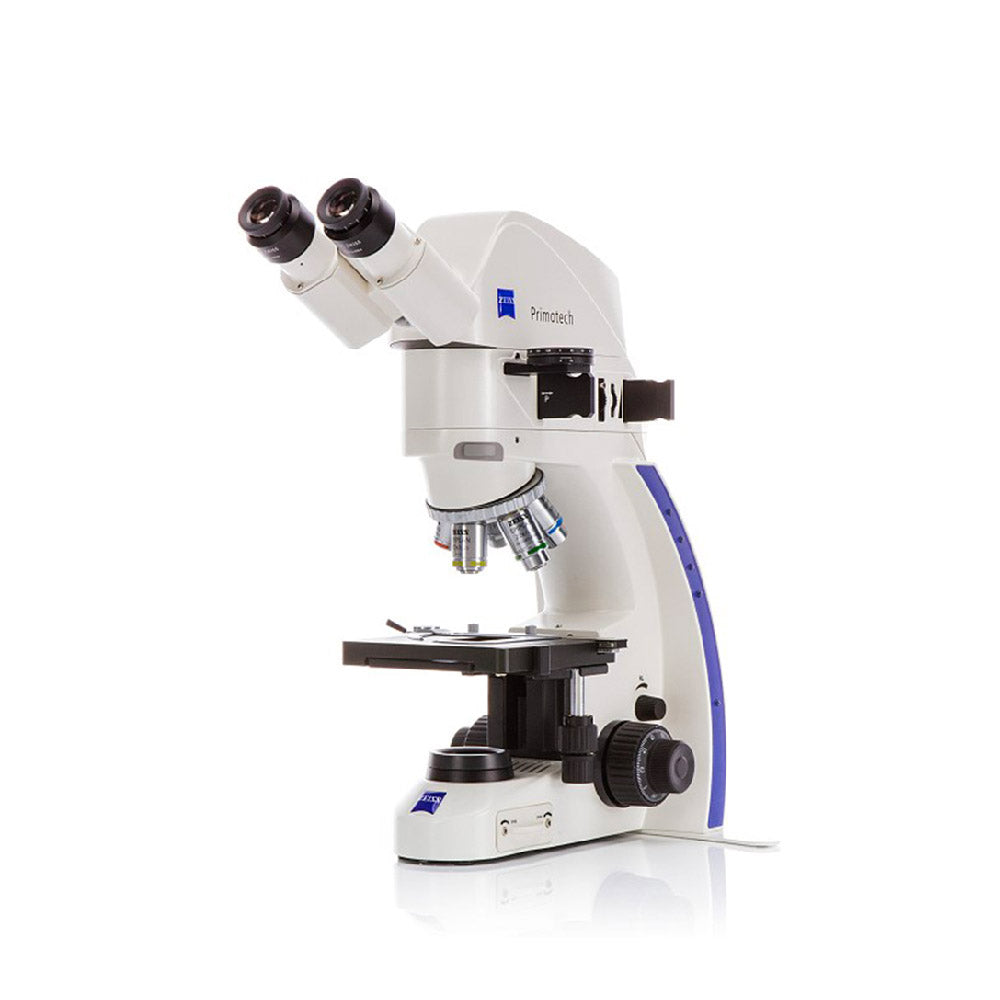

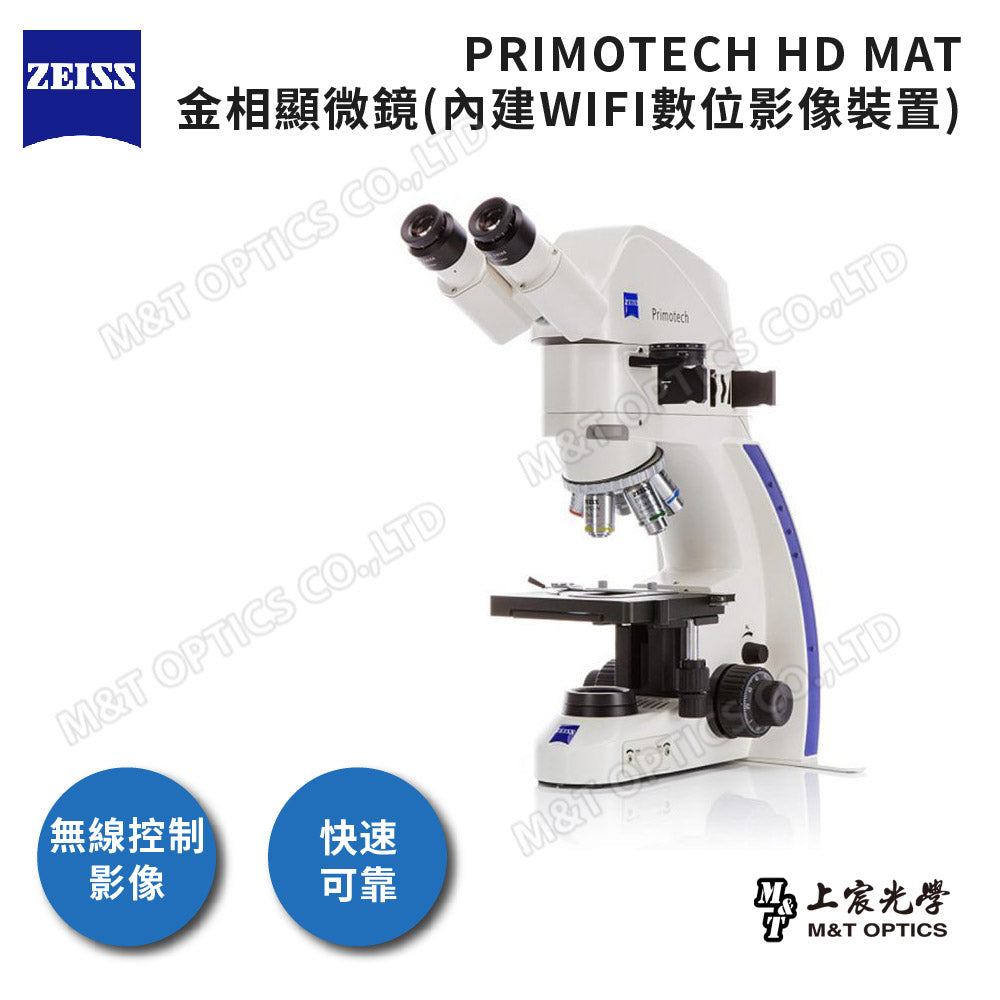

ZEISS PRIMOTECH HD MAT German Zeiss metallographic microscope (built-in digital imaging device) - original factory warranty company goods
Order number
2230700119
Couldn't load pickup availability
Product specifications
| observation camera | ZEISS PHOTOTUBE tilted 30 degrees - built-in IP CAMERA - 3MP |
| pupillary distance | 48～75mm, optical path 180mm |
| eyepiece | E－PL10X／20＊2pcs |
| objective lens |
ZEISS EPIPLAN 5X/0.13-WD0.8mm | 20X/0.4-WD0.8mm | 50X/0.65-WD0.8mm | 100X/0.8 metallographic objective lens (2230700123 optional) | 10X/0.23 WD11.1mm metallographic objective lens (2230700122 choose purchase) |
| nose chakra | Five-hole retractable type |
| Focusing system | Micro-moving wheel 0.3mm/rot, coarse-moving wheel 4mm/rot, total lifting stroke 15mm |
| Stage | Anti-corrosion coating, 140mmX135mm rail-type movement, sample height up to 34mm. Hydraulic slide holder, stroke 32mmX78mm. |
| condenser | MAT without condenser | D／A MAT ABBE condenser |
| Transmitted light source | MAT None, can greatly increase the working distance｜D/A MAT LED lamp 3W, with 3200K color temperature filter |
| Reflective light source | LED3W5000K does not include condenser lens |
| power supply | AC85V～240V international power supply |
