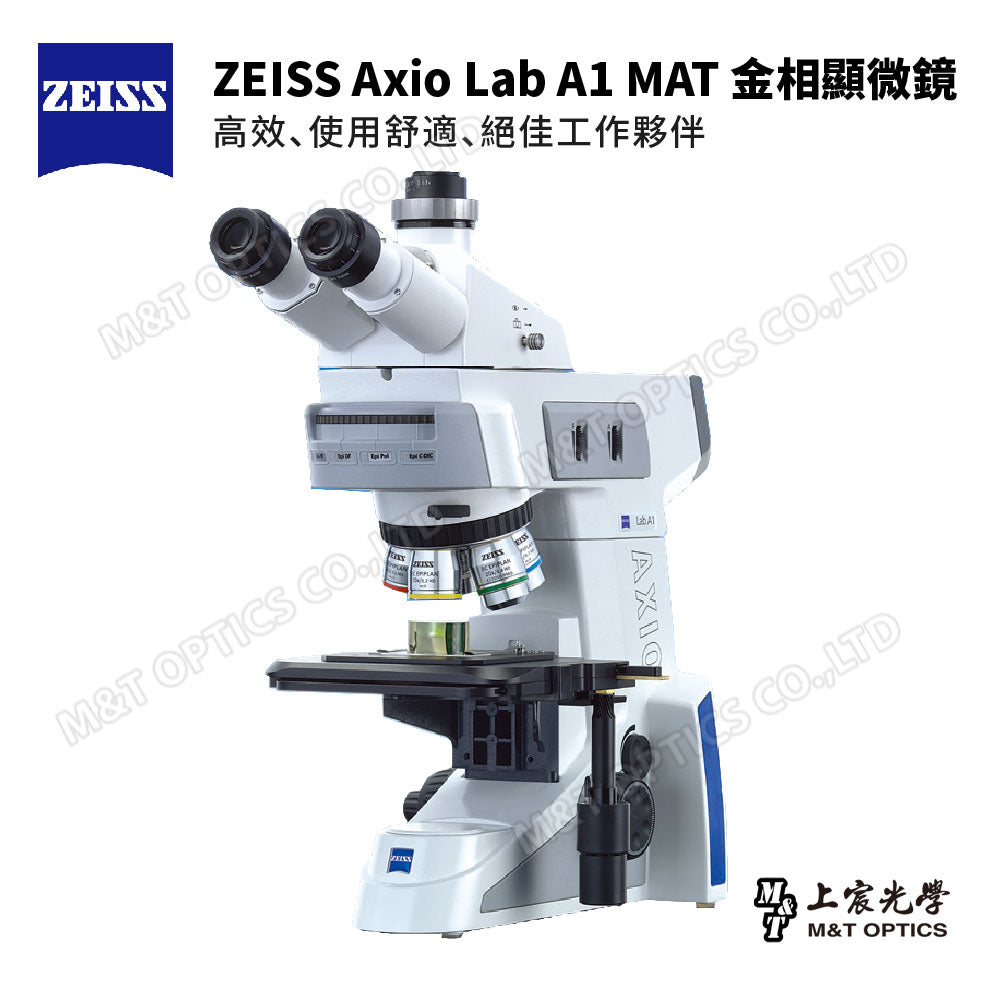

Wisdom, efficiency, and an excellent working partner

Tailored for laboratory workers who work with microscopes every day, with excellent human factors design, ZEISS Axio Lab A1 MAT maximizes your work efficiency and working space. Control everything with one hand, lighting, focusing, and stage movement. The combination of a bright, reliable and excellent color-rendering epilight source and a lens of exquisite craftsmanship brings you bright and sharp images.

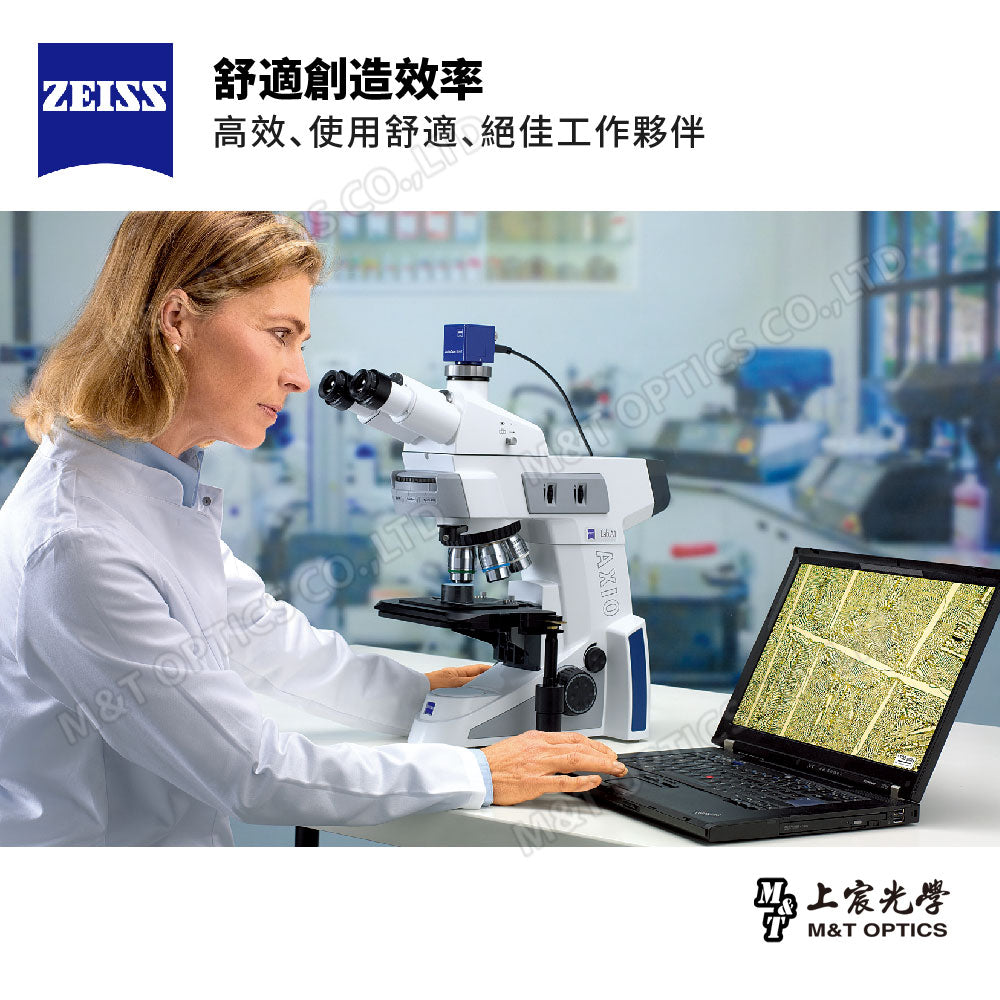

Comfort creates efficiency

All operations can be controlled with one hand, and the ergonomic design optimizes the user experience. The arm fits the table during operation. It is equipped with a large field of view eyepiece and an observation head with adjustable height and eye distance, so that continuous use will not cause fatigue. The stage is equipped with a slide clamp and a micro-motion mechanism, and the knob damping is just right. When moving the stage, it feels smooth and the operation is precise. Zeiss' thoughtful and ingenious design guarantees efficient and comfortable work.

Trinocular observation head

The top of the observation head is equipped with a photography connection, which is suitable for various types of photomicrographs and recorders.

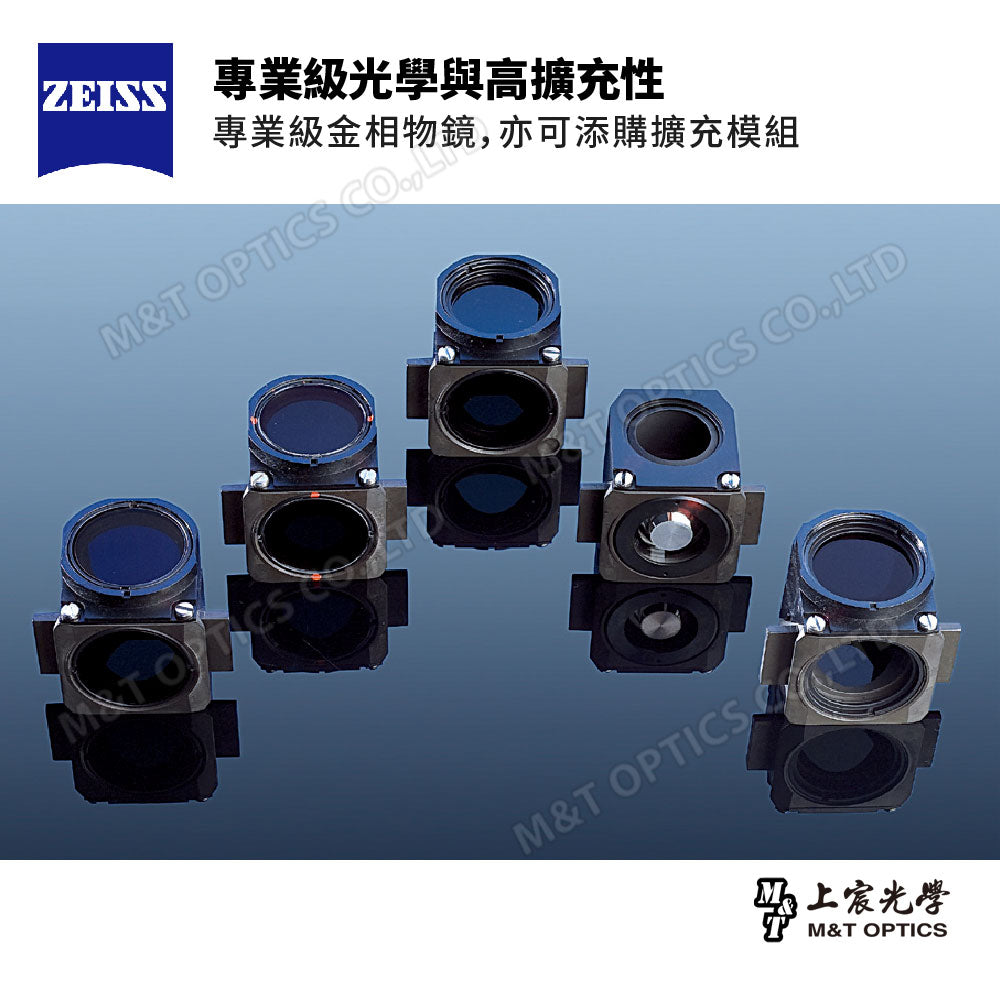

Professional-grade optics and high expandability

Using ZEISS EC EPIPLAN professional-grade metallographic objectives, you can also purchase expansion modules, such as dark field, polarization, DIC (differential interference) and other functions to meet various needs and improve image contrast.

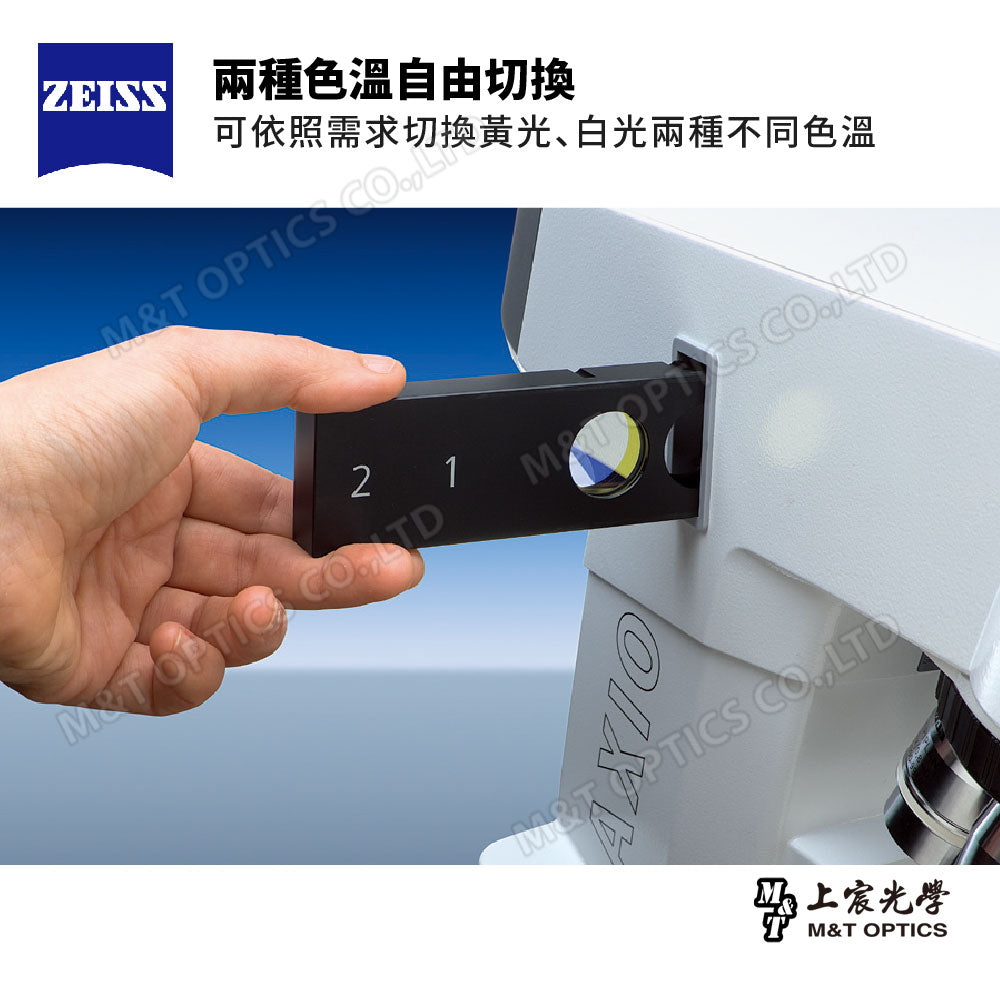

Free switching between two color temperatures

It adopts halogen lamp source epi-illumination and comes standard with a light source filter, which can switch between yellow light and white light with two different color temperatures according to needs.

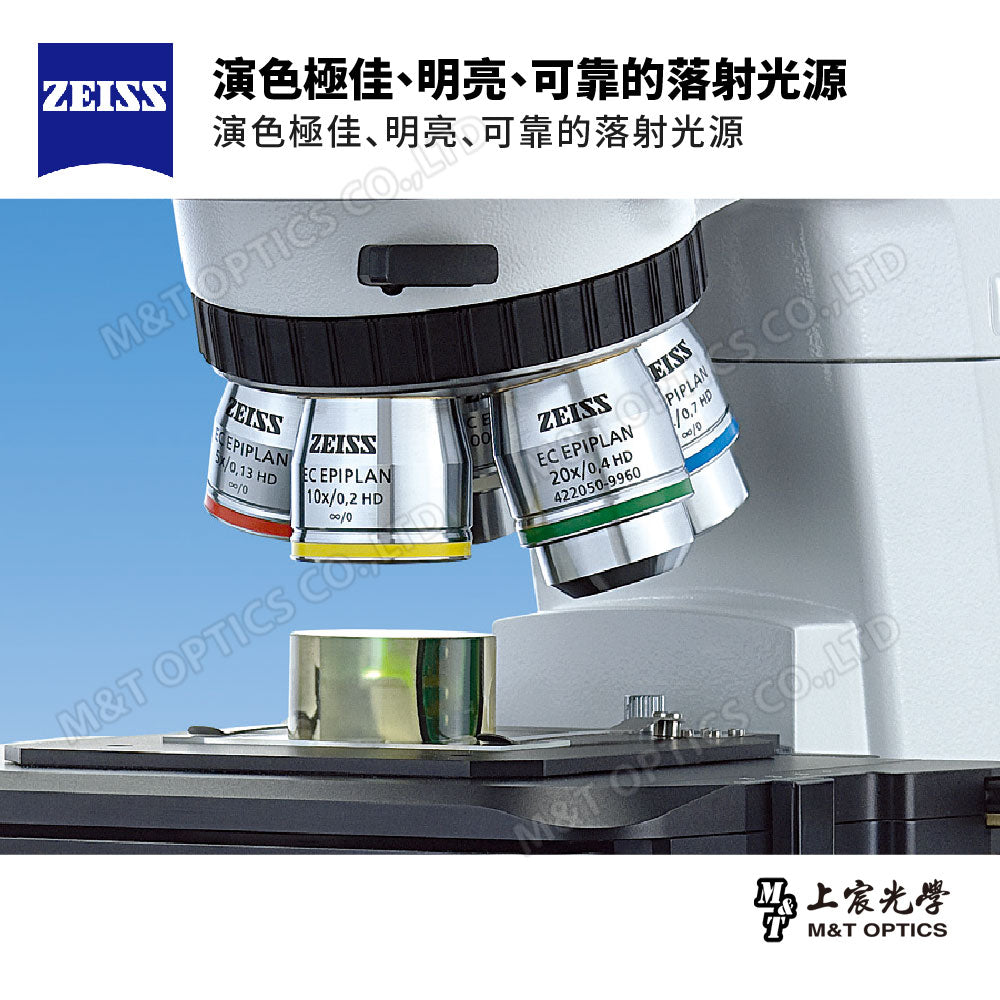

Epilight source with excellent color rendering

It is a bright, reliable epilight source with excellent color rendering. When observing at high magnification, the depth of field and field of view can be adjusted to bring you bright and sharp images.

Observation sample sharing

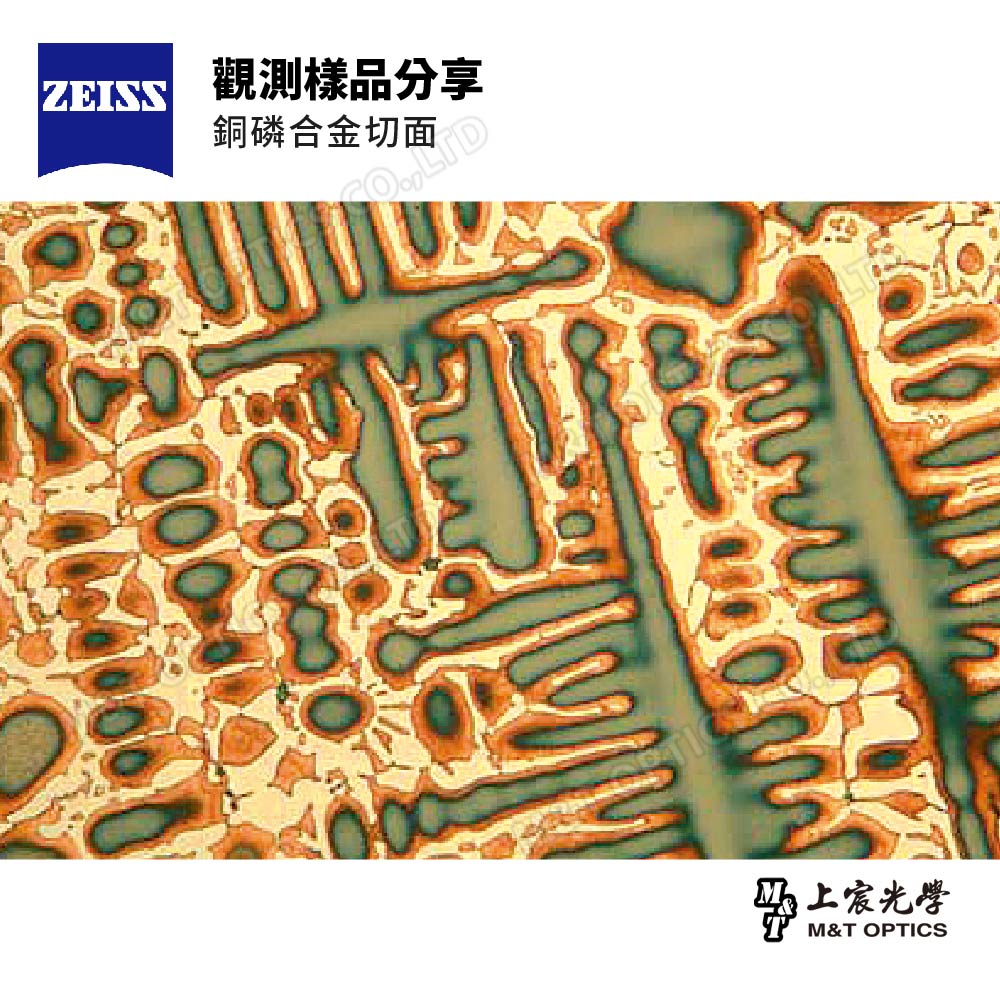

Copper-phosphorus alloy section - bright field observation with 20X eyepiece

Observation sample sharing

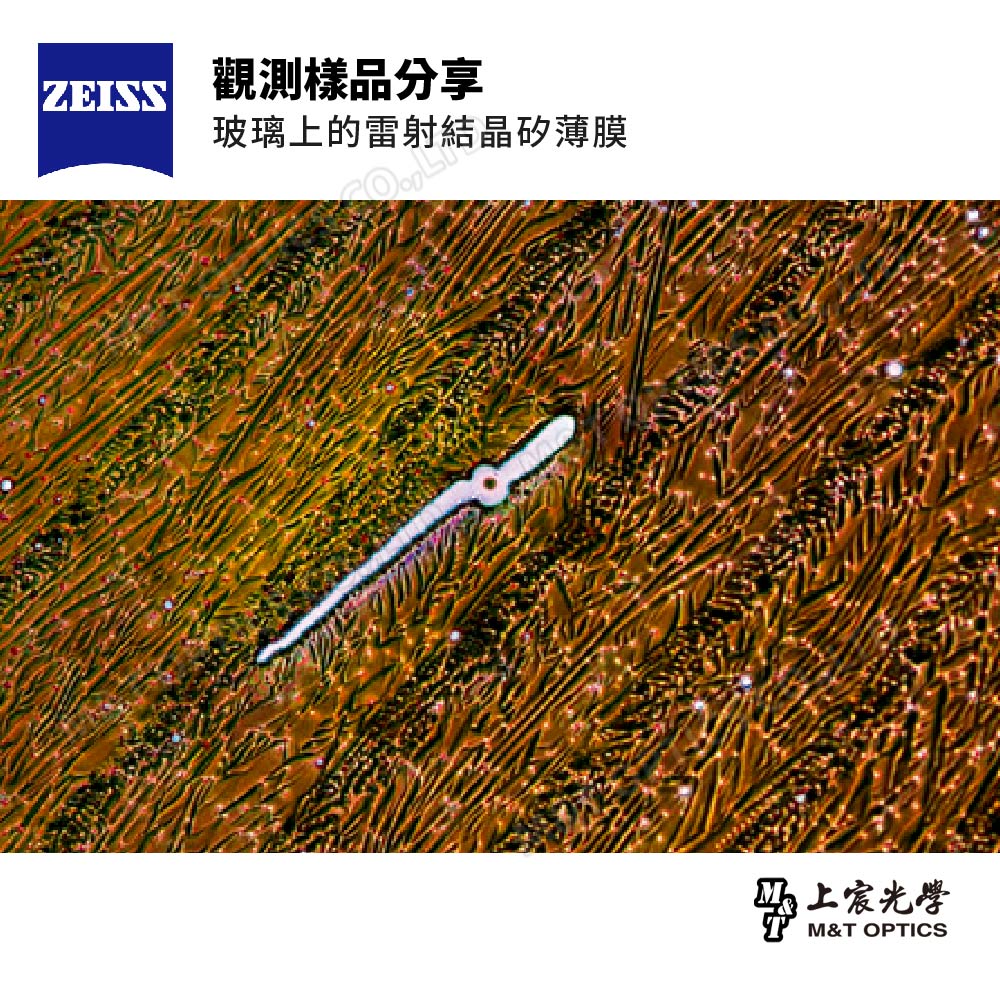

Laser crystallized silicon film on glass - bright field observation with 10X eyepiece

Observation sample sharing

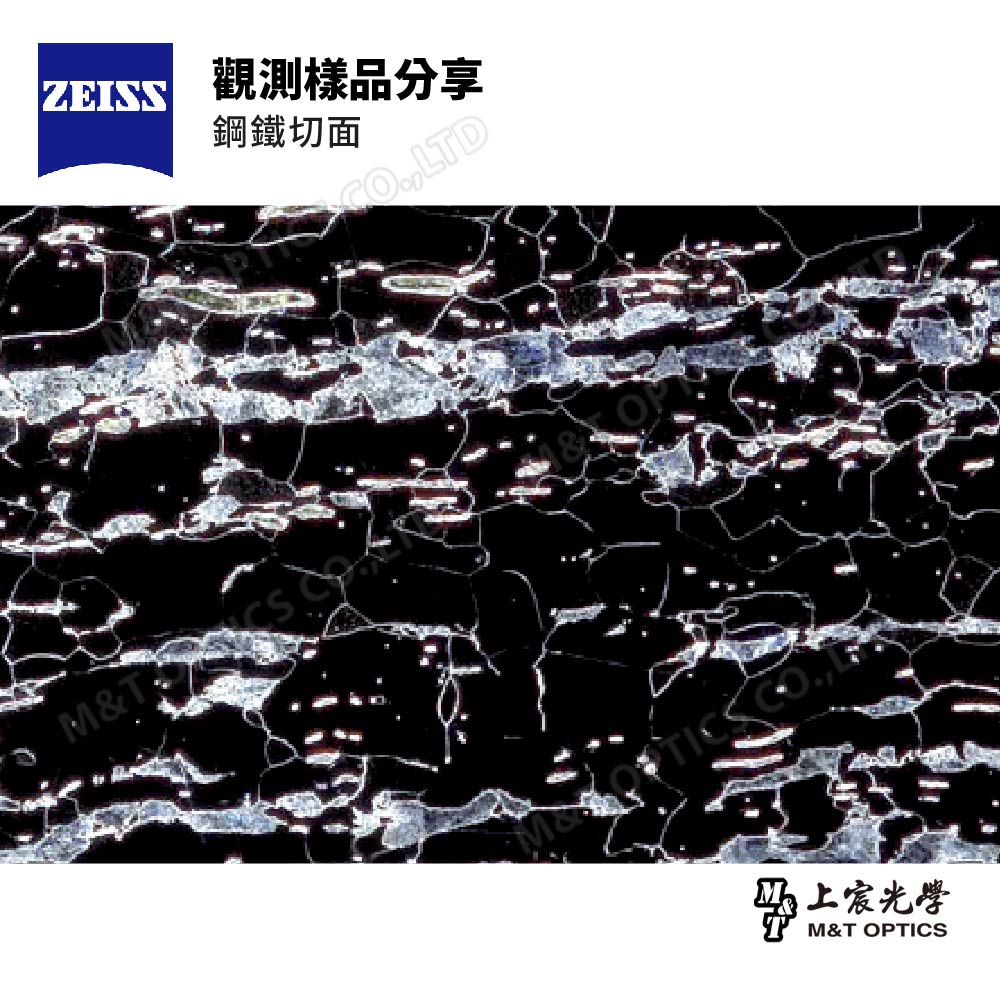

Steel section - dark field observation using 20X eyepiece

ZEISS Axio Lab A1 MAT Microscope Dimensional Drawing

Product specifications

brand	ZEISS
Optical system	Parallel light infinity optical system (ICS Optics), optical mechanical barrel length = 180mm
Side beam splitting system	The side jack on the upper body can be used to expand the removable polarizer
Light source field of view aperture adjuster	have
eyepiece	W-PL 10x/20 Br. FOC. B pair, field of view 20mm
objective lens	EC Epiplan 5x NA value 0.13 working distance 19.8mm, EC Epiplan 10x NA value 0.20 working distance 16.01mm, EC Epiplan 20x NA value 0.40 working distance 3.01mm, EC Epiplan 50x NA value 0.70 working distance 1.1mm
nose chakra	M27 five-hole type
filter wheel	The removable turntable can accommodate 4 optical modules. No tools are required to replace the modules. A visible light reflection module is included.
penetrating light source	50W lightless room integrated design halogen light source
