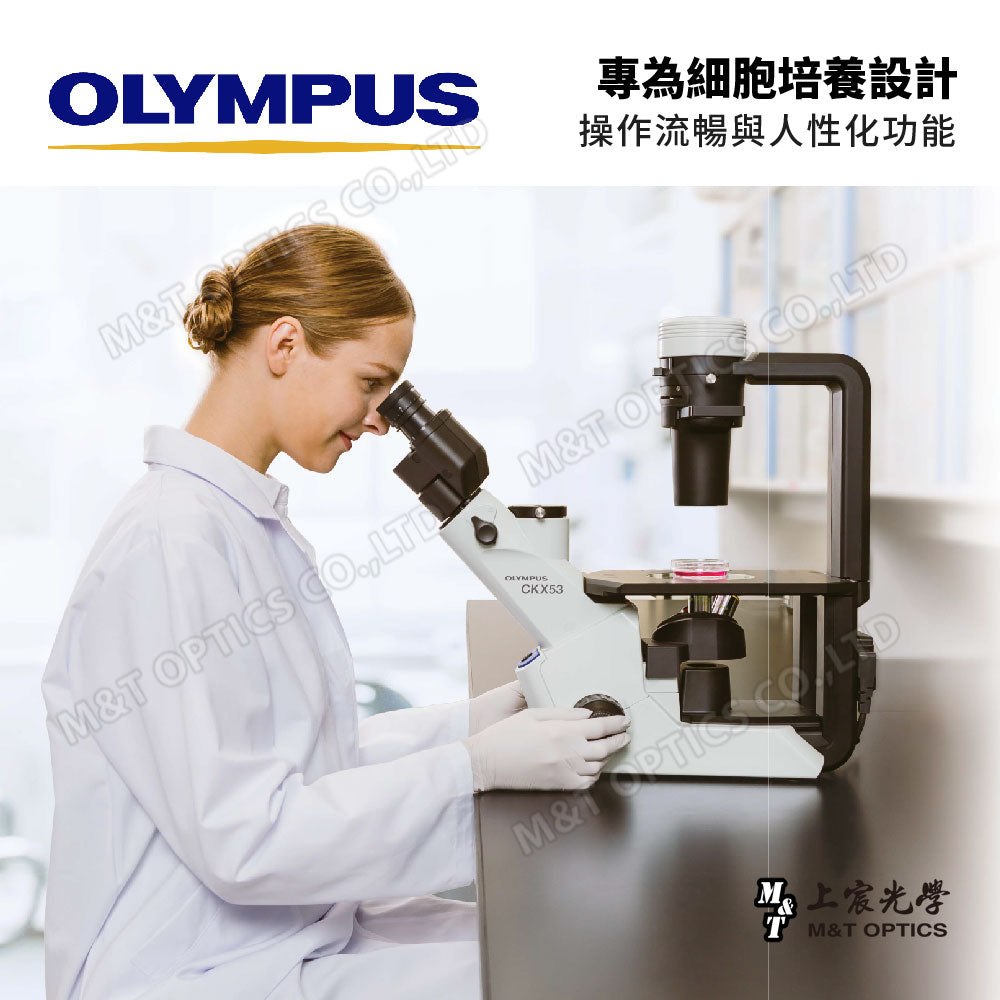

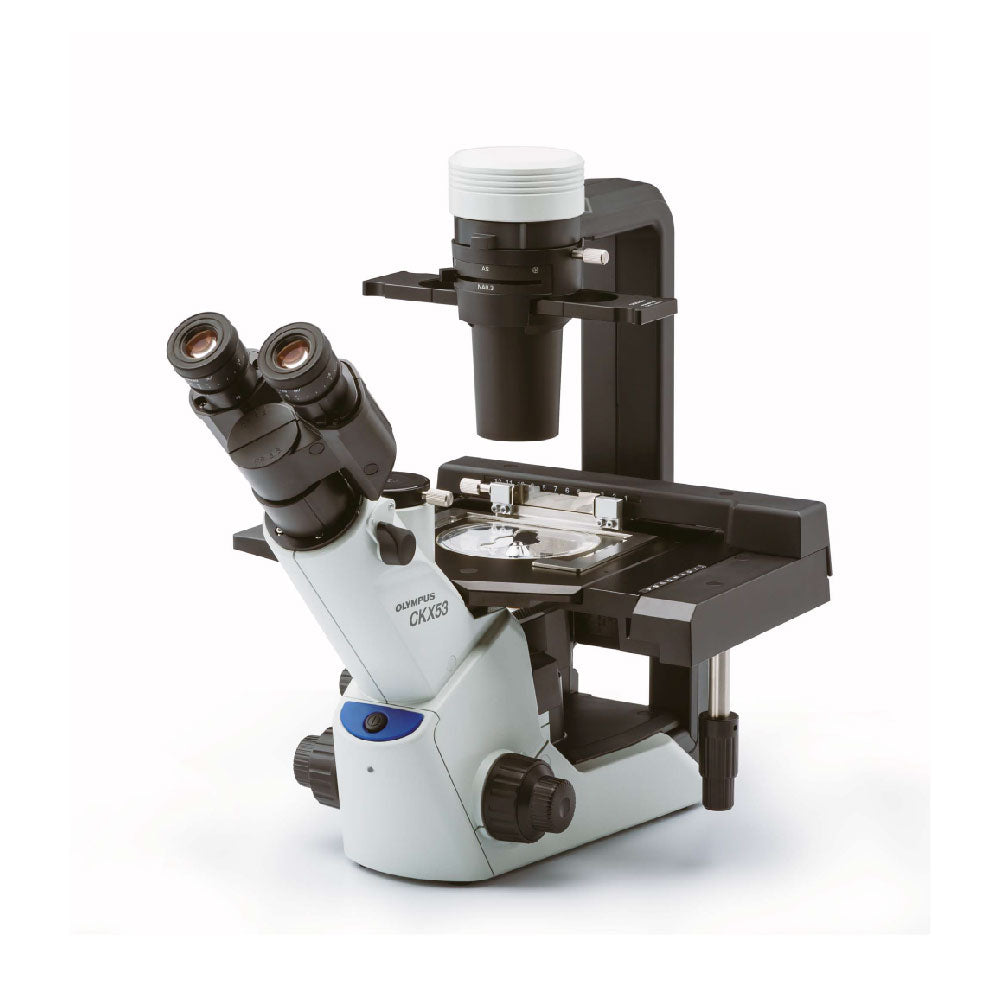

Easily observe living cells

The Olympus CKX53 inverted microscope optimizes optical performance and ergonomics. It makes the operation more user-friendly and smooth, and is suitable for various cell culture needs, including in vivo cell observation, cell sampling and processing, and sample photography and video recording.

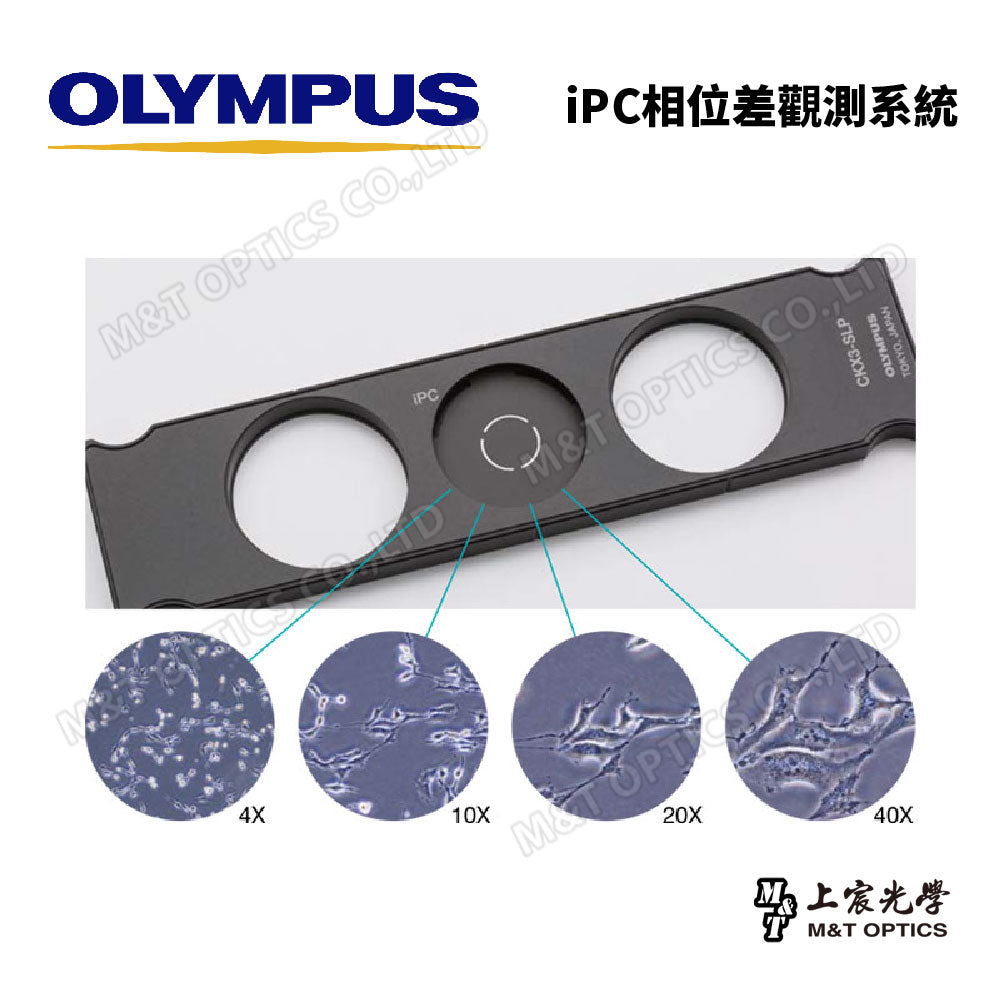

iPC phase difference observation system

Using the iPC (Integrated Phase Contrast) integrated phase difference observation system, you can still obtain high-contrast images without adjusting the phase difference ring plate when changing magnifications. This greatly improves the efficiency of cell culture workers in the laboratory

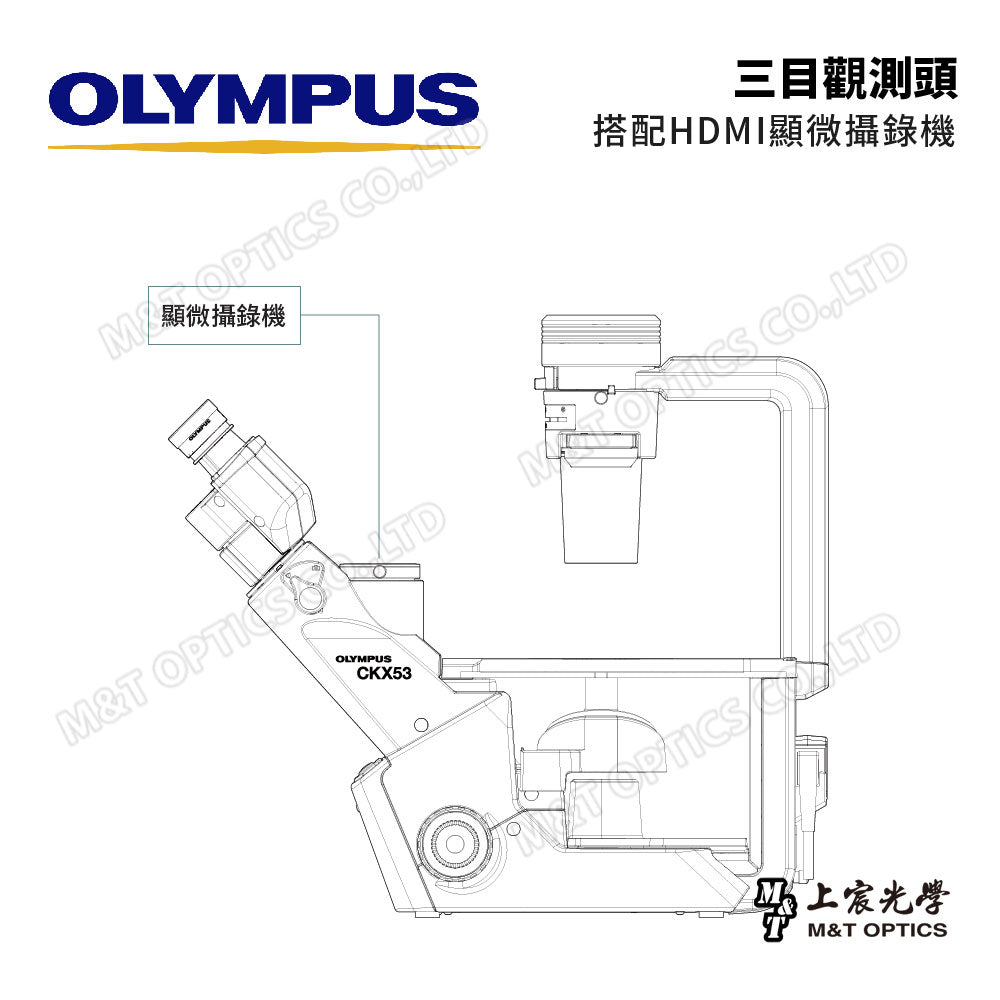

Trinocular HDMI microscope camera (iCamPlusM2)

The observation head is equipped with a camera connection, which is suitable for various types of camera and microrecorder models. It can be connected to a monitor, mobile device or computer to take photos and videos, record observations instantly, and output observation reports. Computer-free operation optimizes space utilization.

Purchase a microscope camera

Click here to enter the " microscopic camcorder classified store " and choose the suitable camcorder model according to your personal needs. If you need more detailed explanation or make an appointment for testing, please call or email Shangchen Optics. Contact number: 02-2521-1972, customer service email: cs@mtoptics.com

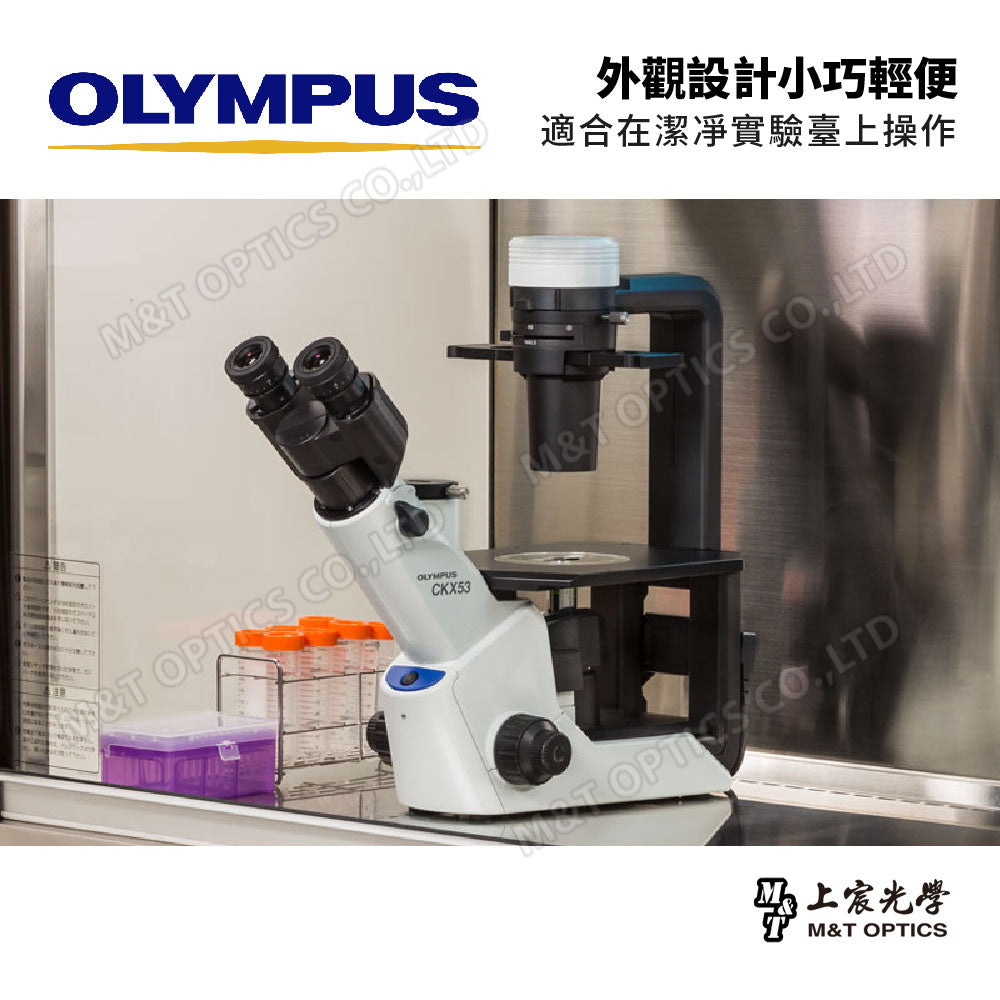

The compact design makes the CKX53 suitable for operation in sterile environments

Since the CKX53 microscope has an anti-UV coating, it can be sterilized by UV rays on a clean laboratory bench, so there is no need to remove the lens during disinfection. It is small in size, takes up no space, and is quite lightweight. The total system weight is only about 7 kilograms (15.4 pounds). The microscope can be easily moved by simply grabbing the neck of the observation head with one hand, and the sliding pads on the base make it easy to position in space.

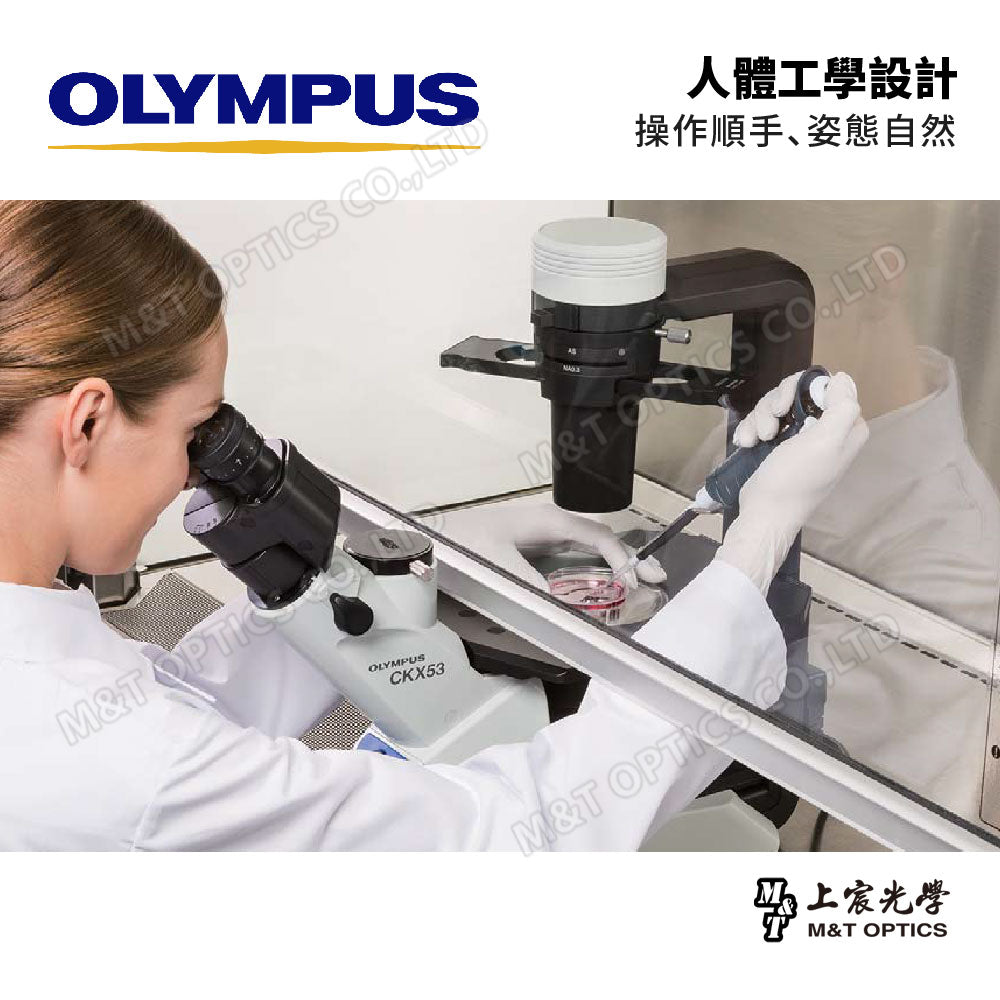

Ergonomic design

The distance between the visual observation head and the optical axis/focus knob is carefully designed. Even if it is placed on a clean laboratory bench, the user can operate the instrument in the most comfortable posture, making focusing and cell sampling smoother.

Good design improves usage efficiency

Whether observing while standing or sitting, the 45-degree light path design and butterfly-shaped binocular observation tubes allow observers to work in a natural posture. The microscope starts up quickly and works side-by-side with you for dust-free operation, getting cells back into the incubator in less time. In addition, the power switch is located on the front edge of the fuselage, just below the observation head. The knob for switching the light path is also located at a convenient location. This gives the Olympus CKX53 a good operating feel.

Product Size

Product specifications

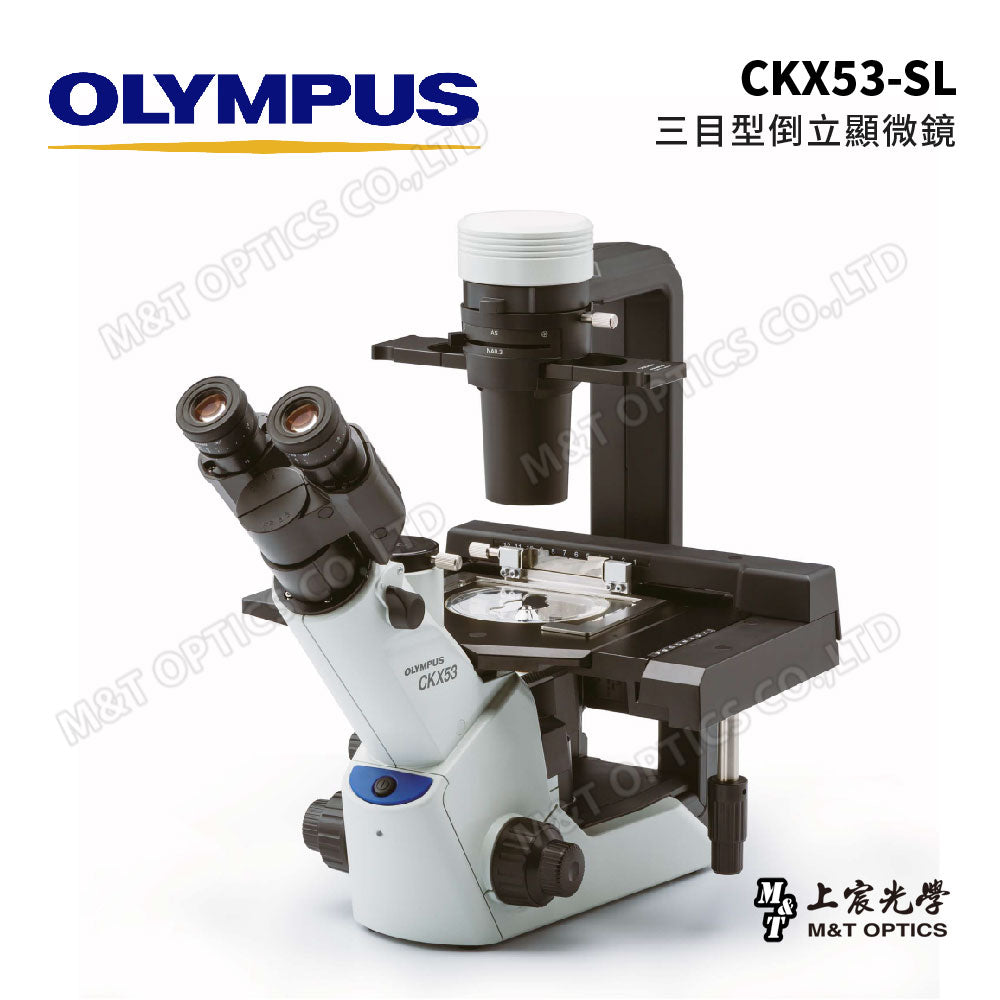

model	Olympus CKX53 trinocular inverted microscope
Optical system	UIS2 (Universal Infinity-corrected) optical system
tripartite lens	Viewing angle: 45 degrees, 20 mm, light split ratio: 50%/50%
Stage	CKX3-CP metal stage, size 200x252mm
penetrating light source	LED light source, color temperature 4000K
condenser	CKX3-SLP phase difference condenser, WD=72mm, NA.0.3.
eyepiece	Quantity 2, magnification 10X
Objective lens specifications	4X,CACHN10X,LCACHN20X,LCACHN40X
photography takes over	1X-CMount
