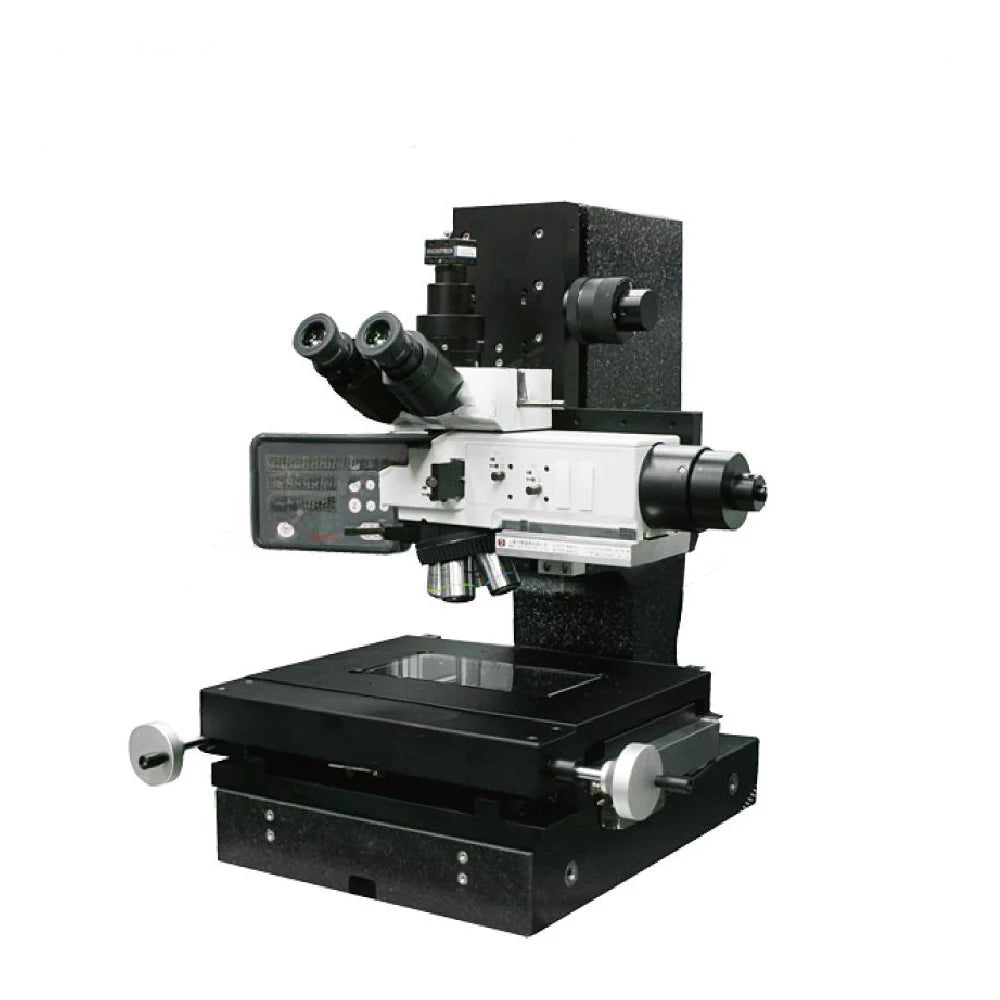

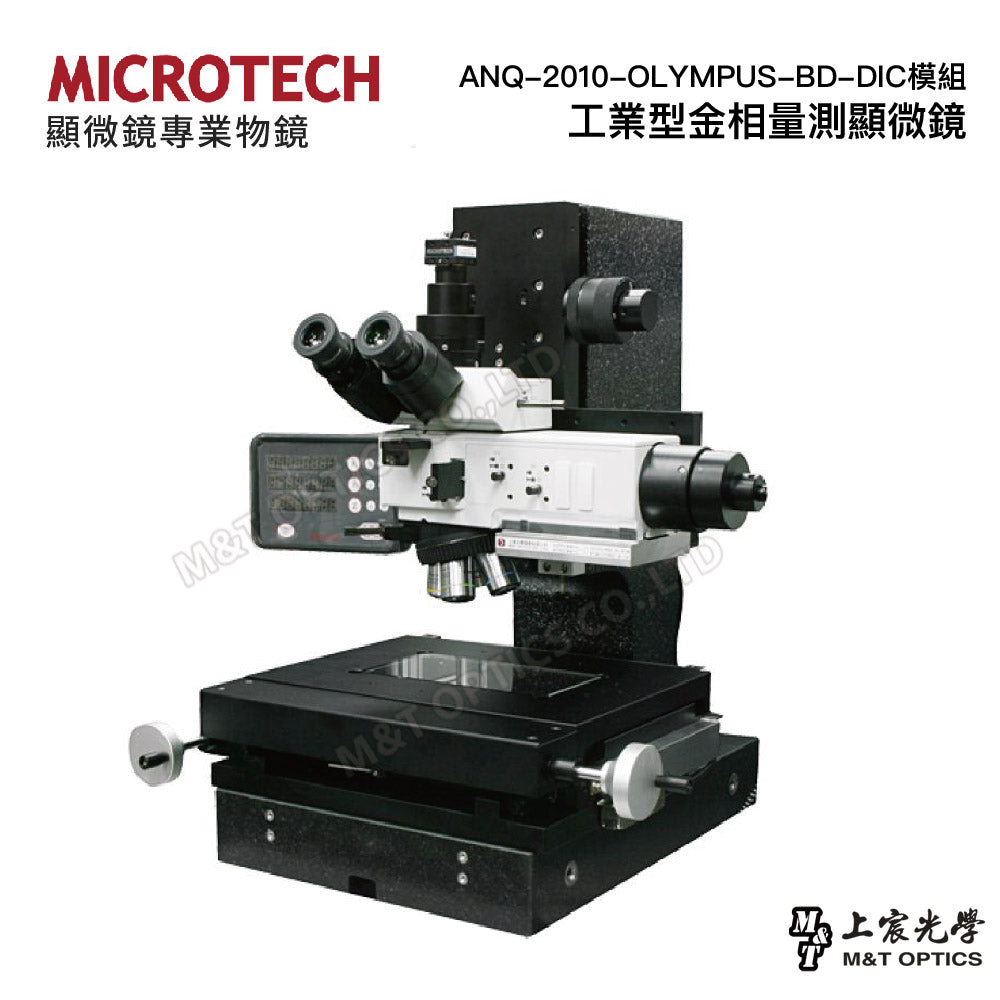

MICROTECH ANQ-2010-OLYMPUS-BD-DIC module-industrial metallographic measurement microscope-200x100mm large stroke, computer measurement

Order number

2206300006

Product specifications

OLYMPUS observation head
Trinocular type, three-stage adjustable light path
OLYMPUS eyepieces 10X／FN22x2pcs
OLYMPUS filters OLYMPUS color temperature correction filter
nose chakra OLYMPUS five-hole nose wheel
稜顡 OLYMPUS NORMASKI DIC differential interference detector
Polarizing system OLYMPUS 360 degree polarizer and analyzer
coaxial light source LED light source
rim light LED light source
C—MOUNT adapter 0.5XC—MOUNT
objective lens OLYMPUS Darkfield Objective Lens MPLAN BD 5X, OLYMPUS Darkfield Objective Lens MPLAN BD 10X, OLYMPUS Darkfield Objective Lens MPLAN BD 20X, OLYMPUS Darkfield Objective Lens MPLAN BD 50X
Working platform travel X axis 200mm, Y axis 100mm, Z axis 150mm
Working platform dimensions 370mmx270mm
Three-axis optical ruler Resolution 0.001mm, including three-axis optical scale display
Platform material and surface treatment The working platforms are all made of T6 aerospace aluminum alloy and anodized.
Structure and surface treatment The machine mechanism is cantilevered and painted with multi-layer powder coating.
Slide rail Adopting Japanese NB cross roller slide rail, it has excellent precision and sliding properties
Working platform three-axis transmission The XY axis transmission adopts toothless screw, which can move quickly for fine adjustment.
XY axis movement protection The glass platform is equipped with XY axis stops
base
granite base
Machine size (LxWxH) 700mmx700mmx900mm
