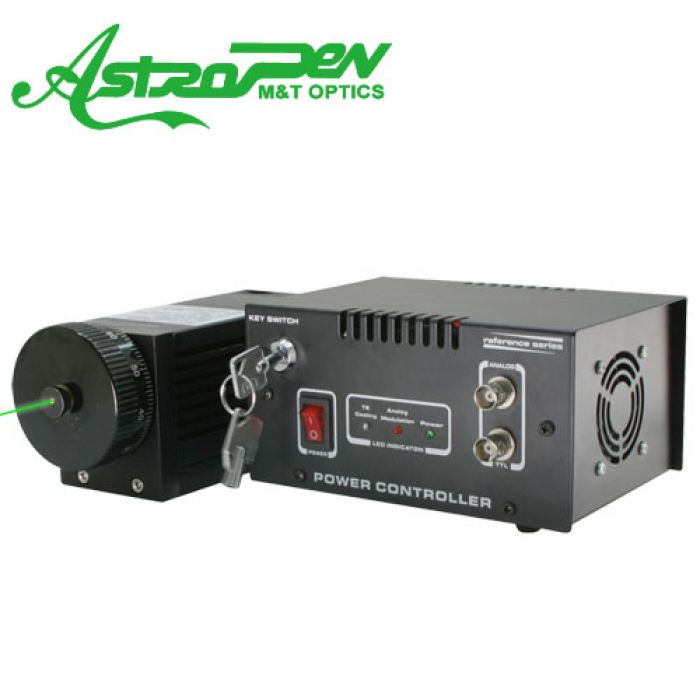

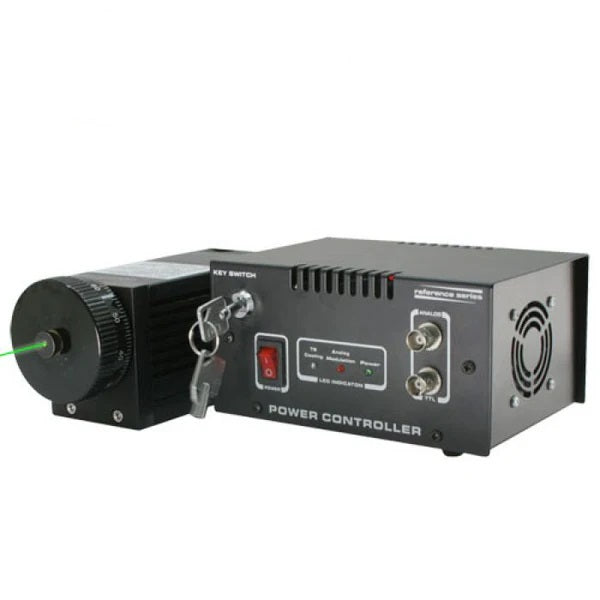

Product specifications

Output wavelength	532nm
Output Power	>500mW
light path mode	Single Mode
Module life	>3000hr
Laser heat sink size	60x60x123mm (with fan)
Laser drive circuit box L3 size	152x107x76mm
Laser drive mode	CW or Modulation(5V TTL signal)
modulation frequency	>10KHZ
temperature control mechanism	TE-COOLER (T operation light display)
Light path quality	<1.2
Beam diameter	<2mm
Light path difference	<2.0 mrad
Power stability	<±10%
optimal operating temperature	15~35℃
operating voltage	AC 85-265V (with safety key switch)
Signal input control	ANALOGE analog continuous waveform, TTL digital waveform (+5V)
Drive circuit function	Keep the adjustment of LD current and monitoring points, and keep the TE-COOLER temperature control settings
Heat sink screw hole	M4*4 (pitch 40mm)
Operation indicator light	F (LASER ON start), S (signal input), T (TE-COOLER start)
Warranty Period	1 year or 3000 hours
