The laser is projected on the surface of the object, showing a linear shape, which can be used as a marking positioning function.



Product specifications

20mmX60mm cylindrical cooling shell
APC process
DC3V
8~10mW

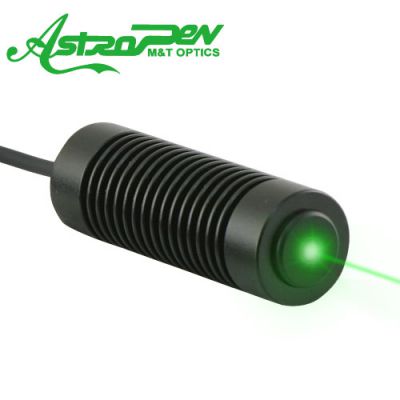

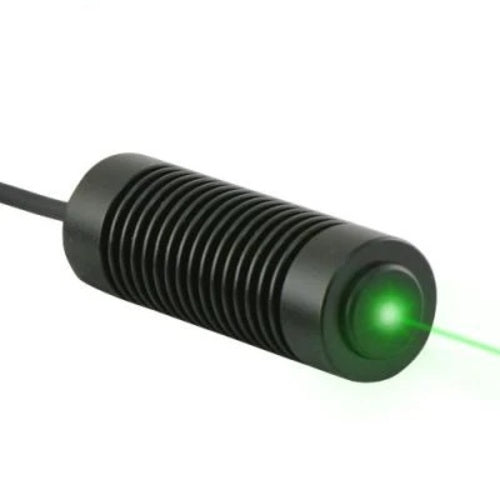

GREEN LASER MODULE
Built-in linear mirror 2X6mm

Product specifications

Type	Monarch black carved heat sink fin aluminum alloy shell
size	φ20x110mm
laser diode	Japanese airtight nitrogen chamber 500mw-LD, 50mW≦532nm
Output wavelength	Frequency doubling crystal 532nm green light, filter structure IR output ≦0.001%
Output mode	Continuous CW, APC structure photoelectric detection technology stability rate ≦5%
Power requirements	DC5V (5521 female), current <600mA, DC5V transformer or UPS battery can be purchased separately
Divergence angle	<1mrad (spot diameter 6mm/distance 10000mm)
weight	About 76g
Recommended operating temperature and time	0~30℃, continuous power stabilization time 60 minutes
use	experiment, teaching, engineering, guidance
Warranty	Original factory warranty for one year from the date of purchase
Origin	Made in Taiwan
