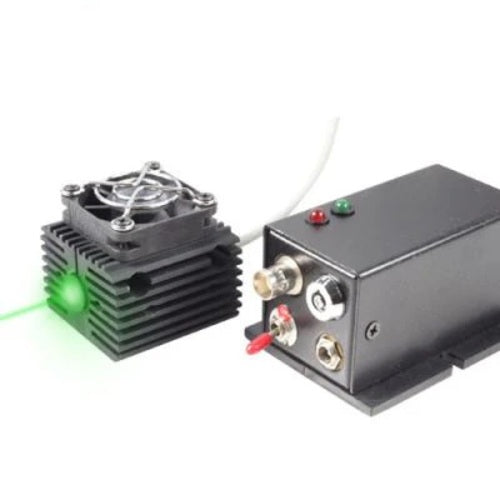

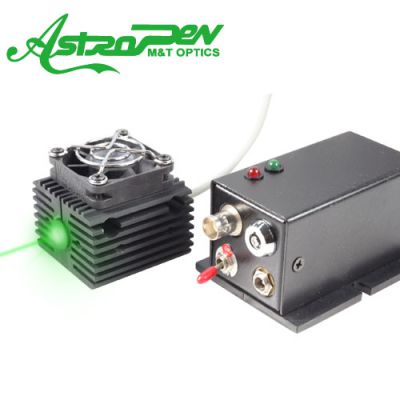

9V-Q50 laser module
Order number
N/A
Couldn't load pickup availability
532nm/50mW module size 50X50X34mm
- Output Wavelength 532nm
- Output Power >50mW
- Lifetime >3000h
- Warranty 1 year
- Beam Mode TEM00
- Operation Mode CW or Modulation(5V TTL signal)
- Highest Modulate Rate >10KHz
- Temperature control TEC
- Beam Quality (M2)<1.2
- Beam Diameter (1/e2) <1.0mm
- Beam Divergence <2.0 mrad
- Power Stability <±5% (1 hour)
- Warm Up Time < 10min
- Laser head: L120mmXW50mmXH50mm
- Power supply: L120mmXW60mmXH40mm
- Broad range of input voltage(85~265V)
- Plug-in and time-lapse starting
- and circumstances no more than 1 degree
| Type | Monarch black carved heat sink fin aluminum alloy shell |
| size | φ20x110mm |
| laser diode | Japanese airtight nitrogen chamber 500mw-LD, 50mW≦532nm |
| Output wavelength | Frequency doubling crystal 532nm green light, filter structure IR output ≦0.001% |
| Output mode | Continuous CW, APC structure photoelectric detection technology stability rate ≦5% |
| Power requirements | DC5V (5521 female), current <600mA, DC5V transformer or UPS battery can be purchased separately |
| Divergence angle | <1mrad (spot diameter 6mm/distance 10000mm) |
| weight | About 76g |
| Recommended operating temperature and time | 0~30℃, continuous power stabilization time 60 minutes |
| use | experiment, teaching, engineering, guidance |
| Warranty | Original factory warranty for one year from the date of purchase |
| Origin | Made in Taiwan |
