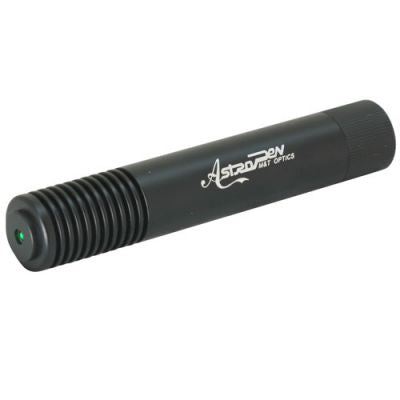

M series-lithium battery performance laser pen

Order number

N/A

─ World patented technology - APC automatic control, making the laser pen have a longer service life and more stability! ─

"All Japanese components are produced in Taiwan"

Power: APC max 5mW/10mW/50mW

Specially designed cooling head,
Can extend boot time
Key switch design
Short design is more lightweight Brackets can be added for position adjustment

Product specifications

wavelength 532nm
Output mode CW
size φ20x113mm
operating current <360mA
operating voltage 3V
divergence angle <1.4mrad
weight About 80g (including battery)
power supply CR123A lithium battery x 1
Experimental grade small heat sink, DC 3V circuit, can be installed with CR123A lithium battery, APC output power automatic current compensation technology.
Auto-Power-Control Green Laser Pointer (Astronomy Green Finder). OEM/ODM is acceptable.
