NEXLIGHT PW10FS-RS ring-type soft high-brightness LED fiber optic light source--desktop type

Feature introduction

• Japanese-made 10W high-quality selected grade LED module
• Ultra-high brightness above 1000 lumens
• Patented heat dissipation and diversion design, can be turned on for a long time
• Constant current circuit design, subtle and smooth dimming
• Wavelength 395~720nm suitable for various fields
• Moderate color temperature and excellent visual color rendering
• 100W halogen lamp that can replace metallographic microscopes
• High-pressure mercury lamp that can replace fluorescence microscopes
• Halogen light box that can replace fiber optic light guides
• Can replace Kohler lighting fixtures for biological microscopes
• Modular industrial design, the adapter can be easily modified

Product specifications

1. Light source: LED
2. Maximum brightness (Lumen): Up to 1052 Lumen
3. Angle of light departure:9°
4. Wavelength range (Wavelength):395nm~720nm
5. Power supply: DC9V/2000mA
6. Max power consumption:14.5W
7. Dimmer (Light Control): constant current non-linear dimming, built-in body
8. Average surface temp on working:39°(±10%)
9. Operating environment temperature: -5°~60° Main body weight: 400g (±10%)
10. Body material: Aluminum 6061
11. Thermal conductive value of Body:180 W/mK
12. Heat dissipation design (Hole of air flow): built-in low-frequency fan and heat dissipation trench holes
13. Light expansion adapter: Olympus, MX, Nikon, Zeiss, fiber optic tube, customization accepted
14. Origin:Made in Taiwan

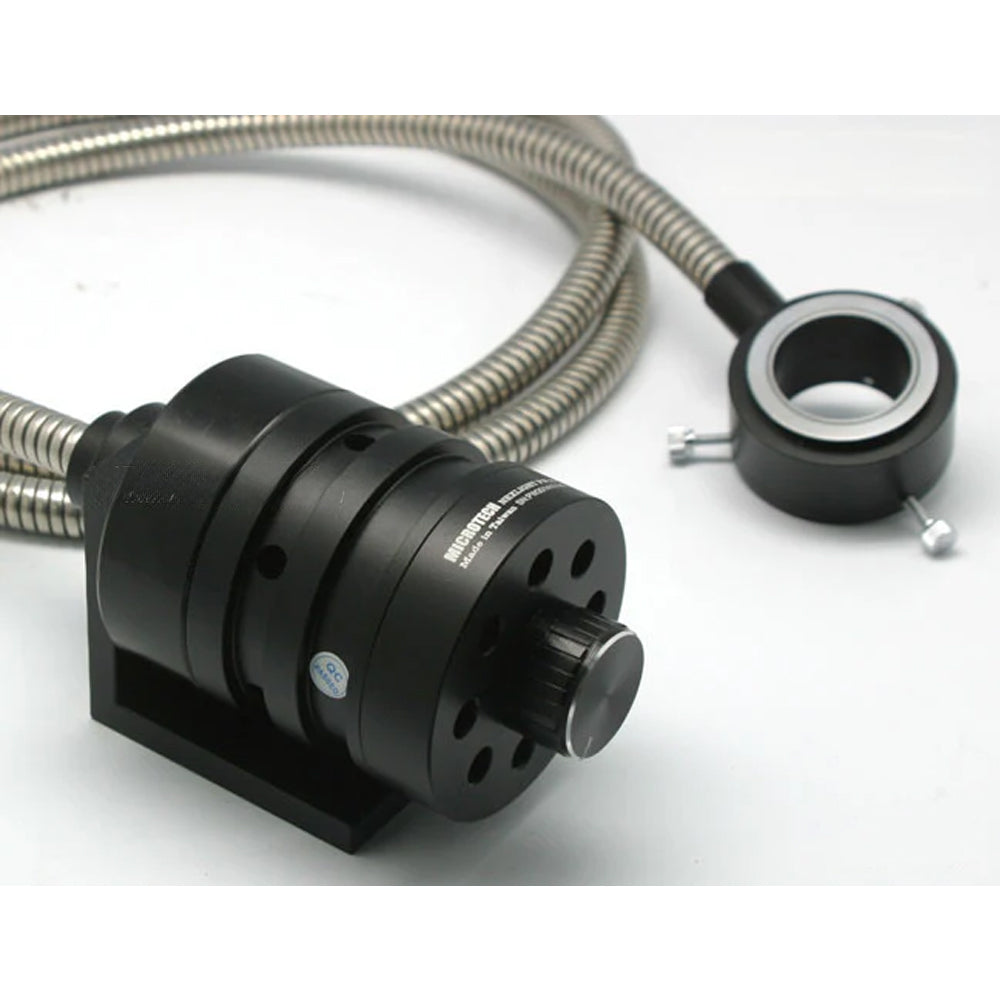

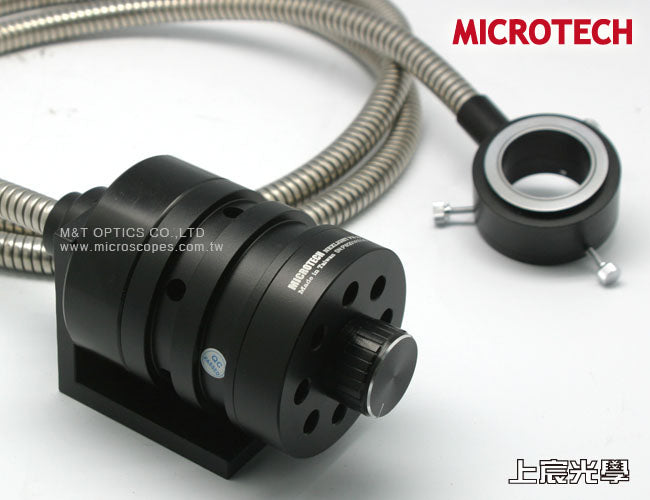

Ring-shaped diameter 33mm hose fiber optic light guide, length 100CM, LED power 10W, attached to the table stand.

Light source model = PW10, FS = desktop type, R = ring type, S = hose type.

NEXLIGHT PW10 high-brightness LED light source - a full-wavelength light source dedicated to the new generation of microscopes, suitable for various brands and types of microscopes.

MICROTECH has carefully developed a new generation of dedicated LED light source modules for microscopy systems. The NEXLIGHT series PW10 high-brightness light source can completely replace the current microscope light source. It has a wide wavelength range and is suitable for various experimental needs. It can be used through various narrow-band filters. Output light of different wavelengths, such as 395nm ultraviolet light, 450nm blue light, 530nm green light, 660nm red light, etc., with high and average light output efficiency, newly designed high-efficiency circuit design and excellent industrial-grade thermal conductivity mechanism design , making the PW10 light source a highly efficient new-generation instrument light source that has both environmental protection and economic benefits. It is the best choice for all microscopic instrument light sources!

Spectrum
