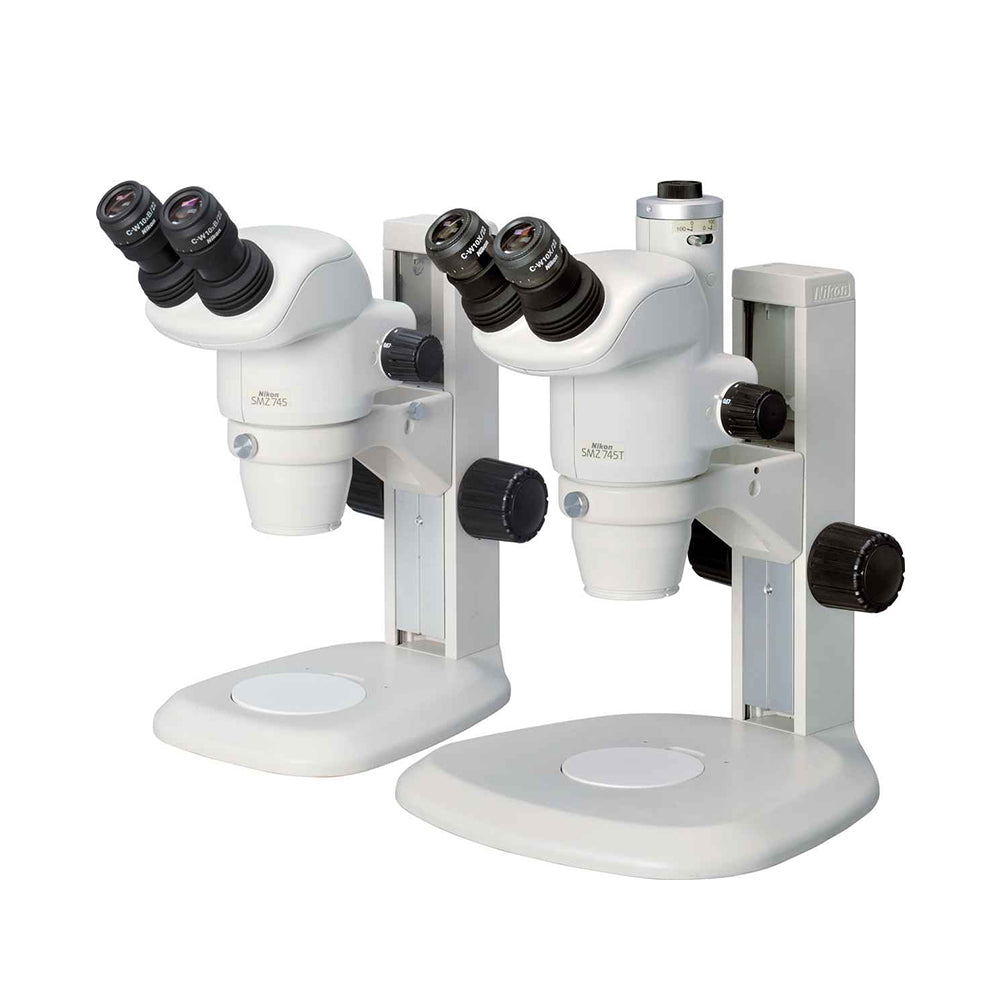

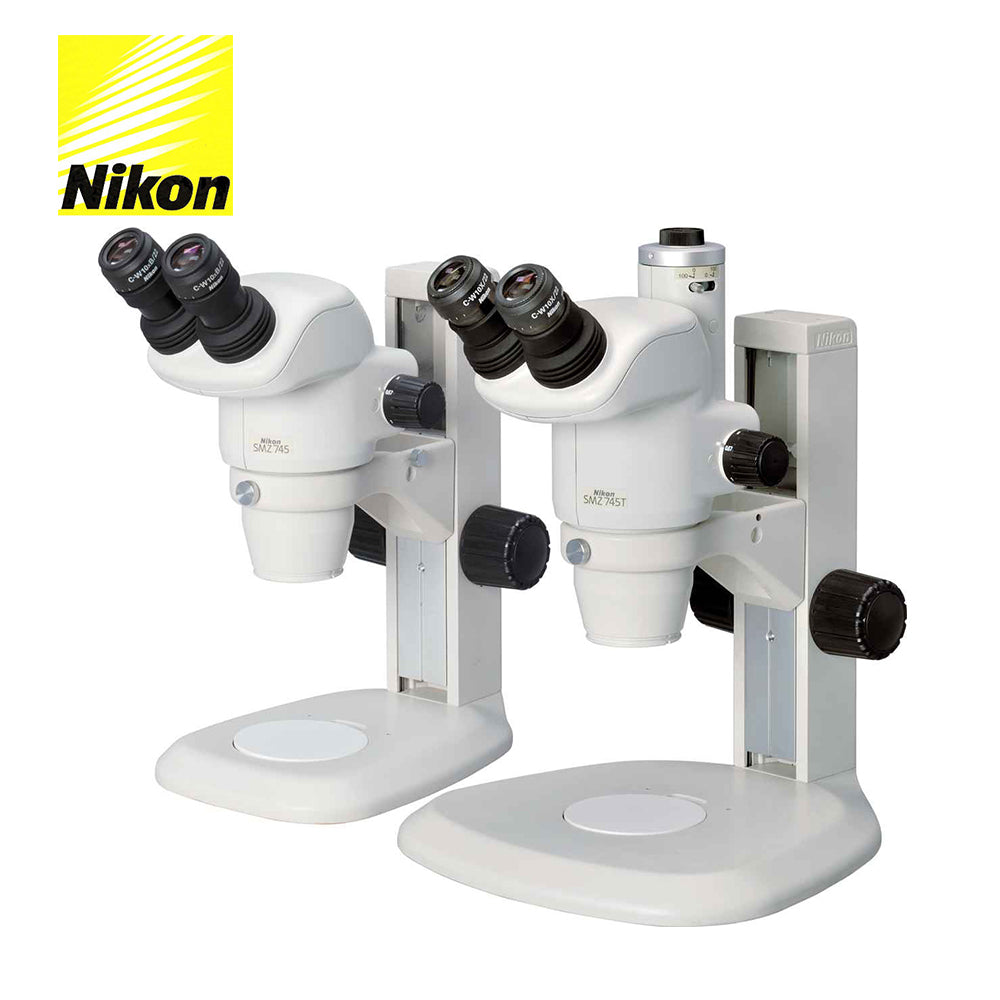

•Trinocular type SMZ-745T

A CCD device or digital camera can be installed externally to output captured images.

•Binocular type SMZ-745

Suitable for users who only use it for visual microscopic observation.

7.5x zoom ratio: extremely high zoom range

7.5x zoom: extremely high zoom range

SMZ745/745T has a 7.5x zoom and is equipped with Greenough optical system. The objective lens zoom range is 0.67x to 5x, providing a wide and clear observation field of view.

The SMZ745/745T boasts a 7.5x zoom that incorporates the Greenough optical system. The zoom range of 0.67x to 5x provides a broad observation range.

Microscopic images taken at different magnifications

Suitable working height: 115mm working distance

Superior 115 mm working distance

Under high zoom ratio and high magnification, SMZ745/745T provides an ultra-high working distance of 115mm (objective lens height after focusing).

As well as high zoom ratio and magnification, the SMZ745/745T offers a long 115 mm working distance.

Trinocular observation head is ideal for external imaging

Through a CCD device or camera, you can connect to the screen and capture digital images

Trinocular optical head is ideal for monitoring and digital imaging(SMZ-745T only)

SMZ-745T has an optical-recording conversion lever that can switch the image between the eyepiece and camera. It can install a digital camera and CCD device. Please contact Shangchen Optical Customer Service Department for installation details.

The SMZ745T incorporates an optical path switching lever that enables easy switchover between eyepiece and camera. A Nikon Digital Sight series camera can be attached.

•Base stand

NIKON SMZ745T-PS (set) original base

2201100558

NIKON SMZ745T-SF (set) large platform base

2201100790

NIKON SMZ745T-STL (set) universal bracket three-eye

2201100597

• Universal platform base, steel traverse rod and iron casting base, with exquisite painted surface
• Lateral movement is 47cm*up and down 45cm, lens end fine-tuning wheel telescopic amount is 55mm
• Carrying dimensions: width 82cm*height 54cm, weight 17.5kg
• Focusing bracket column diameter φ32mm - lens base φ76mm - frame depth 133mm, focusing stroke 50mm
• The bracket is lifted and lowered using φ32mm cylindrical rails with fixers attached.
• The observation angle can be adjusted freely, and observation objects can be placed freely.

＊＊If you have any questions, please contact Shangchen Customer Service Department 02-25211972＊＊

•Purchase-Other light sources

LED63TW shadowless LED ring light (white/yellow/red/green)

Xiaohei 8W fluorescent ring light (the whole set includes tube lamps)

LED-PW20-3200K LED yellow light box FB1255cm two-branch rigid fiber optic light guide

EXLITE/DAL SERIES/adjustable angle rod light source

EXLITE/HR5087W-LED/white light ring light module

Product specifications

Optical system	Greenough optical system
Visual magnification	3.35～300X (depending on the eyepiece and auxiliary objective used)
Photography docking station (only available on SMZ745T)	Built-in C-mount 0.55x magnification lens (FN11), compatible with CCDs of 2/3 inches or smaller
eyepiece holder	Fixed type, inner diameter 30mm
visual angle	45°
pupillary distance	52－75mm
Eyepiece (including parallax adjustment)	Standard equipment is C-W 10xB (FN 22), optional equipment is C-W 15x (FN 16), C-W 20x (FN 12.5), C-W 30x (FN 7)
Objective lens zoom range	0.67－5x
Zoom ratio	7.5:1
Expanded magnification auxiliary mirror (optional)	G-AL 0.5x (WD 211 mm), G-AL 0.7x (WD 150 mm), GAL 1.5x (WD 61 mm), GAL 2x (WD 43.5 mm)
Working distance after focusing	115mm
weight	1.6 kg (SMZ745) / 1.8 kg (SMZ745T)
