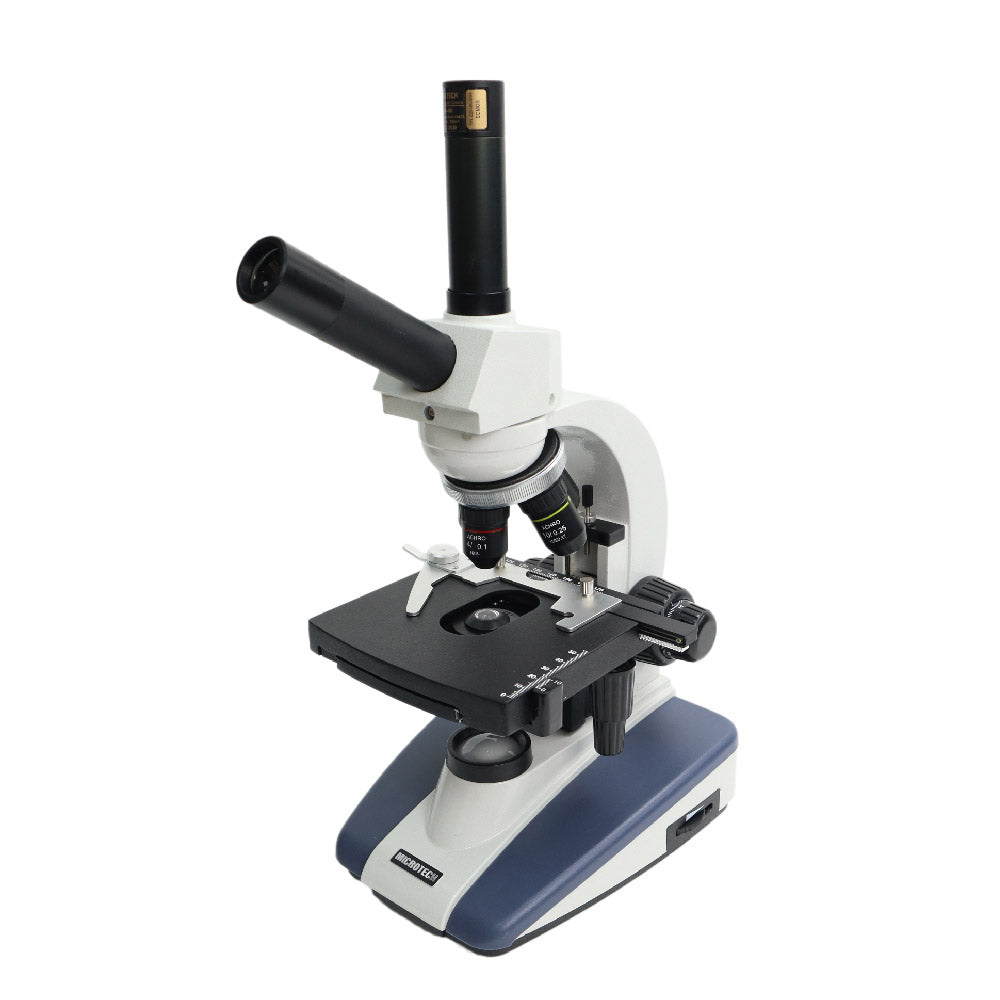

High specification standard biological microscope

V2000.WF is an excellent model designed with high standards for biology teaching. The aluminum alloy one-piece cast body is strong, reliable and durable. It has excellent optical quality, bright and clear images, sharp details, coupled with ultra-wide field of view and excellent lighting system, suitable for: cell culture analysis, tissue section observation, blood interpretation, solution observation, water quality inspection, environmental protection testing, breeding research , medical experiments, biological experiments and other purposes.

Cast metal body - strong and durable

The curved arm shape makes it easy to hold and move. The fuselage is stable and provides good carrying capacity, effectively reducing interference during observation. Let users enjoy a wonderful operating experience.

Binocular observation head wide field eyepiece

The wide-field eyepieces are matched with high-end achromatic objectives, and the eyepieces include a set of WF10X and WF20X. The wide field of view improves the comfort of long-term observation. The third visual observation head can be connected to a microscope camera.

Eyepiece with built-in pointer

The 10X eyepiece is equipped with a pointer, which can point to the target to assist teaching or sharing purposes.

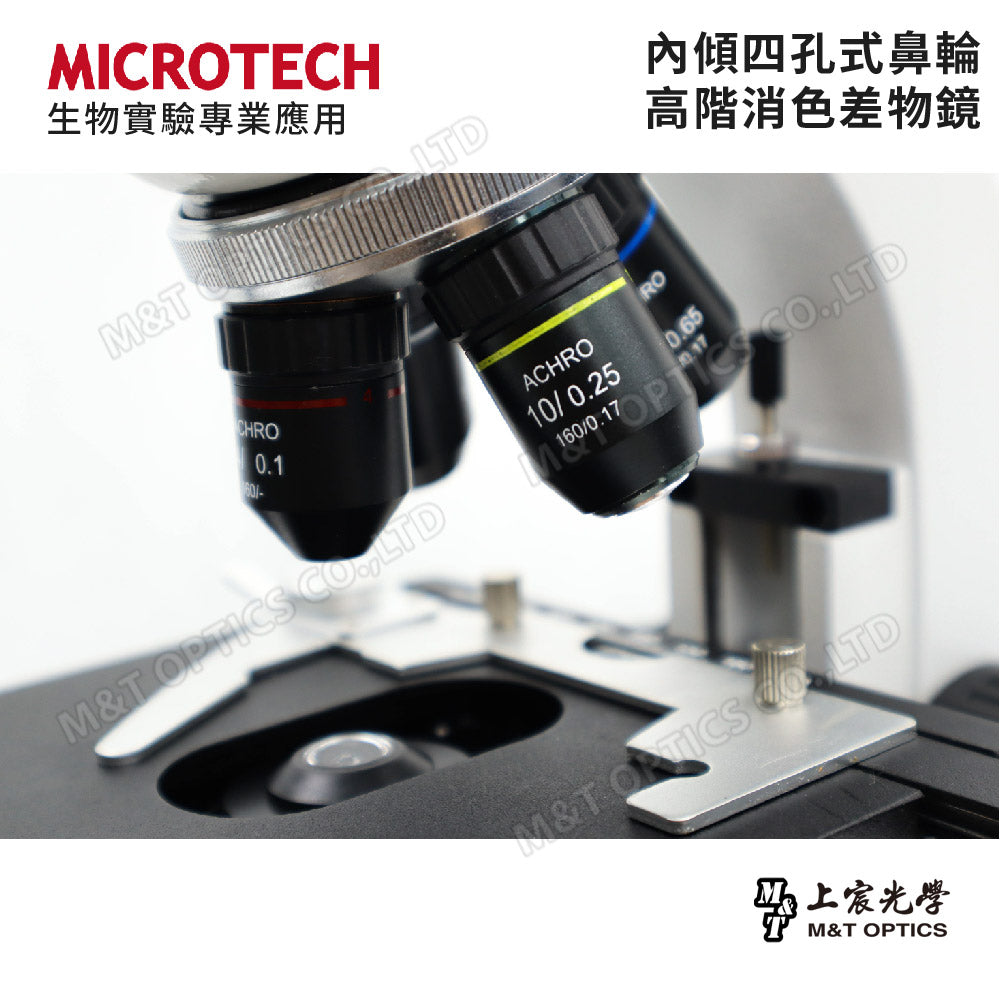

Inward-inclined four-hole nose wheel, high-end achromatic objective lens

It uses four-hole steel balls to position the retracted rotating nose wheel, and is equipped with a total of four advanced achromatic objective lenses of 4x, 10x, 40x and 100x (oil lens). The lenses are complete and the magnification is complete. The included lens oil is suitable for use with 100X high-magnification objective lenses.

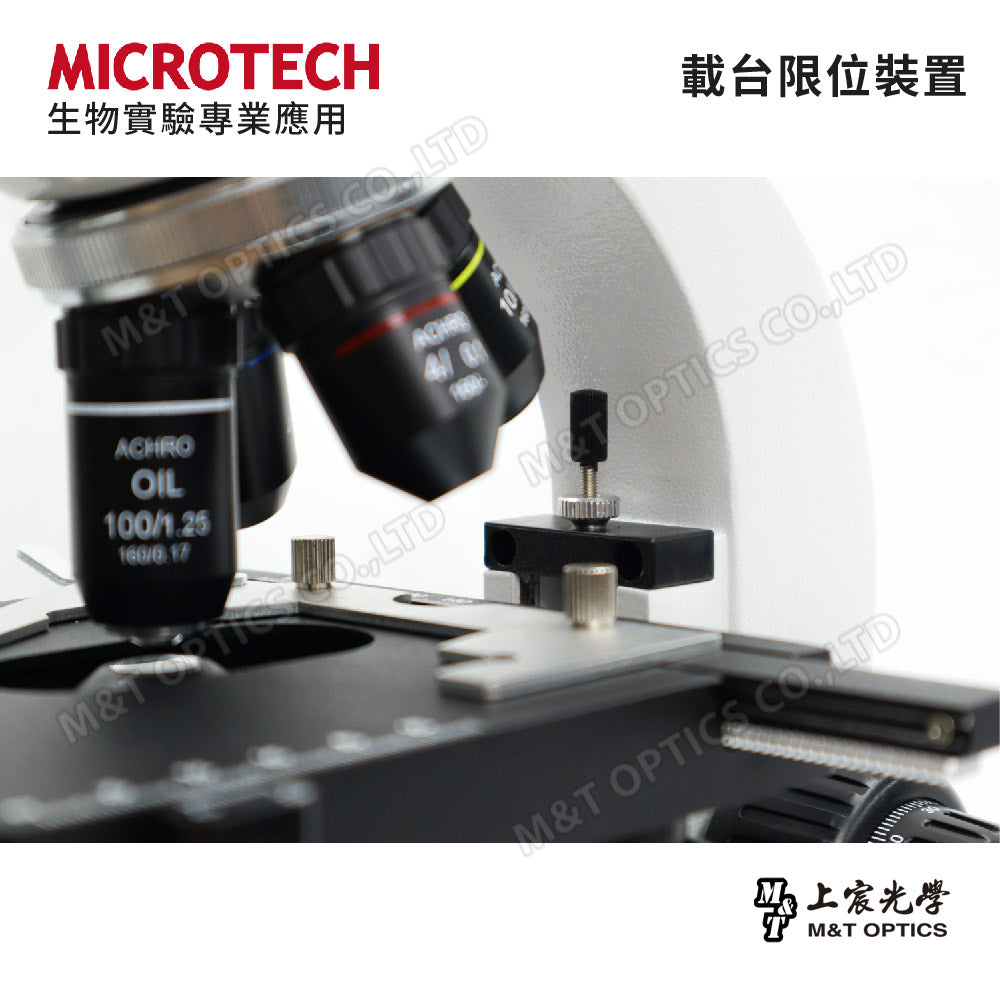

Stage limit device

Equipped with a limit safety device to prevent the slide from being broken by collision with the objective lens.

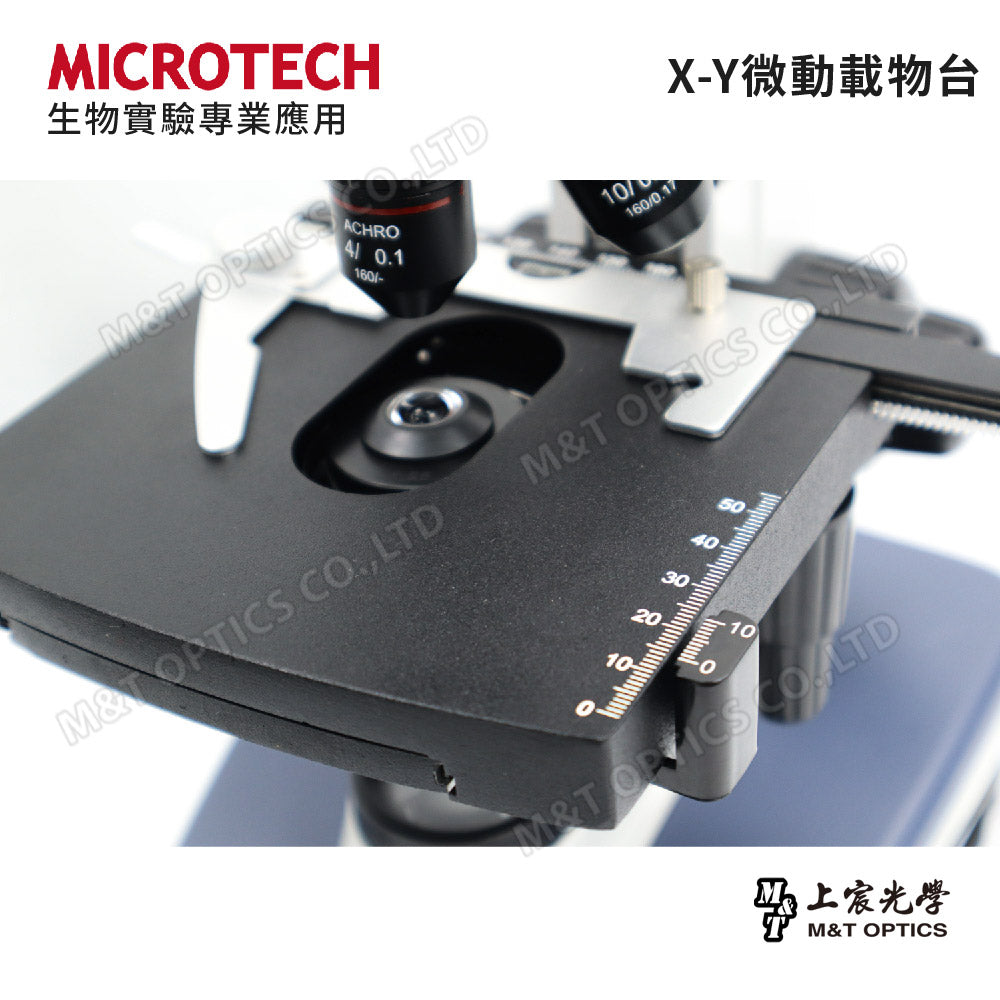

XY micro-motion stage

The smooth-operating micro-motion slide stage has a double-layer XY micro-movement mechanism, which can precisely micro-move forward, backward, left, and right, and accurately grasp the observation target.

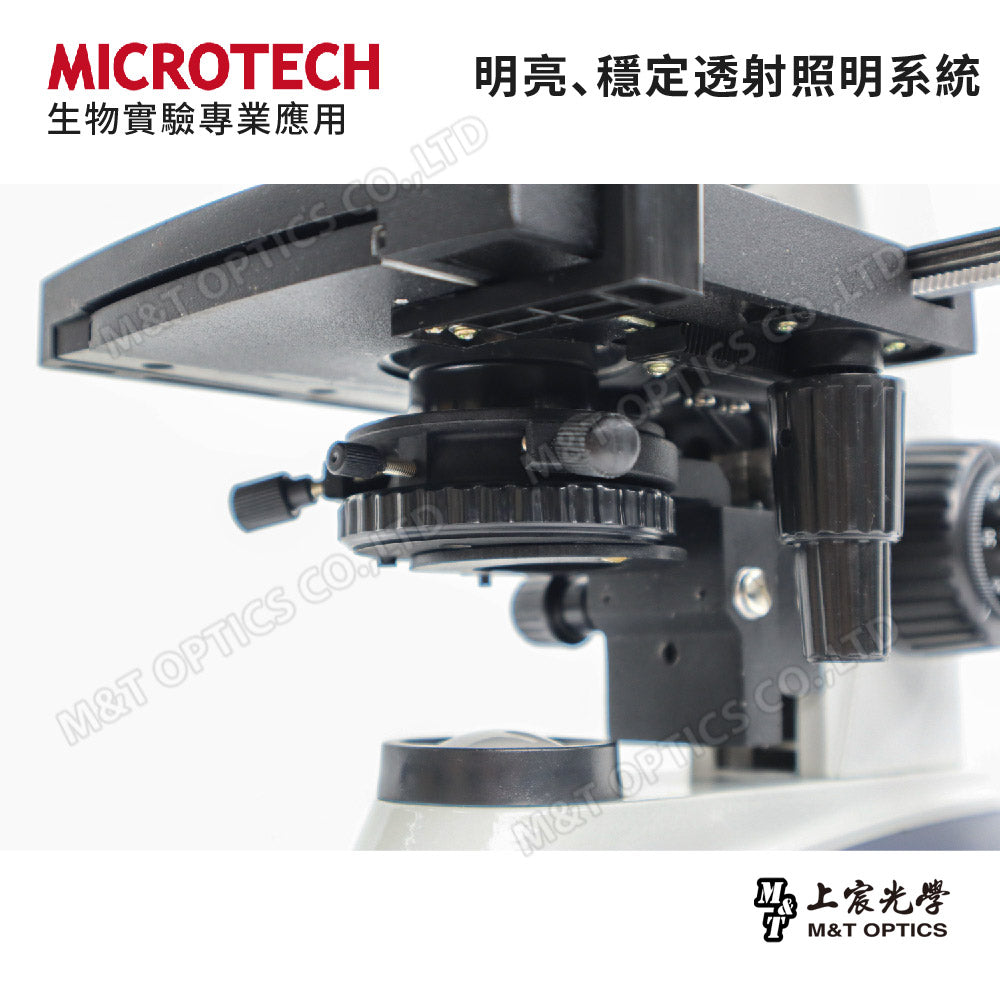

Bright, stable transmitted lighting system

Light source and Abbe focusing system, stepless continuous aperture adjustment. When necessary, the aperture can be appropriately narrowed to make the depth of field deeper and expand the clear range of the depth of the sample.

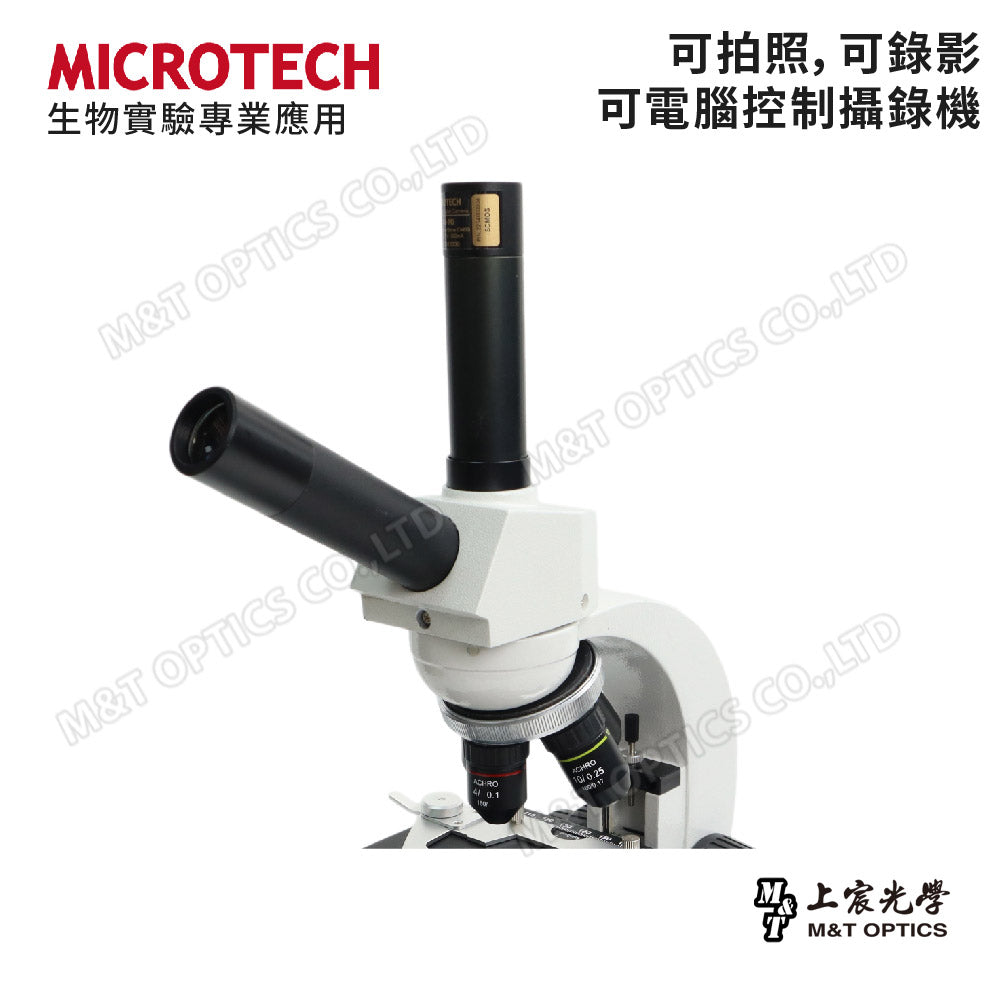

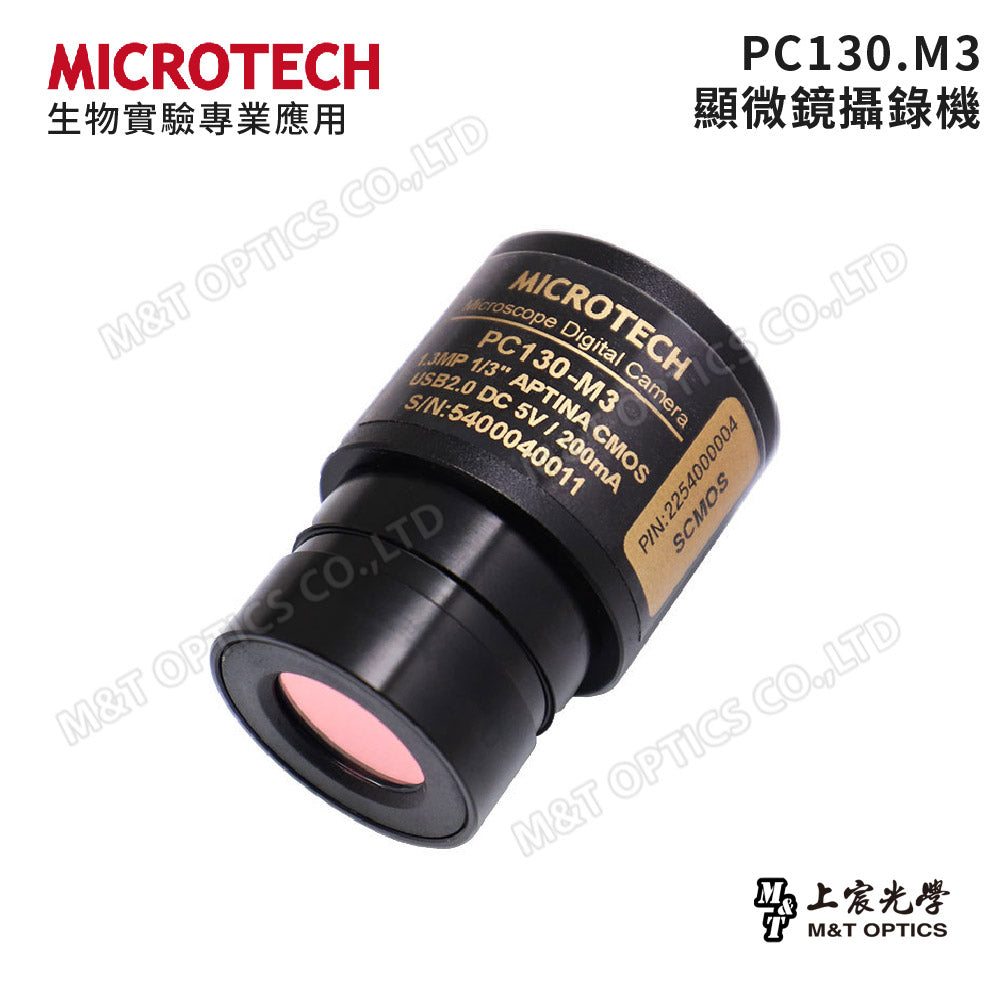

Microscopic camcorder (PC130.M3)

High-performance CMOS photosensitive chip and the latest digital signal processor (DSP) technology provide clear and high-quality images with 1.3 million pixels. The image colors are truly restored, the contrast is extremely high, and a variety of image parameters can be adjusted real-time. Automatic white balance and automatic exposure functions, high-speed and stable real-time preview of images.

Easy to install and easy to use

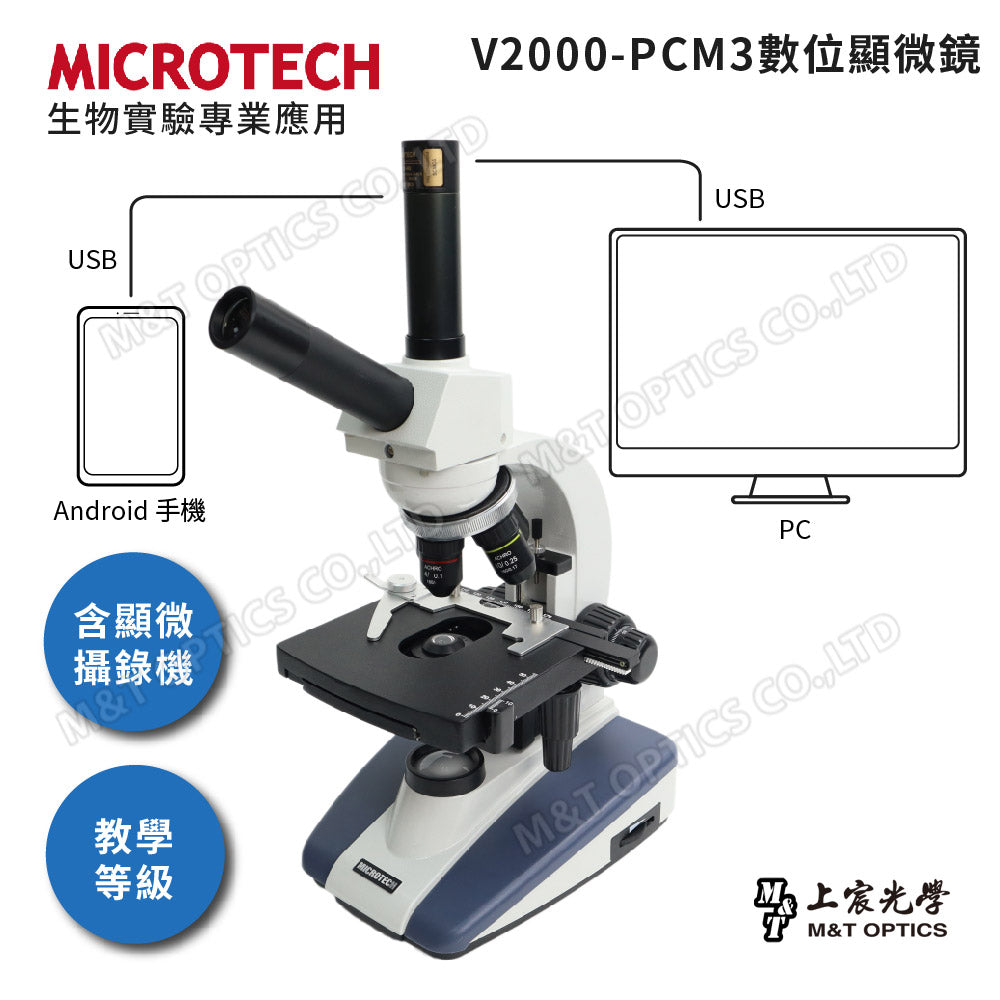

It is easy to install, easy to use and suitable for a variety of models. Pick up the eyepiece and the PC130-M3 video camera can be directly connected to the eyepiece tube of the microscope, and the images in the microscope can be transferred to the computer through the USB cable. You can then take photos, record videos, measure and calculate microscopic images to meet your professional needs. .

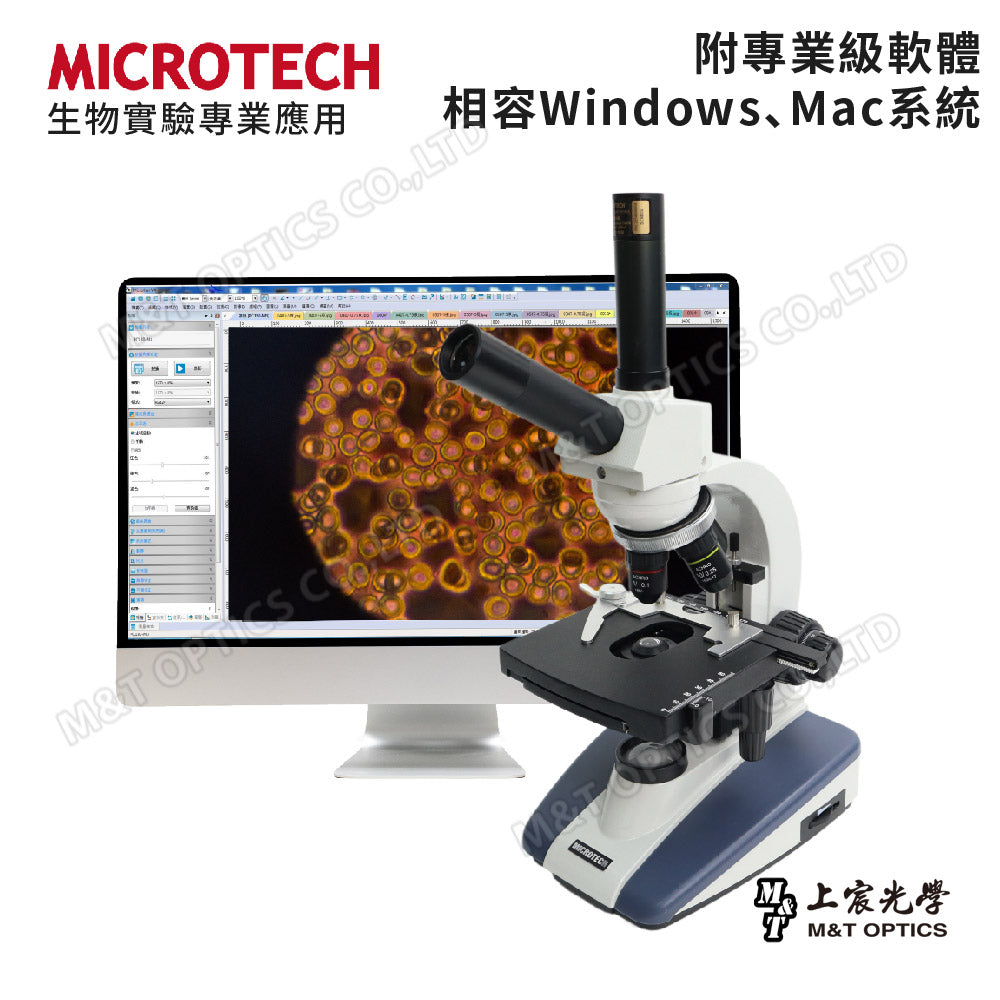

Professional grade software

It comes with professional-grade software and a high-resolution CMOS sensor that synchronizes with the computer screen in real time during observation, giving you the most convenient way to obtain microscopic images in teaching and research. Compatible with Windows, Mac operating systems and Android smartphones (you need to bring your own adapter cable).

Complete camera control interface and powerful image processing functions

It can take photos and videos, and the exposure can be controlled.

Advanced camera controls for darkfield correction and sharpness adjustment.

Recommended additional purchase-Basic microscope experimental tools and supplies set

Recommended additional purchase-Professional lens wiping pen (LMT-1)

The optical equipment lens wiping pen developed in Canada has an exclusive patent for the original carbon particle formula to remove oil film. It can easily remove stains remaining on the surface without using any cleaning fluid. It is an essential tool for cleaning and maintenance of optical mechanical lenses.

More information

How to use UPN fast mobile phone photography mount

PC130 camcorder detailed introduction

PC210 camcorder detailed introduction

Recommended additional purchases

PC210 Digital Microscope USB Camera ( Cat. No. 2254000010)

PC130-M3 Digital Microscope USB Camera ( Cat. No. 2254000004)

Basic microscope experimental tools and supplies set (Item No. 2202800688)

MICROTECH LMT-1 lens wiping pen ( item number 2248100004 )

Fine version - Cell tissue teaching slide specimen (Cat. No. 2201100090)

Coverslip (Cat. No. 2200500004)

Glossy glass slide (Cat. No. 2200500005)

Product specifications

Lens tube	Monocular coaxial spectroscopic tilt angle 30.70, hydraulic adjustable angle, optical path 160mm
nose chakra	Internal retractable, four-hole magnification conversion
eyepiece	WF10X＊1 piece, WF20X＊1 piece
Objective lens	4X, 10X, 40X (telescopic type), 100X (oil lens telescopic type)
Observation magnification	40 times to 2000 times
Focusing device	1:8 reduction coaxial thickness adjustment wheel
Lifting mechanism	Rack type ball focusing system with limiter device
slide stage	120mm*123mm, hydraulic slide holder, stroke 30mm*60m
condenser	Special adjustable condenser (can be installed with dark field and phase difference functions)
aperture	Segless continuous light barrier
Light source system	5W white LED with adjustable brightness function
Photosensitive element	1/3 inch color CMOS (spectrum response range 380nm~650nm)
total pixels	1.3 million pixels
exposure control	Manual control/fully automatic mode (electronic rolling shutter)
Resolution	1520x856、760x428
Fastest frame rate	30fps (1520x856, 760x428)
Image storage format	JPG／BMP／WMV／MPG
Transmission/Power	USB DC5V／USB length 150mm
Nozzle diameter	23mm
operating system	No driver installation required, suitable for XP/WIN7/WIN8/WIN10/Mac
Image capture	Preview (adjustable resolution), take photos, and record videos
Image adjustment	Brightness, contrast, saturation, hue, gamma, sharpness
exposure adjustment	Automatic white balance, automatic exposure
Instant processing	Flip (horizontal, vertical), gray value, embossing, sharpening, binarization, negative and other functions
Dynamic and static measurement functions	Geometric measurements of straight lines, angles, circles, areas, rectangles, etc.
