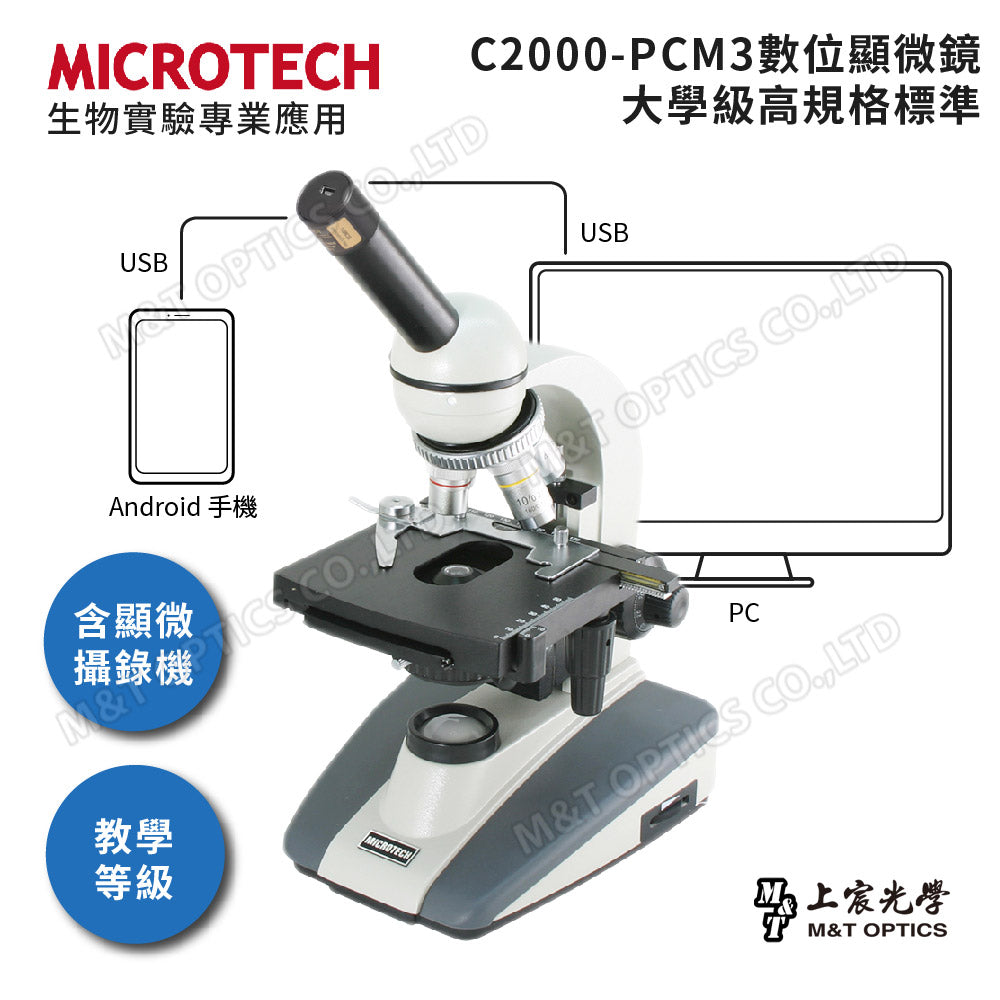

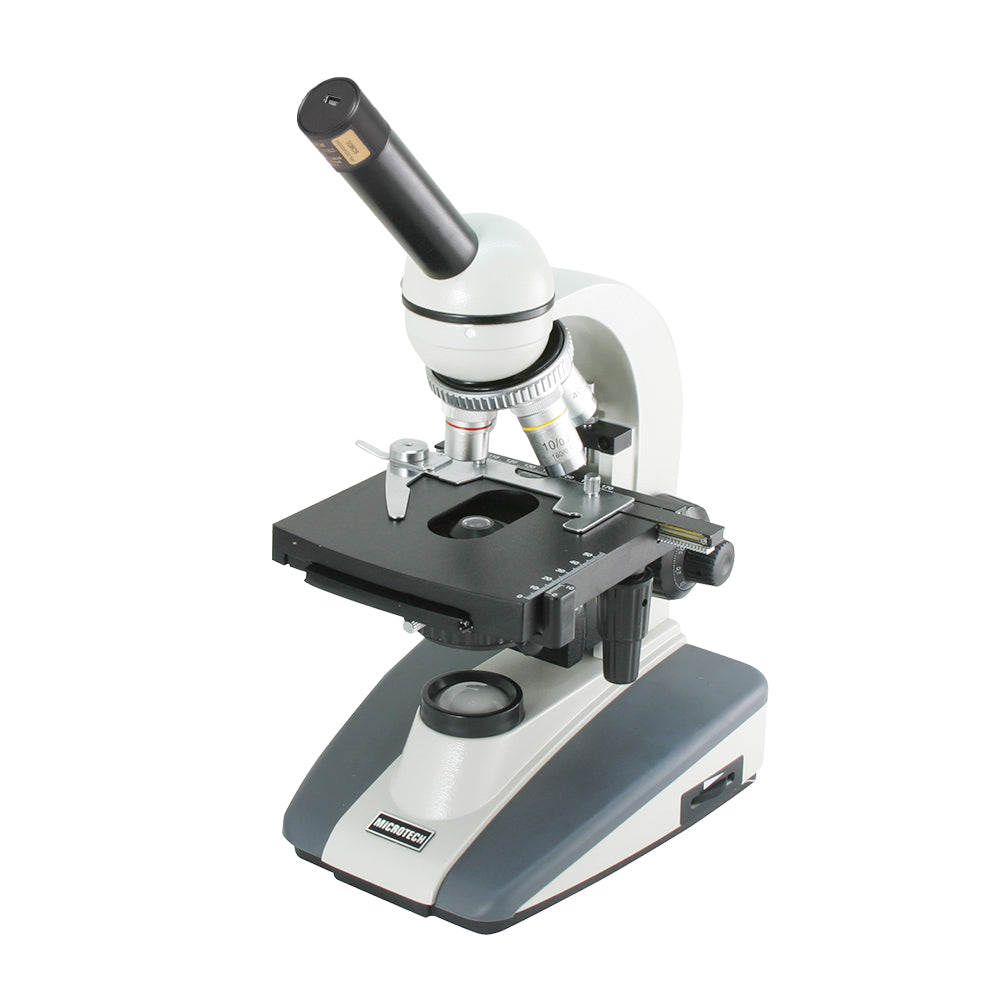

C2000-PCM3 digital microscope (universal Windows/Mac operating system)
Order number
2201800456
Couldn't load pickup availability
More information
How to use UPN fast mobile phone photography mount
PC130 camcorder detailed introduction
PC210 camcorder detailed introduction
Recommended additional purchases
PC210 Digital Microscope USB Camera ( Cat. No. 2254000010)

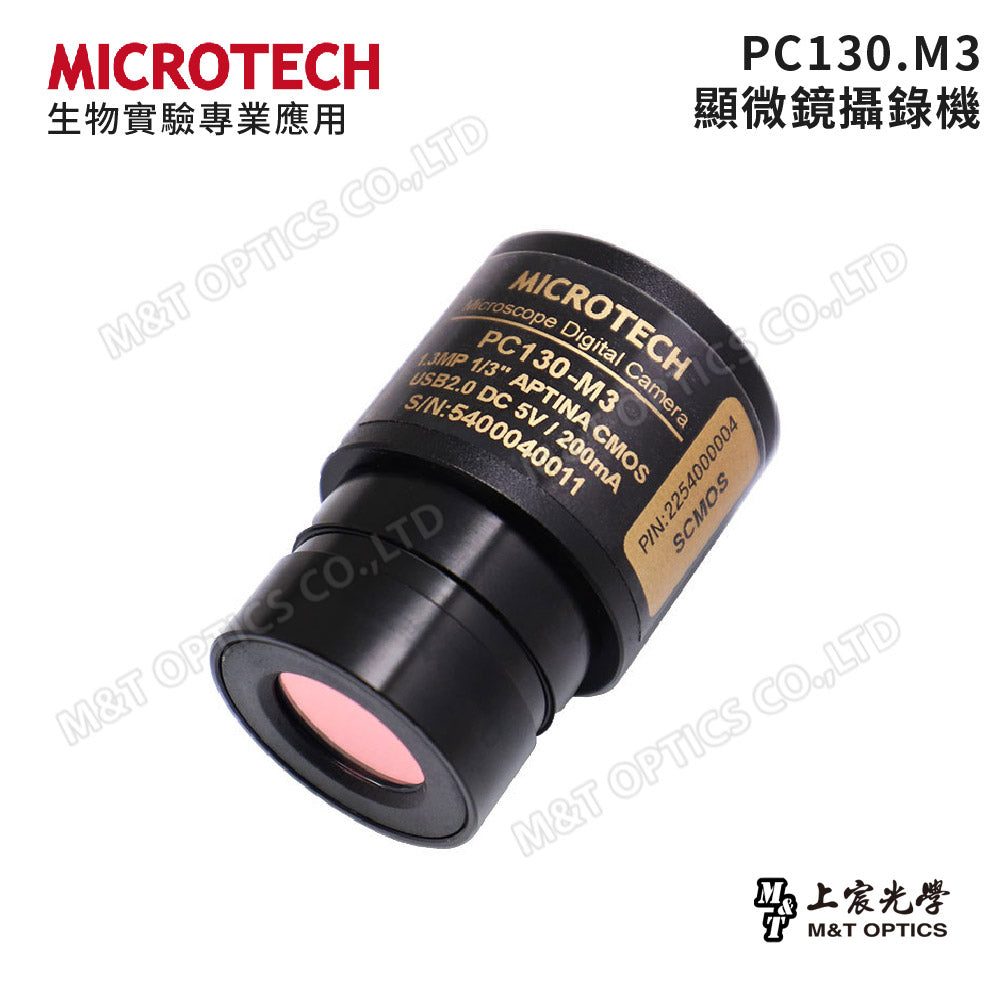

PC130-M3 Digital Microscope USB Camera ( Cat. No. 2254000004)
Basic microscope experimental tools and supplies set (Item No. 2202800688)
MICROTECH LMT-1 lens wiping pen ( item number 2248100004 )
Fine version - Cell tissue teaching slide specimen (Cat. No. 2201100090)
Coverslip (Cat. No. 2200500004)
Glossy glass slide (Cat. No. 2200500005)
Product specifications
| Lens tube | Monocular inclination hydraulically adjustable angle, optical path 160mm |

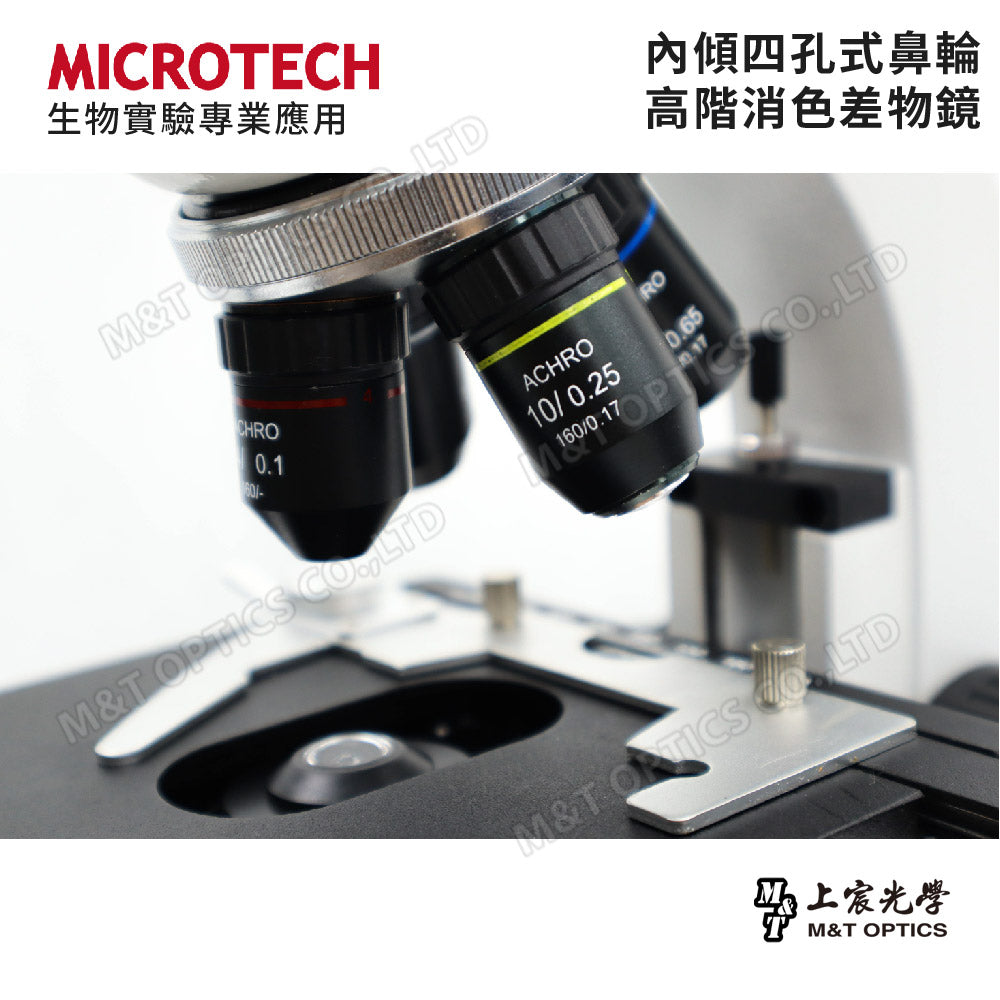

| nose chakra | Internal retractable, four-hole magnification conversion |
| eyepiece | WF10X＊1 piece, WF20X＊1 piece |
| Connect objective lens | 4X, 10X, 40X (telescopic type), 100X (oil lens telescopic type) |
|
Observation magnification
|
40 times to 2000 times |
|
Focusing device
|
1:8 reduction coaxial thickness adjustment wheel |
|

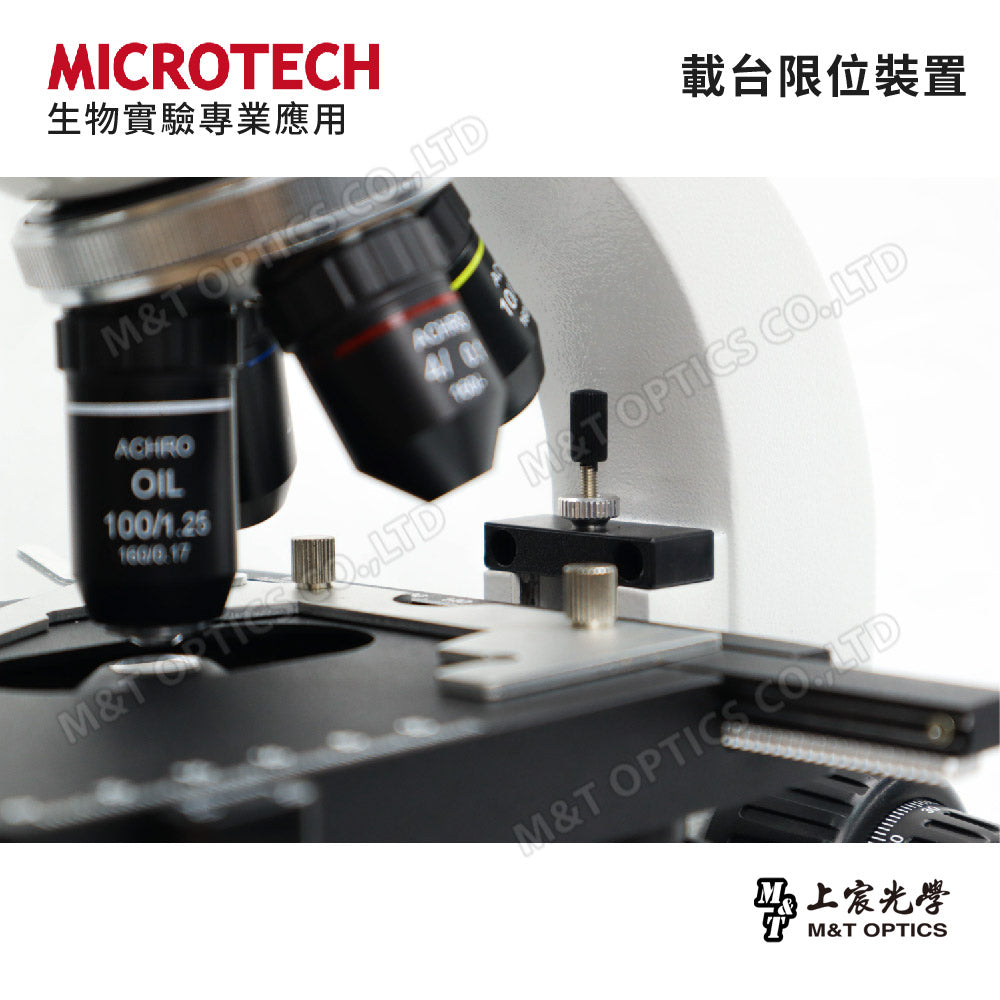

Lifting mechanism
|
Rack-type ball focusing system with limiter device |
|

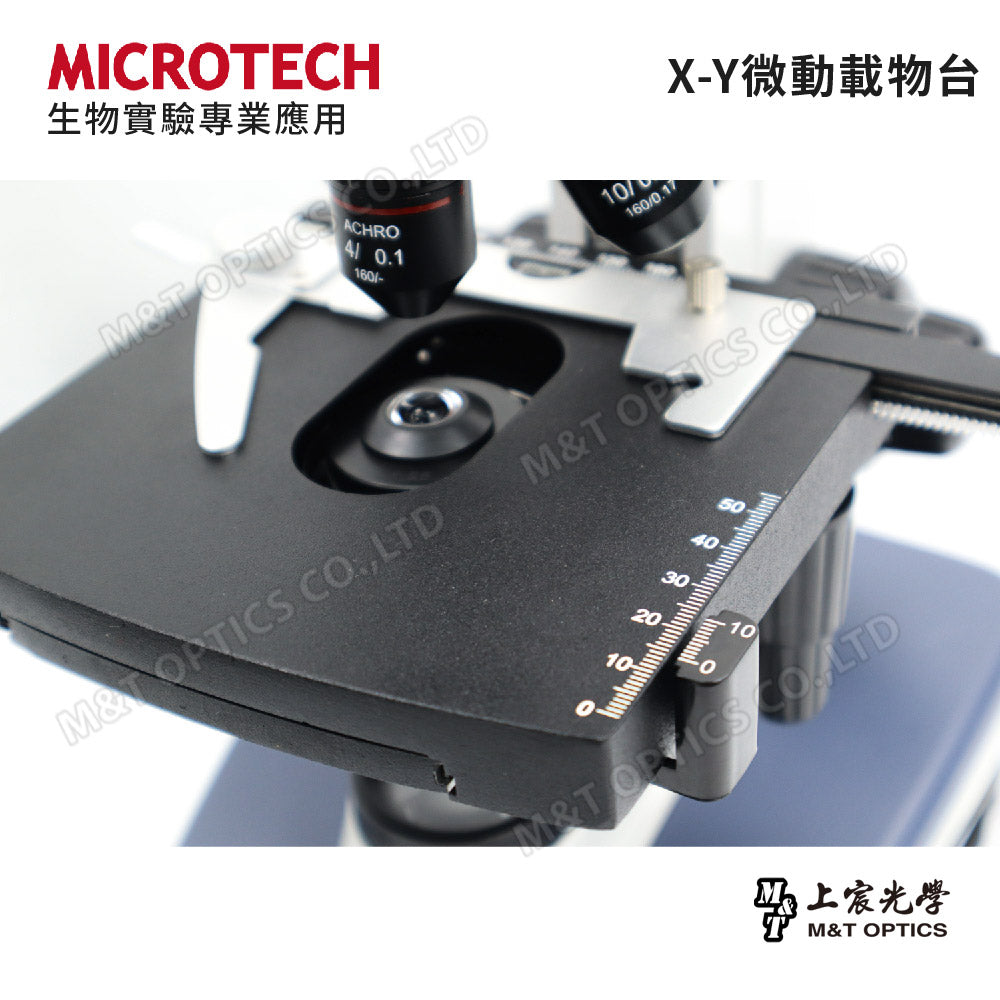

slide stage
|
120mm*123mm, hydraulic slide holder, stroke 30mm*60m |

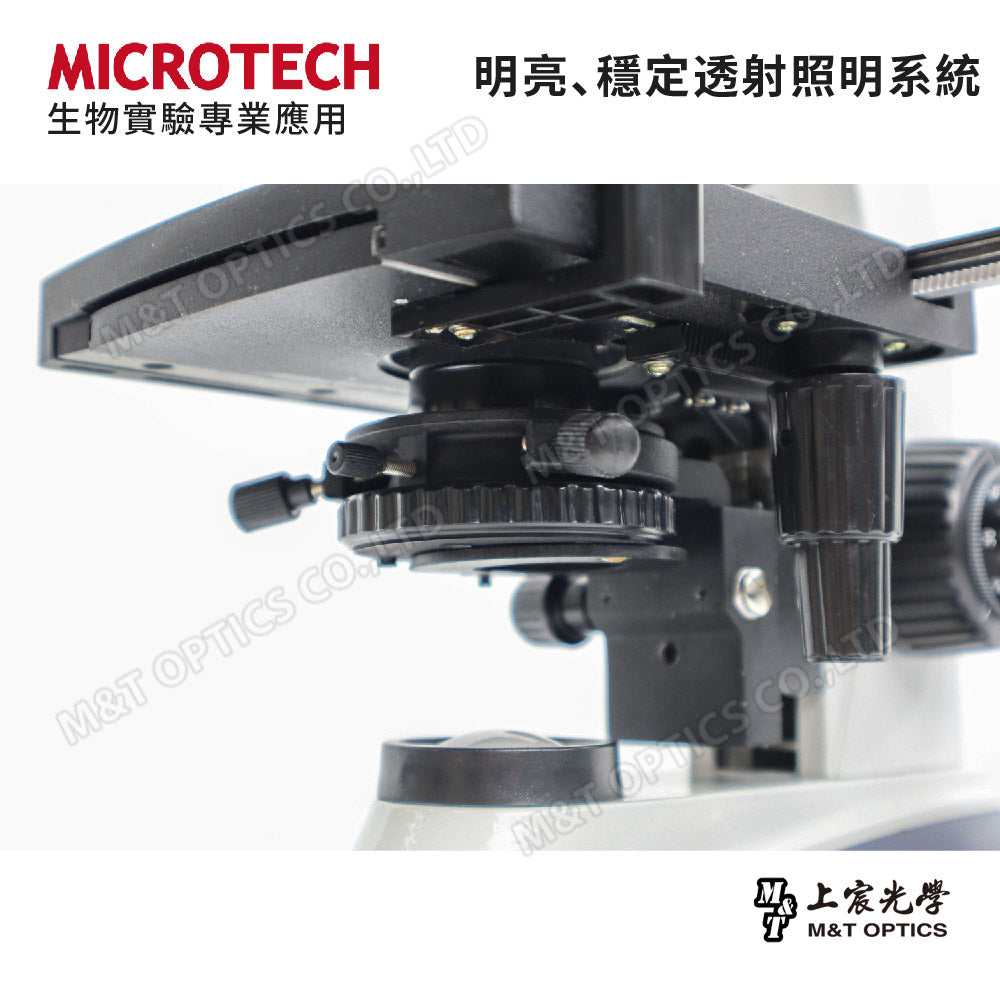

| condenser | Special adjustable condenser (can be installed with dark field and phase difference functions) |
| aperture | Segless continuous light barrier |
| Light source system | 5W white LED with adjustable brightness function |
|
Photosensitive element
|
1/3 inch color CMOS (spectrum response range 380nm~650nm) |
|
total pixels
|
1.3 million pixels |
| exposure control | Manual control/fully automatic mode (electronic rolling shutter) |
| Resolution | 1520x856、760x428 |
|
Fastest frame rate
|
30fps (1520x856, 760x428) |
|
Image storage format
|
JPG／BMP／WMV／MPG |
|
Transmission/Power
|
USB DC5V／USB length 150mm |
|
Nozzle diameter
|
23mm |
|

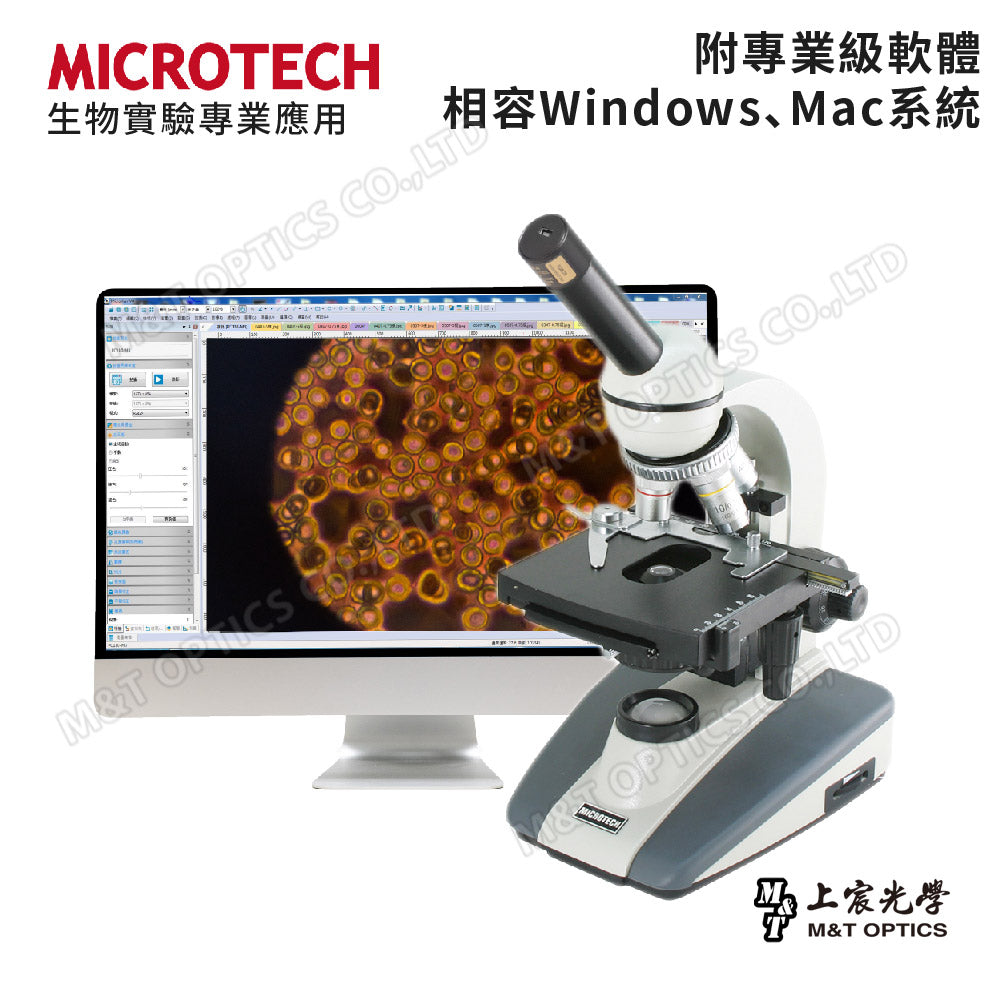

operating system
|
No driver installation required, suitable for XP/WIN7/WIN8/WIN10/Mac |
|

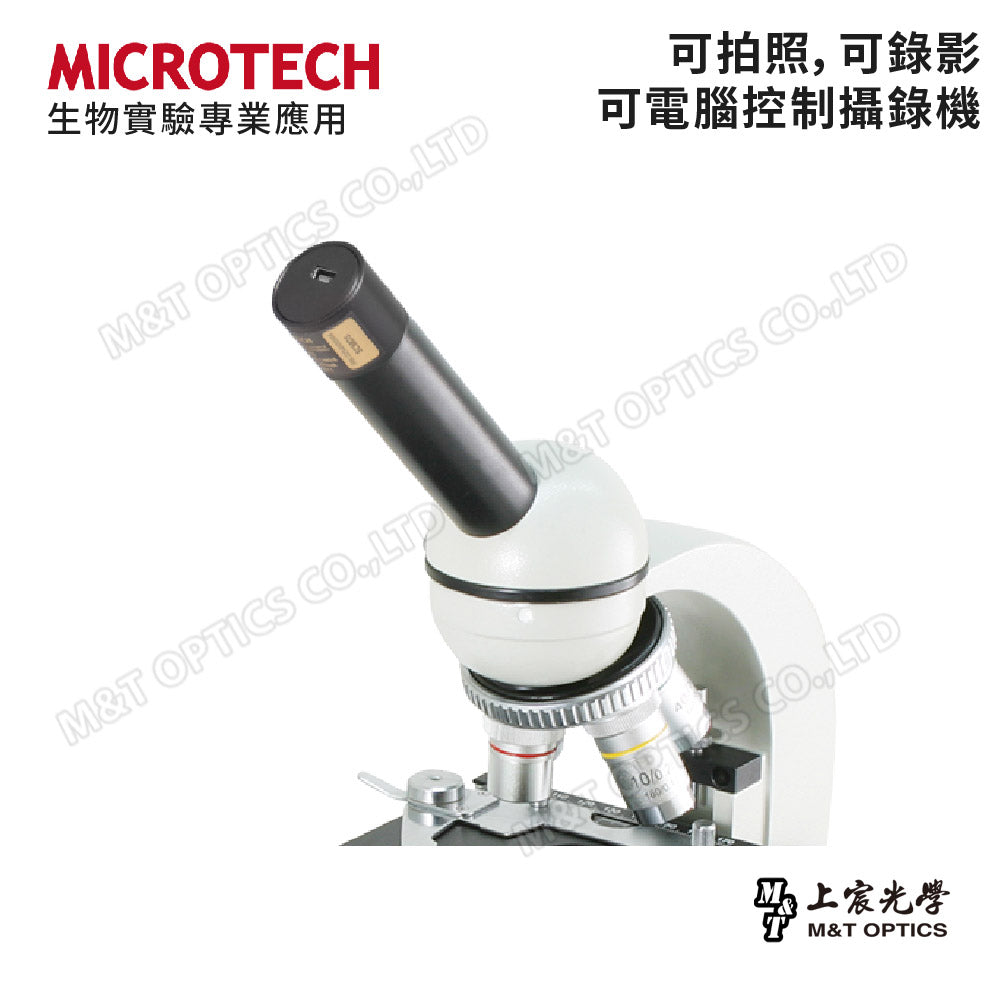

Image capture
|
Preview (adjustable resolution), take photos, and record videos |
|
Image adjustment
|
Brightness, contrast, saturation, hue, gamma, sharpness |
|
exposure adjustment
|
Automatic white balance, automatic exposure |
|
Instant processing
|
Flip (horizontal, vertical), gray value, embossing, sharpening, binarization, negative and other functions |
|
Dynamic and static measurement functions
|
Geometric measurements of straight lines, angles, circles, areas, rectangles, etc. |
