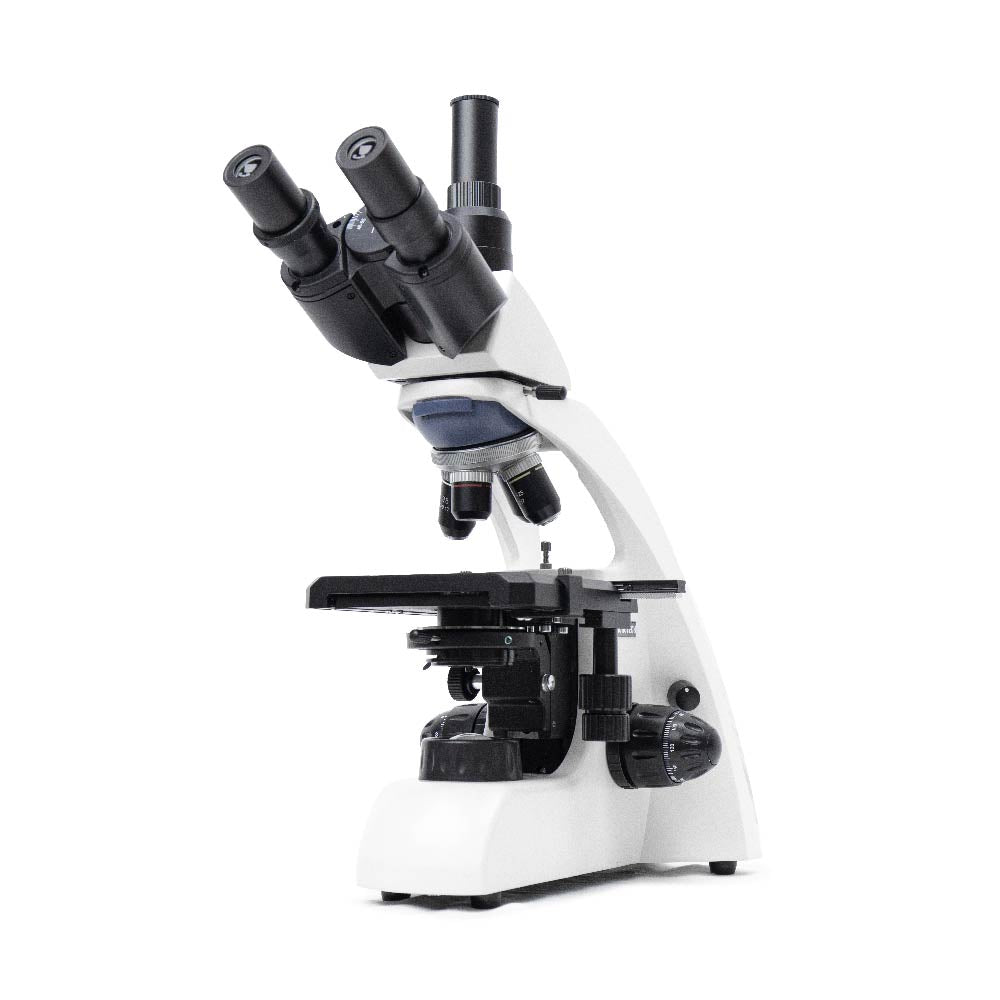

LX series primary and secondary school teacher grade biological microscope

LX130-LED is a primary and secondary school teacher-level biological microscope that can observe biological cell slices and tissues with three eyes, with an observation magnification of 40x~2500x. Objective lenses of international standards are available from low to high magnification, and the optical field of view is bright and comfortable; the one-piece lens body has a generous appearance and a stable structure. This machine has excellent optical quality, the image is bright and clear, the details are sharp, coupled with the ultra-wide field of view and excellent lighting system, it is fully suitable for clinical biological experiment functions, suitable for: cell culture analysis, tissue section observation, blood interpretation, Solution observation, water quality inspection, environmental protection testing, breeding research, aquaculture, agricultural and fishery experiments, livestock racing pigeon breeding, medical experiments, biological experiments, etc.

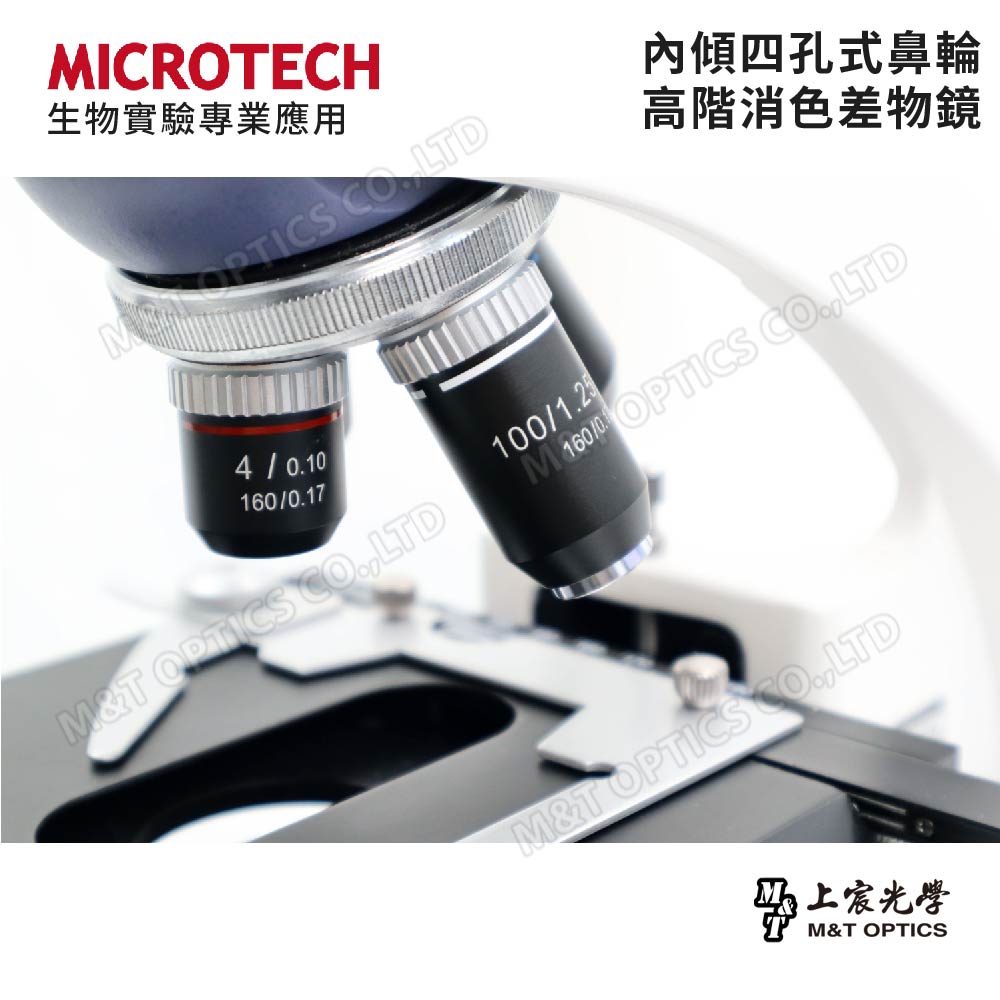

Adopt high-end achromatic objective lens and inward-inclined four-hole nose wheel

It uses four-hole steel balls to position the retracted rotating nose wheel, and is equipped with a total of four advanced achromatic objective lenses of 4x, 10x, 40x and 100x (oil lens). The lenses are complete and the magnification is complete. The included lens oil is suitable for use with 100X high-magnification objective lenses.

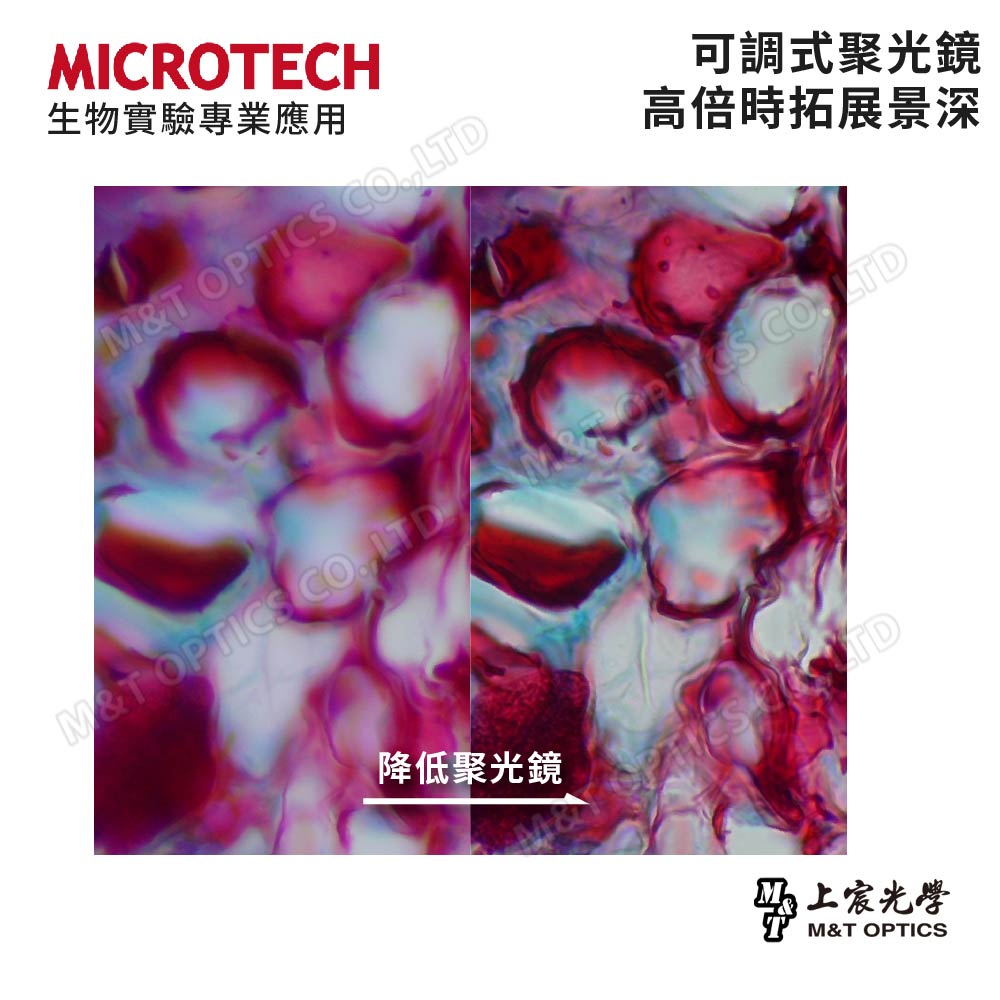

Adjustable condenser to expand depth of field at high magnification

Equipped with Abbe type focusing system. When using high-magnification observation, you can lower the condenser or narrow the aperture to expand the depth of field and expand the clear range of the sample depth.

Trinocular observation head, large field of view eyepiece

The wide-field eyepieces are matched with high-end achromatic objectives, and the eyepieces include a set of WF10X and WF25X. The third eye socket of the observation head can be connected to a "microscopic camera" to output microscopic observation images in real time. It is quite suitable for teaching, biological experiments, and recording research results.

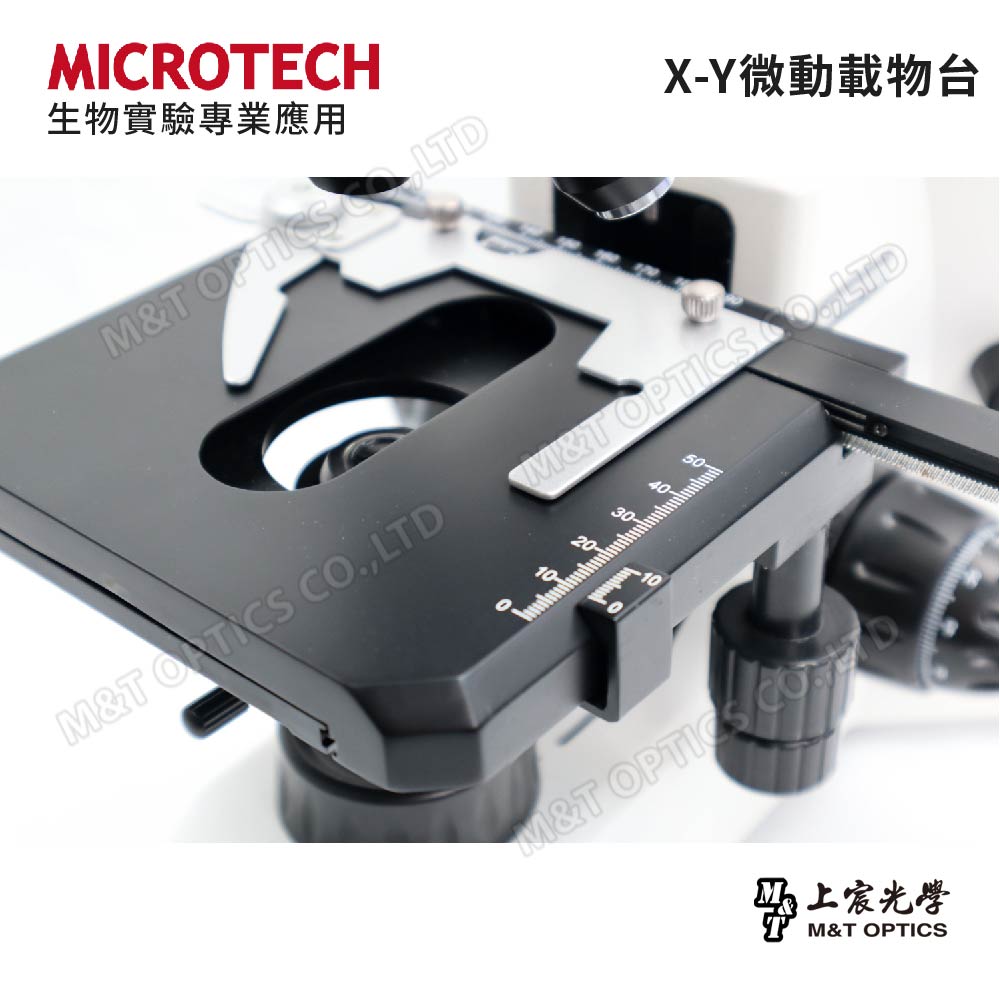

XY micro-motion stage

The smooth-operating micro-motion slide stage has a double-layer XY micro-movement mechanism, which can precisely micro-move forward, backward, left, and right, and accurately grasp the observation target.

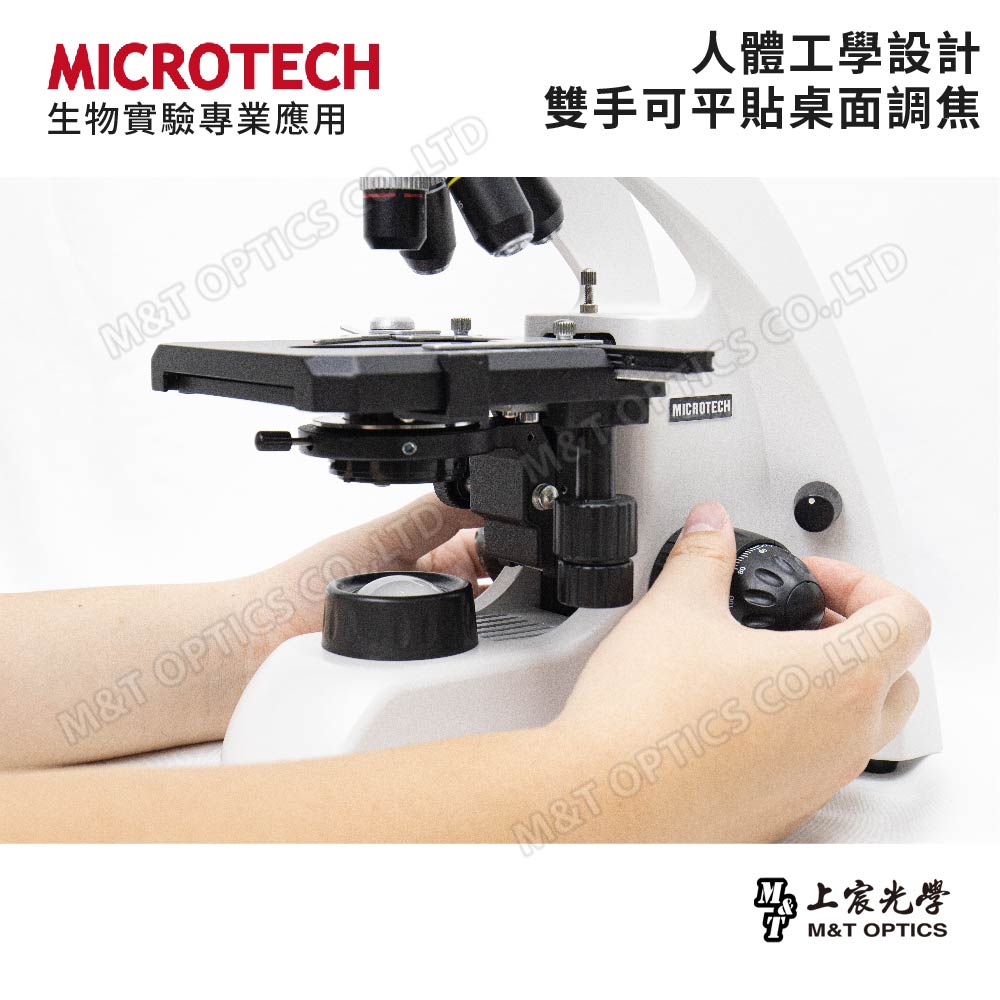

Ergonomic design

Both hands can be placed flat on the table to adjust focus, adjust the micro-motion stage, and adjust the brightness of the light source to ensure stability for long-term operations.

Stage limit device

Equipped with a limit safety device to prevent the slide from being broken by collision with the objective lens.

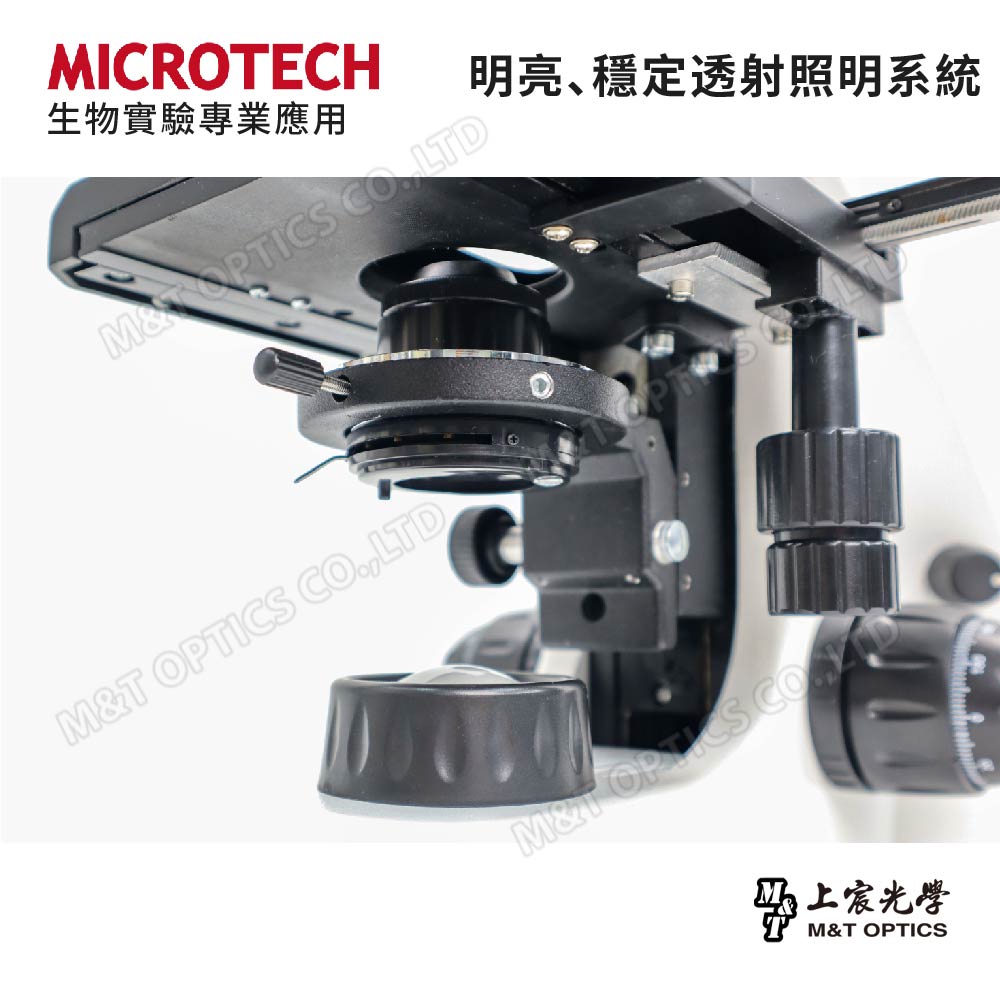

Bright and stable LED transmitted lighting system

Equipped with a new generation LED light source system, there are no worries about consumables, and it provides a bright and stable field of view; the universal voltage socket can be used anywhere. Paired with the Abbe condenser system, it enhances your microscopic observation experience.

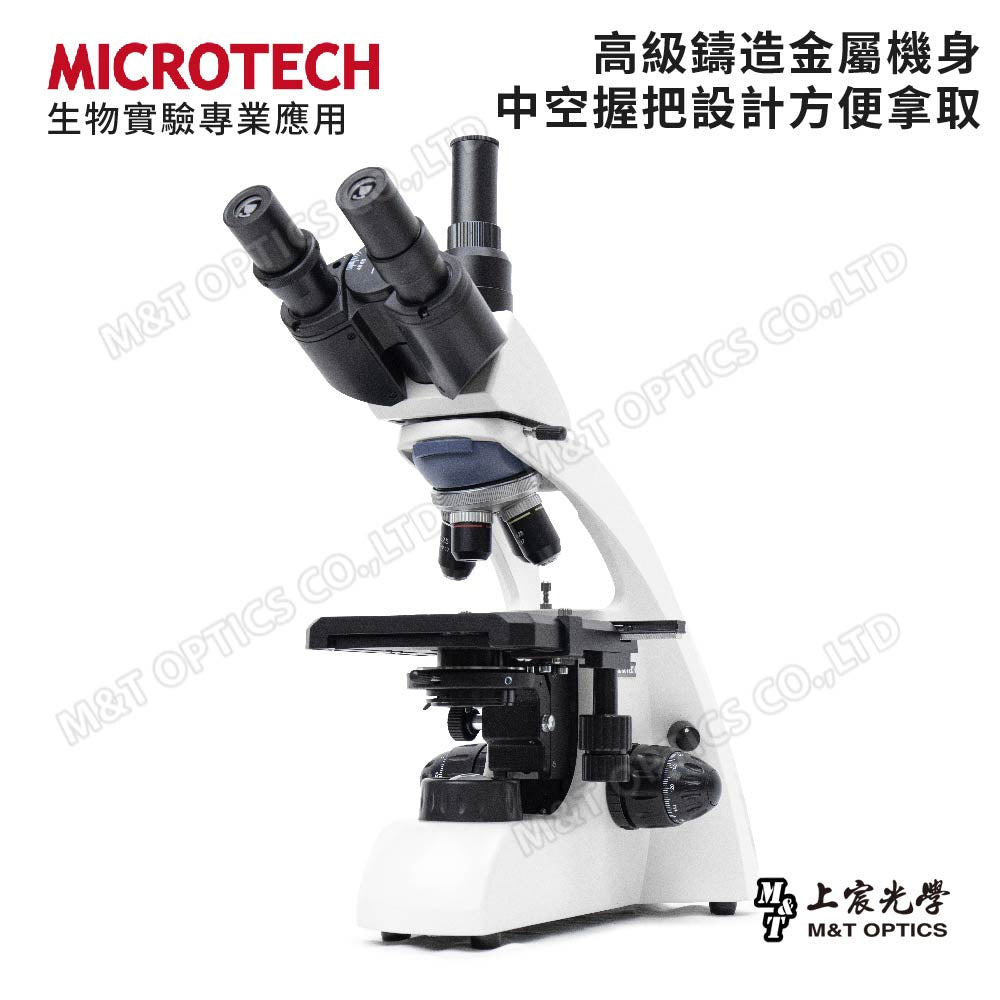

Premium cast metal body

The streamlined and high-quality body structure incorporates an integrated focusing system and LED light source system, and provides good load bearing, allowing experimental operators to enjoy a wonderful operating experience.

Observation examples

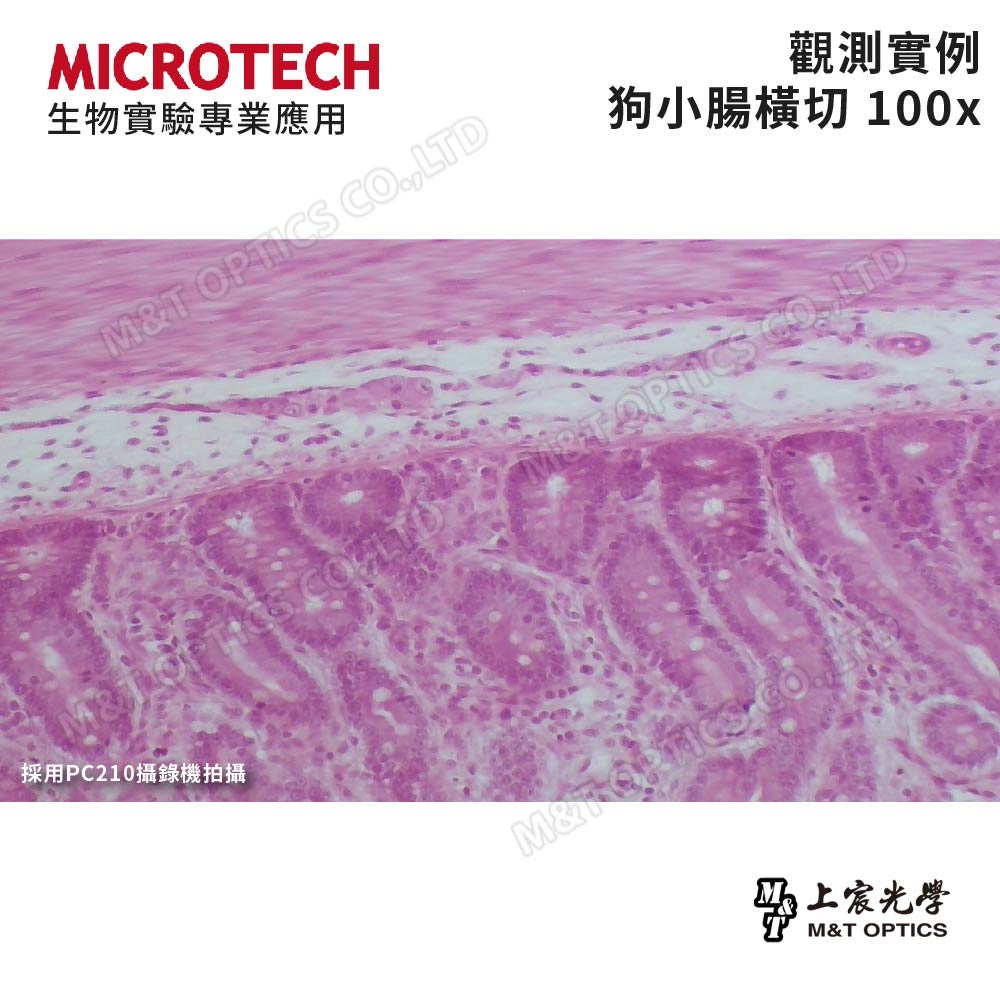

Dog Small Intestine Transection - 100x

Observation examples

Pumpkin stem cut crosswise - 400x

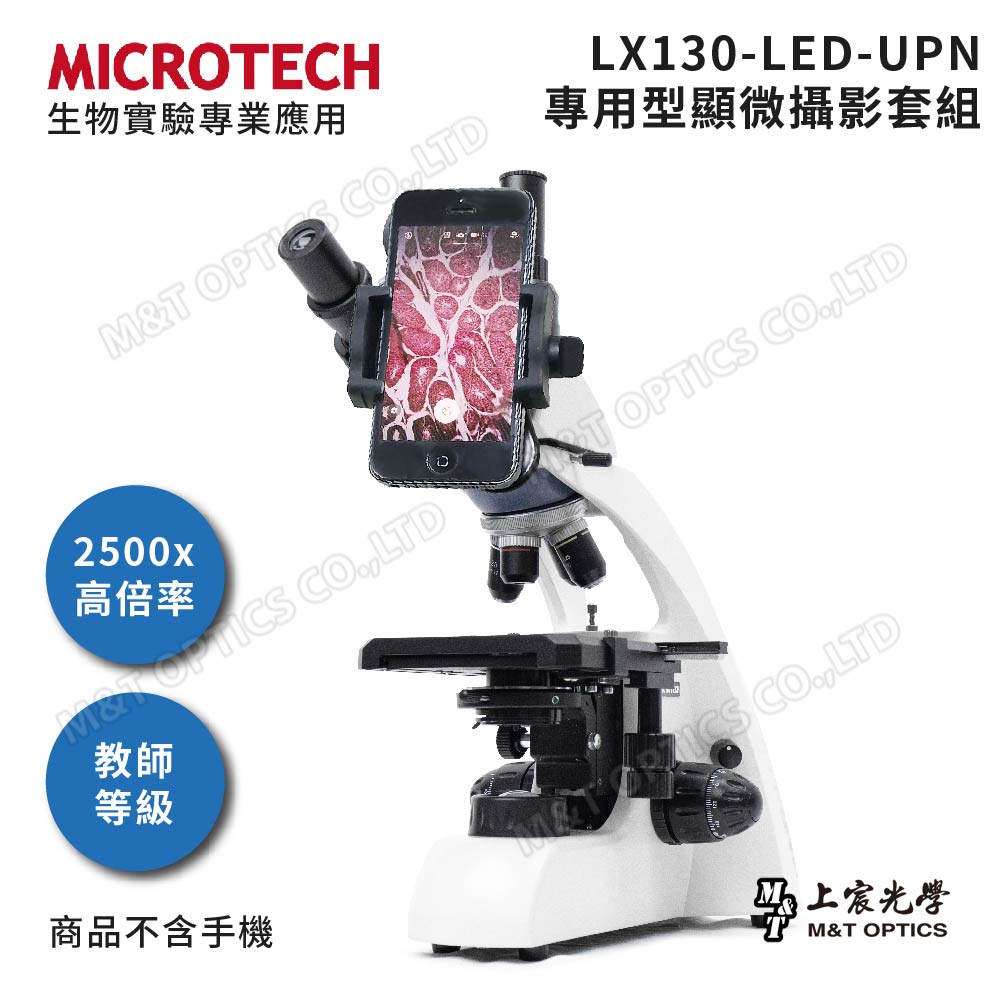

UPN-281.LX Mobile Phone Photography Stand (included with UPN Photography Kit)

Microscope users always have the urge to take pictures of the wonderful microscopic world under the microscope. Shangchen has professionally developed a universal holder for mobile phone photography, which can securely secure all types of smartphones and place the lens correctly on the microscope in an ideal way. The back focus position is used to use the shooting function of the mobile phone to wonderfully reproduce the microscopic world.

• Applicable mobile phone width 5.5~10cm (allowable width of mobile phone holder).
• Customized eyepiece adapter, easy and stable installation.
• It can be used without removing the original eyepiece.
• The shooting field of view can reach 100% (compared to visual inspection).
• It can focus semi-automatically and accurately (the phone lens itself is micro-focused).
• After the mobile phone is connected to the Internet, you can live broadcast or share photos and videos via wifi.

Can be used with a microscope camera to view images through a computer (additional purchase required)

The eyepiece can be removed directly to replace the PC130 or PC210 microscope camera. It can be connected to a computer through the USB interface to take photos and videos, and can also display the microscope screen simultaneously to facilitate teaching or recording observations.

Complete camera control interface and image processing functions (additional purchase of PC130/PC210 microscopic camcorder)

The computer software contains a complete operating interface, which can control the exposure of the microscope camera and provide advanced control of field correction and sharpness adjustment. Measurement reports (Excel spreadsheets, Word files) can also be exported.

Recommended additional purchases

Basic microscopy experimental tool set

Product specifications

magnification	40X～2500X
Observation head	Trinocular, tilted 30 degrees, interpupillary distance adjustable from 50 to 74mm
Transmissive LED light source	Cold light, adjustable brightness
power supply	AC110V～220V, back type cooling circuit box
eyepiece	WF10X＊2, WF25X＊2
Connect objective lens	4X, 10X, 40X, 100X (oil telescopic type) achromatic objective lens
nose chakra	Four hole steel ball bearing positioning
focusing	Coaxial coarse and fine focusing wheel, focusing stroke 28mm, accuracy 0.002mm/per small division
Stage	Double-layer type, size 140*132mm, attached with slide holder. X-axis travel 70mm, Y-axis travel 30mm
condenser	ABBE condenser built-in diaphragm system
aperture	Segless continuous light barrier
Lifting mechanism	Rack type ball focusing system with limiter device
Mirror body	One-piece seamless cast mirror body, H-shaped hollow mirror arm, flat mirror back, mirror back with heat dissipation holes
physical dimension	180＊260＊410mm
weight	5.1kg
Warranty	one year
mobile photography	UPN281LX fast mobile phone photography mount can be purchased additionally
