Equipped with WiFi wireless microscopic camera

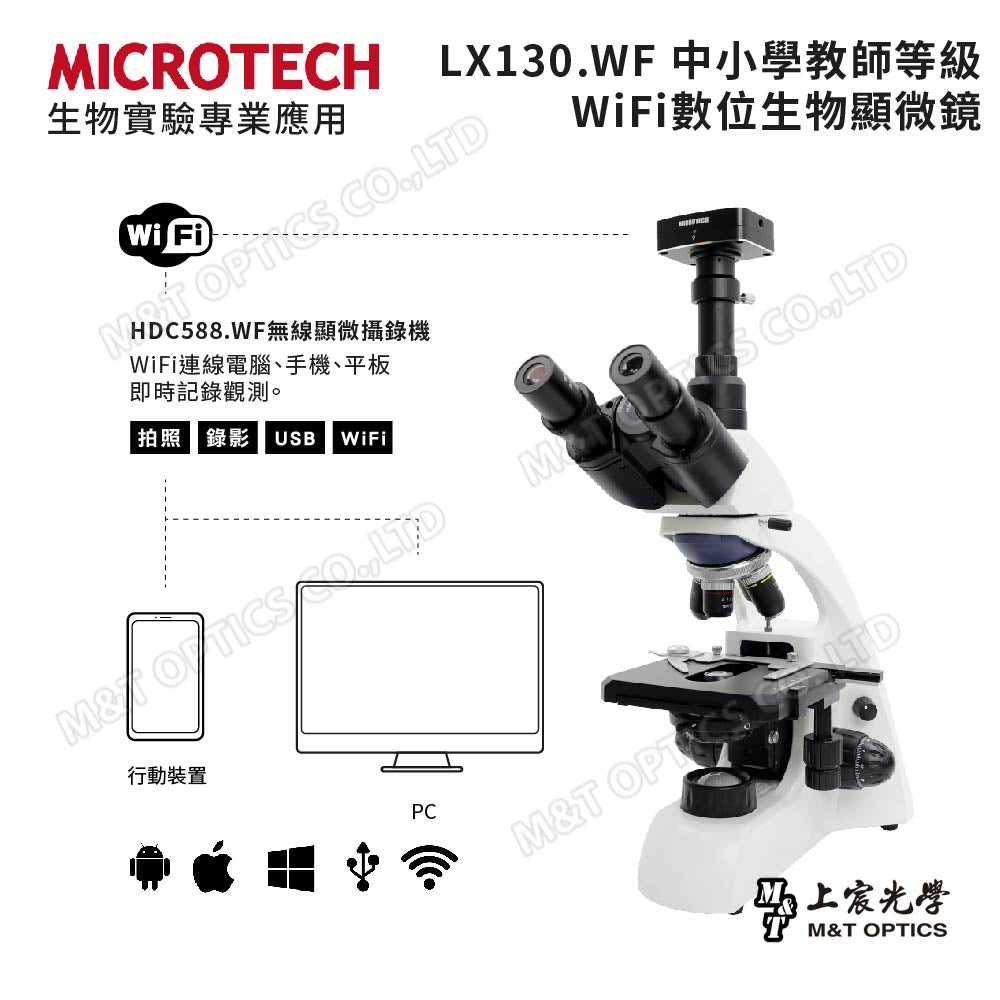

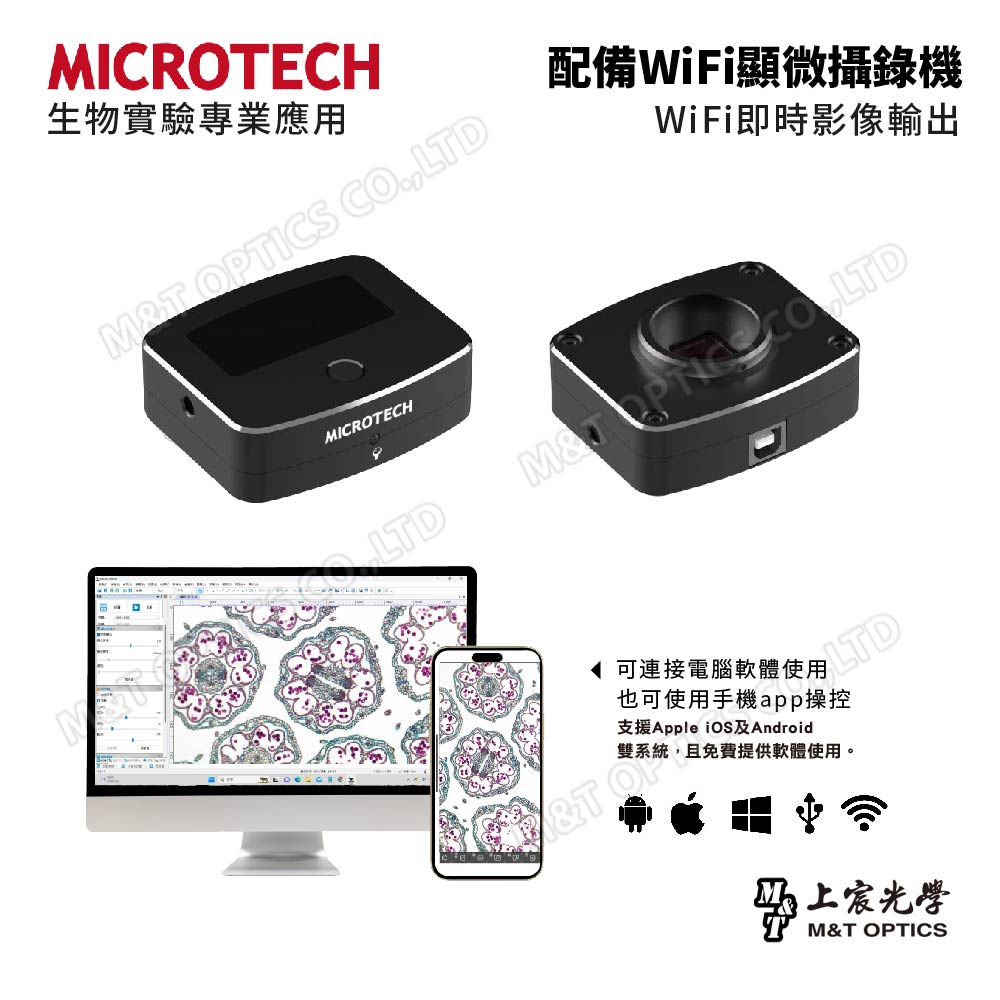

"HDC588.WF wireless camcorder" has a large photosensitive element, high resolution, easy connection method, sturdy structure and lightweight size. It is equipped with the MICROTECH LX130 microscope third-eye image receiver, which can connect computers and mobile phones through USB or WiFi to transmit images in real time. View and record images under the microscope, as well as take photos and videos, measure and calculate microscopic images to meet your professional needs.

Larger sensor

In order to provide a larger field of view and resolution for microscopic images, HDC588.WF uses a more expensive 1/1.8" CMOS sensor. The 8 million pixels provide more realistic and smooth real-time dynamic images. You can take clear photos or record videos at any time. It can give full play to the high-magnification efficiency of the microscope.

Extremely high compatibility creates advantages

It can use USB interface and WiFi wireless transmission function, and is compatible with Mac, Windows, Android, ios and other mainstream computer and mobile device operating systems on the market.

LX series primary and secondary school teacher grade biological microscope

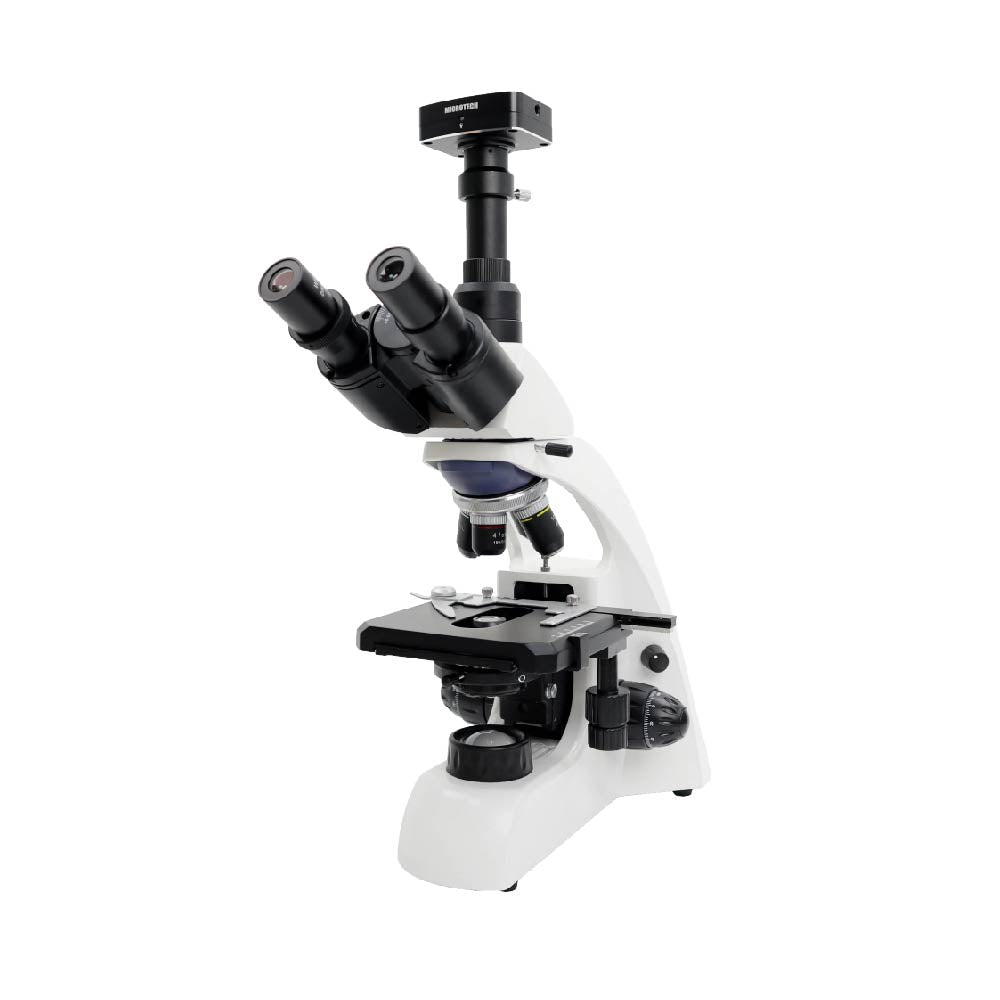

LX130WF is a primary and secondary school teacher-level biological microscope that can observe biological cell slices and tissues with binocular vision, with an observation magnification of 40x~2500x. Objective lenses of international standards are available from low magnification to high magnification, and the optical field of view is bright and comfortable; the one-piece lens body has a generous appearance and a stable structure, and can be used with a WiFi camcorder to wirelessly output images. This machine has excellent optical quality, the image is bright and clear, the details are sharp, coupled with the ultra-wide field of view and excellent lighting system, it is fully suitable for clinical biological experiment functions, suitable for: cell culture analysis, tissue section observation, blood interpretation, Solution observation, water quality inspection, environmental protection testing, breeding research, aquaculture, agricultural and fishery experiments, livestock racing pigeon breeding, medical experiments, biological experiments, etc.

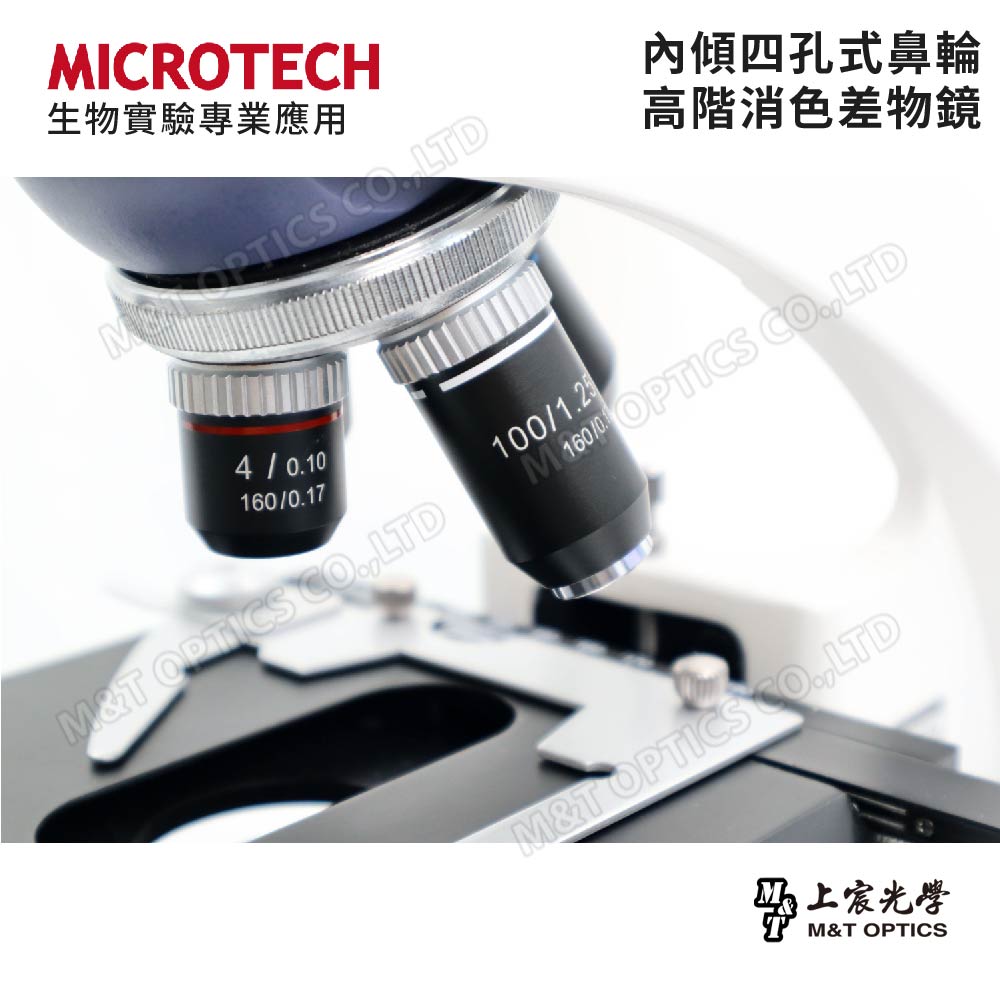

Adopt high-end achromatic objective lens and inward-inclined four-hole nose wheel

It uses four-hole steel balls to position the retracted rotating nose wheel, and is equipped with a total of four advanced achromatic objective lenses of 4x, 10x, 40x and 100x (oil lens). The lenses are complete and the magnification is complete. The included lens oil is suitable for use with 100X high-magnification objective lenses.

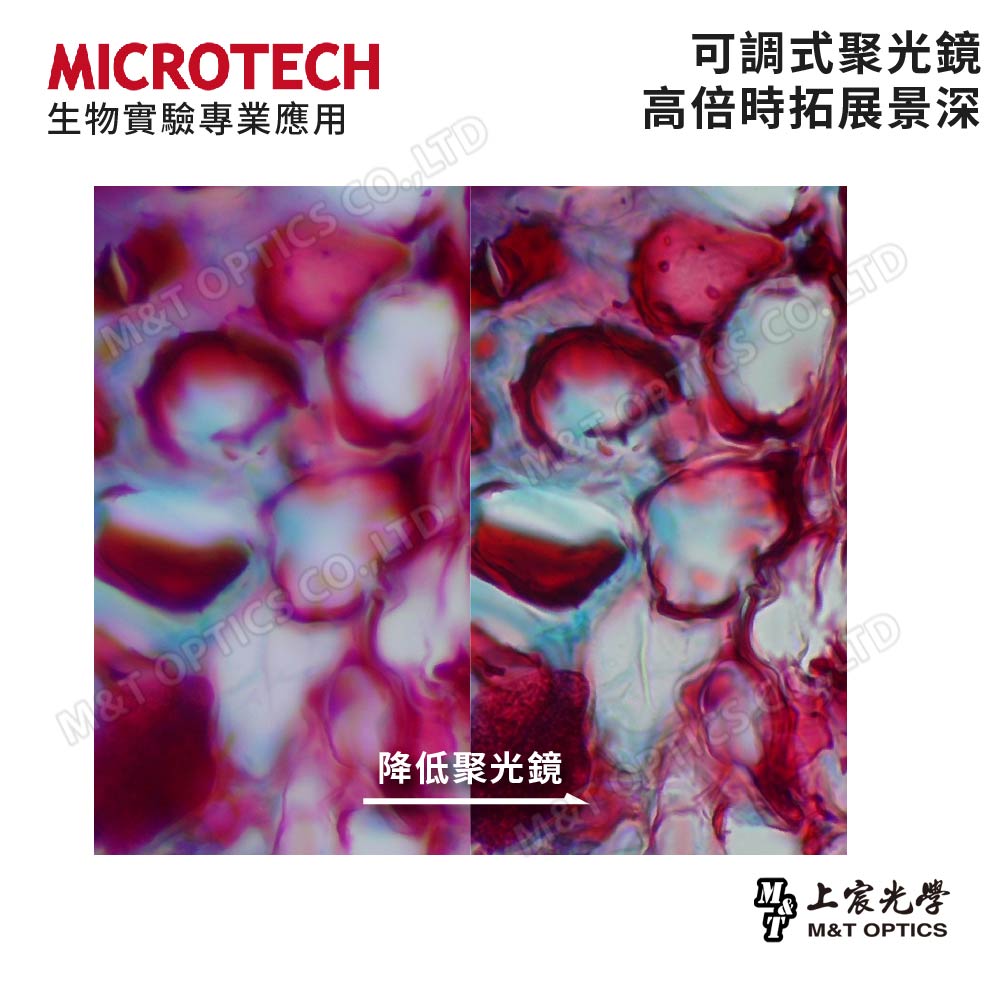

Adjustable condenser to expand depth of field at high magnification

Equipped with Abbe type focusing system. When using high-magnification observation, you can lower the condenser or narrow the aperture to expand the depth of field and expand the clear range of the sample depth.

Trinocular observation head, large field of view eyepiece

The wide-field eyepieces are matched with high-end achromatic objectives, and the eyepieces include a set of WF10X and WF25X. The third eye of the observation head is connected to the "HDC588.WF wireless camera" to provide wireless/wired real-time image output. It is quite suitable for teaching, biological experiments, and recording research results.

Complete camera control interface and image processing functions

The computer software contains a complete operating interface, which can control the exposure of the microscope camera and provide advanced control of field correction and sharpness adjustment. Measurement reports (Excel spreadsheets, Word files) can also be exported.

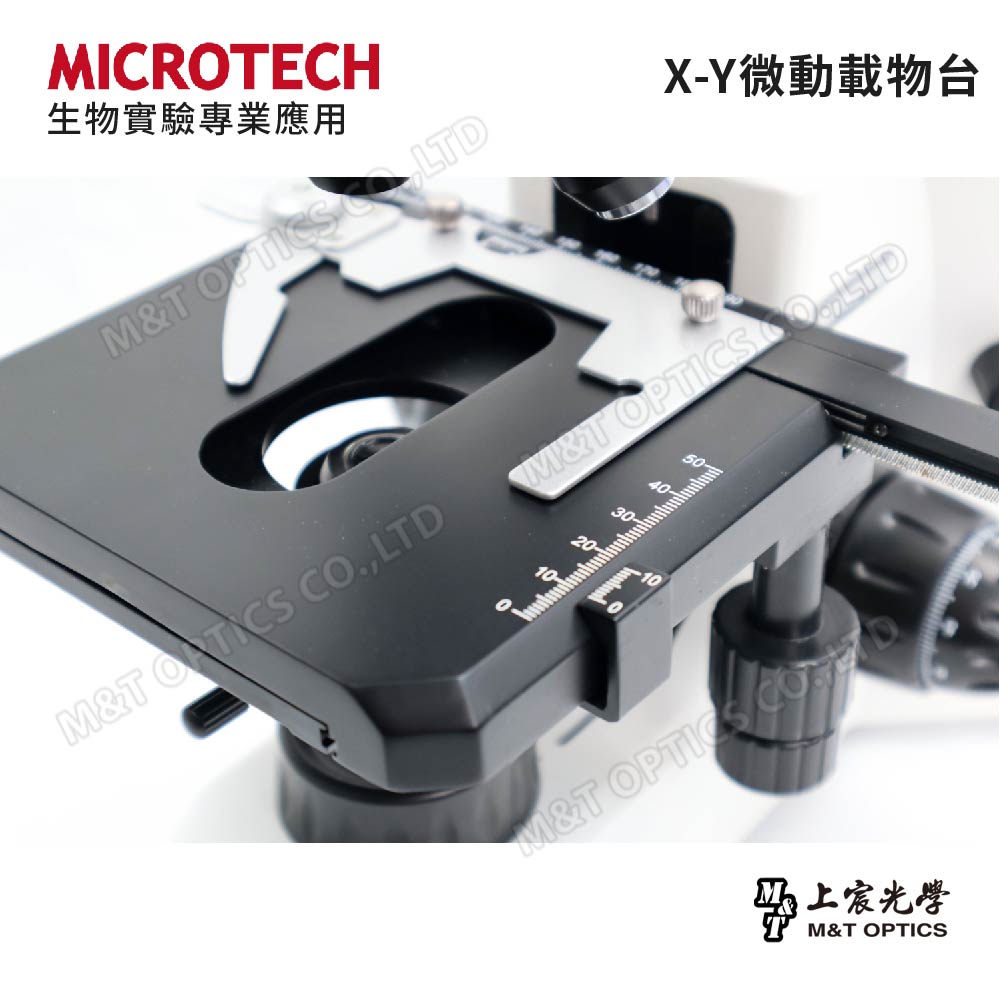

XY micro-motion stage

The smooth-operating micro-motion slide stage has a double-layer XY micro-movement mechanism, which can precisely micro-move forward, backward, left, and right, and accurately grasp the observation target.

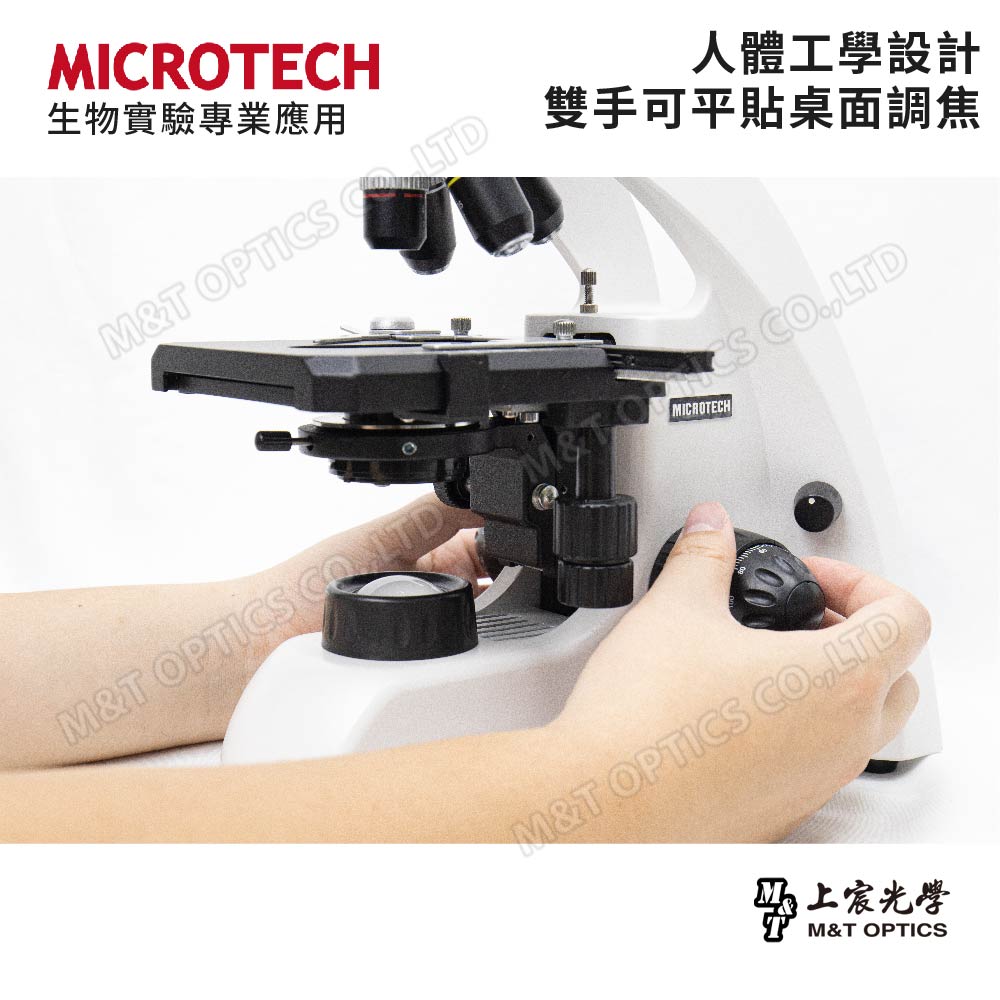

Ergonomic design

Both hands can be placed flat on the table to adjust focus, adjust the micro-motion stage, and adjust the brightness of the light source to ensure stability for long-term operations.

Stage limit device

Equipped with a limit safety device to prevent the slide from being broken by collision with the objective lens.

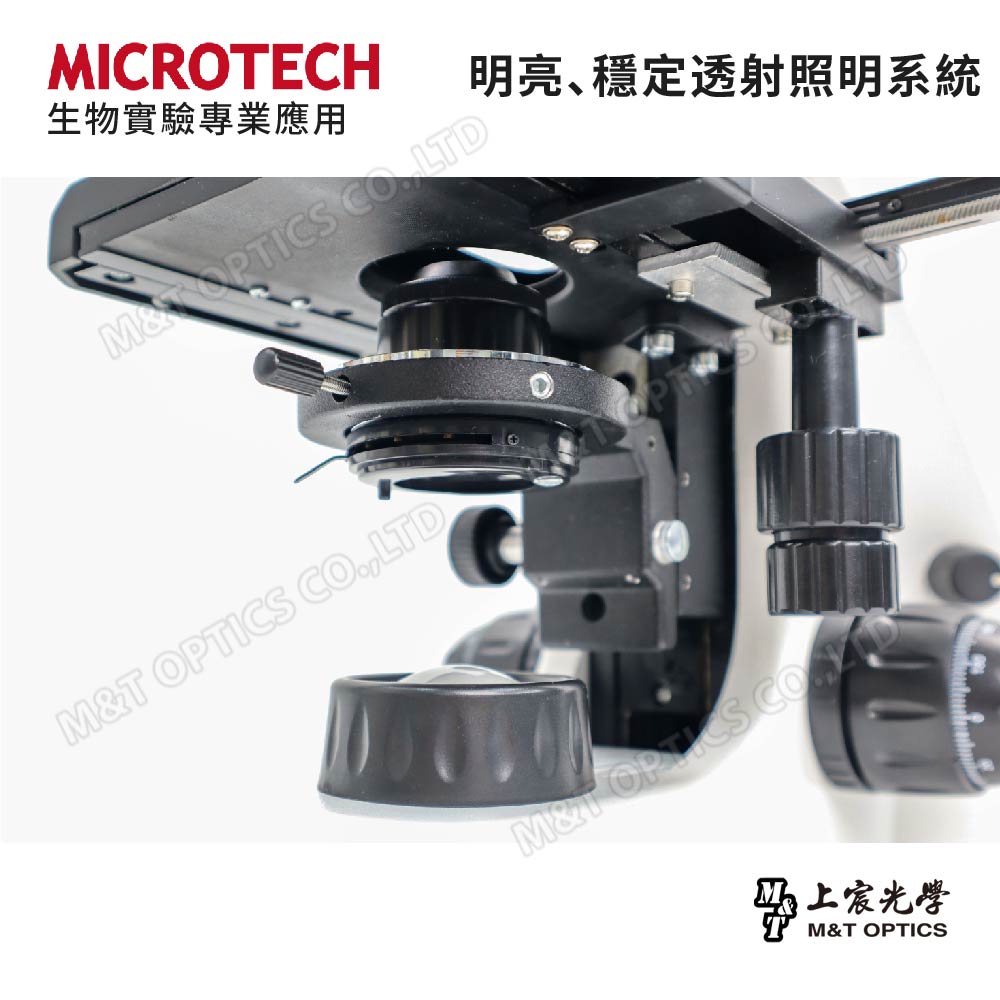

Bright and stable LED transmitted lighting system

Equipped with a new generation LED light source system, there are no worries about consumables, and it provides a bright and stable field of view; the universal voltage socket can be used anywhere. Paired with the Abbe condenser system, it enhances your microscopic observation experience.

Premium cast metal body

The streamlined and high-quality body structure incorporates an integrated focusing system and LED light source system, and provides good load bearing, allowing experimental operators to enjoy a wonderful operating experience.

Observation examples

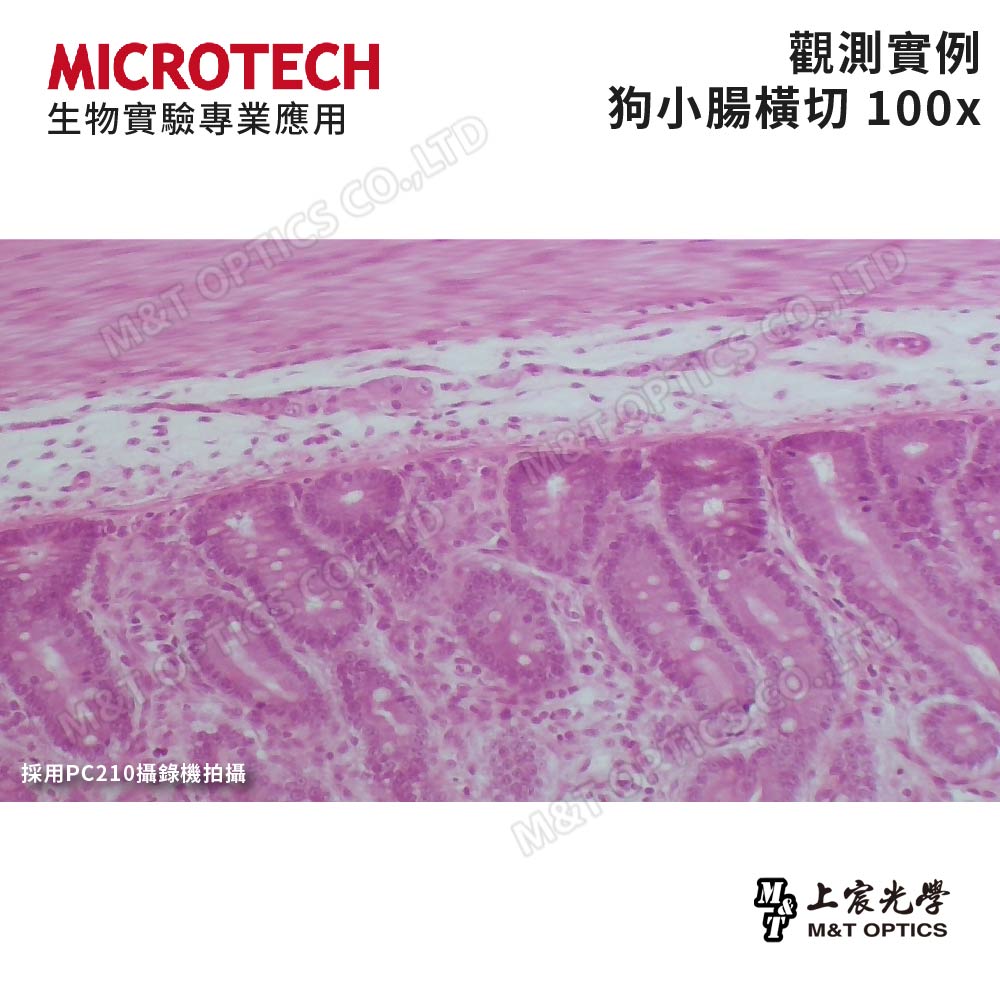

Dog Small Intestine Transection - 100x

Observation examples

Pumpkin stem cut crosswise - 400x

Recommended additional purchases

Basic microscopy experimental tool set

Product specifications

magnification	40X～2500X
Binocular viewing tube	Tilt 30 degrees to adjust the interpupillary distance from 50 to 74mm
Transmissive LED light source	Cold light, adjustable brightness
power supply	AC110V～220V, back type cooling circuit box
eyepiece	WF10X＊2, WF25X＊2
Connect objective lens	4X, 10X, 40X, 100X (oil telescopic type) achromatic objective lens
nose chakra	Four hole steel ball bearing positioning
focusing	Coaxial coarse and fine focusing wheel, focusing stroke 28mm, accuracy 0.002mm/per small division
Stage	Double-layer type, size 140*132mm, attached with slide holder. X-axis travel 70mm, Y-axis travel 30mm
condenser	ABBE condenser built-in diaphragm system
aperture	Segless continuous light barrier
Lifting mechanism	Rack type ball focusing system with limiter device
Mirror body	One-piece seamless cast mirror body, H-shaped hollow mirror arm, flat mirror back, mirror back with heat dissipation holes
physical dimension	180＊260＊410mm
weight	5.1kg
Warranty	one year
