Equipped with All in One full-featured Win10 flat-panel camcorder

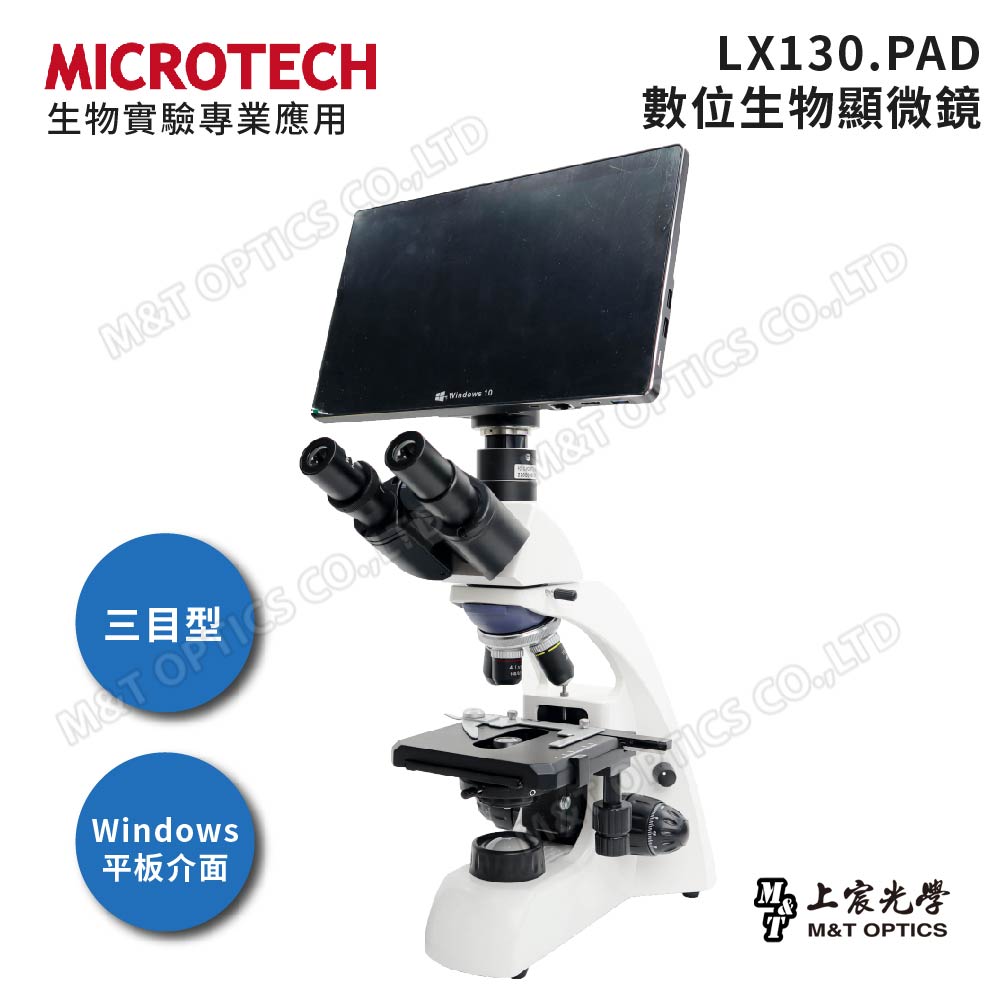

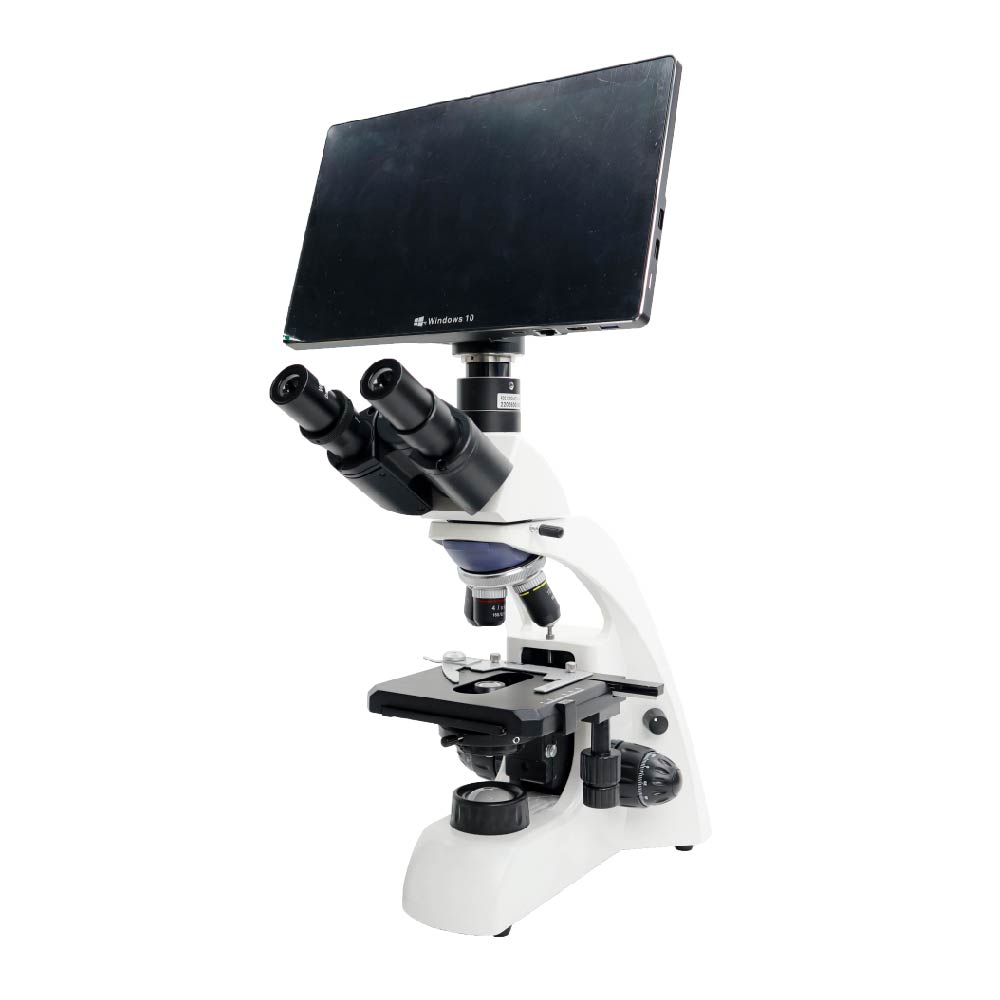

LX130.PAD is a primary and secondary school teacher-level biological microscope that can be used for binocular observation and connected to a microscope camera to slice biological cells. It has a wide range of internationally accepted objective lenses from low to high magnification. This machine has excellent optics. Quality, bright and clear imaging, sharp details, ultra-wide field of view and excellent lighting system. The HDC688.PAD camcorder has a built-in screen image output and uses the Window10 interface to observe the image simultaneously in real time. It can take pictures, record videos and perform measurements, making it convenient for teaching and recording research results.

LX series primary and secondary school teacher grade biological microscope

LX130.PAD is a primary and secondary school teacher-level biological microscope that can observe biological cell slices and tissues with a single eye. The observation magnification is 40x~2500x. Objective lenses of international standards are available from low to high magnification, and the optical field of view is bright and comfortable; the one-piece lens body has a generous appearance and a stable structure. The HDC688.PAD camcorder has a built-in touch display and can synchronize high-definition observation images in real time. It can take pictures, record videos and perform measurements without connecting to other devices, making it convenient for teaching and recording research results. This machine has excellent optical quality, the image is bright and clear, the details are sharp, coupled with the ultra-wide field of view and excellent lighting system, it is fully suitable for clinical biological experiment functions, suitable for: cell culture analysis, tissue section observation, blood interpretation, Solution observation, water quality inspection, environmental protection testing, breeding research, aquaculture, agricultural and fishery experiments, livestock racing pigeon breeding, medical experiments, biological experiments, etc.

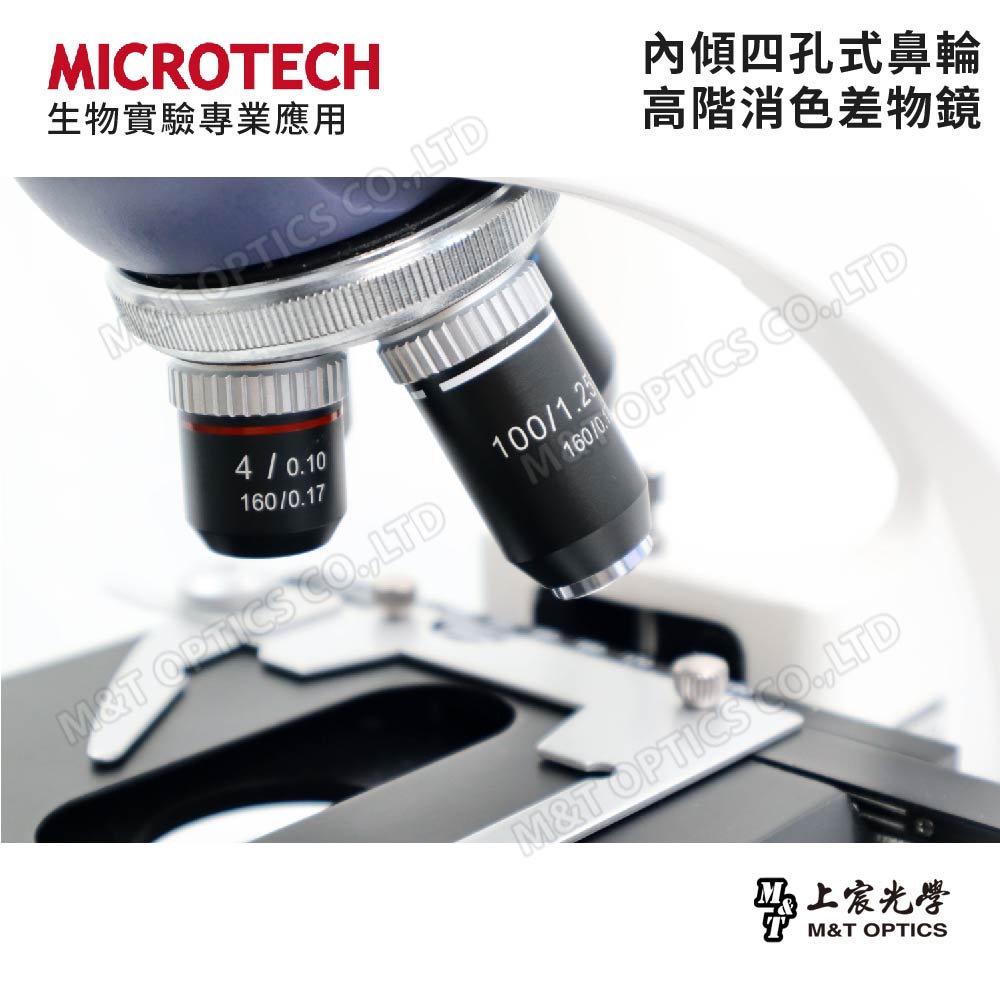

Adopt high-end achromatic objective lens and inward-inclined four-hole nose wheel

It uses four-hole steel balls to position the retracted rotating nose wheel, and is equipped with a total of four advanced achromatic objective lenses of 4x, 10x, 40x and 100x (oil lens). The lenses are complete and the magnification is complete. The included lens oil is suitable for use with 100X high-magnification objective lenses.

Adjustable condenser to expand depth of field at high magnification

Equipped with Abbe type focusing system. When using high-magnification observation, you can lower the condenser or narrow the aperture to expand the depth of field and expand the clear range of the sample depth.

Trinocular observation head, large field of view eyepiece

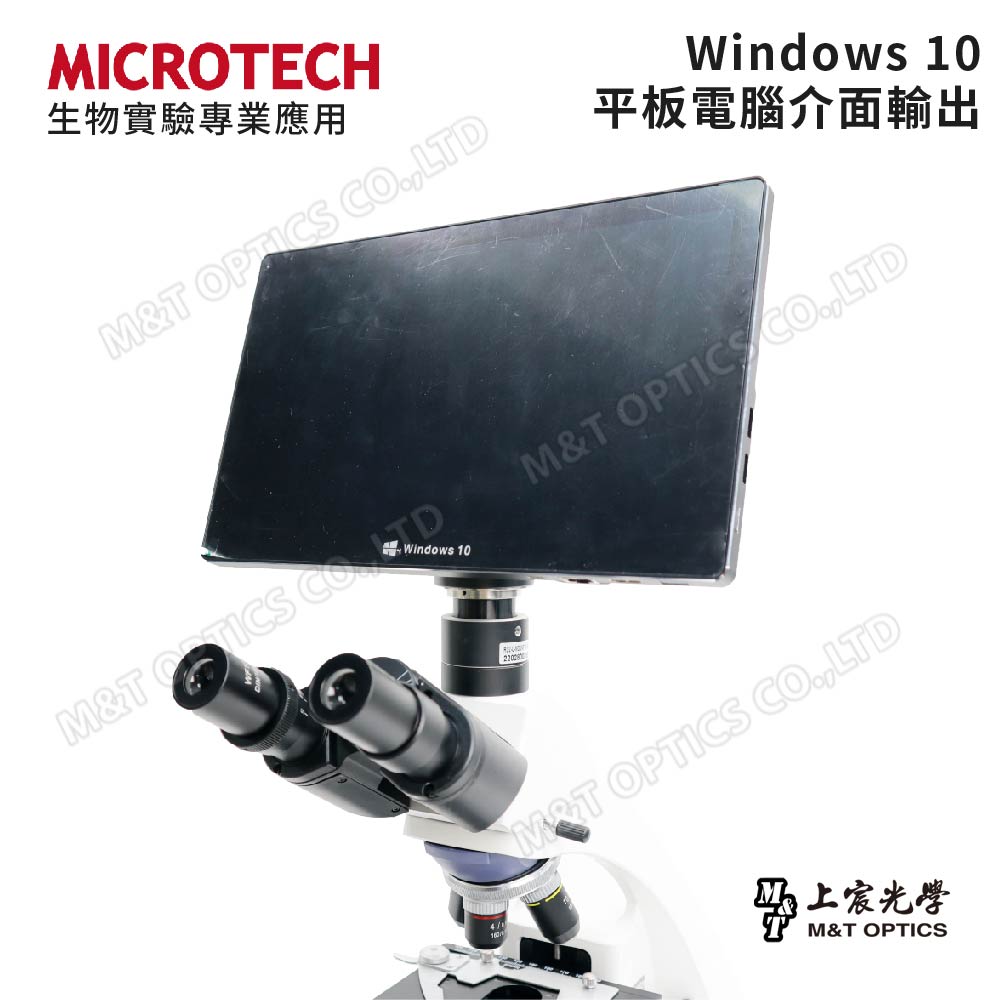

The wide-field eyepieces are matched with high-end achromatic objectives, and the eyepieces include a set of WF10X and WF25X. The third eye of the observation head is connected to the "HDC688.PAD camera" to instantly output and control the shooting records from the upper screen. It is quite suitable for teaching, biological experiments, and recording research results. The 11" screen is just the right size and does not affect the lateral space when placed. It uses the Windows 10 operating system and is easy to operate.

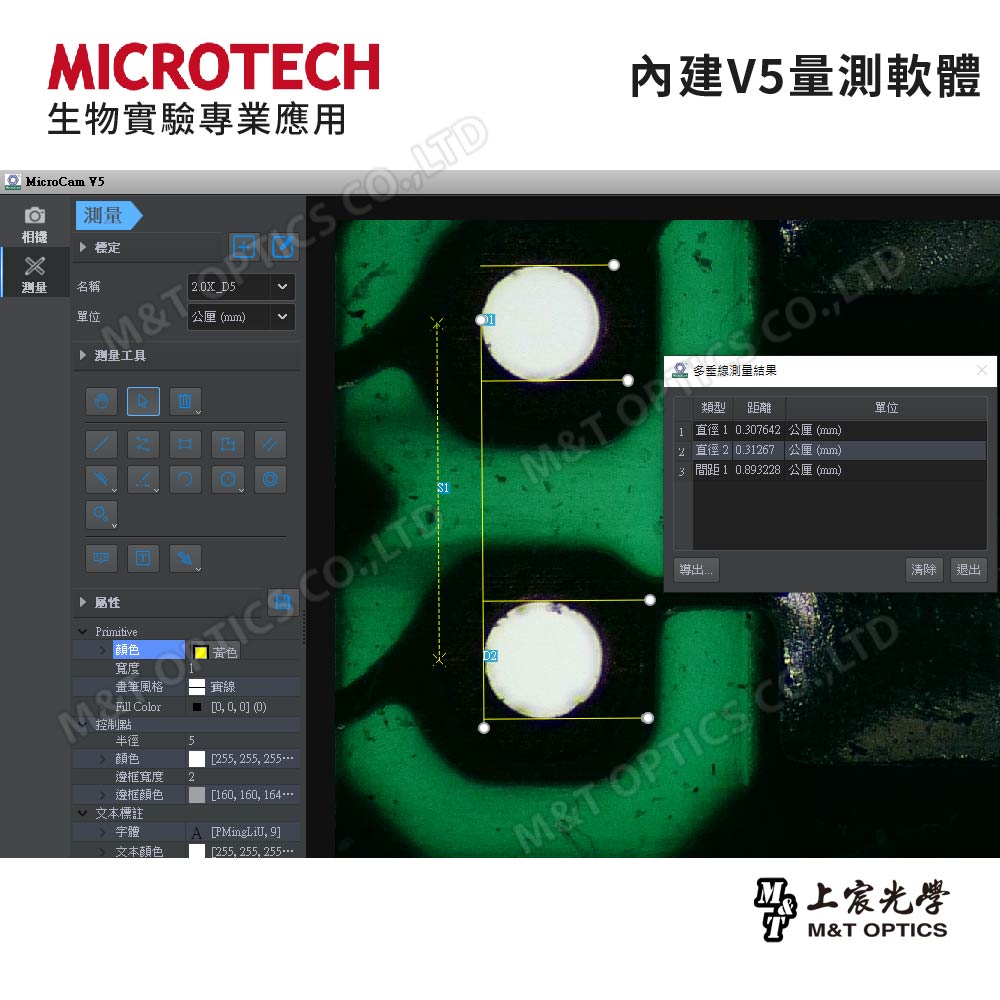

MicroCam V5 measurement software - professional-grade microscopic observation/measurement tool

Multiple measurement and annotation functions The multiple annotation and drawing modes enable users to more accurately measure the relevant parameters of the measured object.

Data list function

MicroCam V5 has the function of tabular presentation and data export of measurement data, making the recording process more convenient.

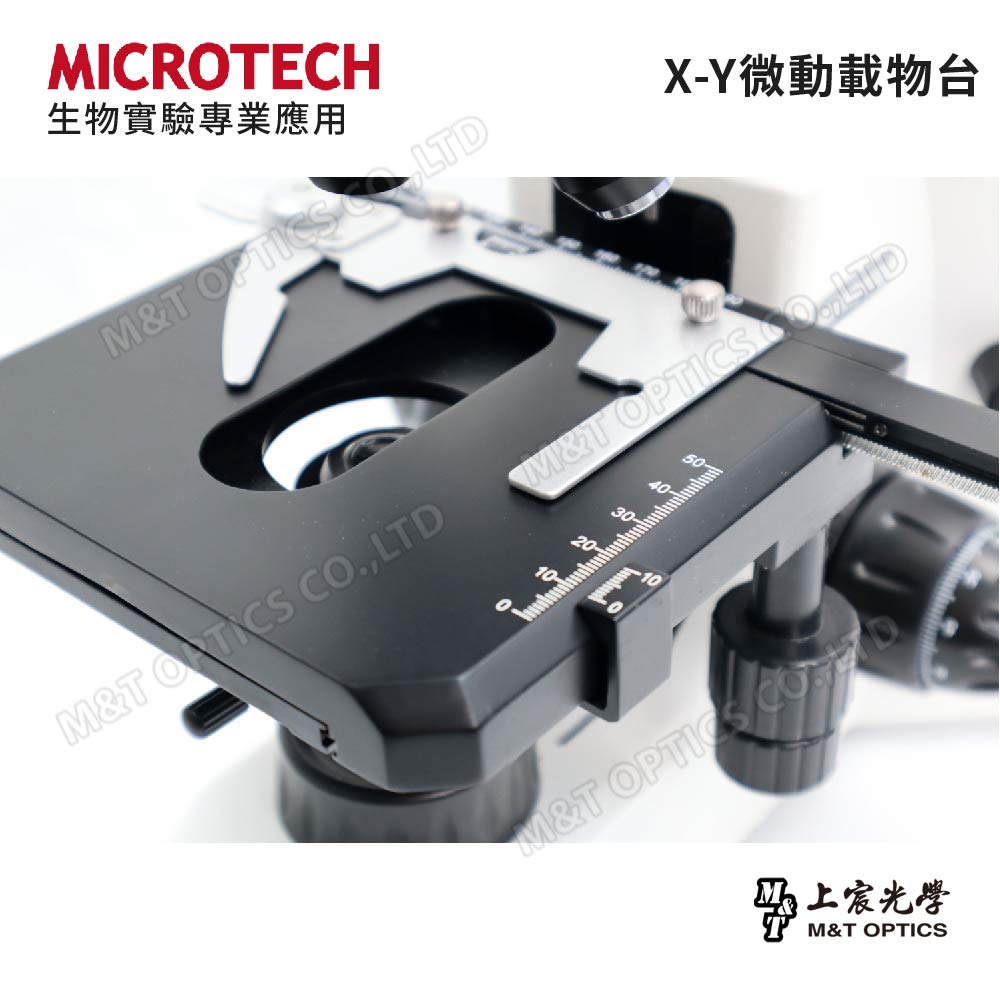

XY micro-motion stage

The smooth-operating micro-motion slide stage has a double-layer XY micro-movement mechanism, which can precisely micro-move forward, backward, left, and right, and accurately grasp the observation target.

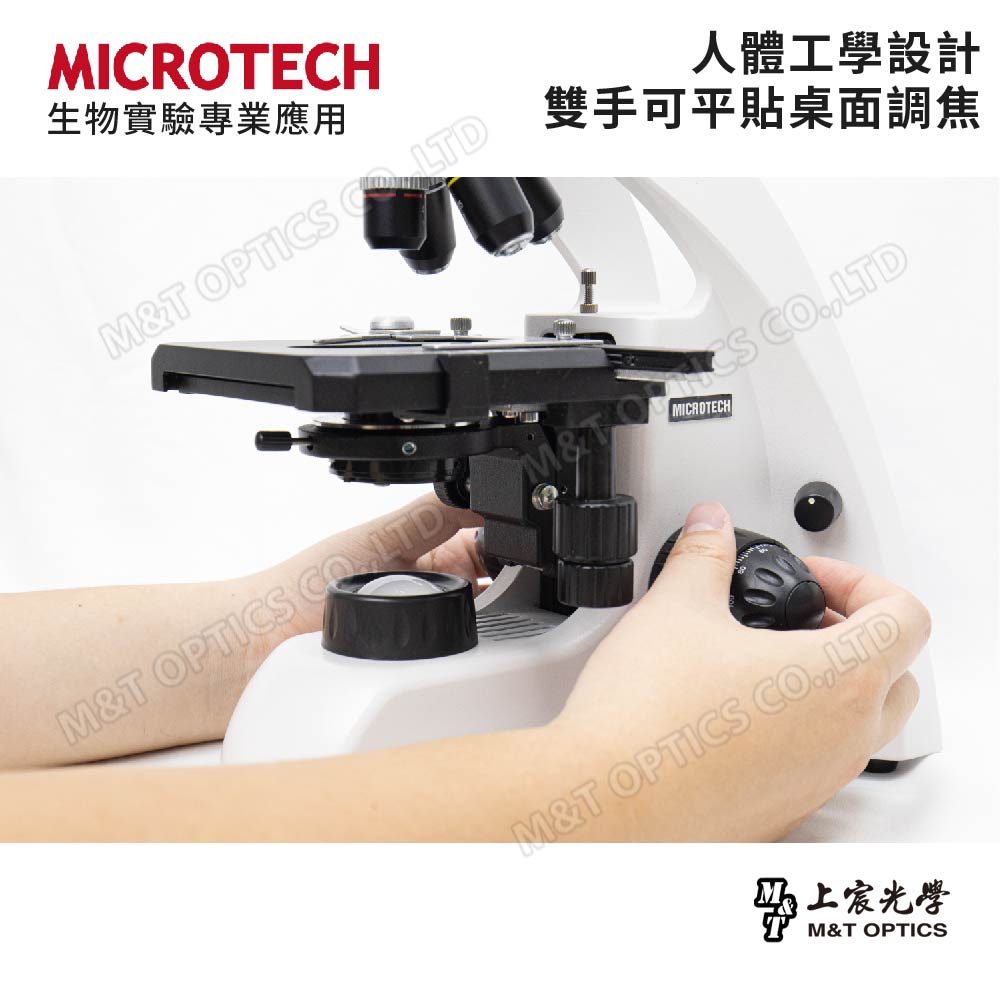

Ergonomic design

Both hands can be placed flat on the table to adjust focus, adjust the micro-motion stage, and adjust the brightness of the light source to ensure stability for long-term operations.

Stage limit device

Equipped with a limit safety device to prevent the slide from being broken by collision with the objective lens.

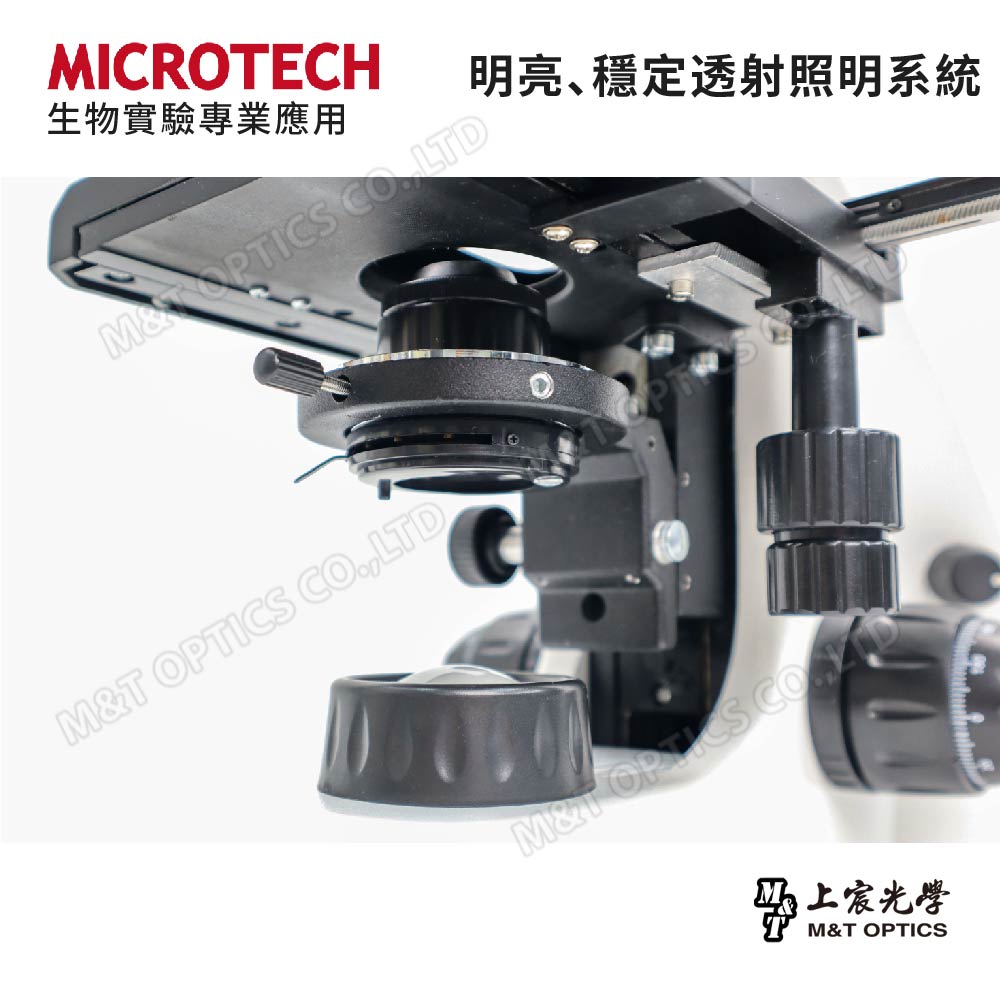

Bright and stable LED transmitted lighting system

Equipped with a new generation LED light source system, there are no worries about consumables, and it provides a bright and stable field of view; the universal voltage socket can be used anywhere. Paired with the Abbe condenser system, it enhances your microscopic observation experience.

Supports flash drive, mouse, keyboard and network connection

There are two USB3.0 interface connectors on the side of the fuselage, which can be operated by mouse and keyboard, and can also be connected to a flash drive to output photos and videos. Supports both wireless and wired network connections.

The touch screen can adjust the angle according to the user's posture

Premium cast metal body

The streamlined and high-quality body structure incorporates an integrated focusing system and LED light source system, and provides good load bearing, allowing experimental operators to enjoy a wonderful operating experience.

Observation examples

Pumpkin stem cut crosswise - 400x

Recommended additional purchases

Basic microscopy experimental tool set

Product specifications

magnification	40X～2500X
Binocular viewing tube	Tilt 30 degrees to adjust the interpupillary distance from 50 to 74mm
Transmissive LED light source	Cold light, adjustable brightness
power supply	AC110V～220V, back type cooling circuit box
eyepiece	WF10X＊2, WF25X＊2
Connect objective lens	4X, 10X, 40X, 100X (oil telescopic type) achromatic objective lens
nose chakra	Four hole steel ball bearing positioning
focusing	Coaxial coarse and fine focusing wheel, focusing stroke 28mm, accuracy 0.002mm/per small division
Stage	Double-layer type, size 140*132mm, attached with slide holder. X-axis travel 70mm, Y-axis travel 30mm
condenser	ABBE condenser built-in diaphragm system
aperture	Segless continuous light barrier
Lifting mechanism	Rack type ball focusing system with limiter device
Mirror body	One-piece seamless cast mirror body, H-shaped hollow mirror arm, flat mirror back, mirror back with heat dissipation holes
physical dimension	180＊260＊410mm
weight	5.1kg
camcorder	HDC688.PAD (Windows 10 interface)
Warranty	one year
