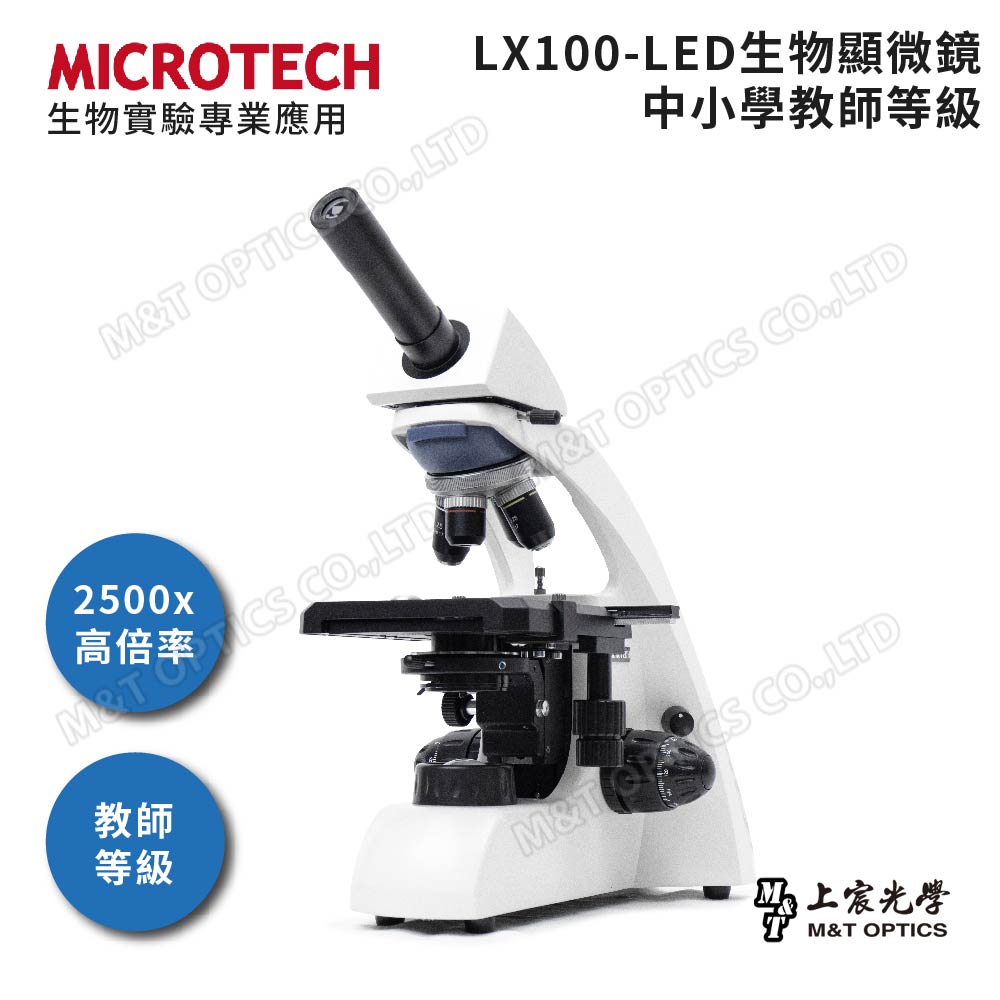

LX Series - Science Education Grade Biological Microscopes

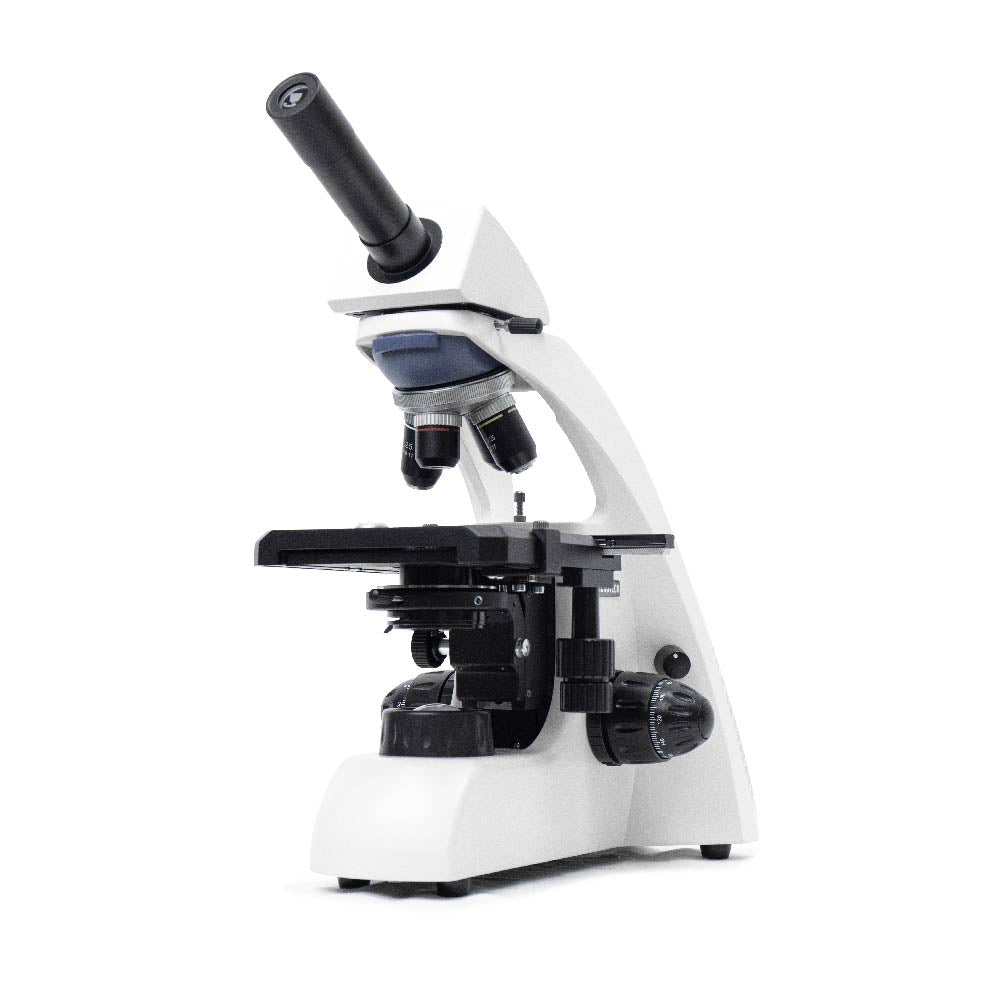

LX100 is a primary and secondary school teacher-level biological microscope that can observe biological cell slices and tissues with a single eye, with an observation magnification of 40x~2500x. Objective lenses of international standards are available from low to high magnification, and the optical field of view is bright and comfortable; the one-piece lens body has a generous appearance and a stable structure. This machine has excellent optical quality, the image is bright and clear, the details are sharp, coupled with the ultra-wide field of view and excellent lighting system, it is fully suitable for clinical biological experiment functions, suitable for: cell culture analysis, tissue section observation, blood interpretation, Solution observation, water quality inspection, environmental protection testing, breeding research, aquaculture, agricultural and fishery experiments, livestock racing pigeon breeding, medical experiments, biological experiments, etc.

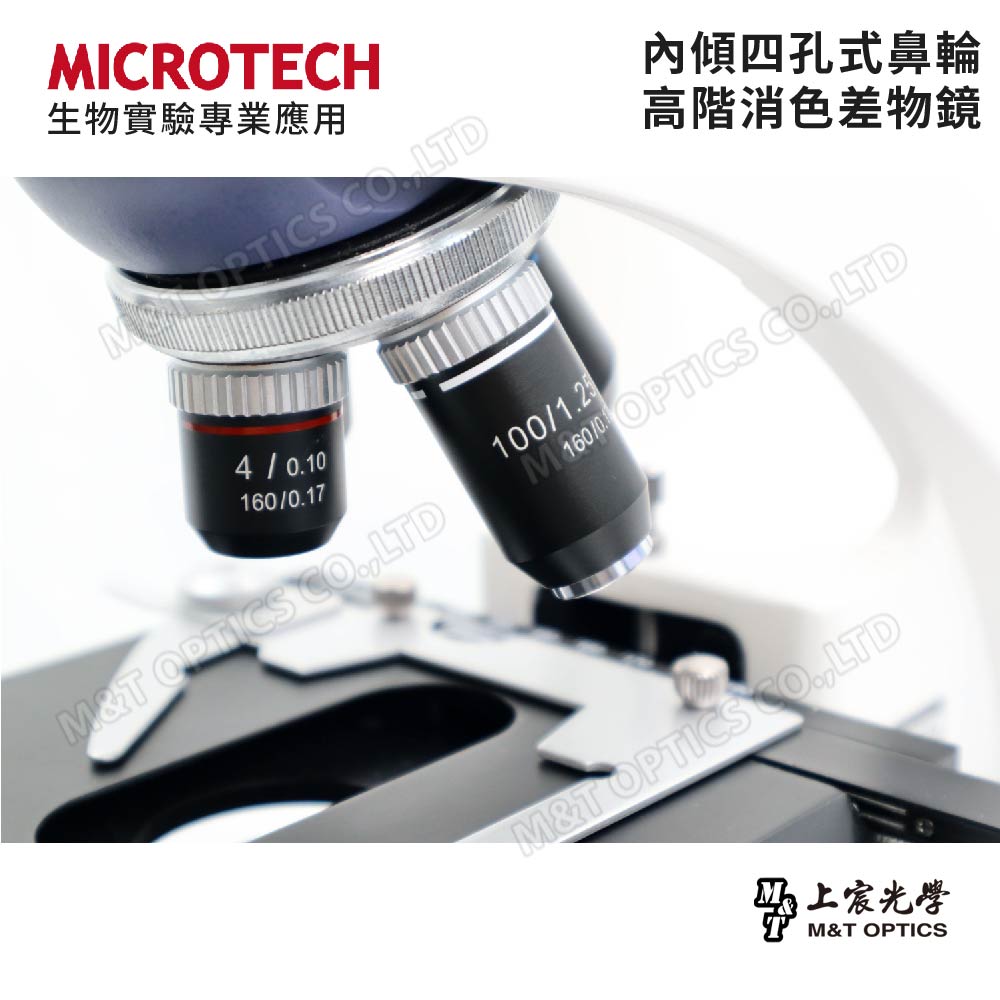

Adopt high-end achromatic objective lens and inward-inclined four-hole nose wheel

It uses four-hole steel balls to position the inward-inclined nose wheel, and is equipped with a total of four advanced achromatic objective lenses of 4x, 10x, 40x and 100x (oil lens). The lenses are complete and the magnification is complete. The included lens oil is suitable for use with 100X high-magnification objective lenses.

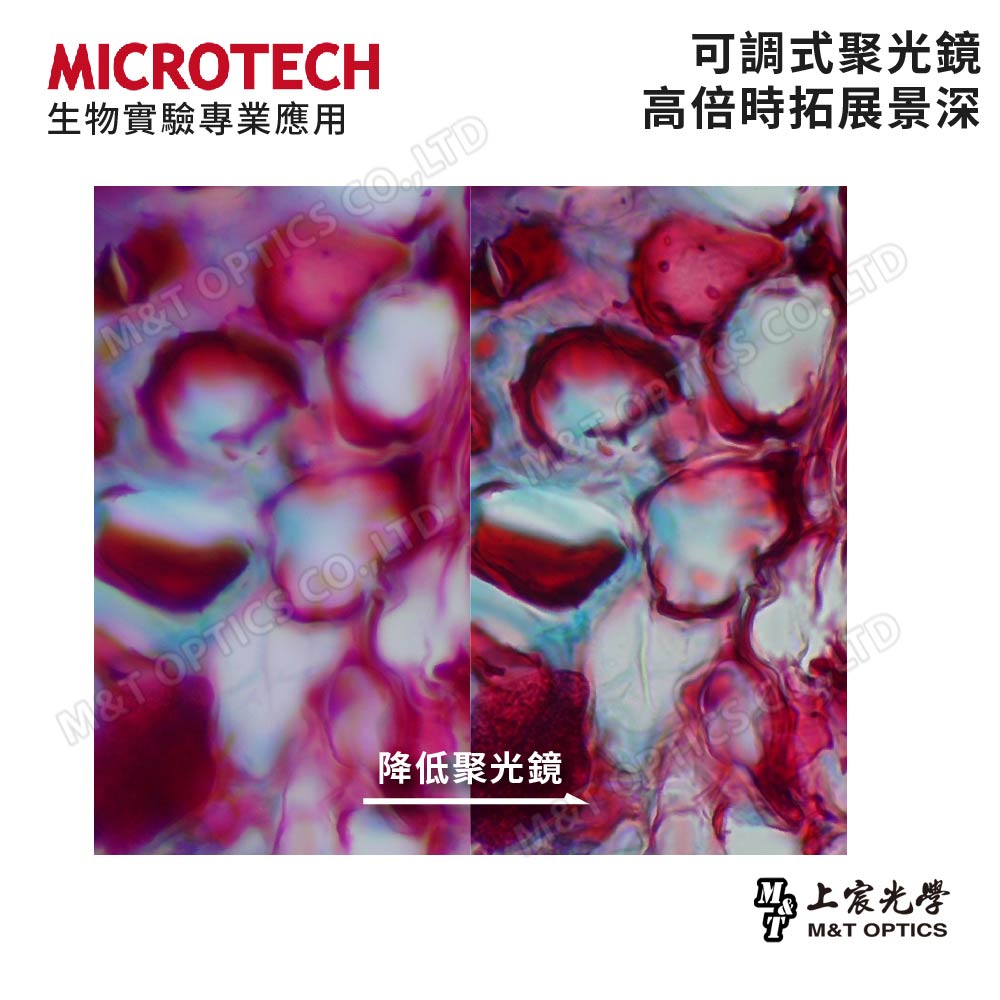

Adjustable condenser to expand depth of field at high magnification

Equipped with Abbe type focusing system. When using high-magnification observation, you can adjust the condenser or narrow the aperture to expand the depth of field and expand the clear range of sample depth.

Monocular observation head, large field of view eyepiece

The wide-field eyepieces are equipped with high-end achromatic objectives. The eyepieces include a set of WF10X and WF25X.

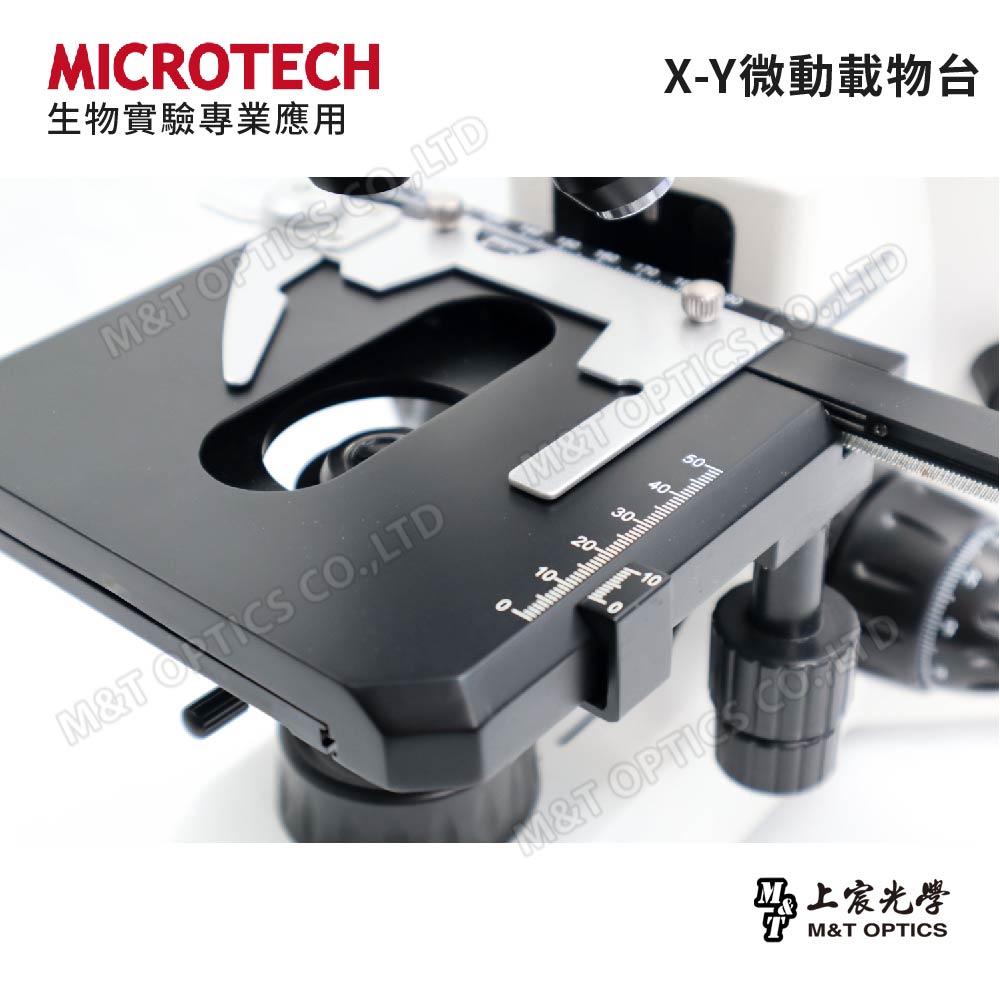

XY dual-axis micro-motion stage

The smooth-operating micro-motion slide stage has a bi-axial XY micro-motion mechanism that can micro-move the slide position up, down, left and right, which is very helpful for adjusting the position of microscopic observation targets.

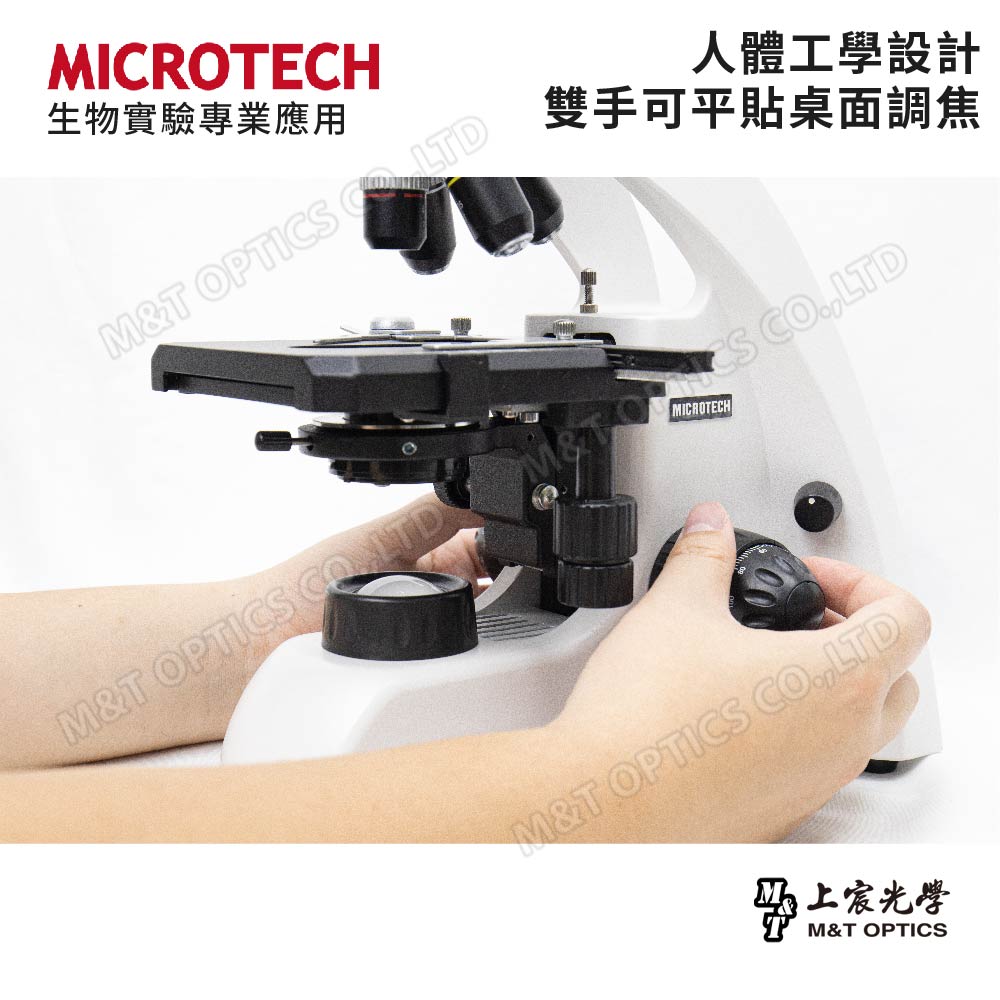

Ergonomic design

Both hands can be placed flat on the table to adjust focus, adjust the micro-motion stage, and adjust the brightness of the light source to ensure stability for long-term operations.

Platform limit safety device

Equipped with a screw-locked limit safety device to prevent the slide from being broken by collision with the objective lens.

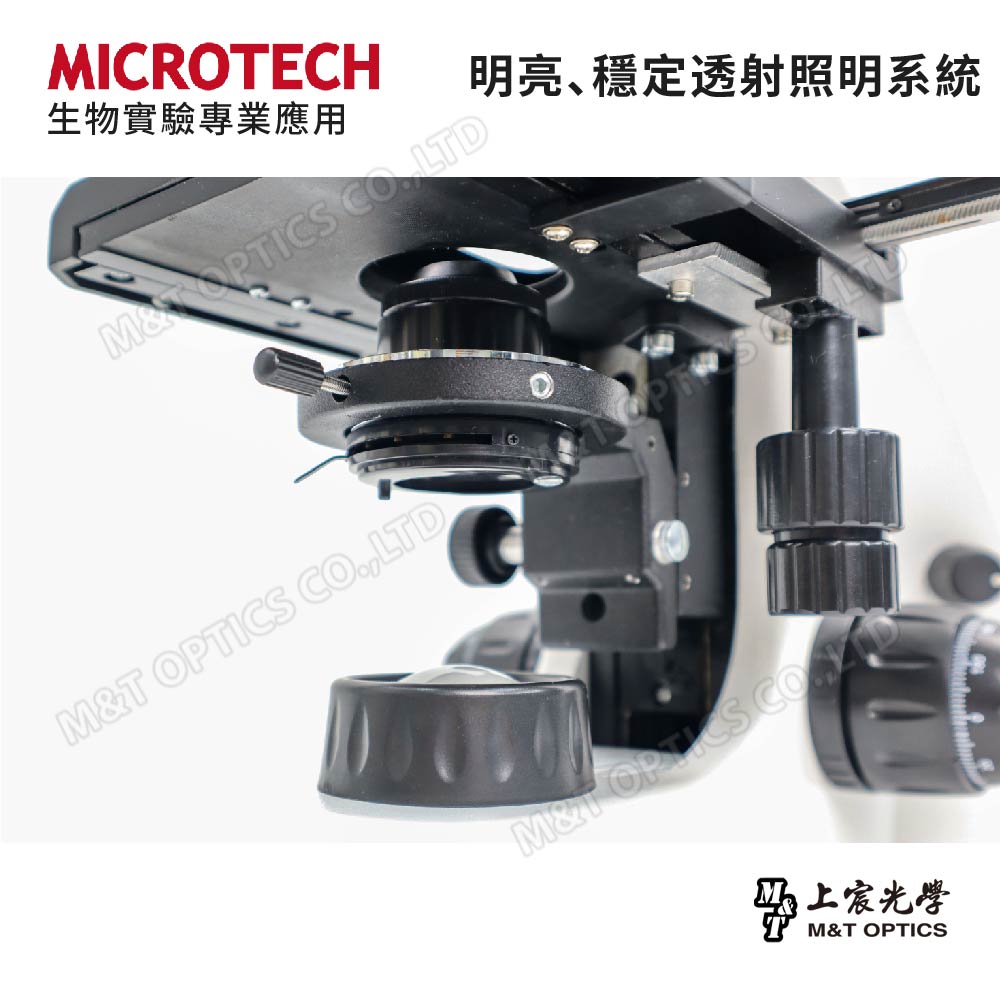

Bright and stable LED transmitted lighting system

Equipped with a new generation LED light source system, there are no worries about consumables, and it provides a bright and stable field of view; the universal voltage socket can be used anywhere. Paired with the Abbe condenser system, it enhances your microscopic observation experience.

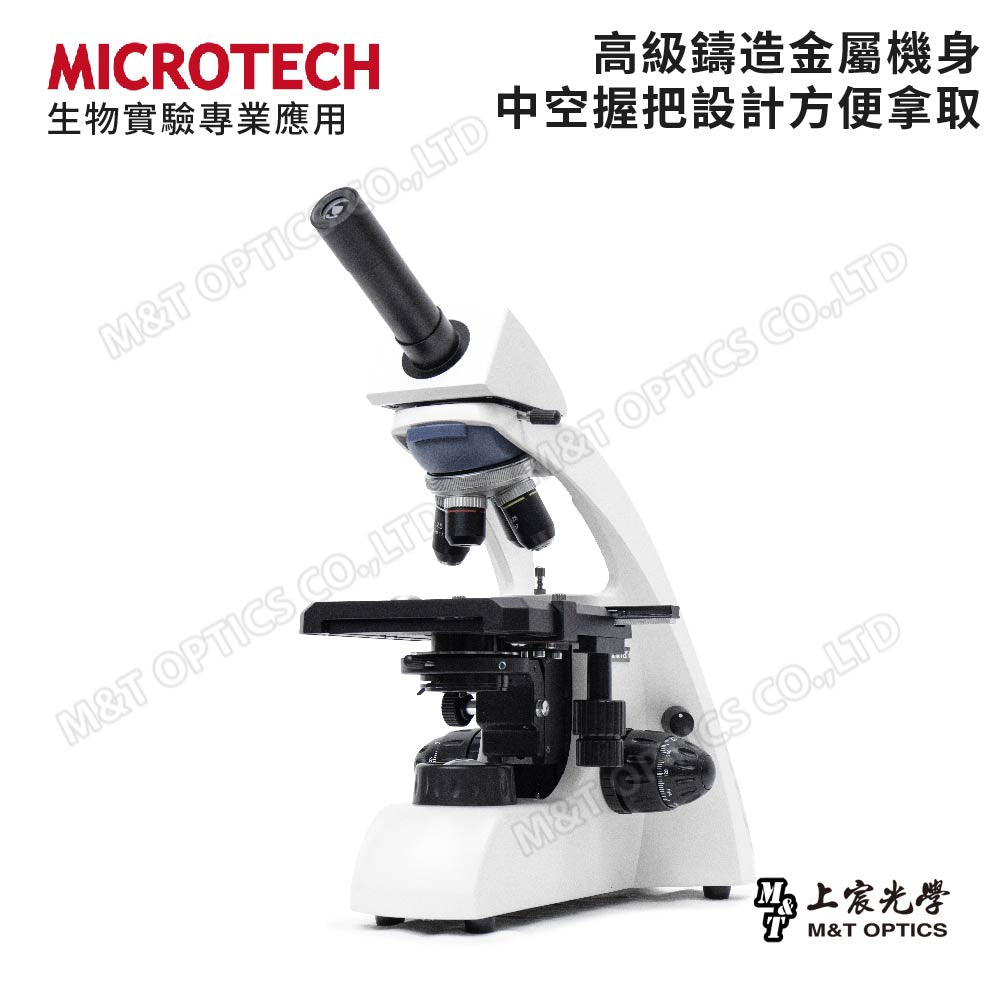

Advanced cast aluminum alloy body

The integrated streamlined high-quality body structure, integrated focusing system and LED light source system provide good load-bearing and stability, allowing experimental operators to enjoy a smooth operating experience.

Observation examples

Dog Small Intestine Transection - 100x

Observation examples

Pumpkin stem cut crosswise - 400x

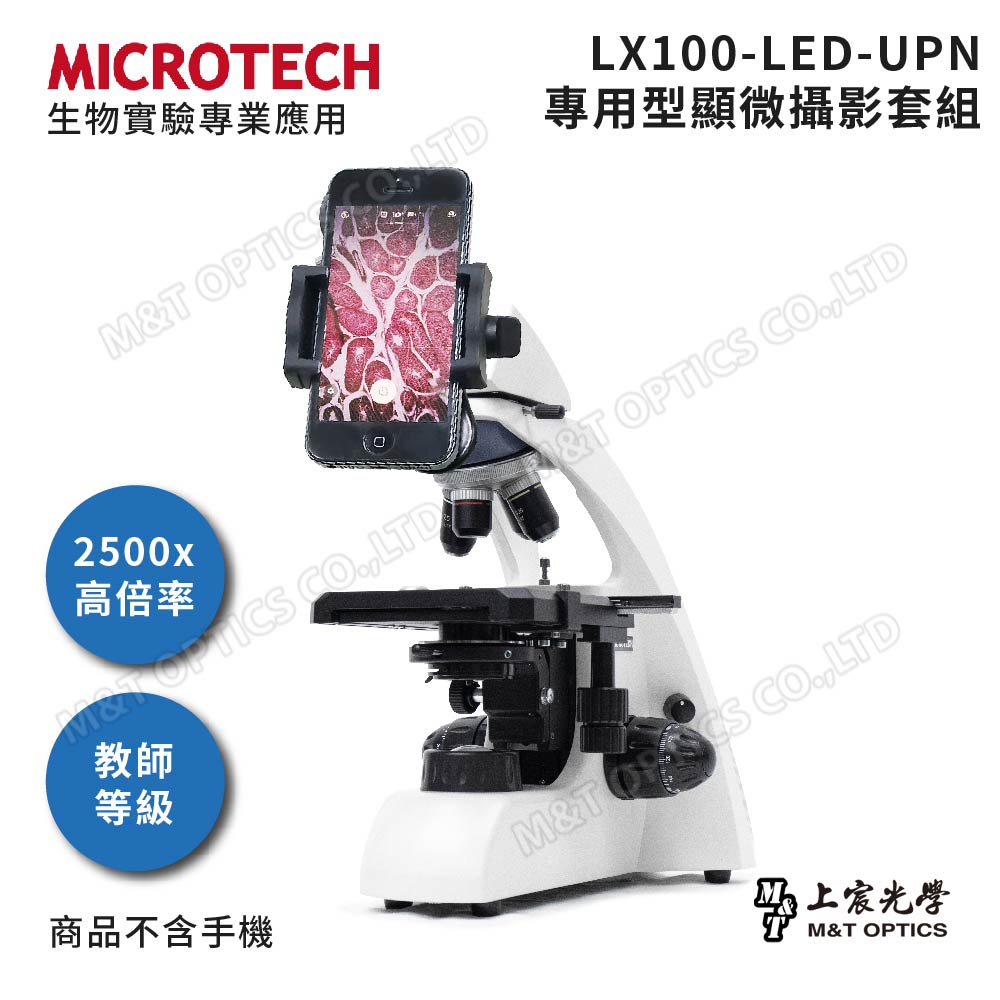

UPN-281.LX Mobile Phone Photography Stand (price 2500)

Observers always have the urge to take pictures of the wonderful microscopic world under the microscope. Shangchen Optical has specially customized a mobile phone photography stand specifically for the LX100, which can stably fix smartphones of various brands and models, and place the lens Correctly place it at the ideal back focus position of the microscope, and use the powerful shooting function of your smartphone to magnify the microscopic world and store it.

• Applicable mobile phone width is 5.5~10cm (the allowable width of this mobile phone holder).
• The customized eyepiece adapter is easy and stable to install in one second.
• It can be used without removing the original eyepiece.
• The shooting field of view can reach 100% (compared to visual inspection).
• It can focus semi-automatically and accurately (the phone lens itself is micro-focused).
• After the mobile phone is connected to the Internet, you can live broadcast or share photos and videos via wifi.

Optional expansion: USB micro camcorder, watch images through computer

Simply remove the eyepiece and replace it with a PC210 microscope camera, connect it to a computer via the USB interface, and simultaneously display the microscope image on the computer screen. You can also take photos, video and measure dimensions , making it convenient for biology teaching or participation in science exhibitions to record and observe.

Computer interface and image processing functions available when purchasing a camcorder

The computer software contains a complete operating interface, which can control the exposure of the microcamcorder and provide advanced control of flat field correction and sharpness adjustment. Measurement reports (Excel spreadsheets, Word files) can also be exported.

Recommended additional purchases

Basic microscopy experimental tool set

Product specifications

magnification	40X～2500X
Observation head	Single optical path 30 degree tilt angle
Transmissive LED light source	Cold light, adjustable brightness
power supply	AC110V～220V, back type cooling circuit box
eyepiece	WF10X＊1, WF25X＊1
Connect objective lens	4X, 10X, 40X, 100X (oil telescopic type) achromatic objective lens
nose chakra	Four hole steel ball bearing positioning
focusing	Coaxial coarse and fine focusing wheel, focusing stroke 28mm, accuracy 0.002mm/per small division
Stage	Double-layer type, size 140*132mm, attached with slide holder. X-axis travel 79mm, Y-axis travel 30mm
condenser	ABBE condenser built-in diaphragm system
aperture	Segless continuous light barrier
Lifting mechanism	Rack type ball focusing system with limiter device
Mirror body	One-piece seamless cast mirror body, H-shaped hollow mirror arm, flat mirror back, mirror back with heat dissipation holes
physical dimension	180＊260＊365mm
weight	5.1kg
Warranty	one year
mobile photography	UPN281LX fast mobile phone photography mount can be purchased additionally
Connect computer	Optional microscopic camera available for purchase
