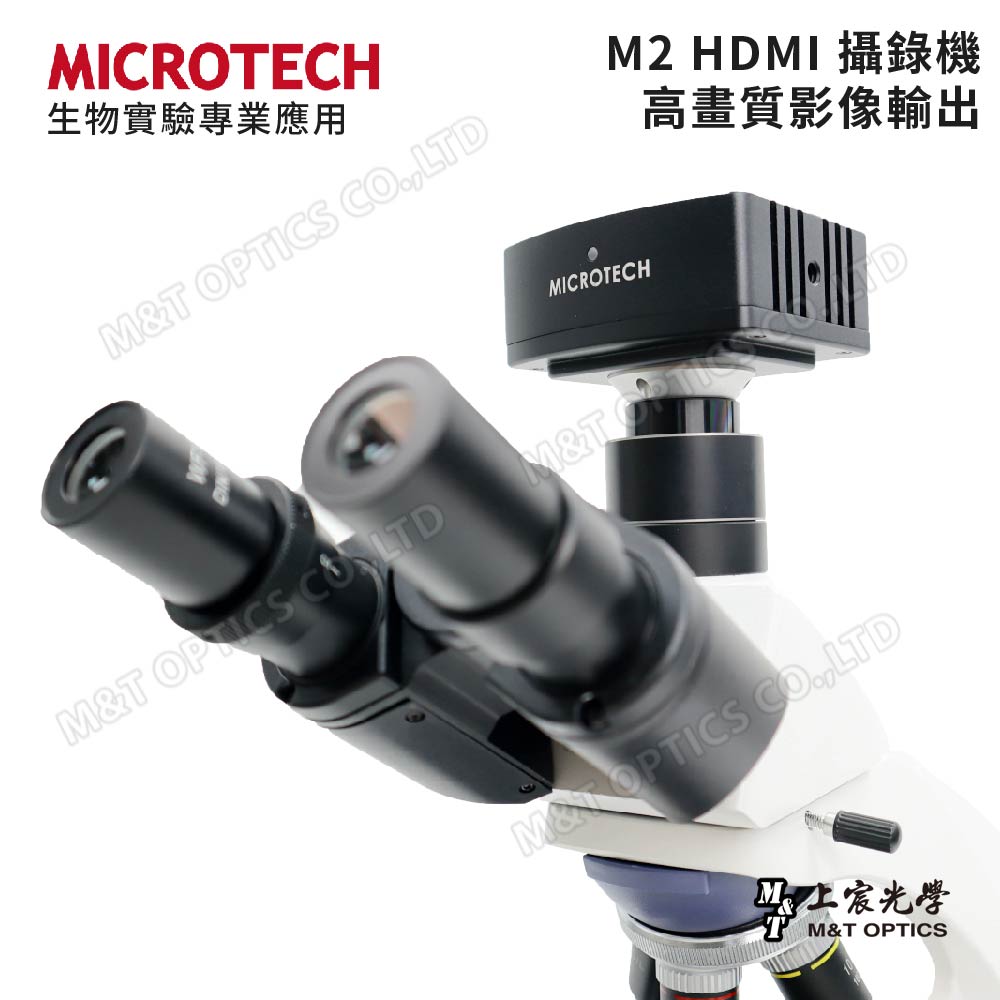

Equipped with M2 high-definition HDMI microscopic camcorder

The MICROTECH M2 microphotography system is a built-in microcomputer platform that can output ultra-high magnification images from the microscope and control the shooting records with just a mouse and an HDMI cable to further accurately mark image details and microscopic images. size, uses a USB flash drive to store images and data with one click, and can also be connected to a computer via a USB cable and supports online video.

Fluorescent grade photosensitive element

Using 1/1.9” SONY chip, it has the advantages of high dynamic range, strong photosensitivity and wide field of view.

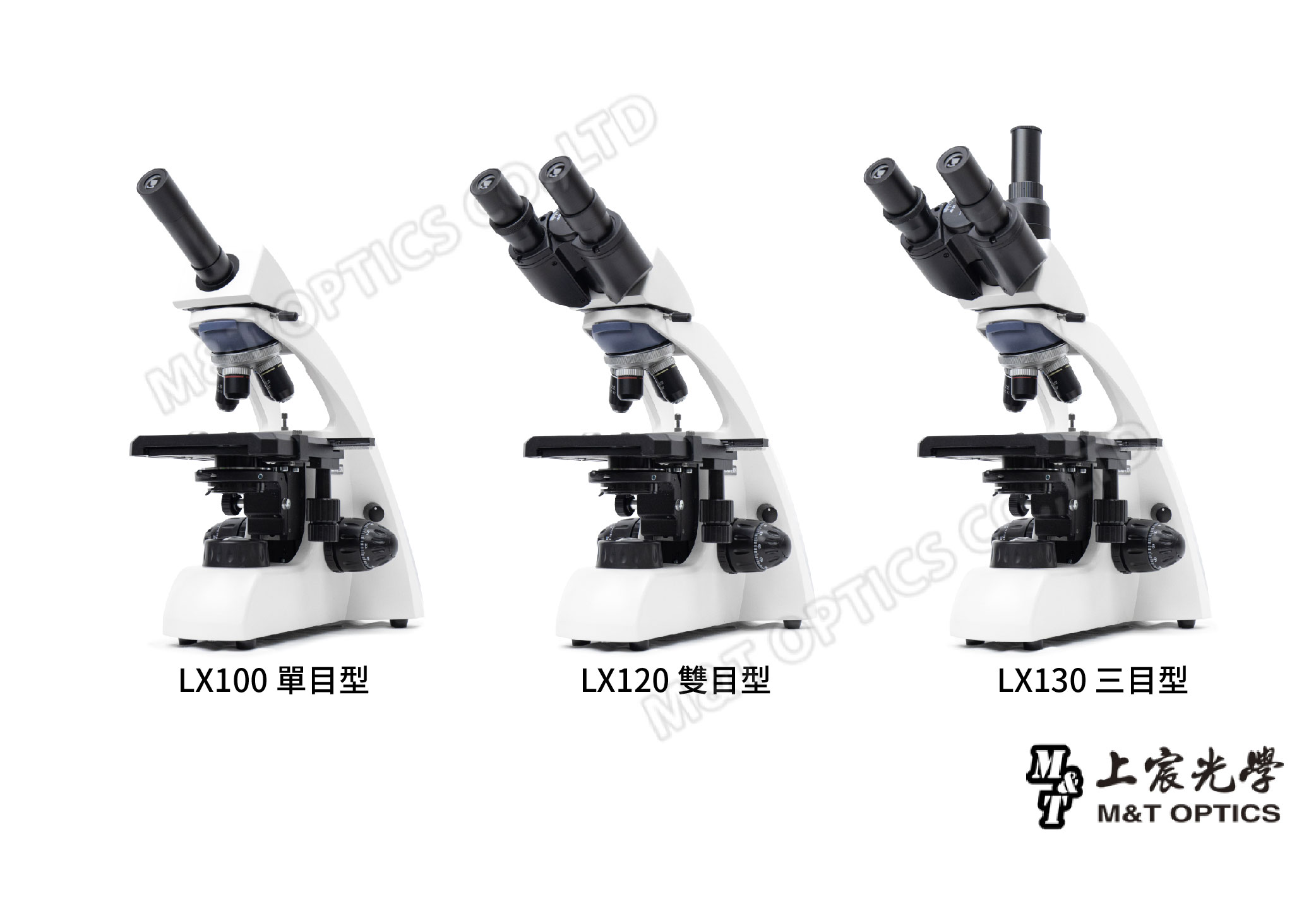

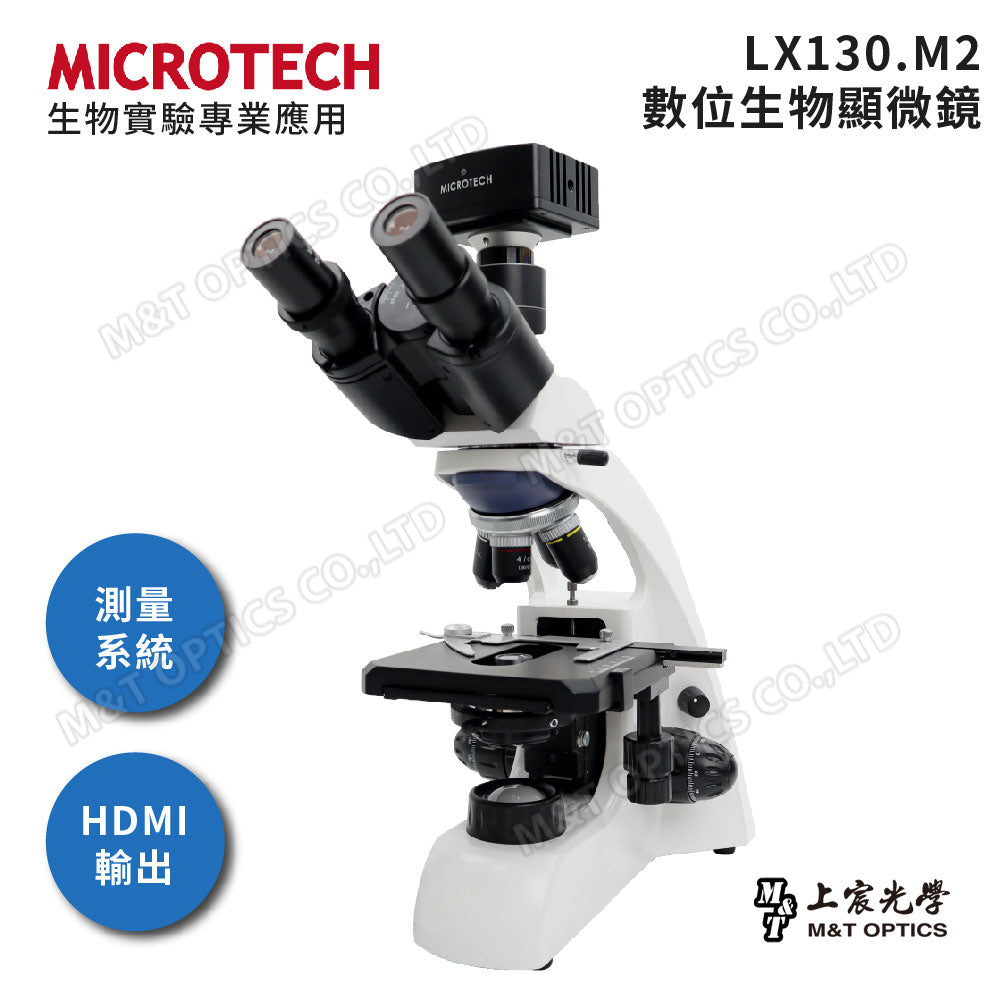

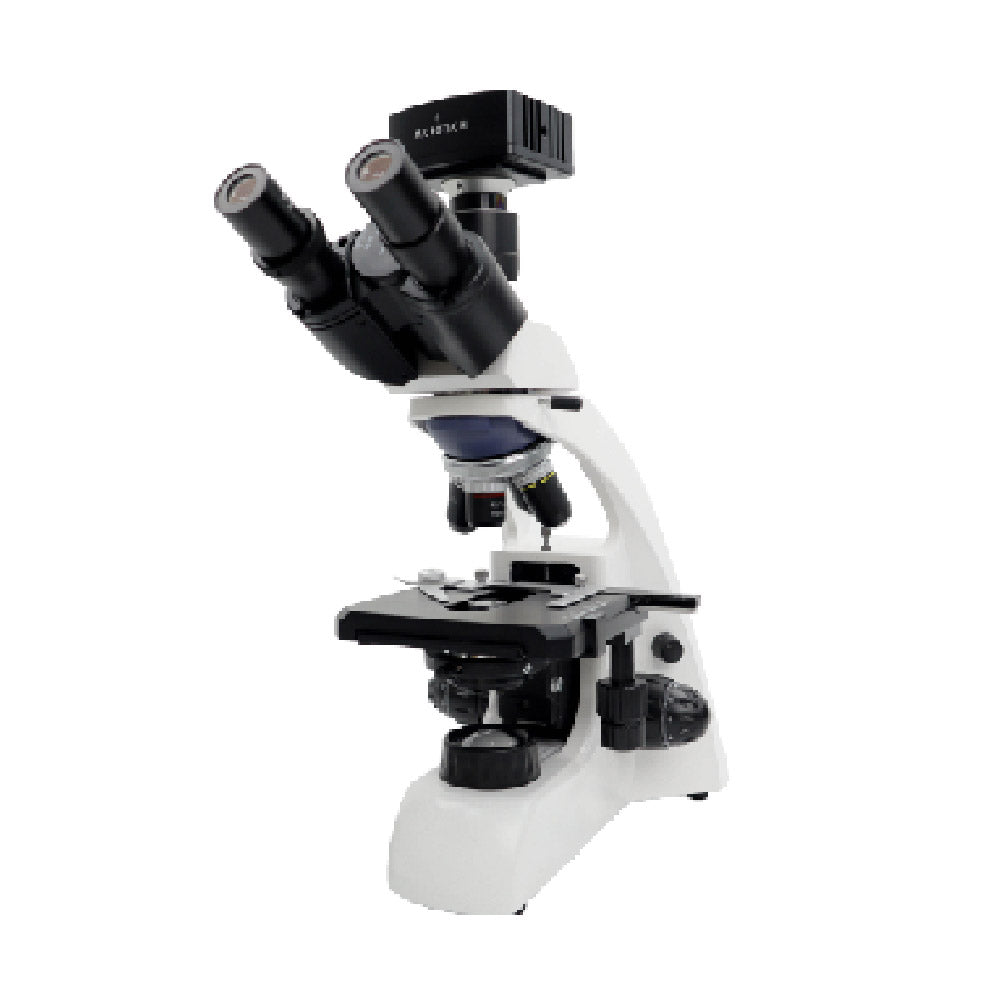

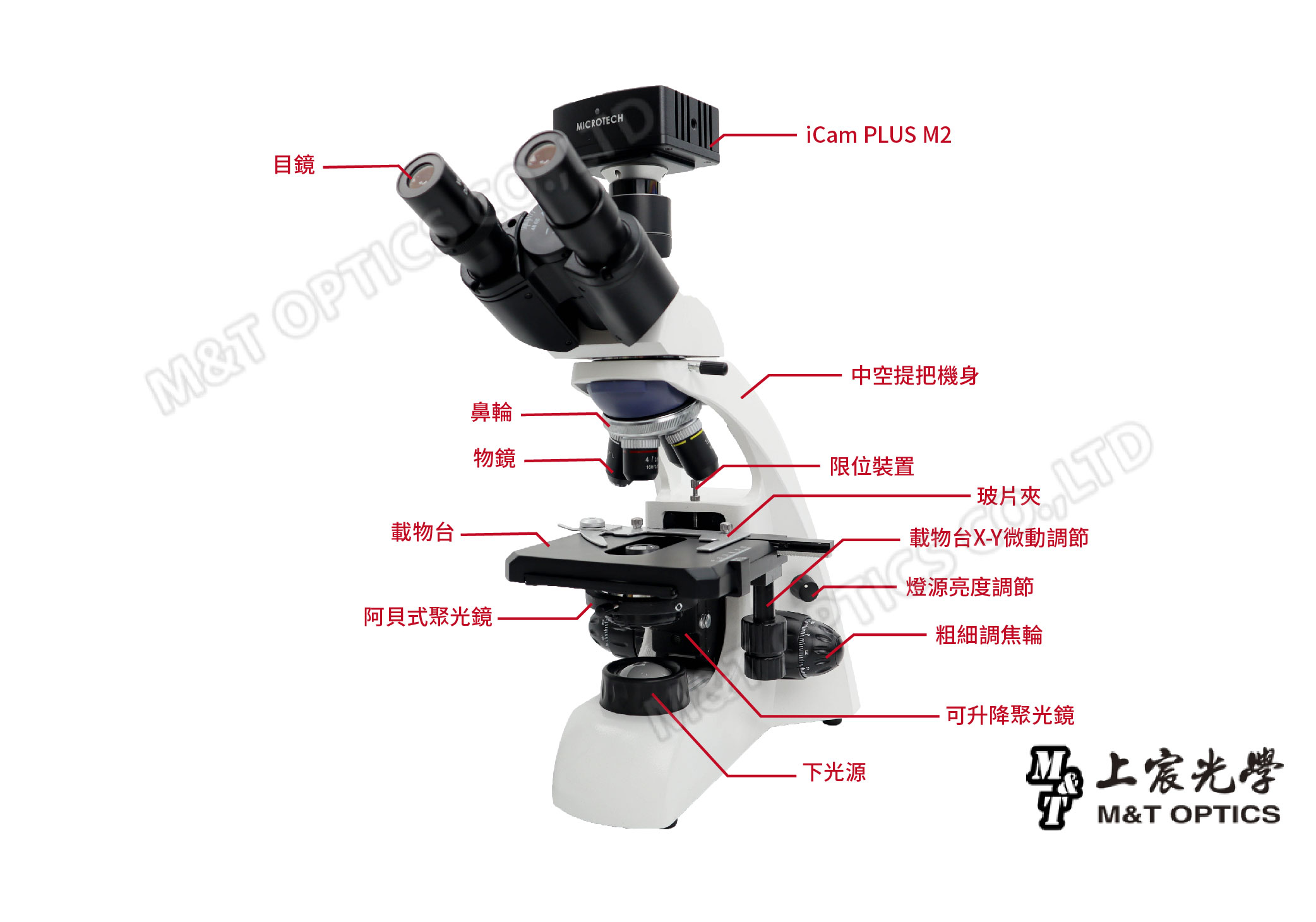

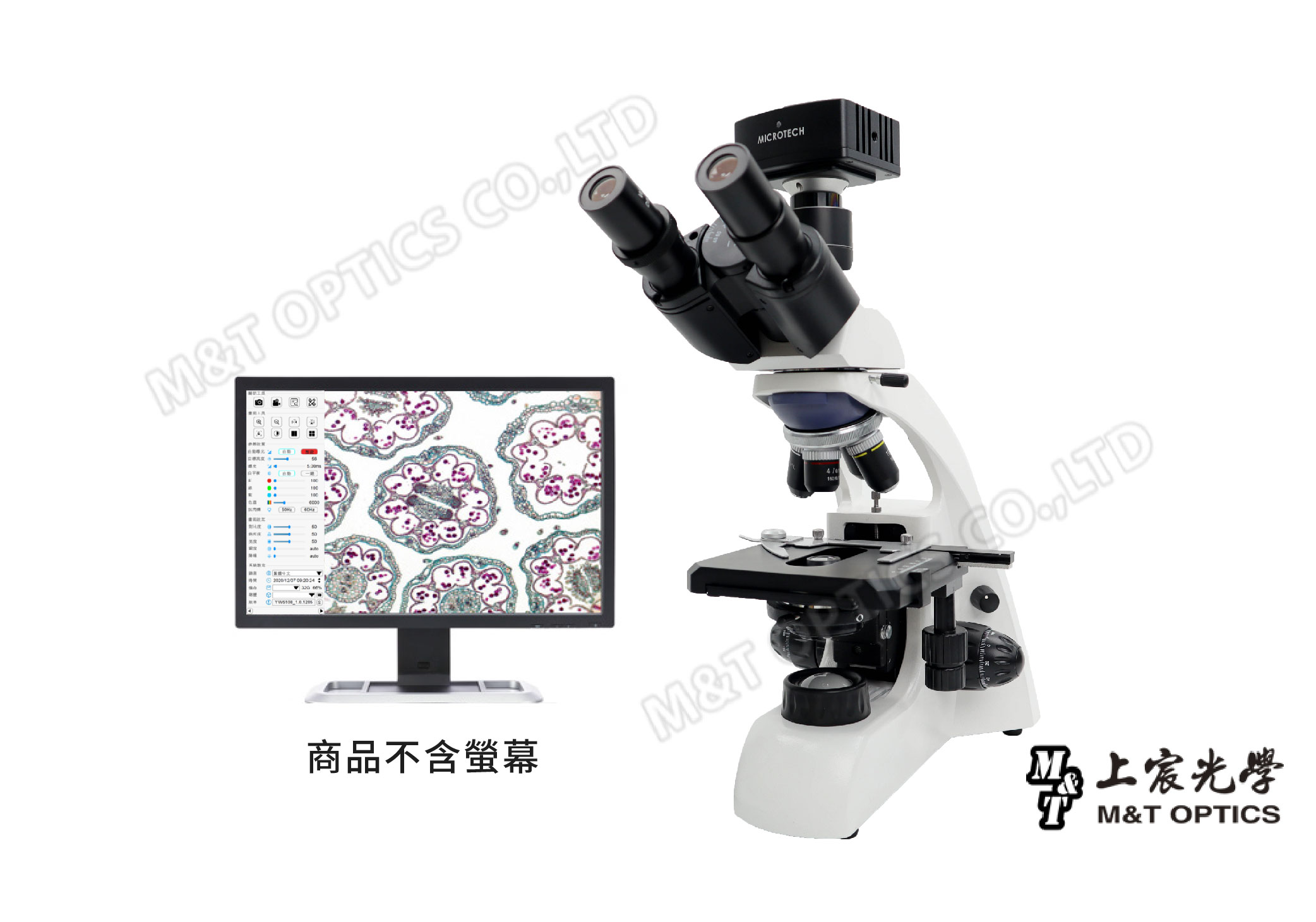

LX series primary and secondary school teacher grade biological microscope

LX130.M2 is a primary and secondary school teacher-level biological microscope that can observe biological cell slices and tissues with binoculars, with an observation magnification of 40x~2500x. Objective lenses of international standards are available from low to high magnification, and the optical field of view is bright and comfortable; the one-piece lens body has a generous appearance and a stable structure. The MICROTECH M2 camcorder can be directly connected to a monitor through the HDMI interface to synchronize high-definition observation images in real time. It can take pictures, record videos and perform measurements without connecting to a computer, making it convenient for teaching and recording research results. This machine has excellent optical quality, the image is bright and clear, the details are sharp, coupled with the ultra-wide field of view and excellent lighting system, it is fully suitable for clinical biological experiment functions, suitable for: cell culture analysis, tissue section observation, blood interpretation, Solution observation, water quality inspection, environmental protection testing, breeding research, aquaculture, agricultural and fishery experiments, livestock racing pigeon breeding, medical experiments, biological experiments, etc.

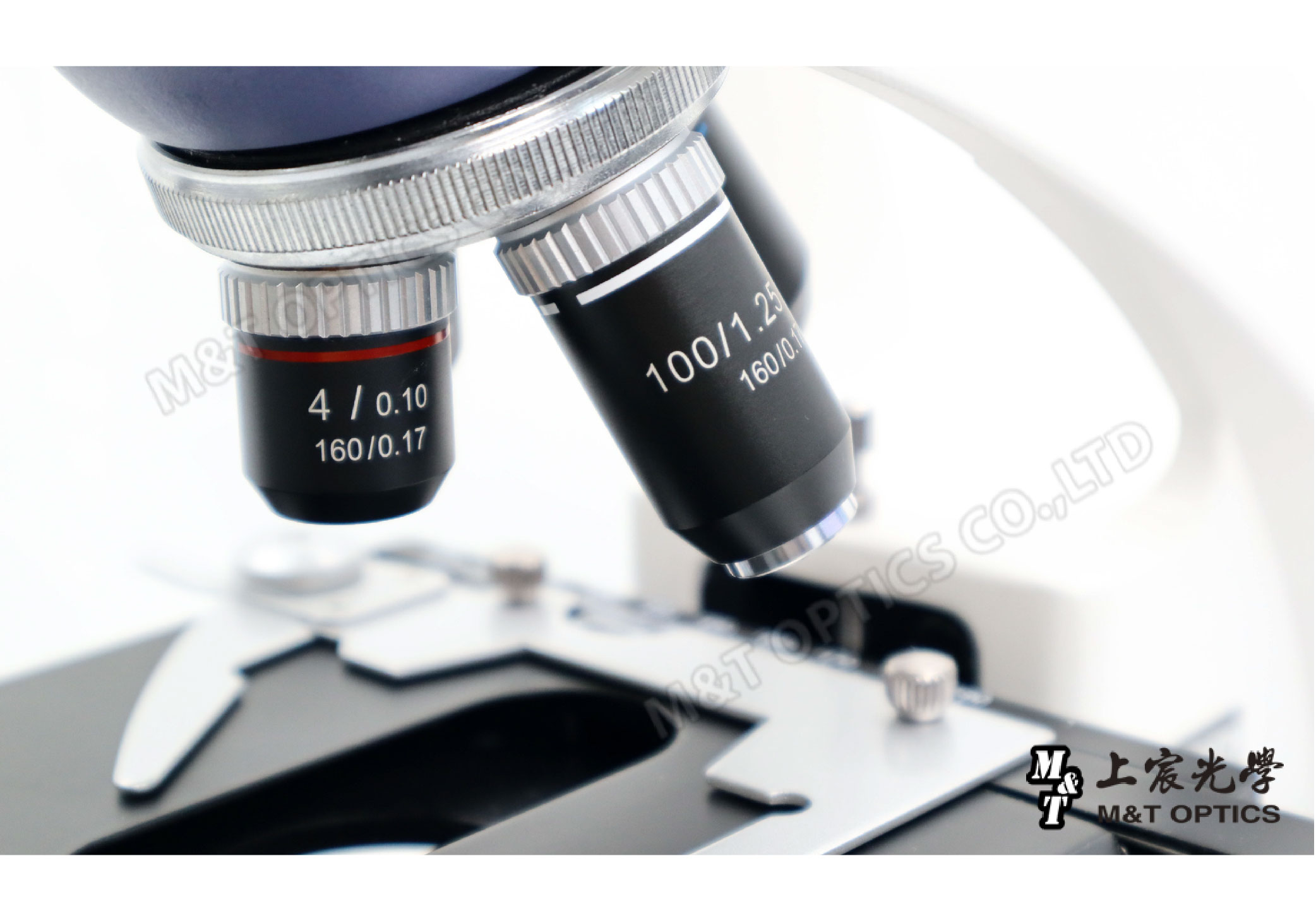

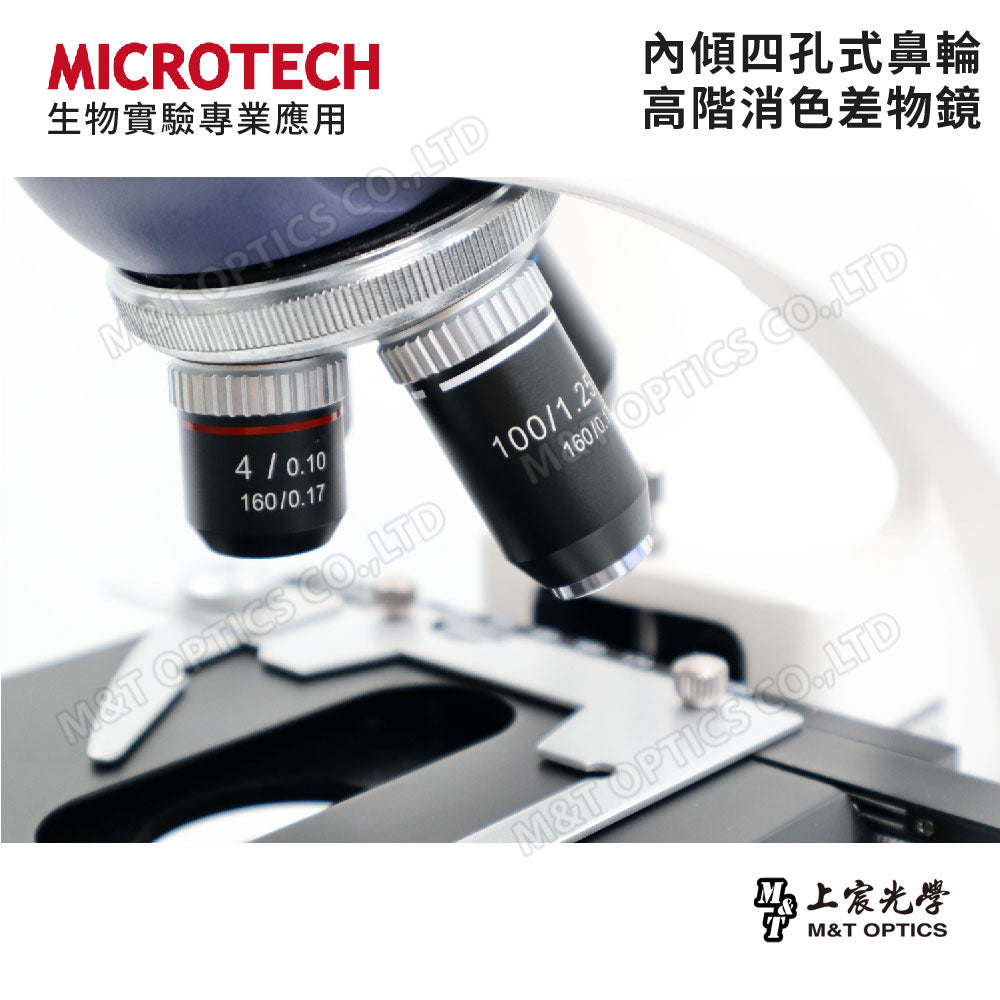

Adopt high-end achromatic objective lens and inward-inclined four-hole nose wheel

It uses four-hole steel balls to position the retracted rotating nose wheel, and is equipped with a total of four advanced achromatic objective lenses of 4x, 10x, 40x and 100x (oil lens). The lenses are complete and the magnification is complete. The included lens oil is suitable for use with 100X high-magnification objective lenses.

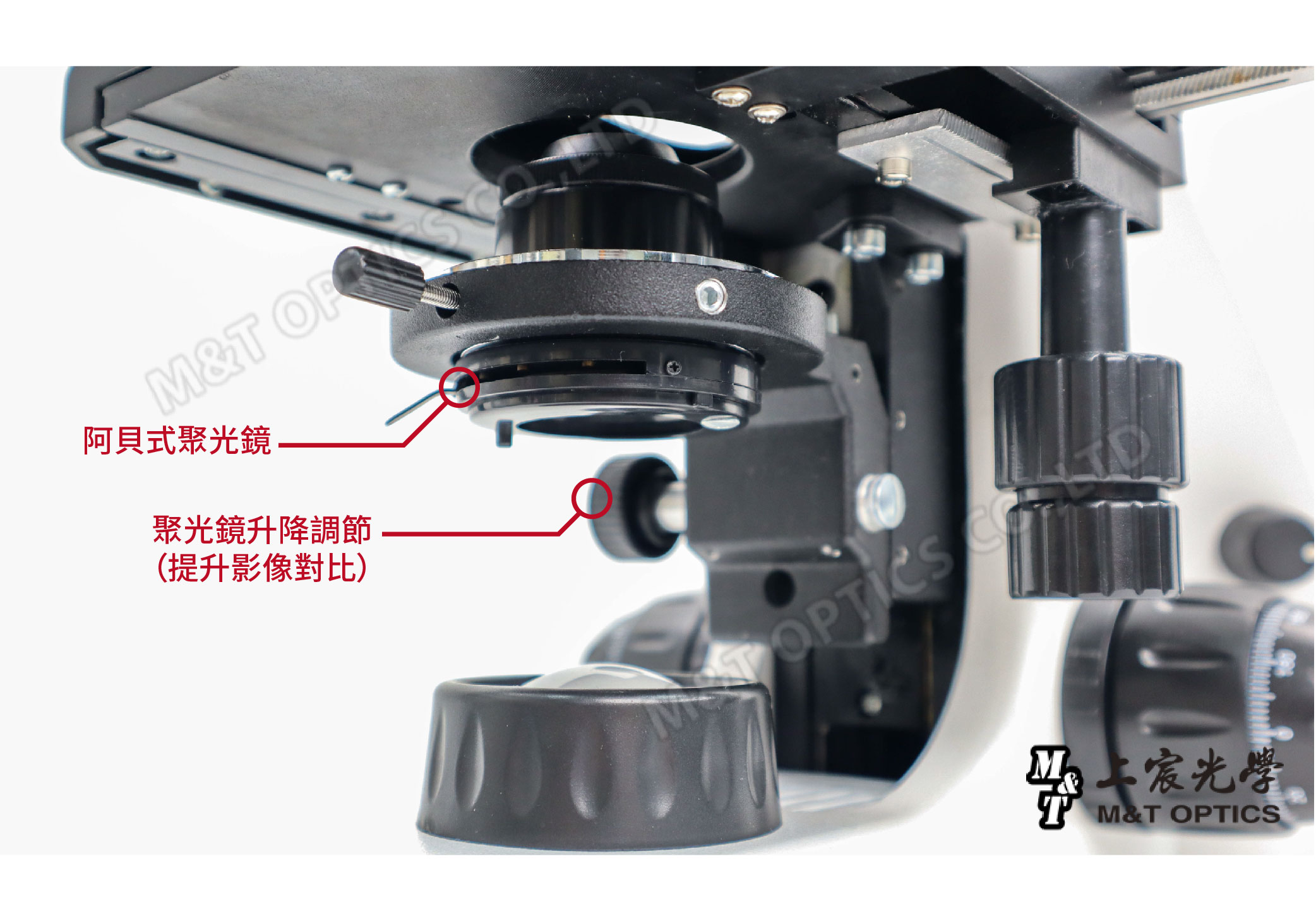

Adjustable condenser to expand depth of field at high magnification

Equipped with Abbe type focusing system. When using high-magnification observation, you can lower the condenser or narrow the aperture to expand the depth of field and expand the clear range of the sample depth.

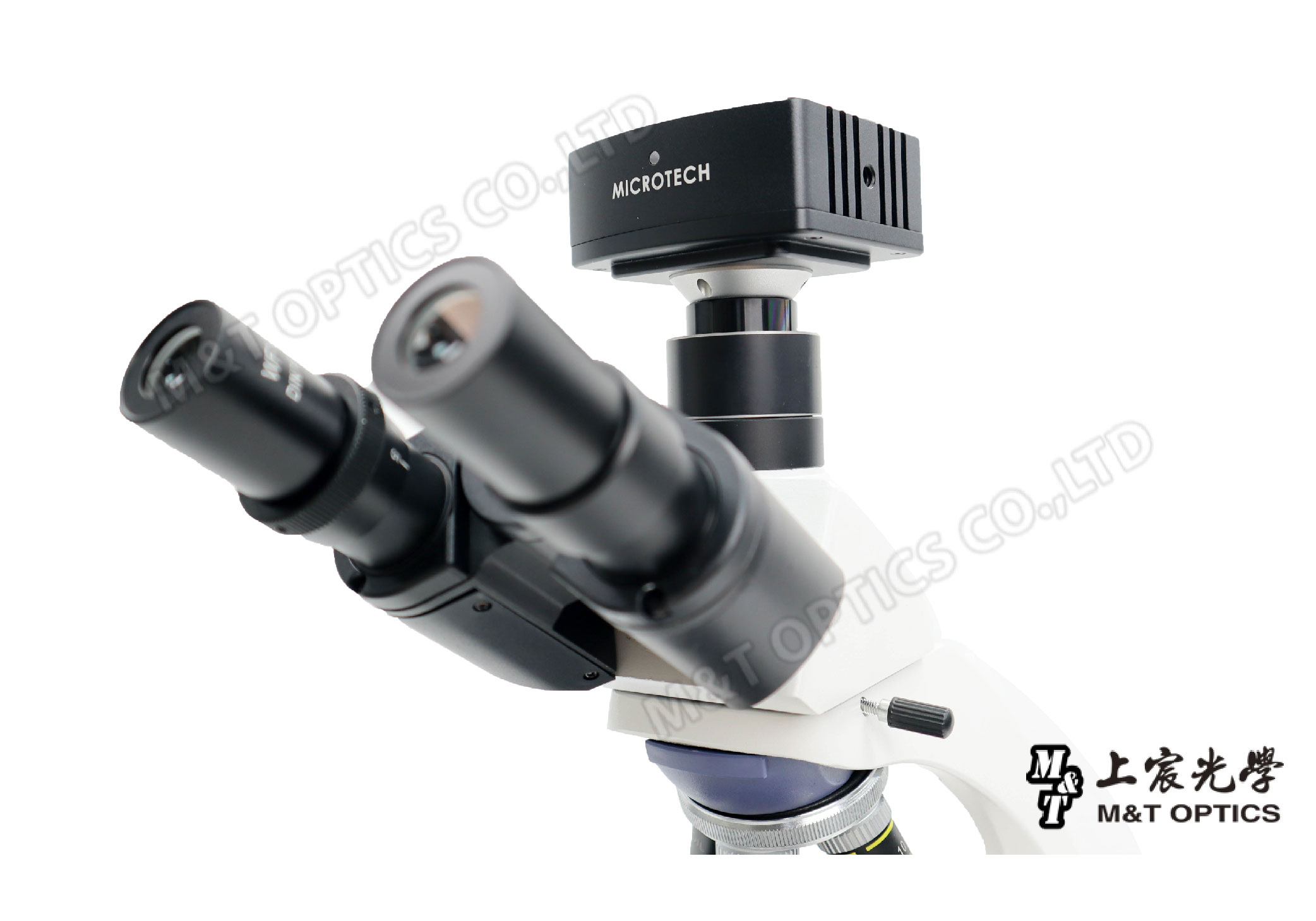

Trinocular observation head, large field of view eyepiece

The wide-field eyepieces are matched with high-end achromatic objectives, and the eyepieces include a set of WF10X and WF25X. The third eye of the observation head is connected to the "MICROTECH M2 microphotography system" to provide HD high-quality real-time output and control of shooting records. It is quite suitable for teaching, biological experiments, and recording research results.

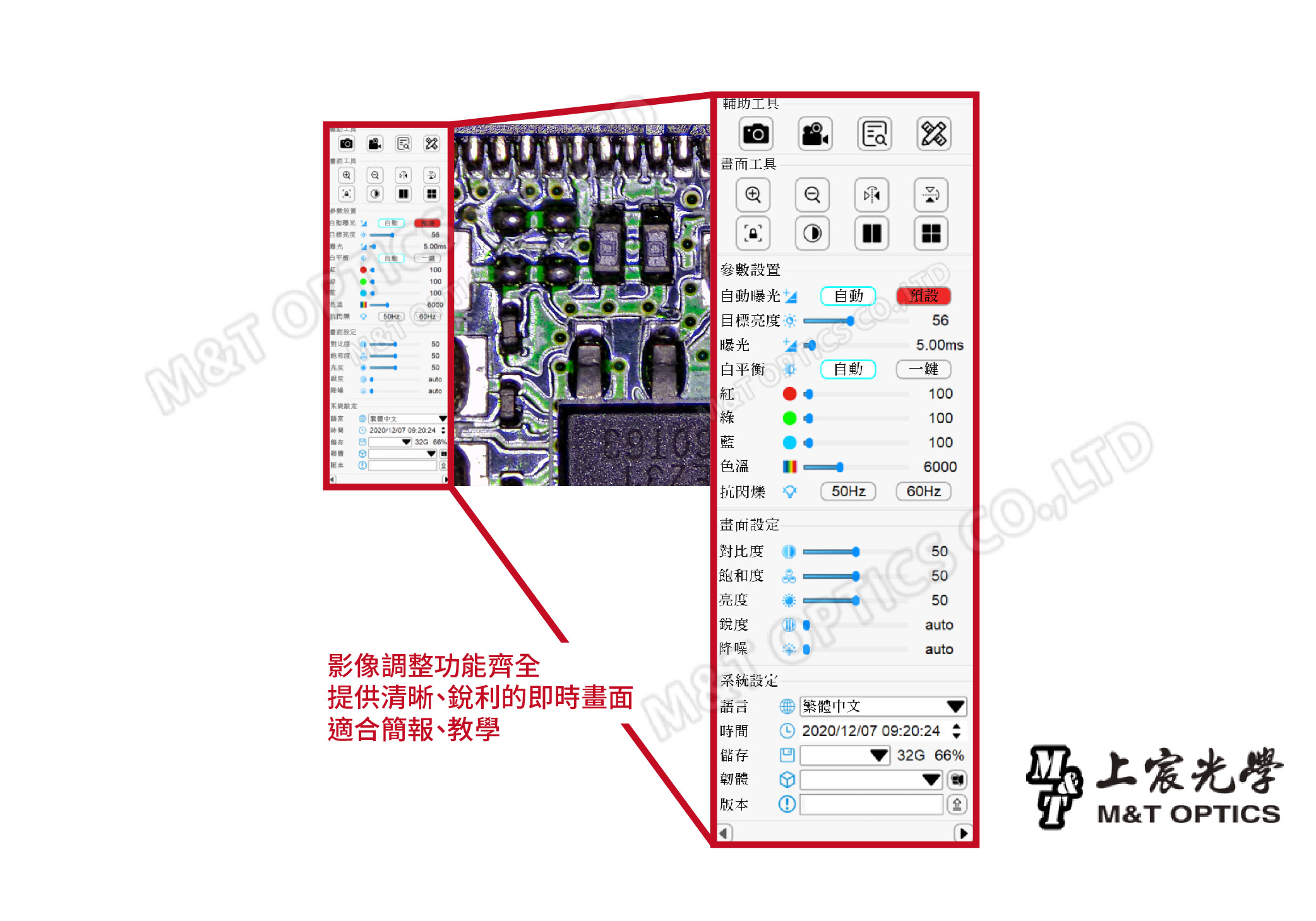

Full-featured embedded operating interface

Only one mouse is needed to operate photography, video recording, exposure adjustment, various parameter settings, screen freezing, screen ratio, digital zoom in and out.

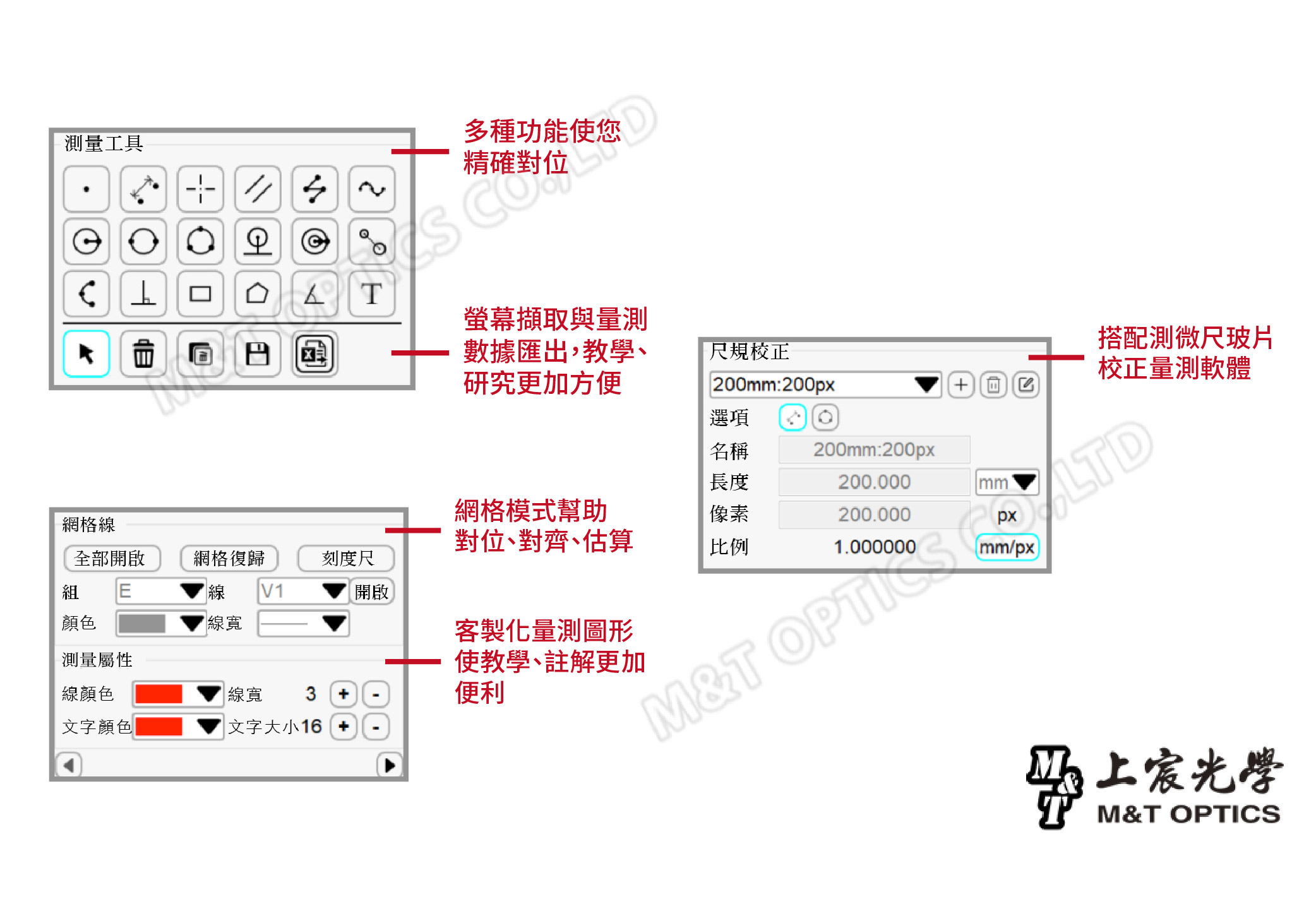

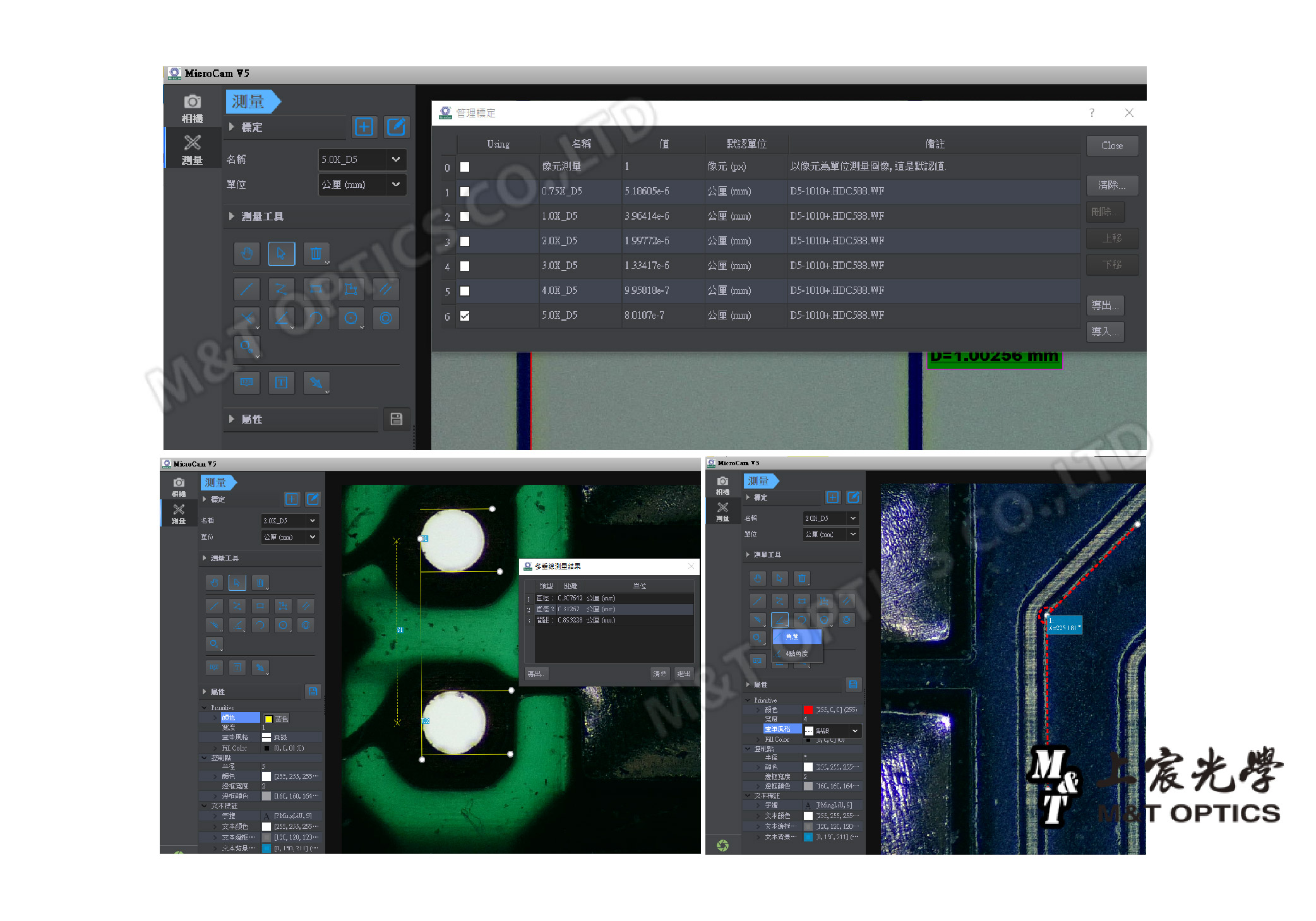

Built-in multi-dimensional microscopic image measurement tools

Complete measuring tools such as point, line, circle, arc, parallel line, vertical line angle measurement, ruler and compass correction allow users to measure and record conveniently and accurately.

extended use

The MICROTECH M2 camcorder can also be connected to a computer and used with conferencing software, which is suitable for remote video conference teaching and other purposes. When used for recording and storing industrial images and medical examination images, V5 imaging software (Windows version) can also be downloaded on a stand-alone computer. Operate on computer.

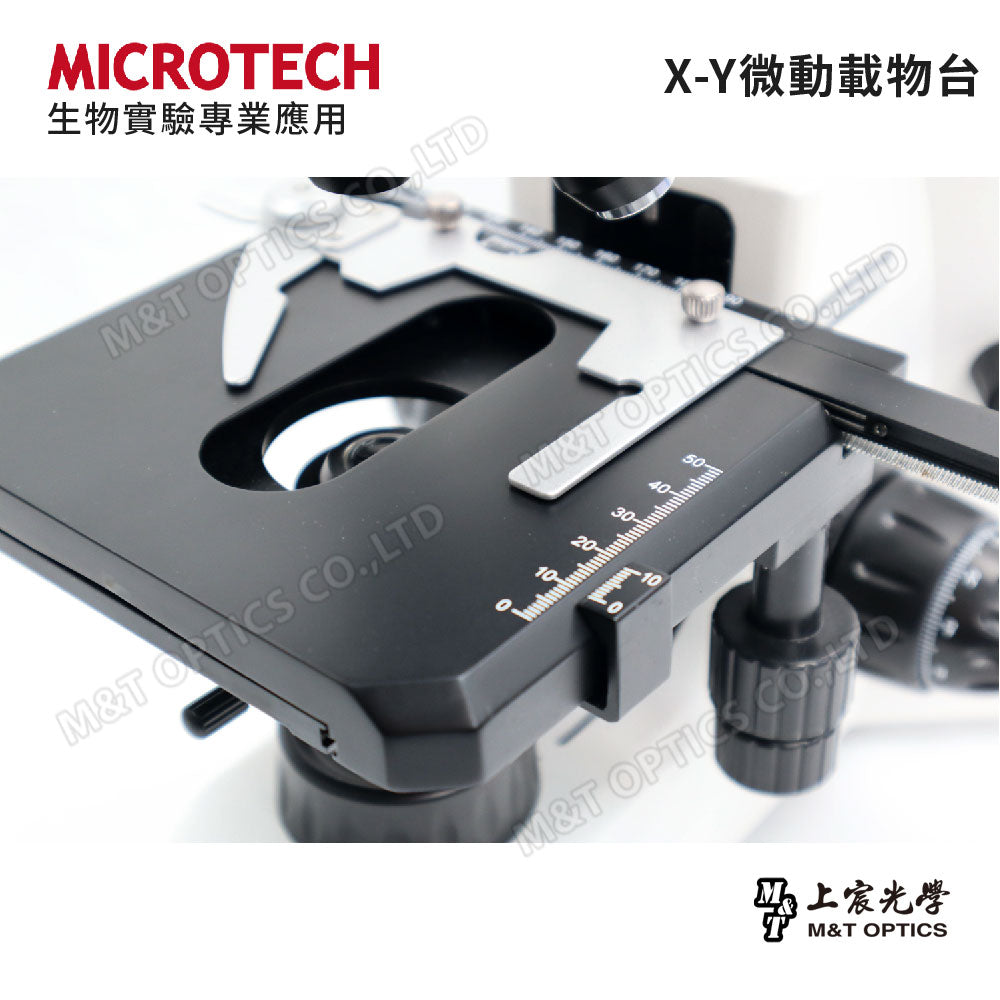

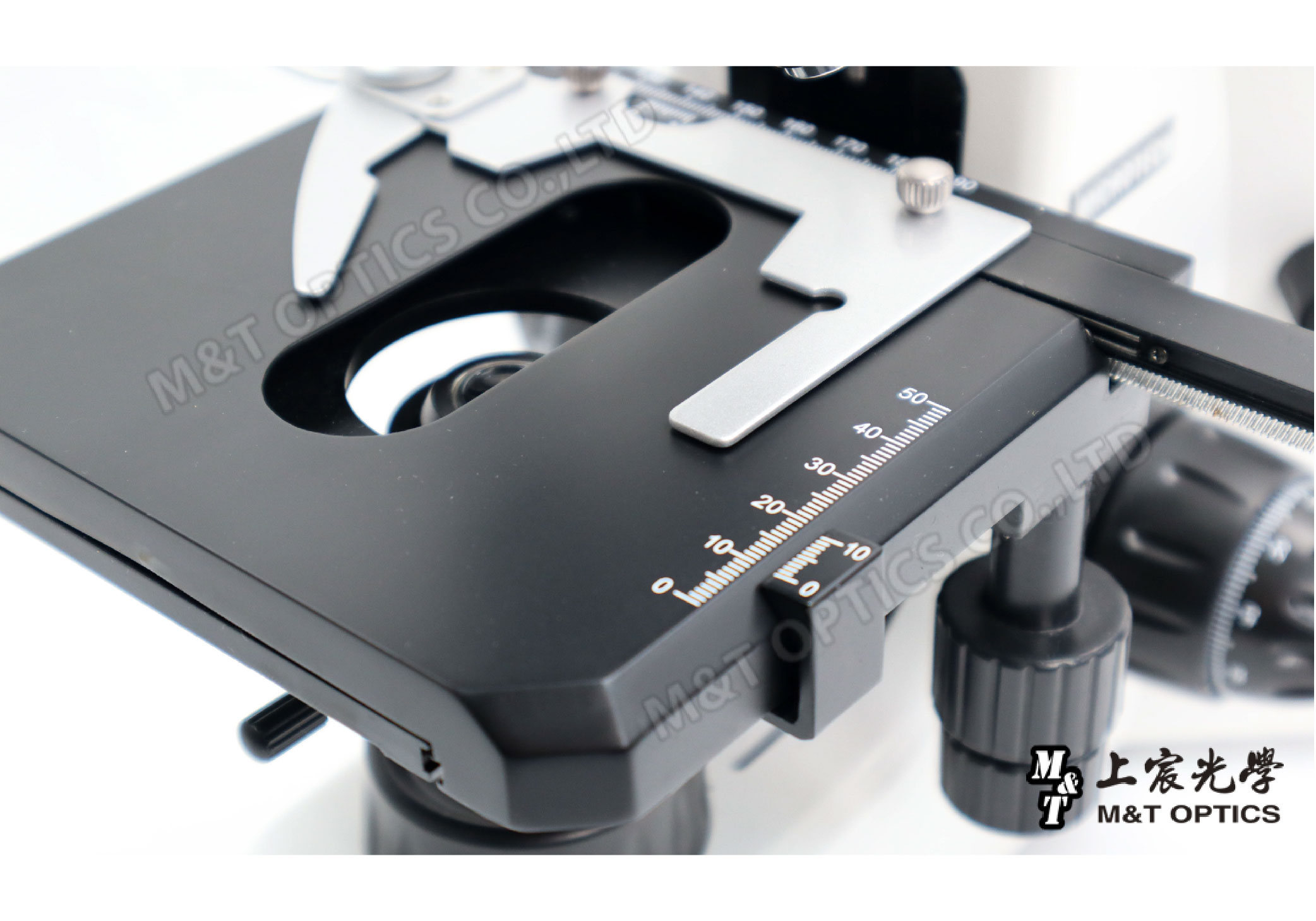

XY micro-motion stage

The smooth-operating micro-motion slide stage has a double-layer XY micro-movement mechanism, which can precisely micro-move forward, backward, left, and right, and accurately grasp the observation target.

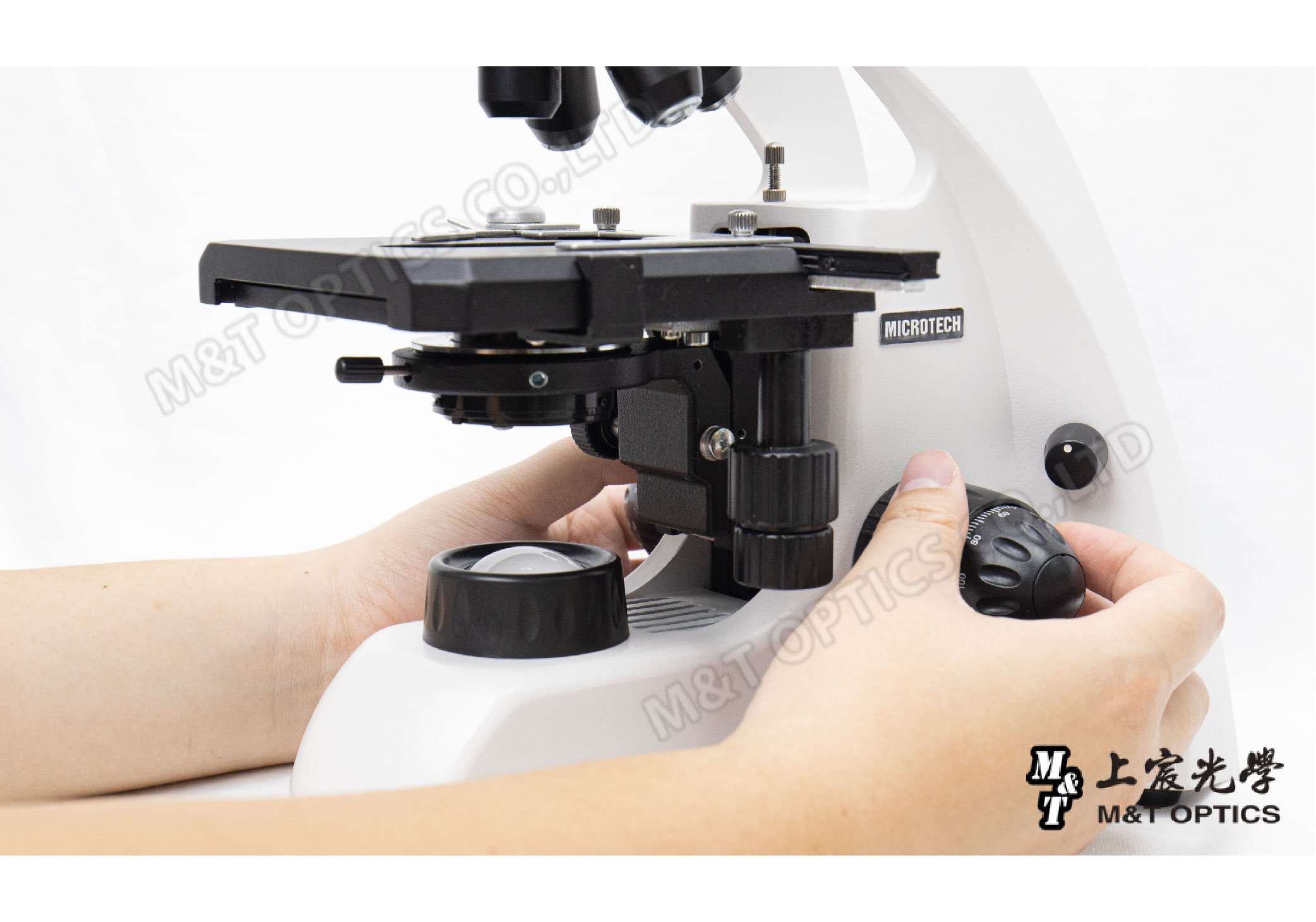

Ergonomic design

Both hands can be placed flat on the table to adjust focus, adjust the micro-motion stage, and adjust the brightness of the light source to ensure stability for long-term operations.

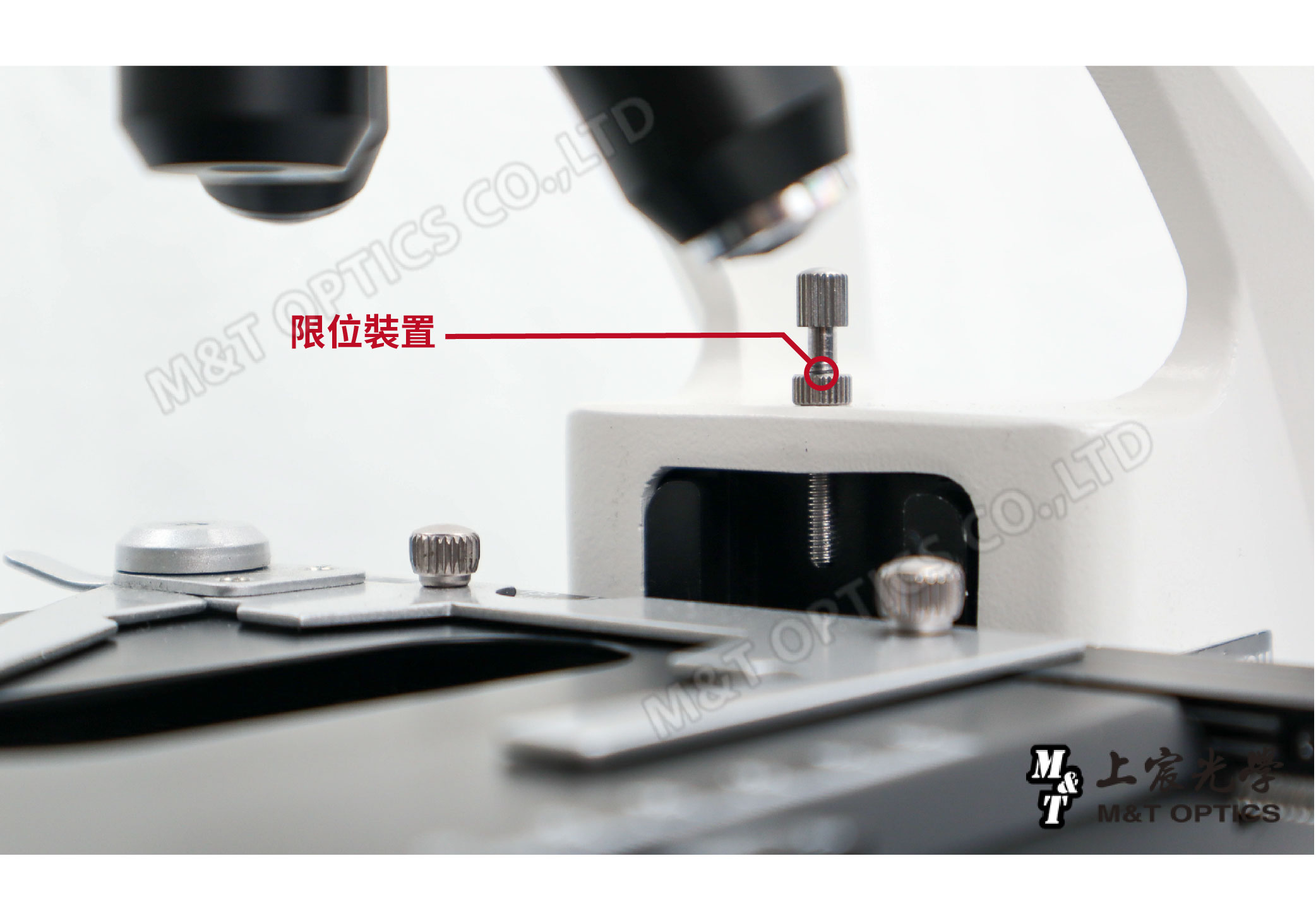

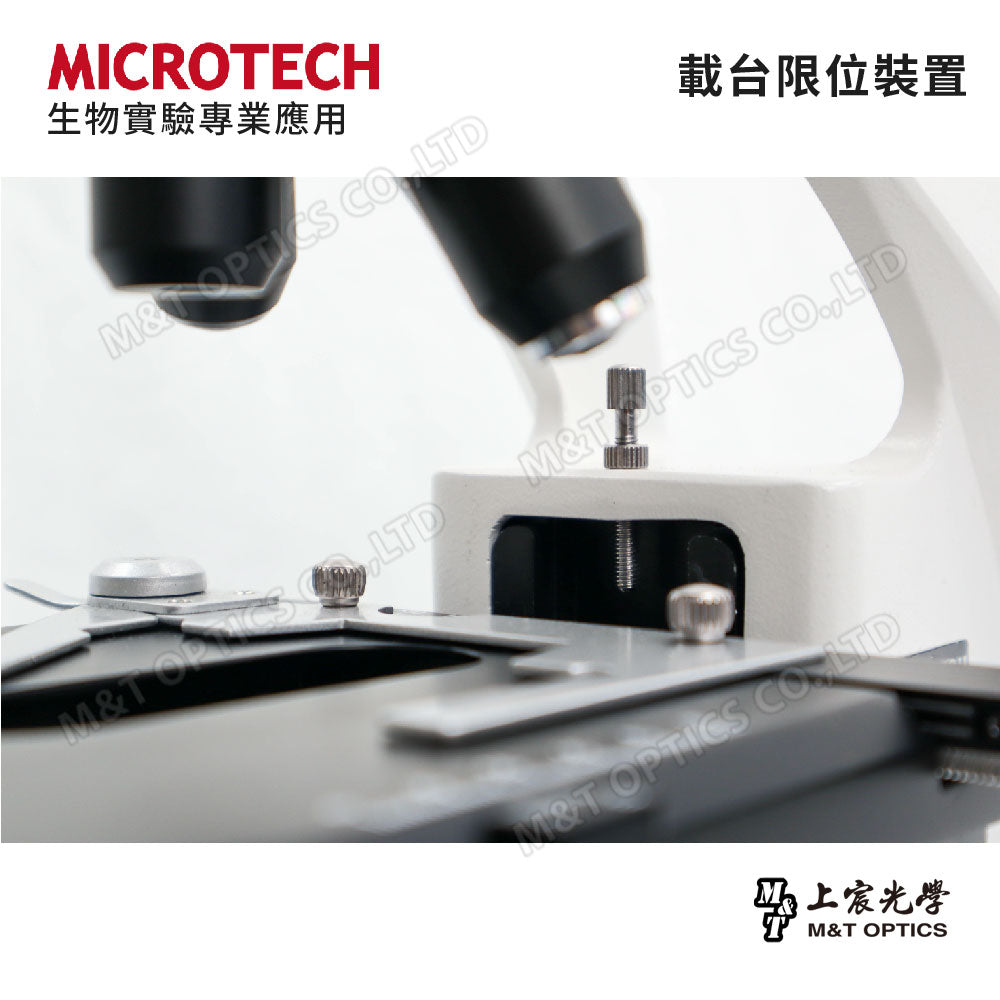

Stage limit device

Equipped with a limit safety device to prevent the slide from being broken by collision with the objective lens.

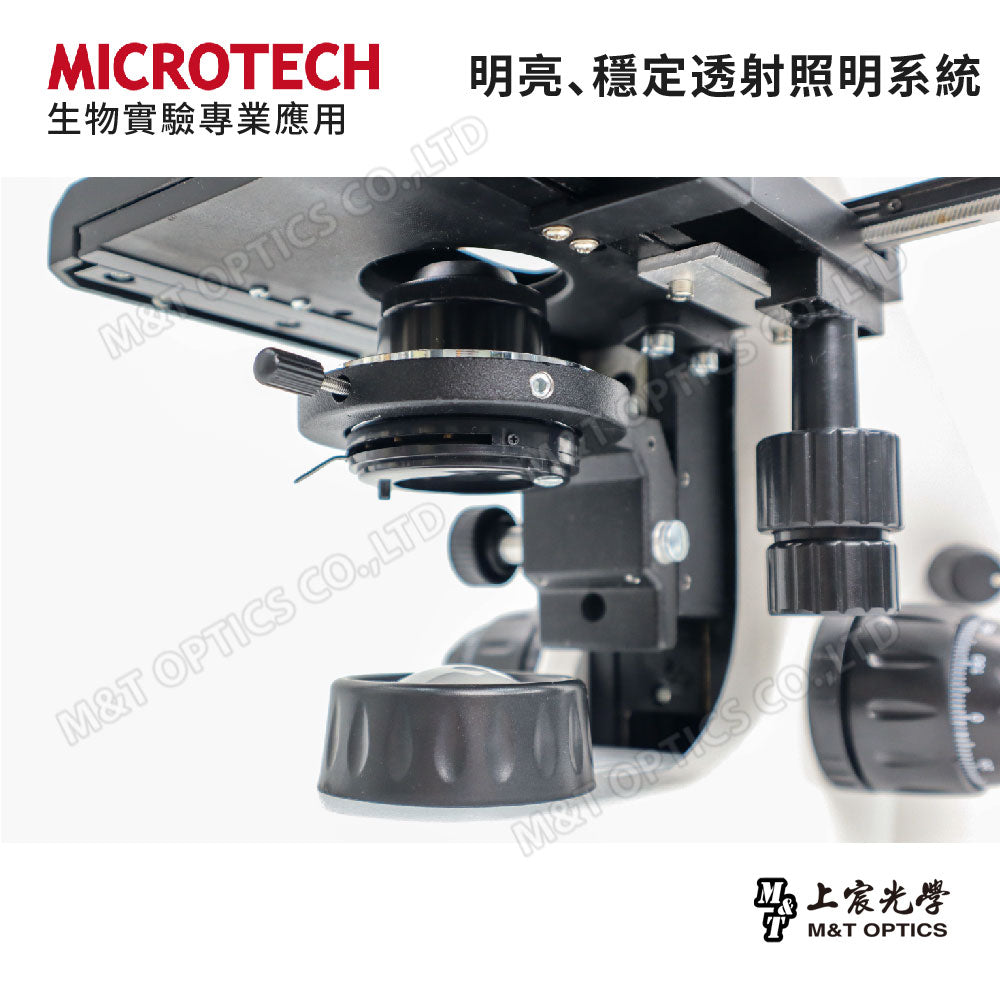

Bright and stable LED transmitted lighting system

Equipped with a new generation LED light source system, there are no worries about consumables, and it provides a bright and stable field of view; the universal voltage socket can be used anywhere. Paired with the Abbe condenser system, it enhances your microscopic observation experience.

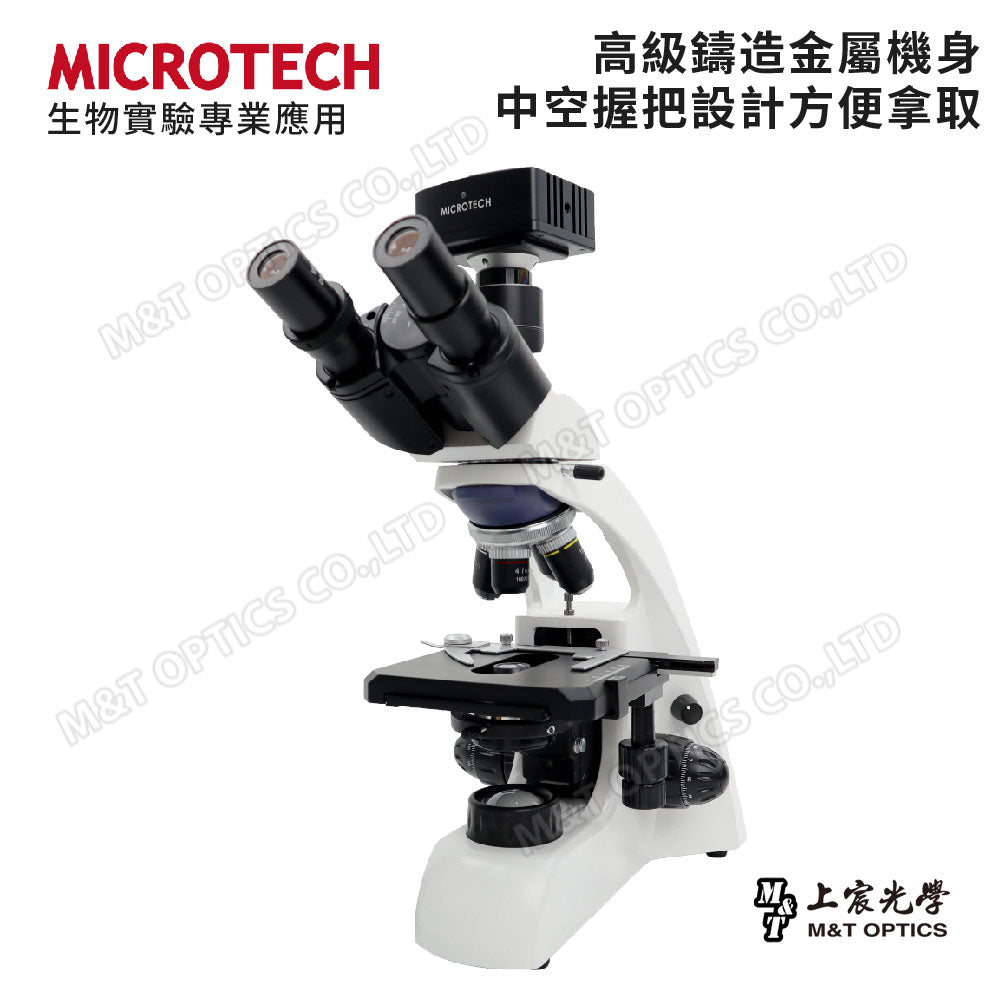

Premium cast metal body

The streamlined and high-quality body structure incorporates an integrated focusing system and LED light source system, and provides good load bearing, allowing experimental operators to enjoy a wonderful operating experience.

Observation examples

Dog Small Intestine Transection - 100x

Observation examples

Pumpkin stem cut crosswise - 400x

Product specifications

magnification	40X～2500X
Binocular viewing tube	Tilt 30 degrees to adjust the interpupillary distance from 50 to 74mm
Transmissive LED light source	Cold light, adjustable brightness
power supply	AC110V～220V, back type cooling circuit box
eyepiece	WF10X＊2, WF25X＊2
Connect objective lens	4X, 10X, 40X, 100X (oil telescopic type) achromatic objective lens
nose chakra	Four hole steel ball bearing positioning
focusing	Coaxial coarse and fine focusing wheel, focusing stroke 28mm, accuracy 0.002mm/per small division
Stage	Double-layer type, size 140*132mm, attached with slide holder. X-axis travel 70mm, Y-axis travel 30mm
condenser	ABBE condenser built-in diaphragm system
aperture	Segless continuous light barrier
Lifting mechanism	Rack type ball focusing system with limiter device
Mirror body	One-piece seamless cast mirror body, H-shaped hollow mirror arm, flat mirror back, mirror back with heat dissipation holes
Appearance size (WxDxH)	180＊260＊410mm
weight	5.1kg
Warranty	one year
photography system	MICROTECH M2 HDMI content measurement system
