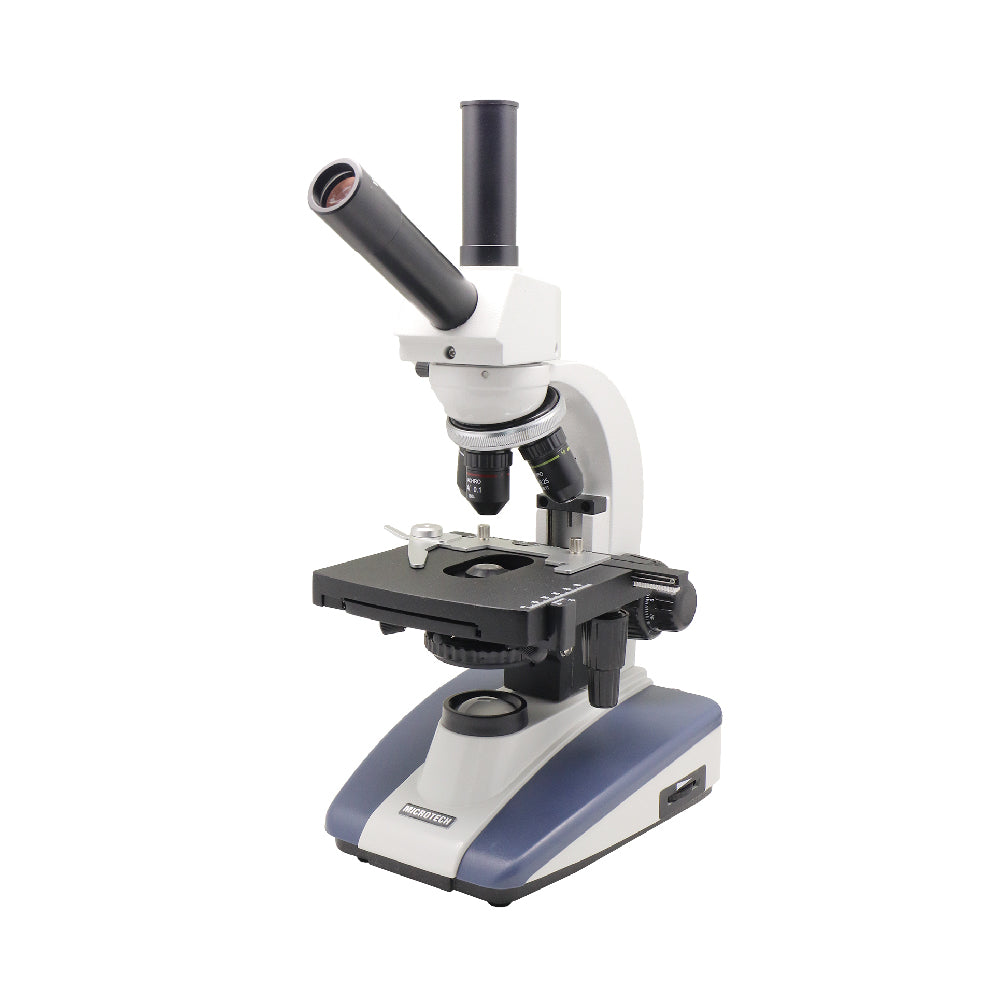

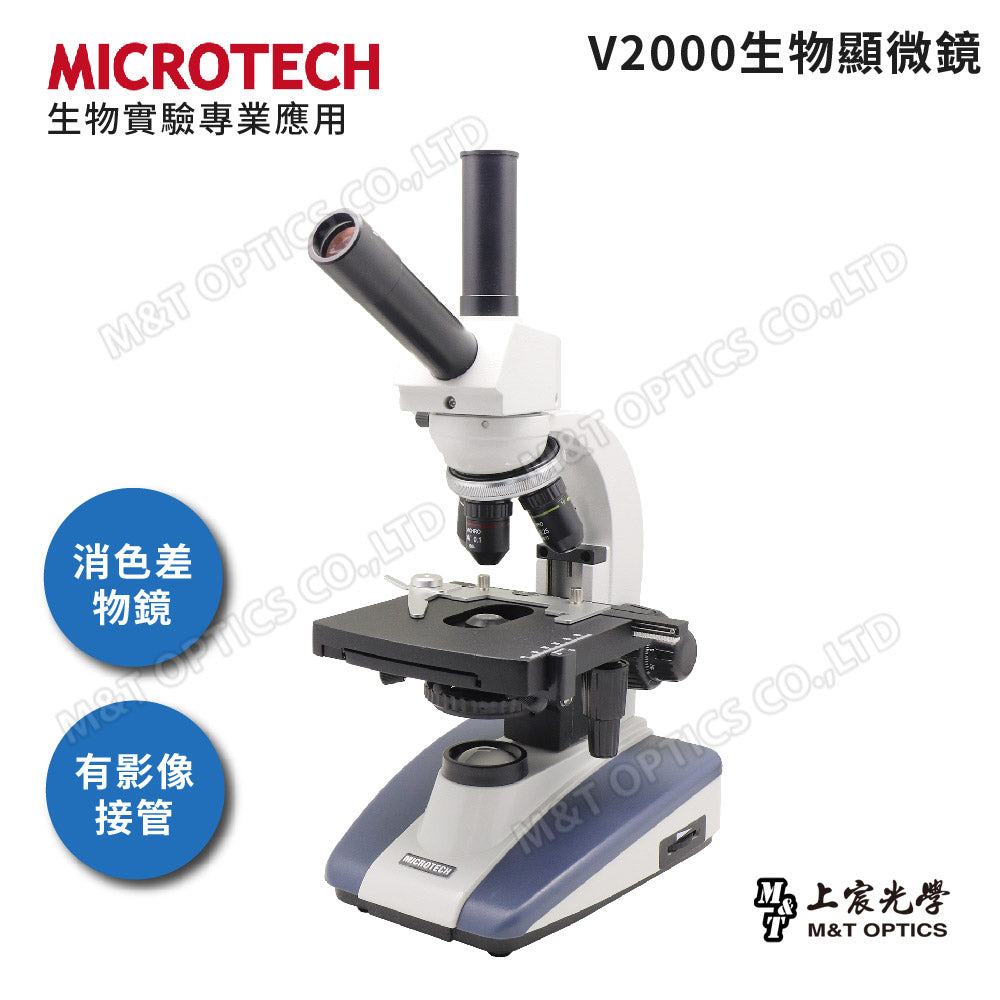

High specification standard biological microscope

V2000 is an excellent model designed with high standards for biology teaching. The aluminum alloy one-piece cast body is strong, reliable and durable. It has excellent optical quality, bright and clear images, sharp details, coupled with ultra-wide field of view and excellent lighting system, suitable for: cell culture analysis, tissue section observation, blood interpretation, solution observation, water quality inspection, environmental protection testing, breeding research , medical experiments, biological experiments and other purposes.

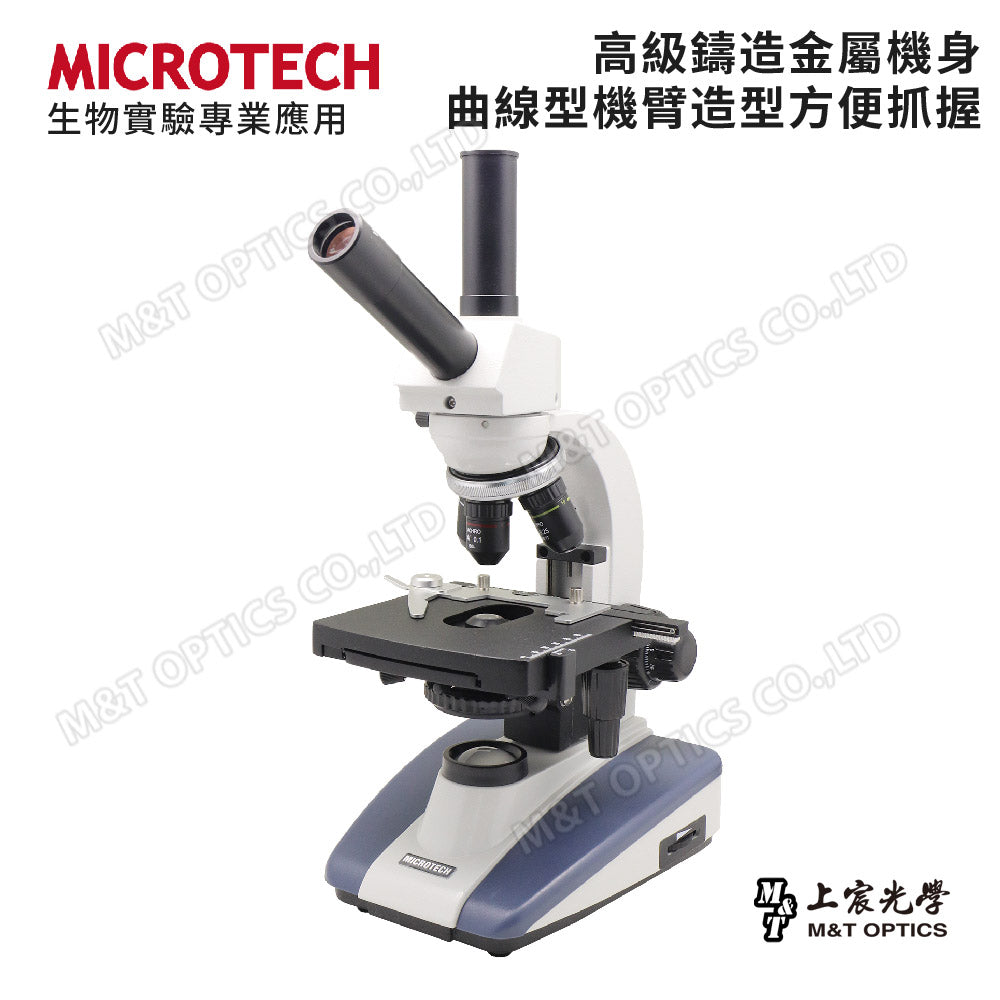

Cast metal body - strong and durable

The curved arm shape makes it easy to hold and move. The fuselage is stable and provides good carrying capacity, effectively reducing interference during observation. Let users enjoy a wonderful operating experience.

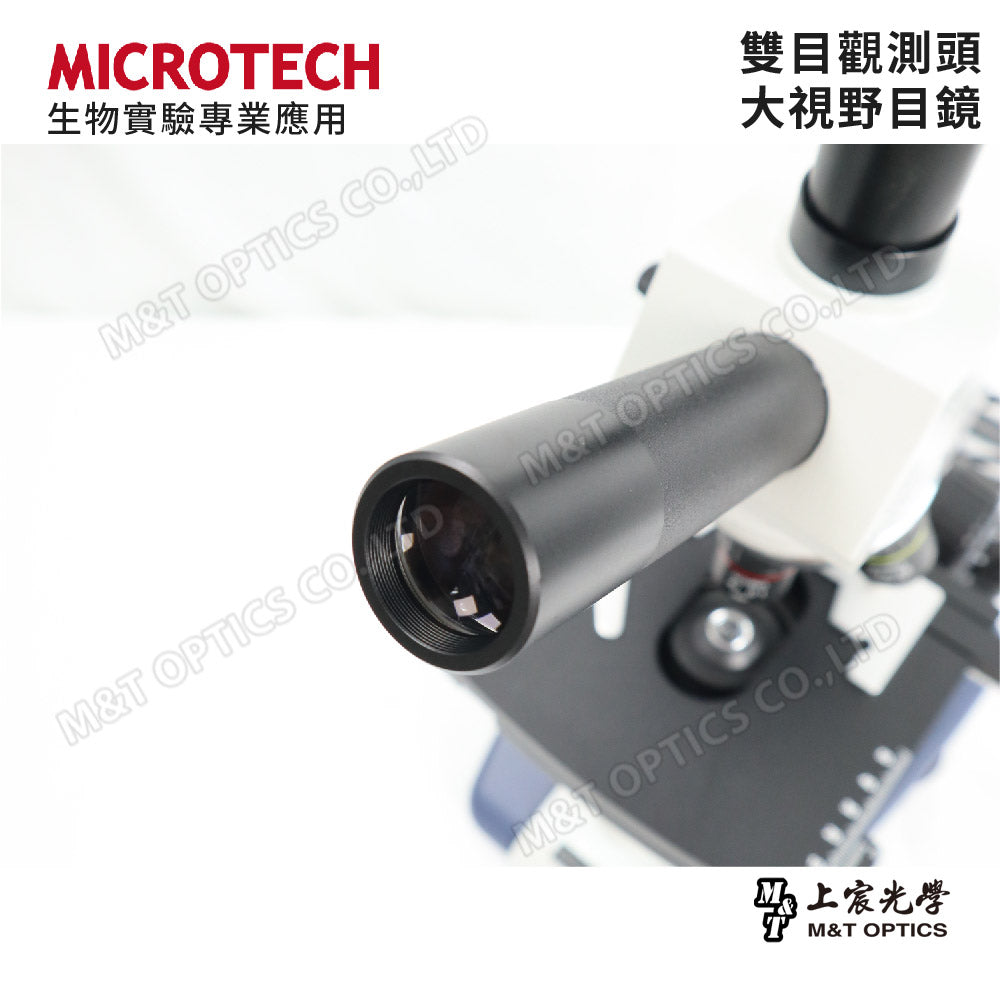

wide field eyepiece

The wide-field eyepieces are matched with high-end achromatic objectives, and the eyepieces include a set of WF10X and WF20X. The wide field of view improves the comfort of long-term observation. The third visual observation head can be connected to a microscope camera.

Eyepiece with built-in pointer

The 10X eyepiece is equipped with a pointer, which can point to the target to assist teaching or sharing purposes.

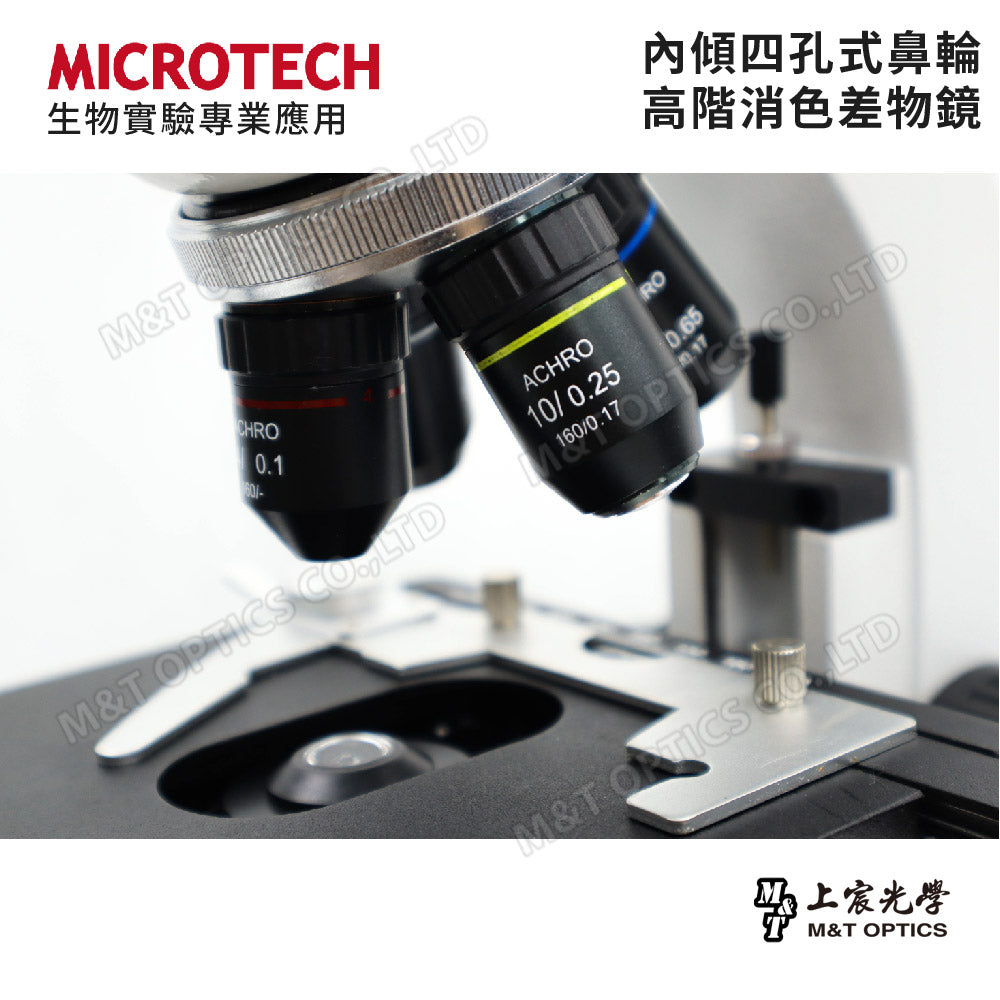

Inward-inclined four-hole nose wheel, high-end achromatic objective lens

It uses four-hole steel balls to position the retracted rotating nose wheel, and is equipped with a total of four advanced achromatic objective lenses of 4x, 10x, 40x and 100x (oil lens). The lenses are complete and the magnification is complete. The included lens oil is suitable for use with 100X high-magnification objective lenses.

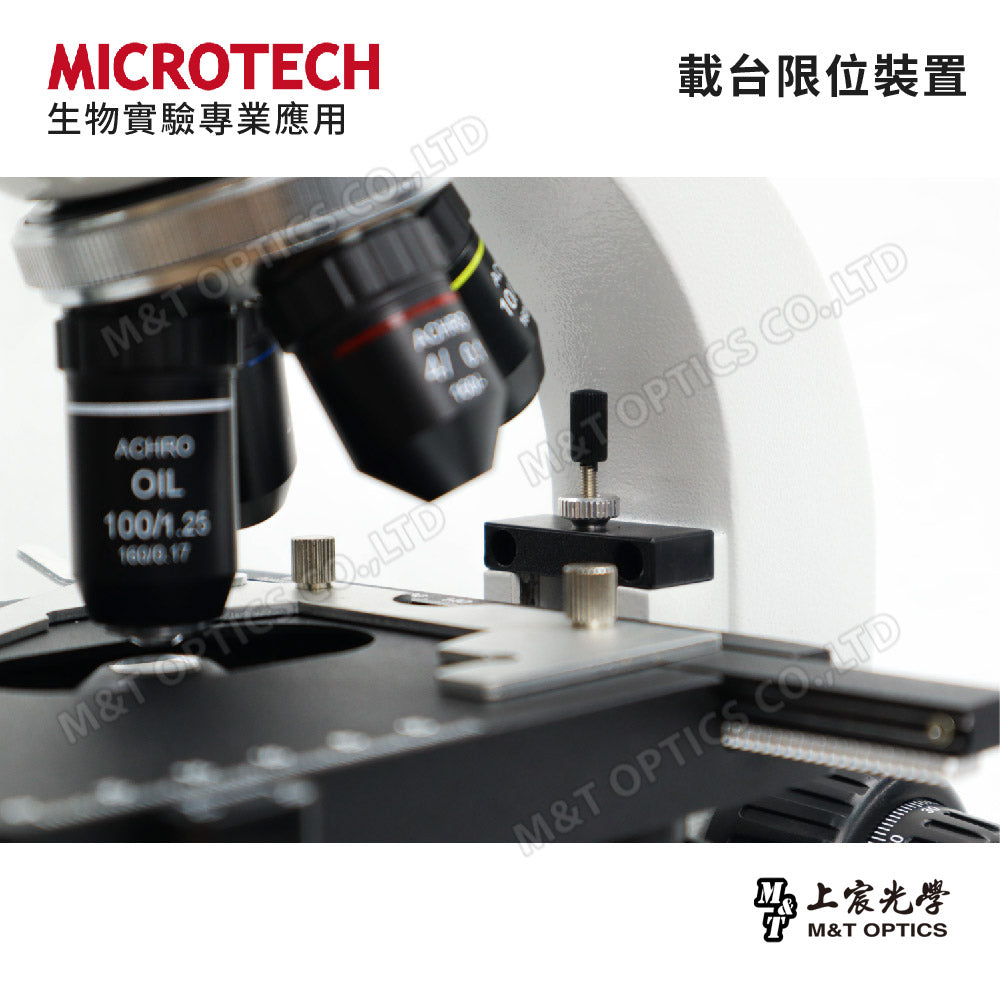

Stage limit device

Equipped with a limit safety device to prevent the slide from being broken by collision with the objective lens.

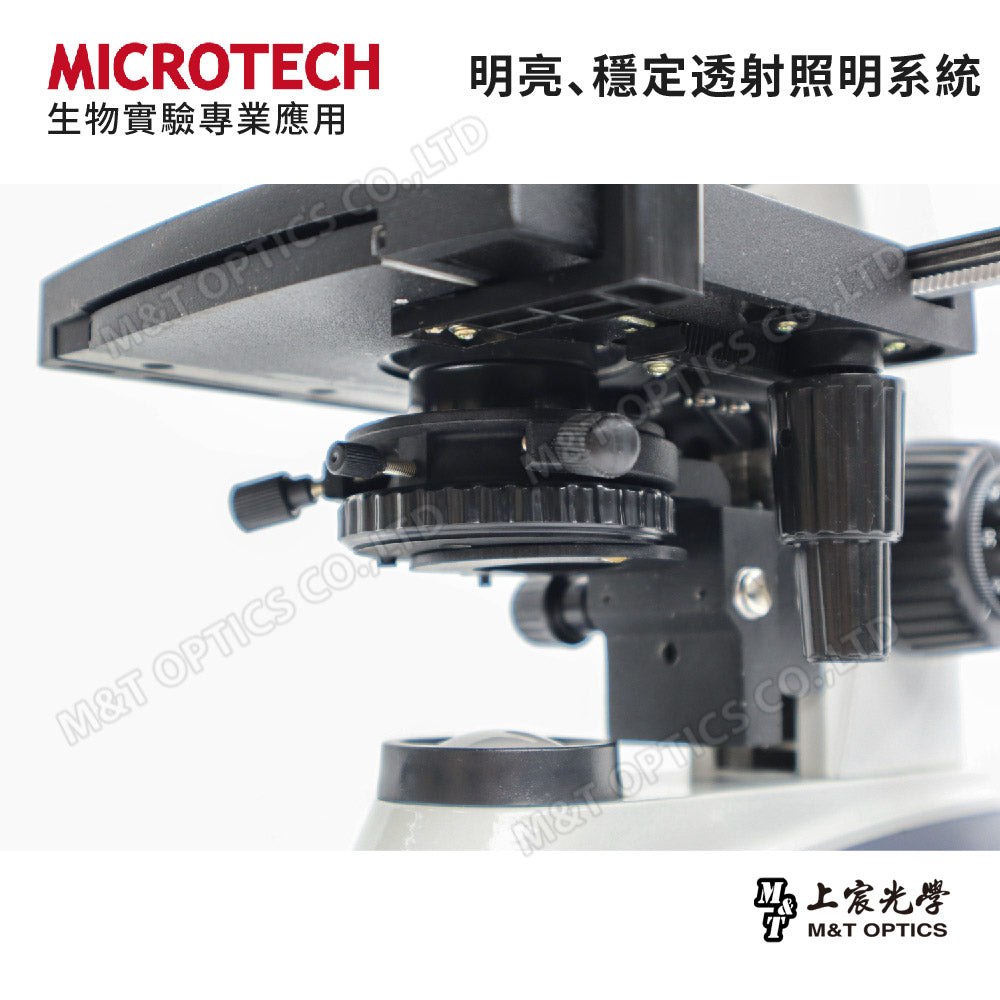

Bright, stable transmitted lighting system

Light source and Abbe focusing system, stepless continuous aperture adjustment. When necessary, the aperture can be appropriately narrowed to make the depth of field deeper and expand the clear range of the depth of the sample.

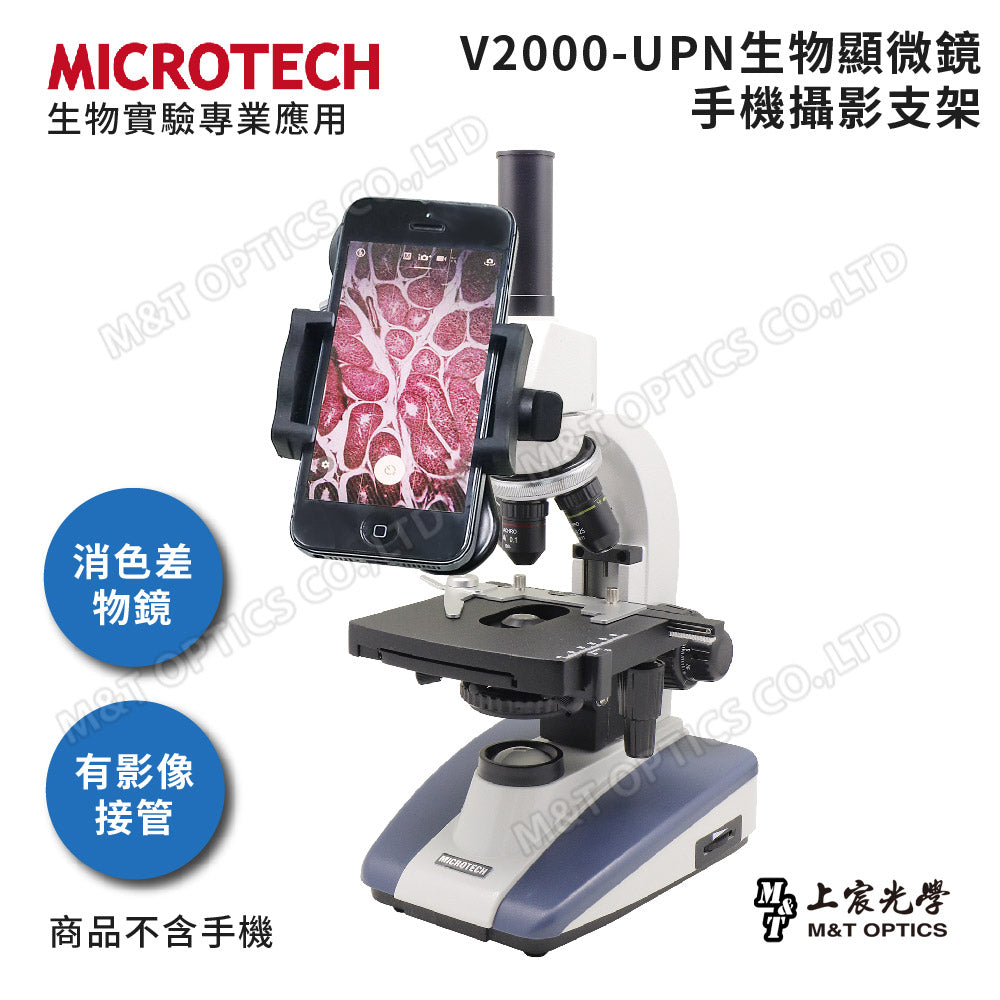

Recommended additional purchase-Mobile phone photography bracket (UPN-276)

Microscope users always have the urge to take pictures of the wonderful microscopic world under the microscope. Shangchen has professionally developed a mobile phone photography gimbal that can firmly fix the mobile phone and correctly place the lens at the ideal back focus of the microscope. Position, use the shooting function of your mobile phone to reproduce the microscopic world wonderfully.

Additional purchase-microscopic camera (PC130.M3/PC210)

It comes with professional-grade software and high-resolution CMOS sensor, which synchronizes with the computer screen in real time during observation, giving you the ultimate experience in teaching and research. Compatible with Windows, Mac operating systems and smartphones (you need to bring your own adapter cable). Recommended additional purchase - Basic microscope experimental tools and supplies set Recommended additional purchase - Professional lens wiping pen (LMT-1) Optical equipment lens wiping pen developed in Canada, the original carbon particle formula has an exclusive patent for removing oil film, without using any cleaning fluid , can easily remove stains remaining on the surface, and is an essential tool for cleaning and maintenance of optical mechanical lenses.

Recommended additional purchase-Basic microscope experimental tools and supplies set

Recommended additional purchase-Professional lens wiping pen (LMT-1)

The optical equipment lens wiping pen developed in Canada has an exclusive patent for the original carbon particle formula to remove oil film. It can easily remove stains remaining on the surface without using any cleaning fluid. It is an essential tool for cleaning and maintenance of optical mechanical lenses.

More information

How to use UPN fast mobile phone photography mount

PC130 camcorder detailed introduction

PC210 camcorder detailed introduction

Recommended additional purchases

UPN-276 mobile phone holder ( item number 2247500020)

PC210 Digital Microscope USB Camera ( Cat. No. 2254000010)

PC130-M3 Digital Microscope USB Camera ( Cat. No. 2254000004)

Basic microscope experimental tools and supplies set (Item No. 2202800688)

MICROTECH LMT-1 lens wiping pen ( item number 2248100004 )

Fine version - Cell tissue teaching slide specimen (Cat. No. 2201100090)

Coverslip (Cat. No. 2200500004)

Glossy glass slide (Cat. No. 2200500005)

Product specifications

Lens barrel	Monocular coaxial spectroscopic tilt angle 3070, hydraulic adjustable angle, optical path 160mm
nose chakra	Retractable type, four-hole magnification conversion
eyepiece	WF10X＊1 piece, WF20X＊1 piece
objective lens	4X, 10X, 40X (telescopic type), 100X (oil lens telescopic type)
Observation magnification	40 times to 2000 times Optical true magnification
Focusing device	1:8 reduction coaxial thickness adjustment wheel
Lifting mechanism	Rack type ball focusing system with limiter device
slide stage	120mm*123mm
condenser	Special adjustable condenser (can be installed with dark field and phase difference functions)
aperture	Segless continuous light barrier

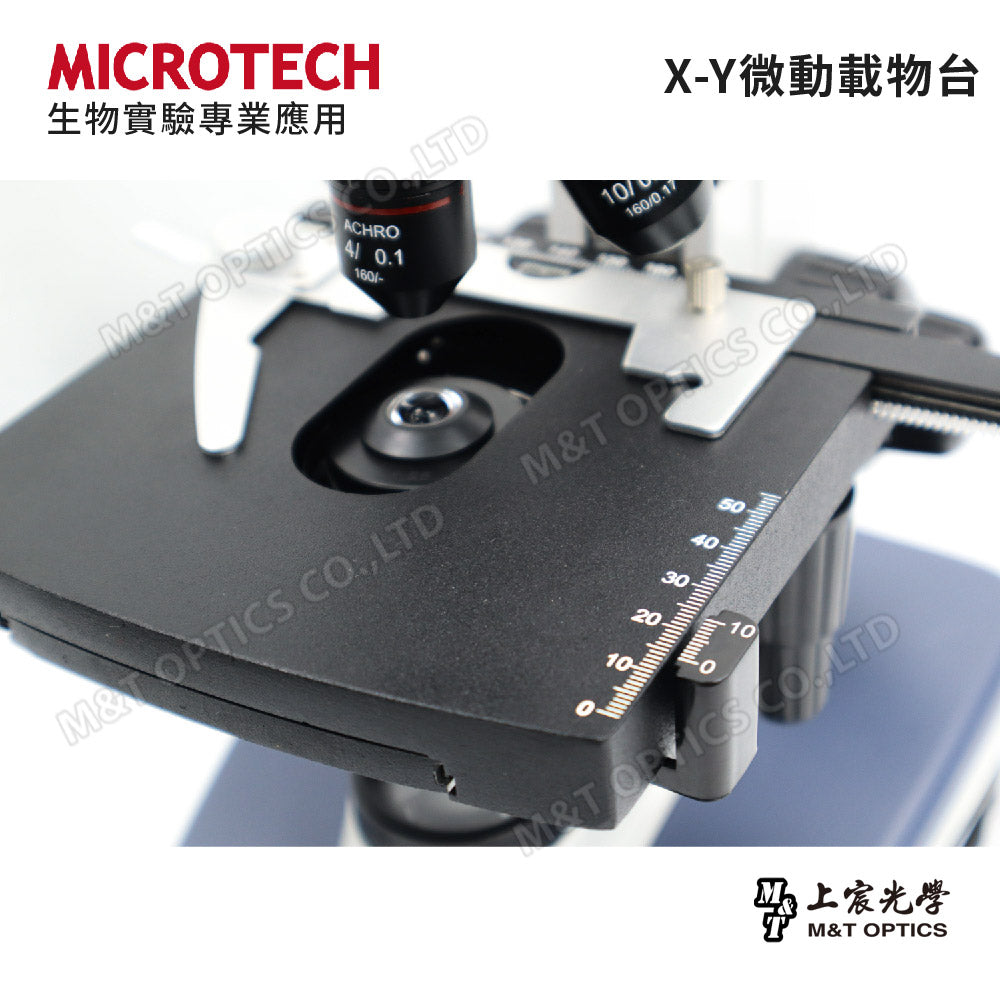

micro-movement device	Hydraulic slide clamp, stroke 30mm*60mm
Lighting system	5W white LED with adjustable brightness function
power supply	AC100V～220V
Microscope body size	256mm x 160mm x 362mm
