Product specifications

Lens tube	Monocular inclination hydraulically adjustable angle, optical path 160mm
nose chakra	Retractable type, four-hole magnification conversion

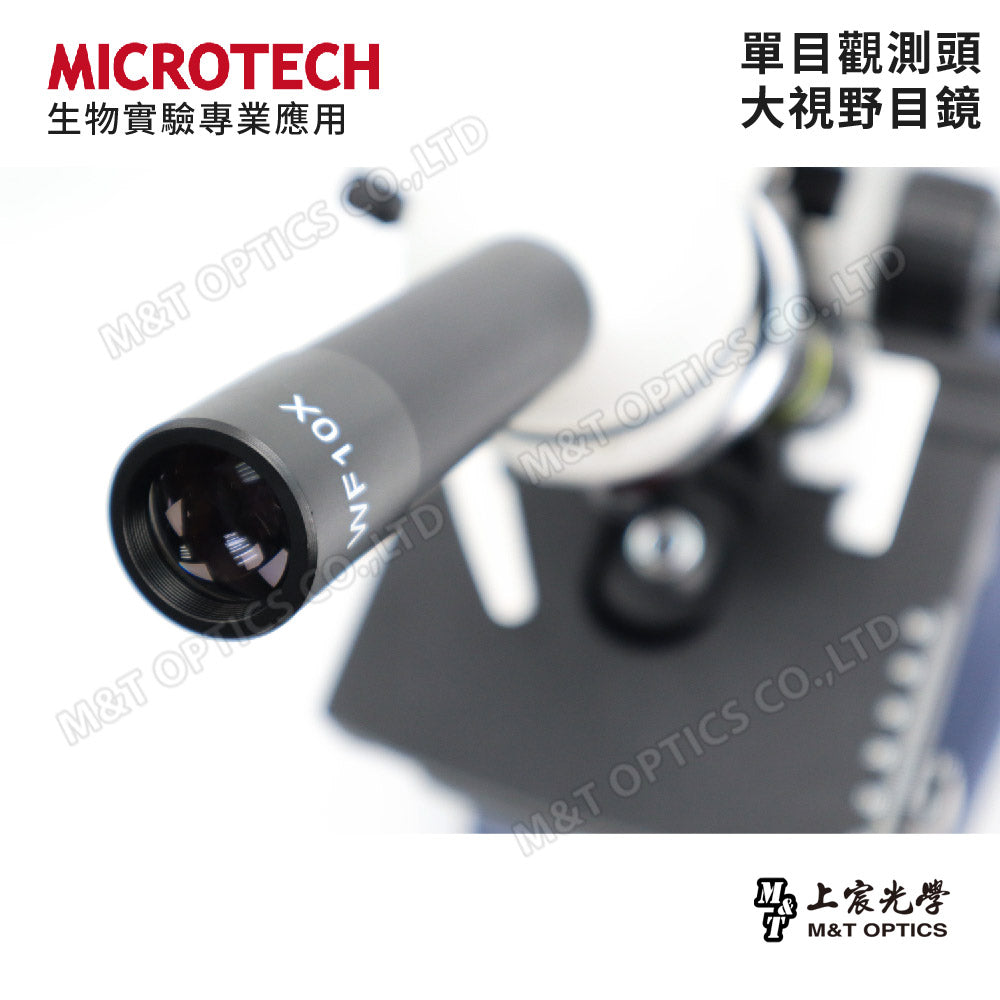

eyepiece	WF10X＊1 piece, WF20X＊1 piece

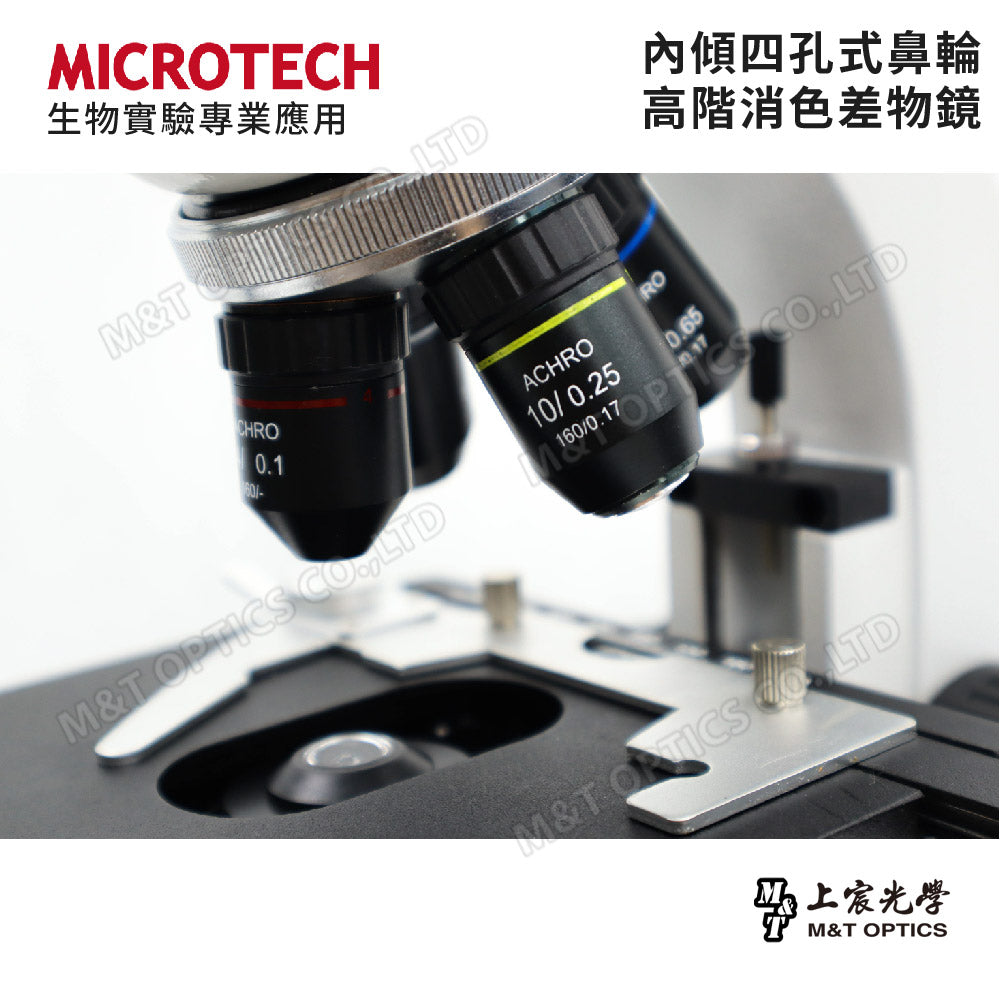

objective lens	4X, 10X, 40X (telescopic type), 100X (oil lens telescopic type)
Observation magnification	40 times to 2000 times
Focusing device	1:8 reduction coaxial thickness adjustment wheel

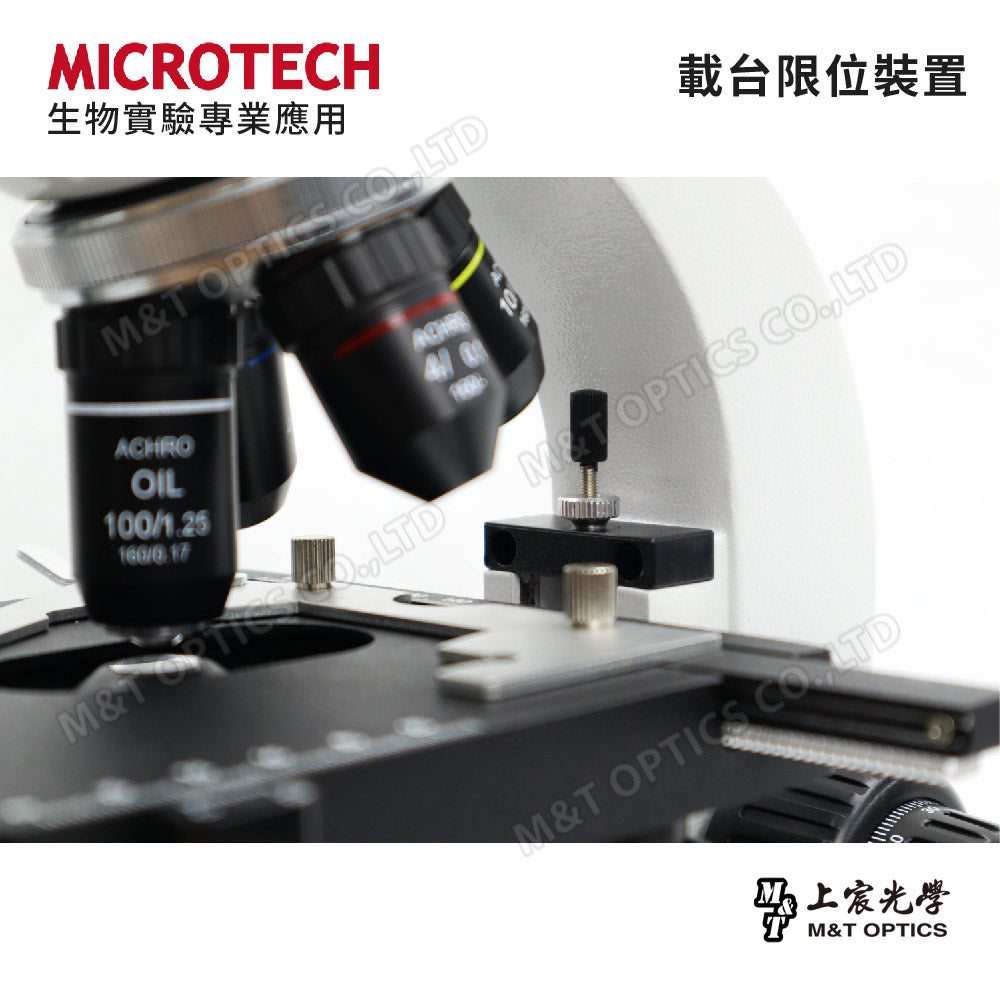

Lifting mechanism	Rack-type ball focusing system with limiter device
slide stage	120mm*123mm

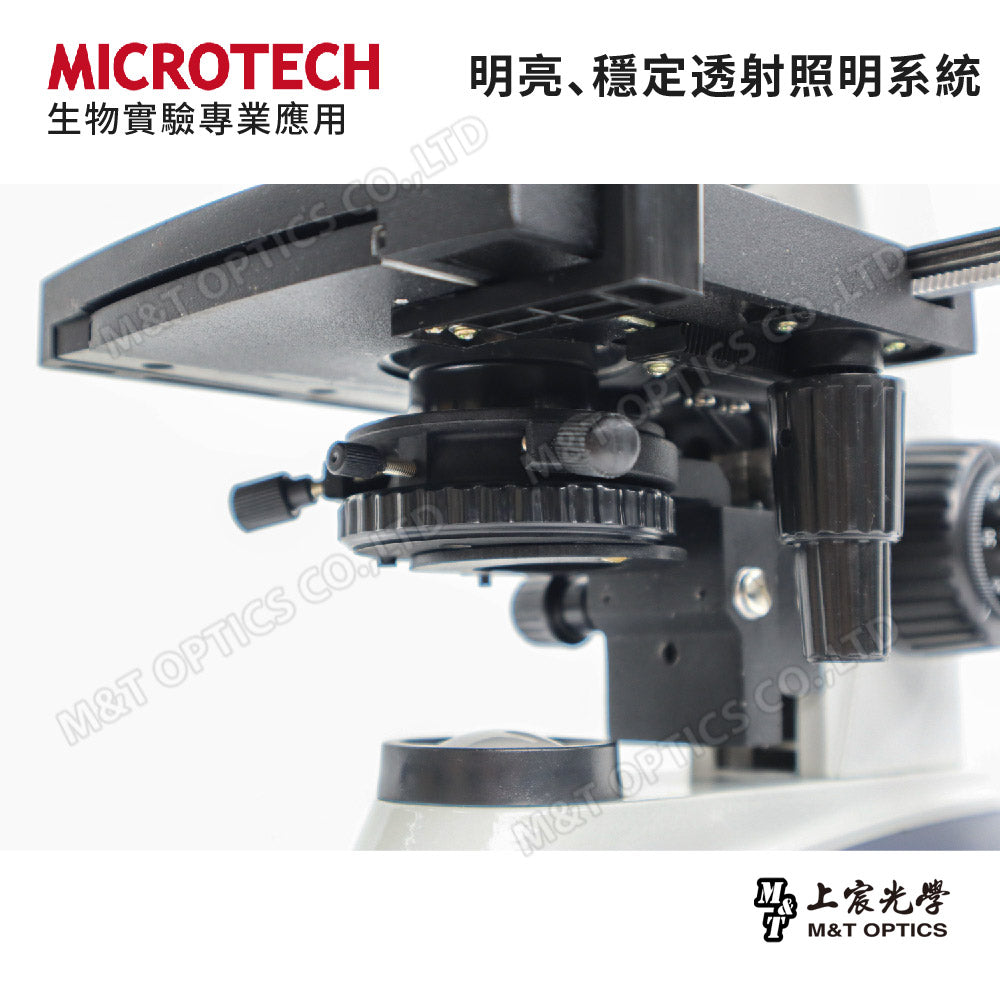

condenser	Special adjustable condenser (can be installed with dark field and phase difference functions)
aperture	Segless continuous light barrier

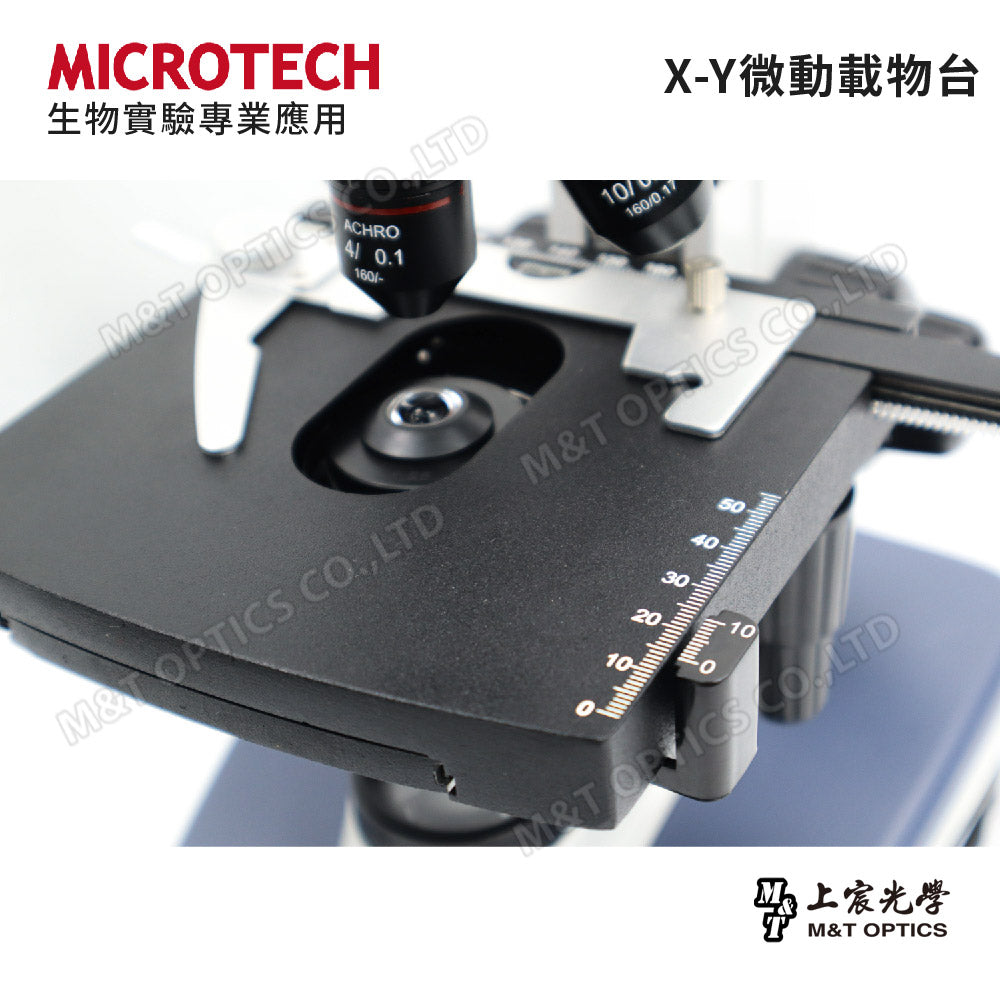

micro-movement device	Hydraulic slide clamp, stroke 30mm*60mm
Lighting system	5W white LED with adjustable brightness function
power supply	AC100V～220V
Warranty	one year

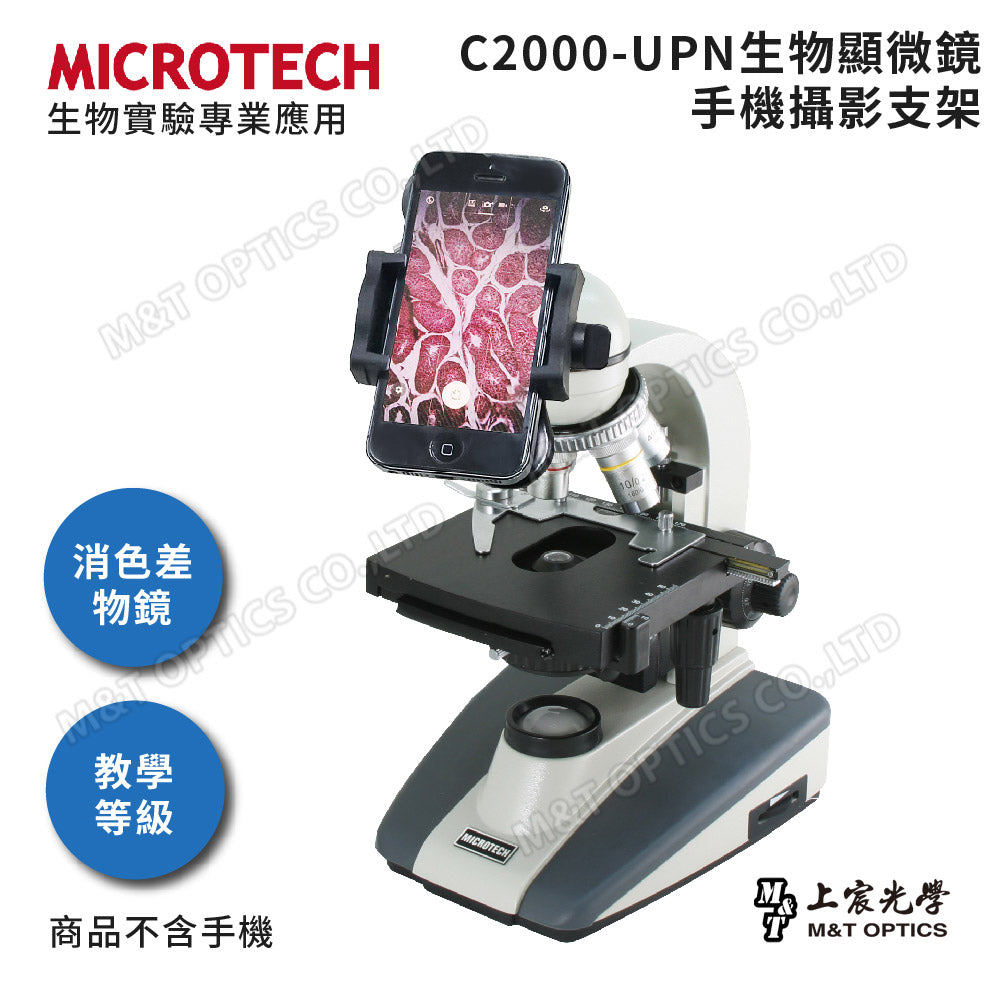

mobile photography	UPN276CV fast mobile phone photography mount can be purchased additionally
Connect computer	Optional microscopic camera available for purchase
