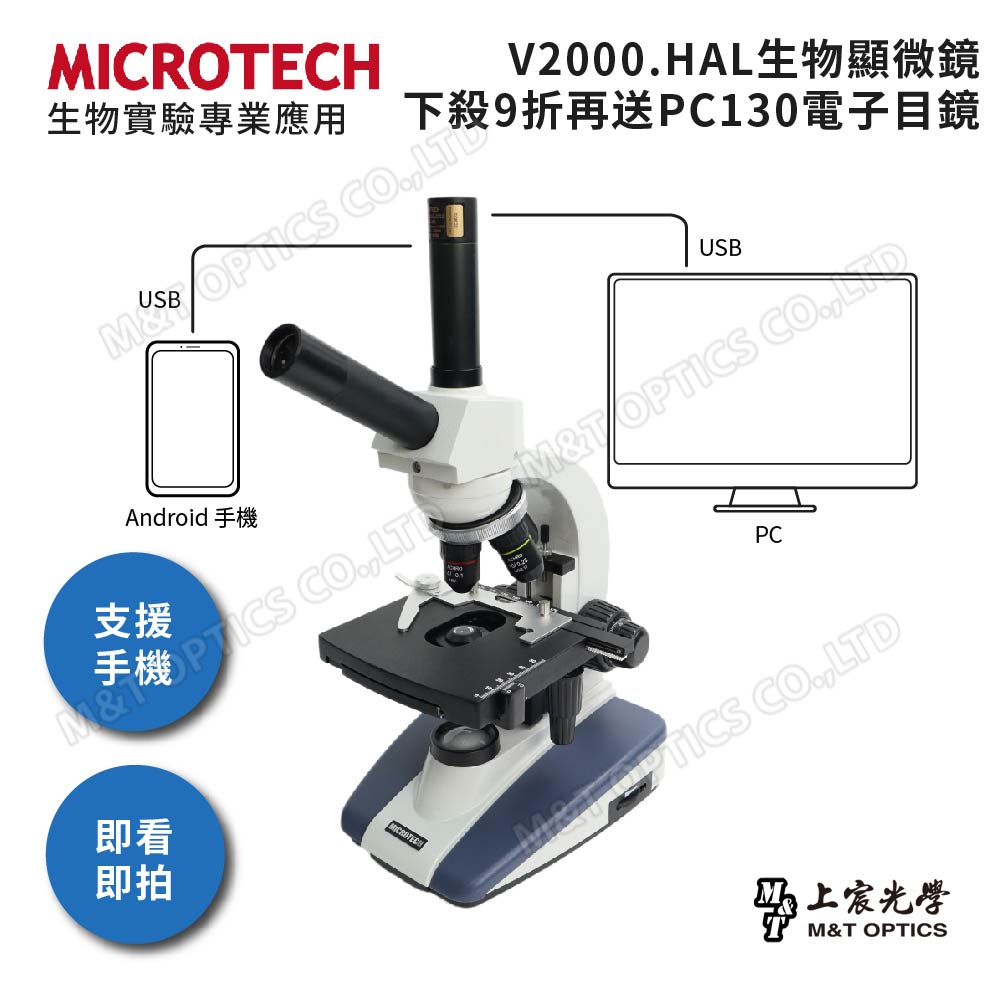

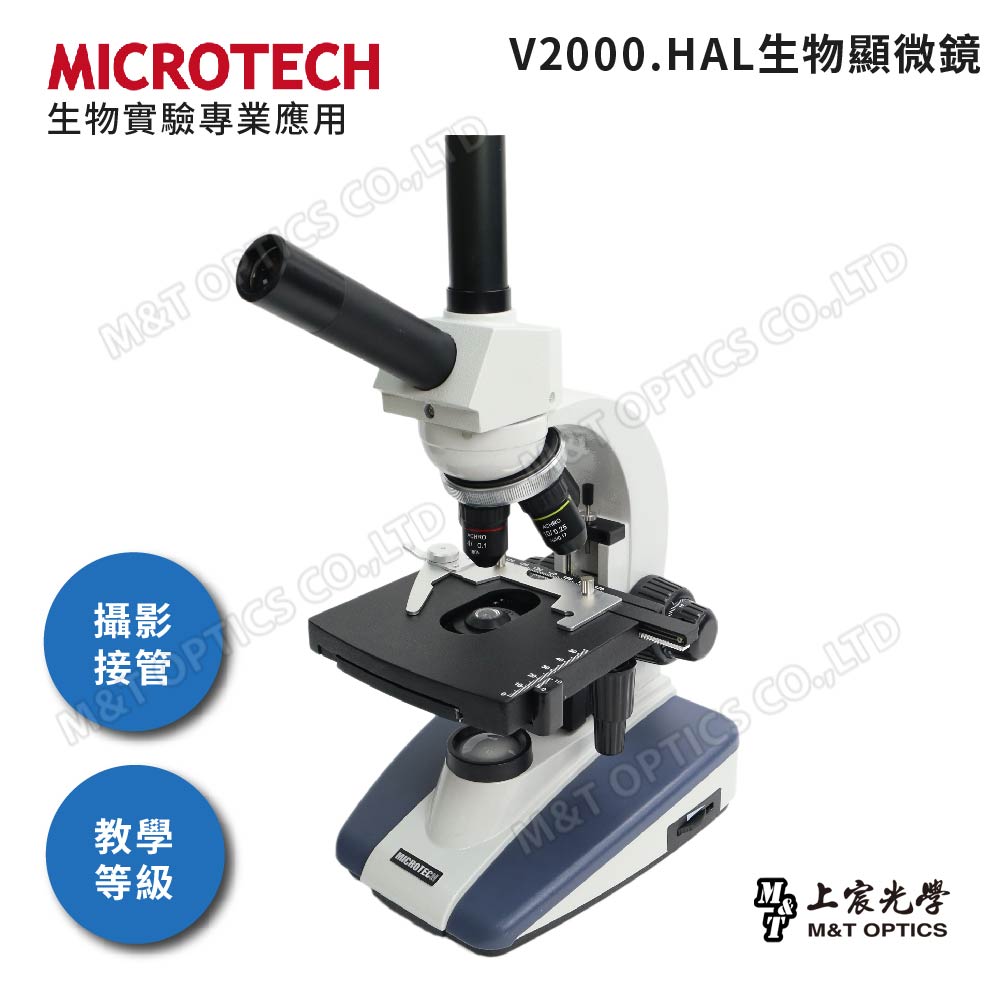

MICROTECH V2000.HAL "PC130M3 microscopic camcorder as a special offer" - Original factory warranty for one year

Order number

Product specifications

Lens tube Monocular coaxial spectroscopic tilt angle 30.70, hydraulic adjustable angle, optical path 160mm

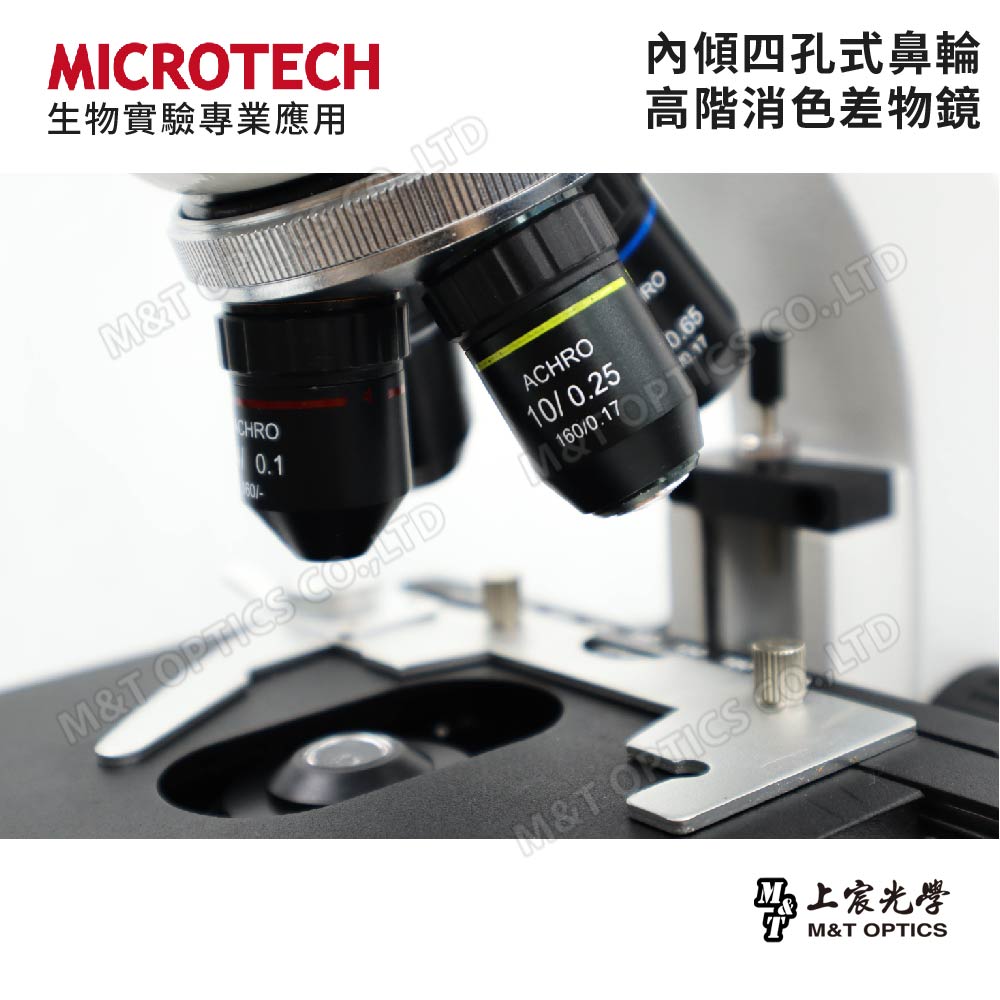

nose chakra Internal retractable, four-hole magnification conversion
eyepiece WF10X＊1 piece, WF20X＊1 piece
Objective lens 4X, 10X, 40X (telescopic type), 100X (oil lens telescopic type)
Observation magnification
40 times to 2000 times
Focusing device
1:8 reduction coaxial thickness adjustment wheel

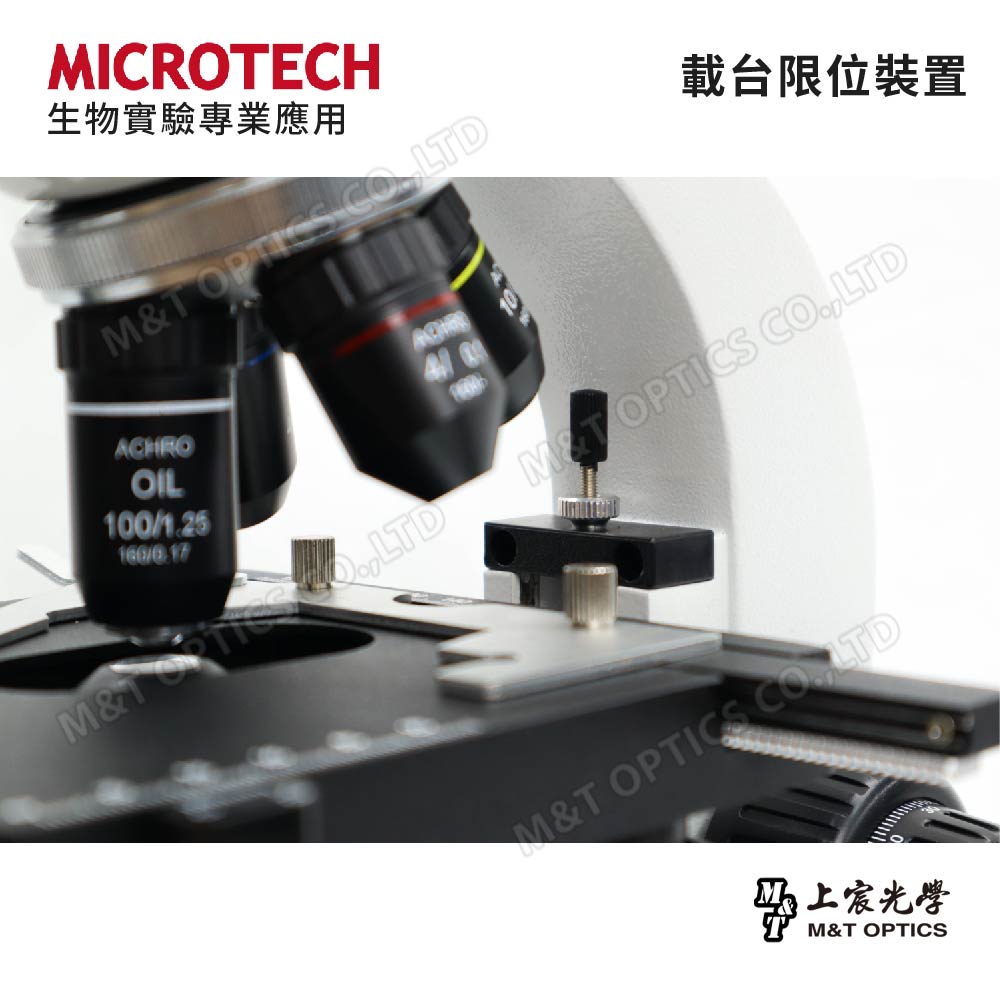

Lifting mechanism
Rack type ball focusing system with limiter device

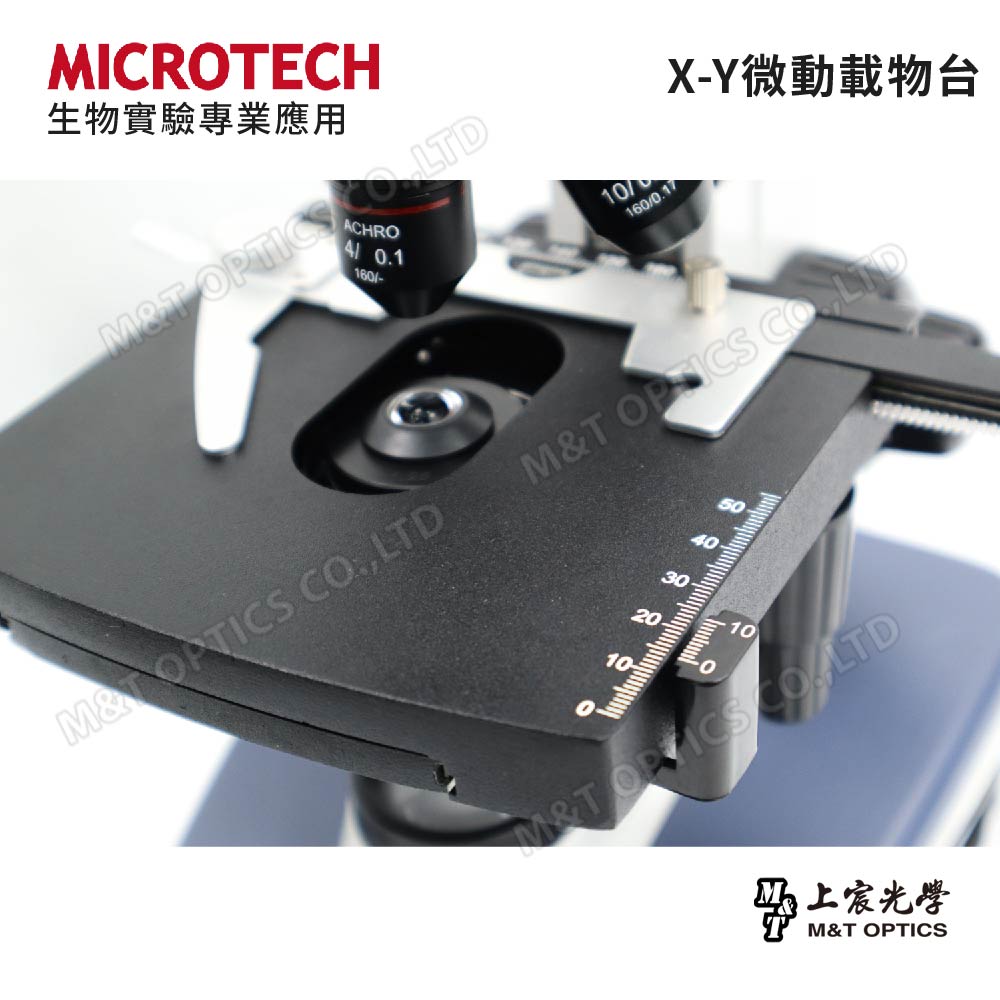

slide stage
120mm*123mm, hydraulic slide holder, stroke 30mm*60m

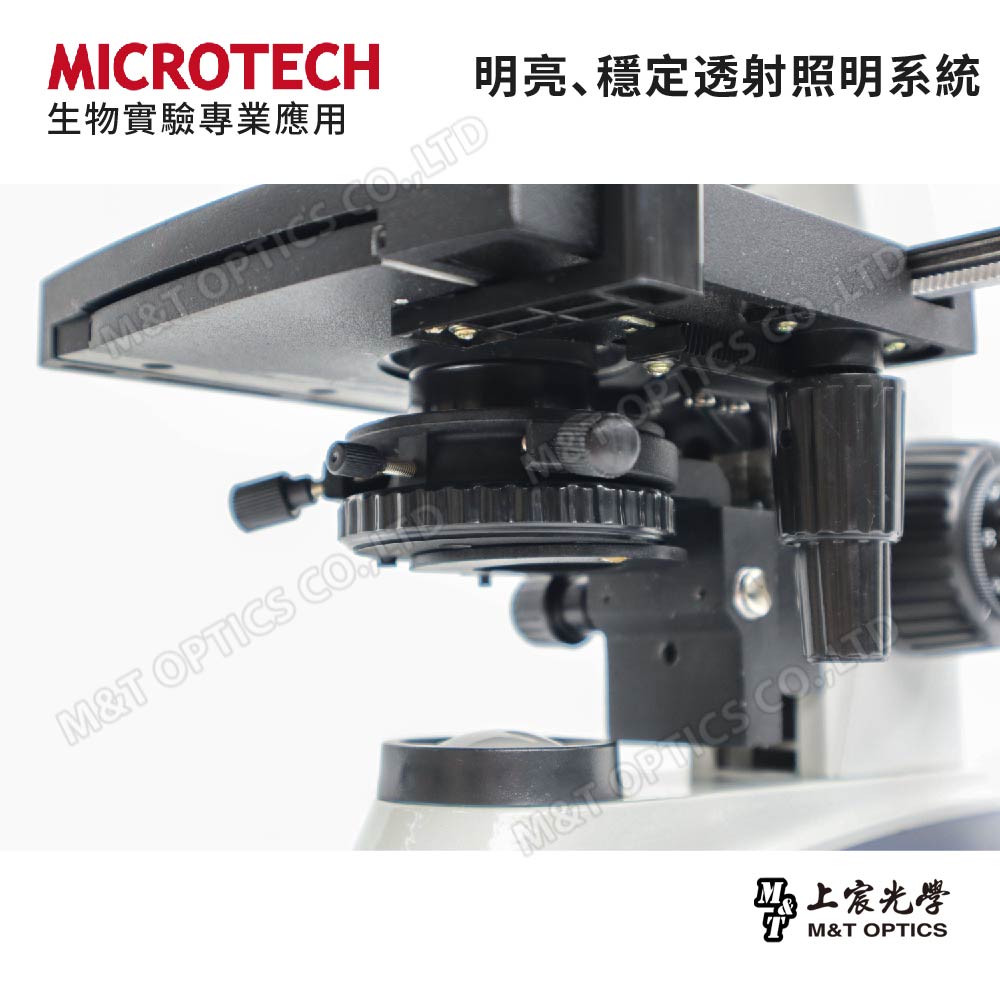

condenser Special adjustable condenser (can be installed with dark field and phase difference functions)
aperture Segless continuous light barrier
Light source system 5W white LED with adjustable brightness function

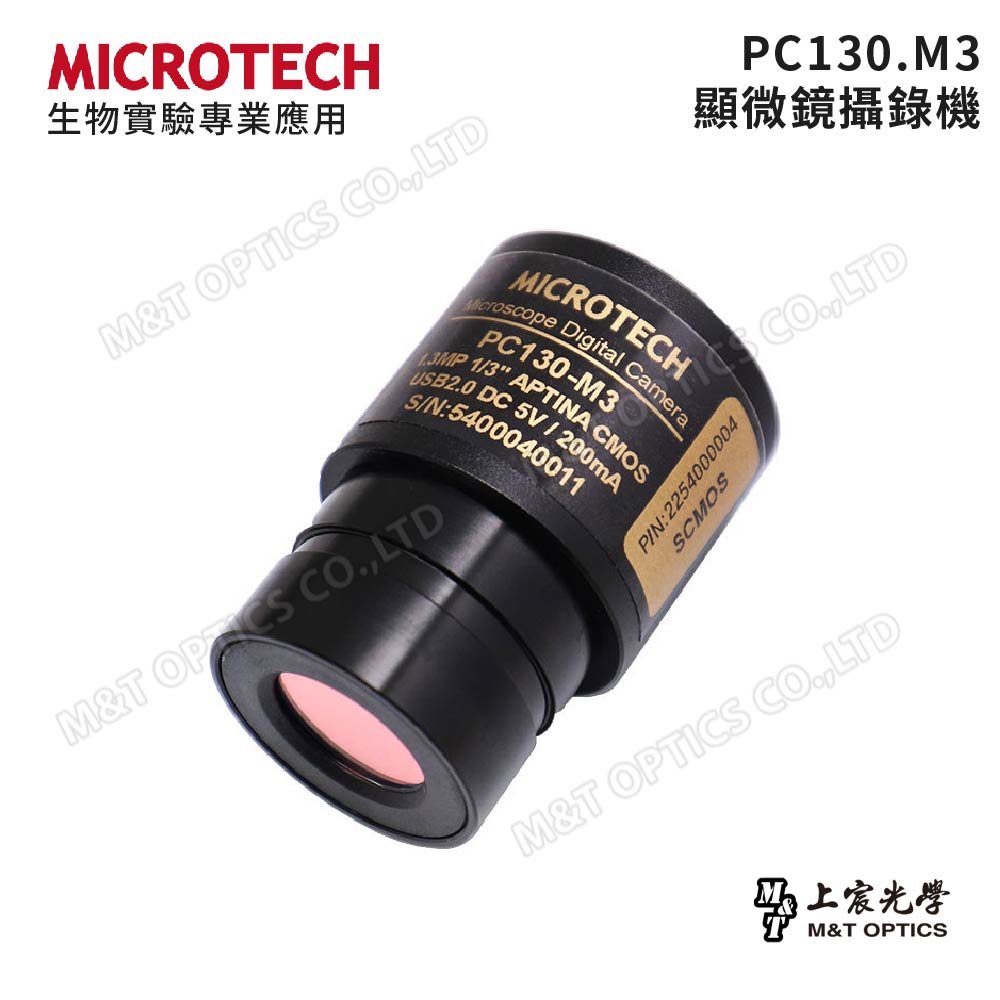

Photosensitive element
1/3 inch color CMOS (spectrum response range 380nm~650nm)
total pixels
1.3 million pixels
exposure control Manual control/fully automatic mode (electronic rolling shutter)
Resolution 1520x856、760x428
Fastest frame rate
30fps (1520x856, 760x428)
Image storage format
JPG／BMP／WMV／MPG
Transmission/Power
USB DC5V／USB length 150mm
Nozzle diameter
23mm
operating system
No driver installation required, suitable for XP/WIN7/WIN8/WIN10/Mac

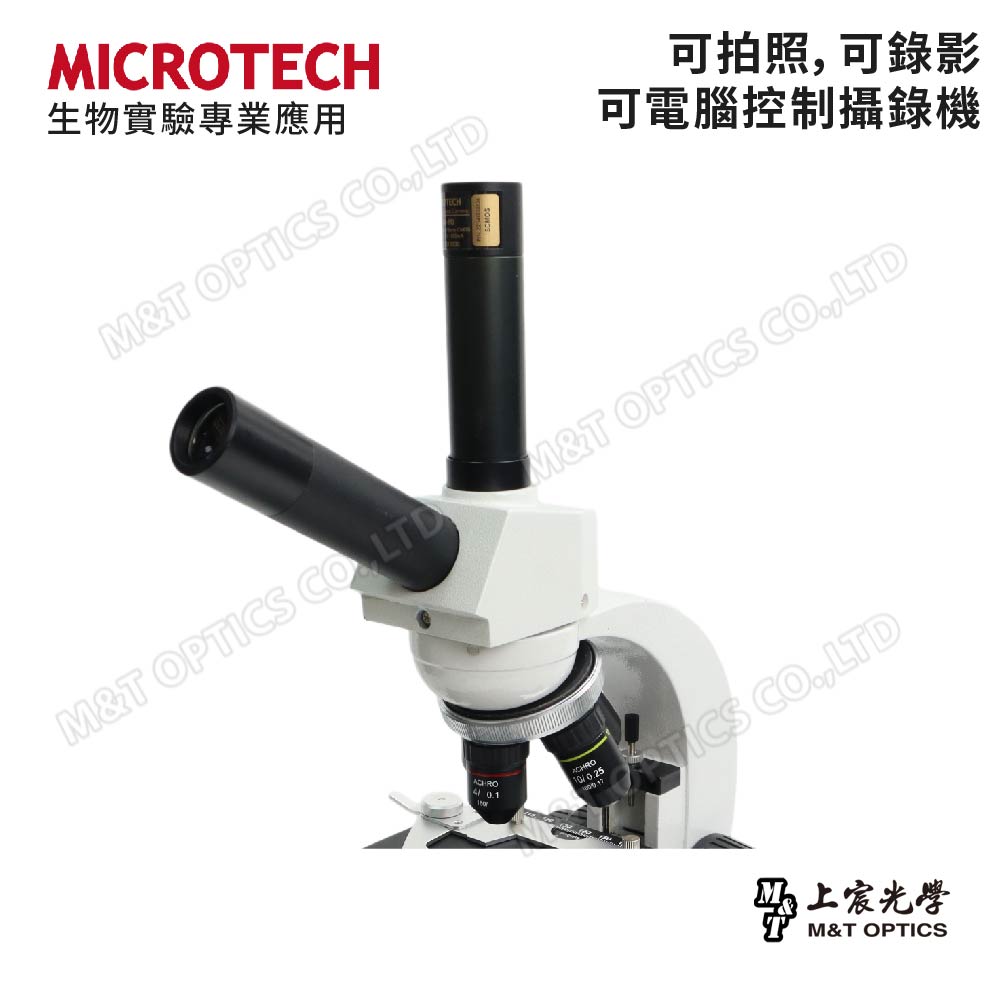

Image capture
Preview (adjustable resolution), take photos, and record videos
Image adjustment
Brightness, contrast, saturation, hue, gamma, sharpness
exposure adjustment
Automatic white balance, automatic exposure
Instant processing
Flip (horizontal, vertical), gray value, embossing, sharpening, binarization, negative and other functions
Dynamic and static measurement functions
Geometric measurements of straight lines, angles, circles, areas, rectangles, etc.
