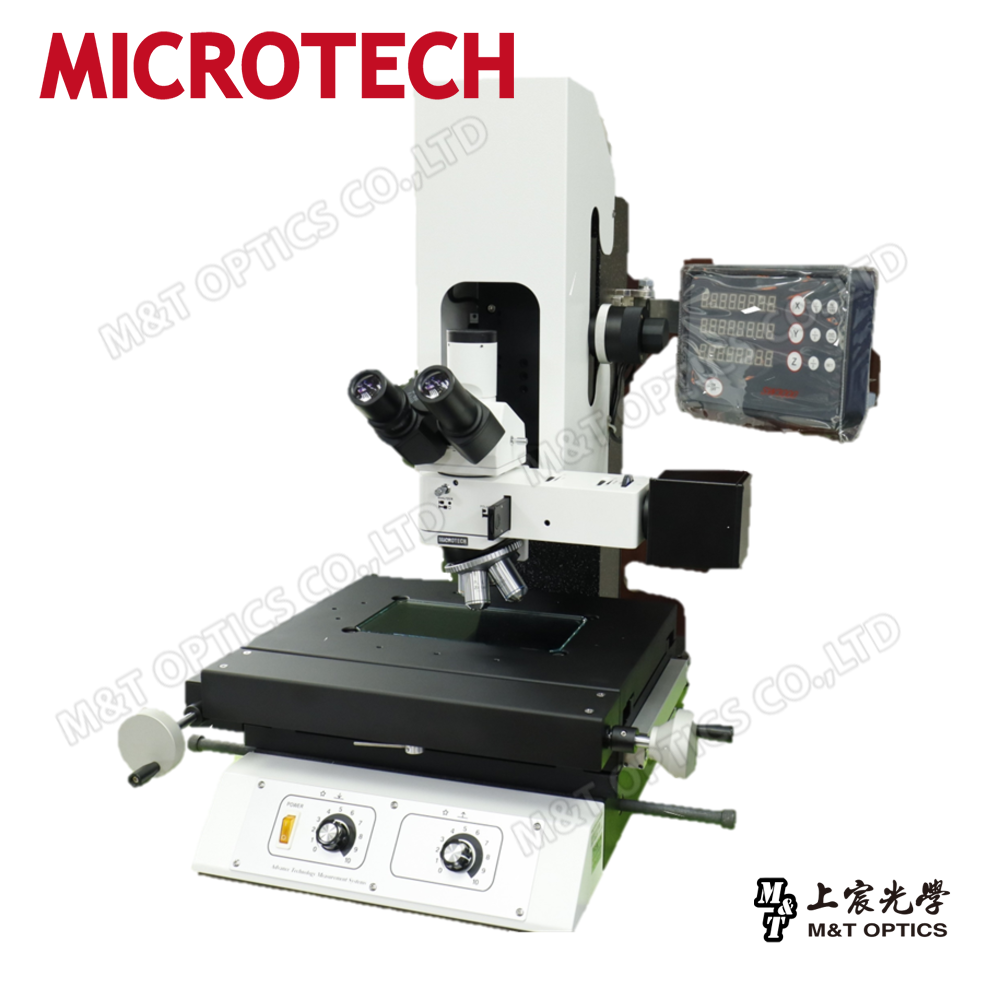

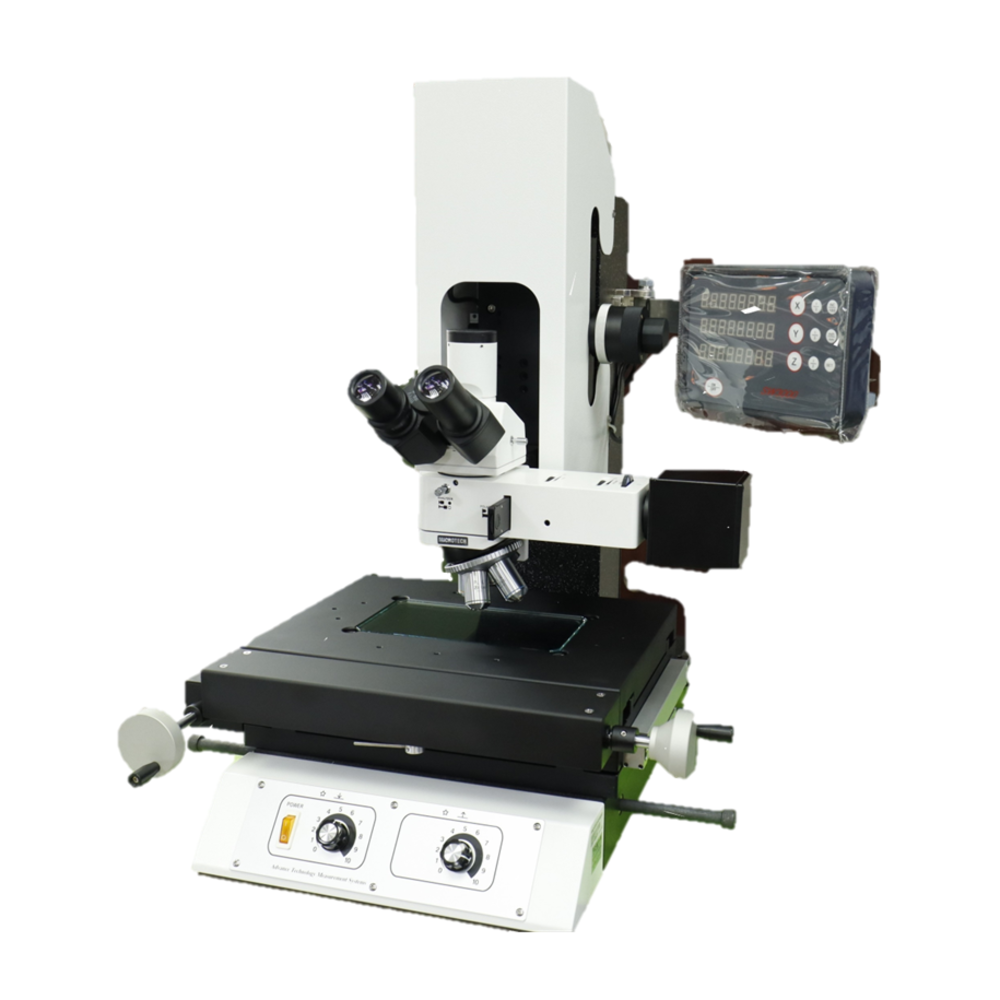

MICROTECH ANQ 2010 HD MX50 Industrial Microscope-200x100mm Large Travel Optical Scale Platform, Computer Measurement

Order number

2201100673

Product specifications

Optical system
Coaxial epi-optical path, infinite parallel optics.

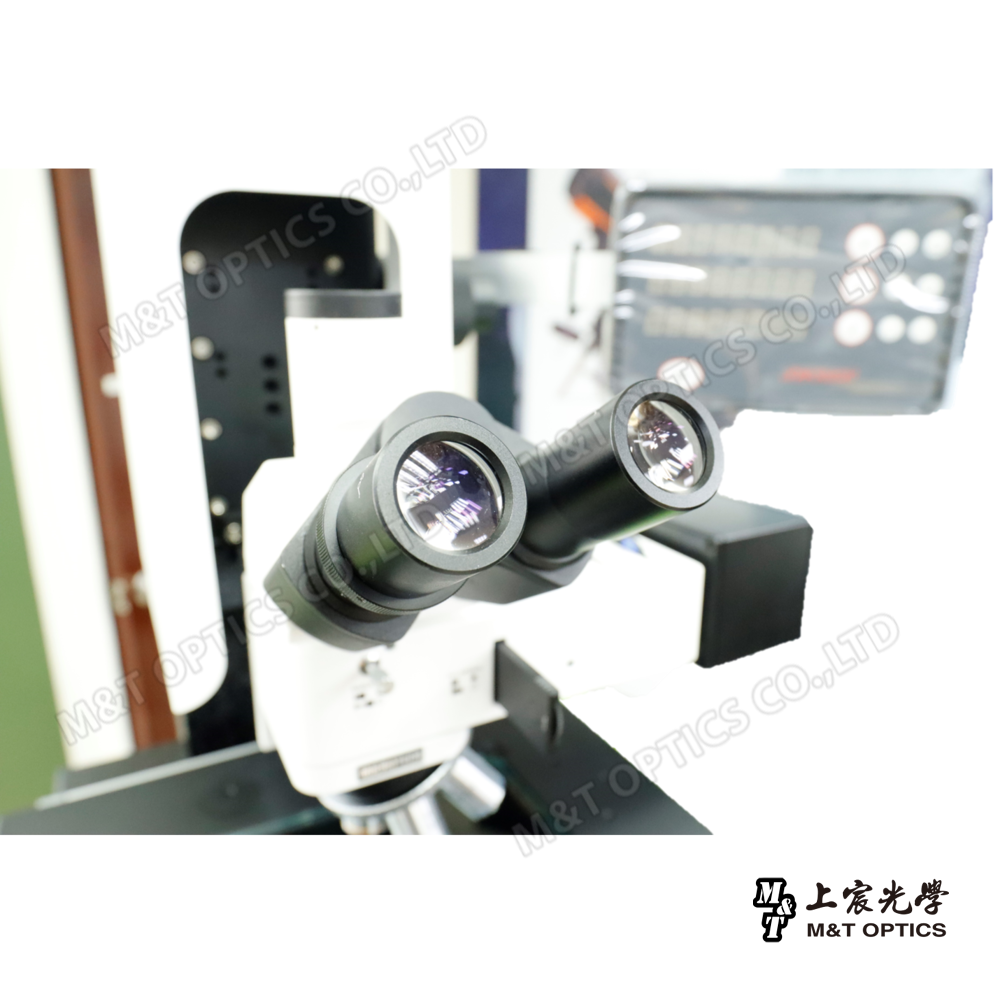

eyepiece tube Trinocular 30-degree tilt angle, adjustable interpupillary distance and eye height.
eyepiece WF10X/22 fields of view＊2

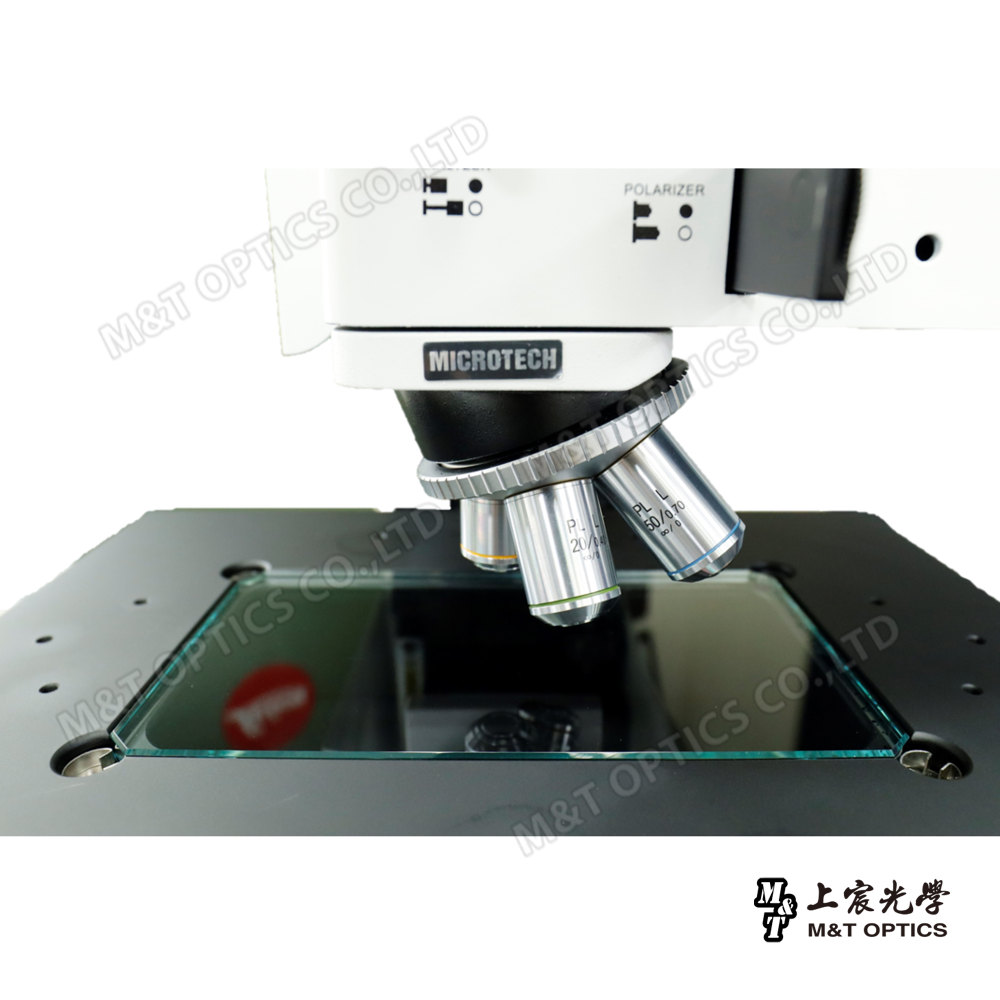

objective lens PLL5X,PLL10X,PLL20X,PLL50X

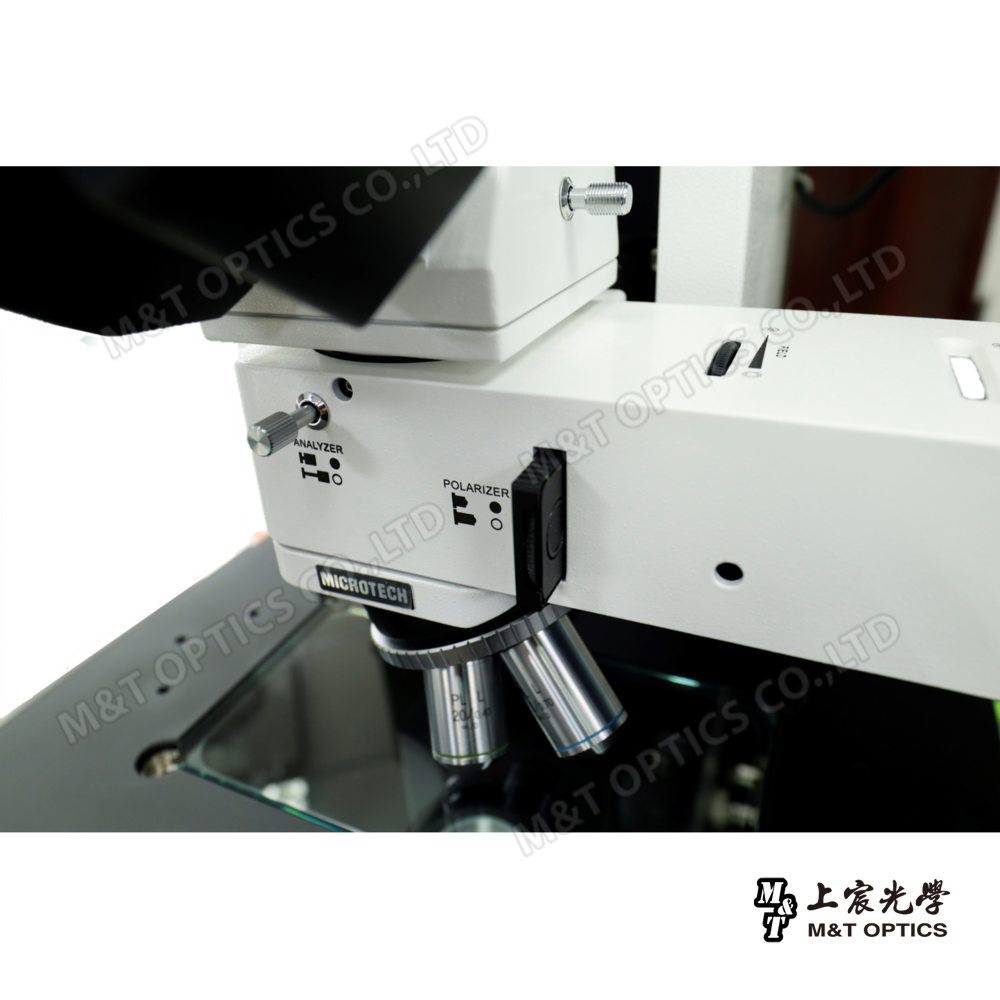

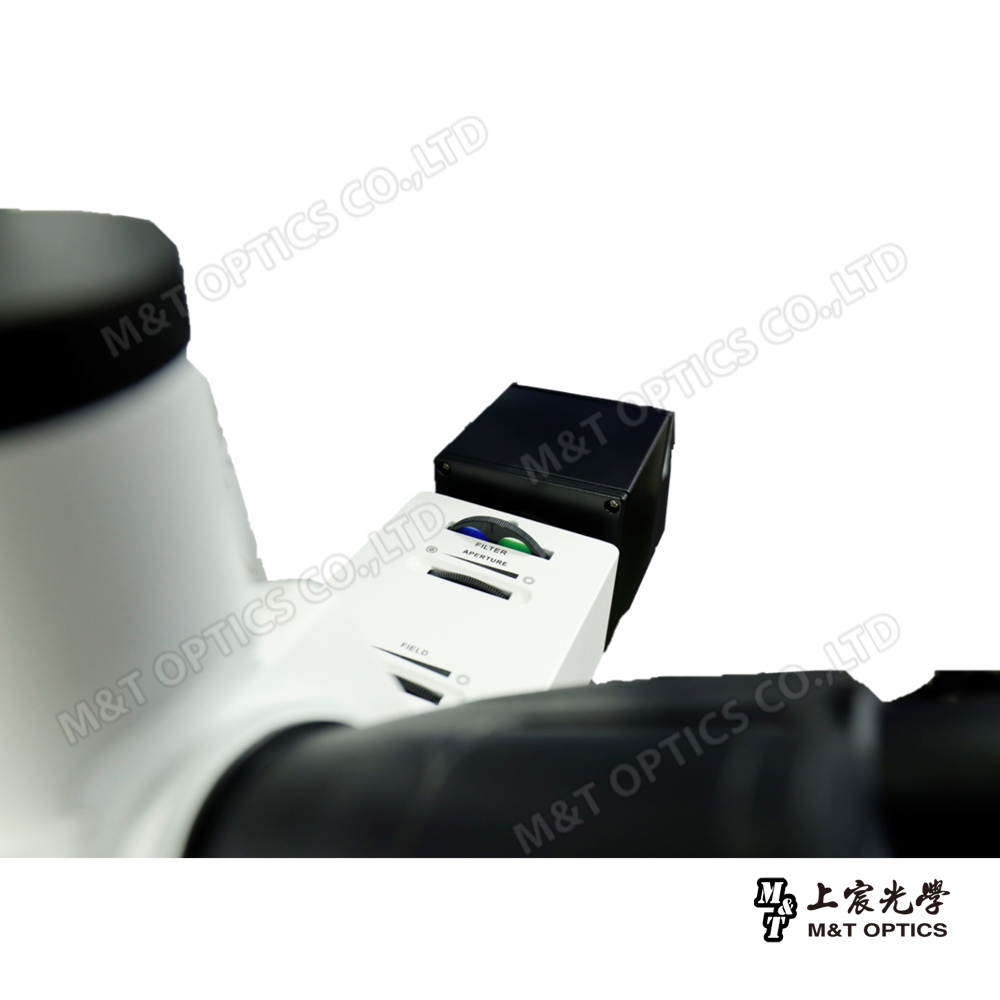

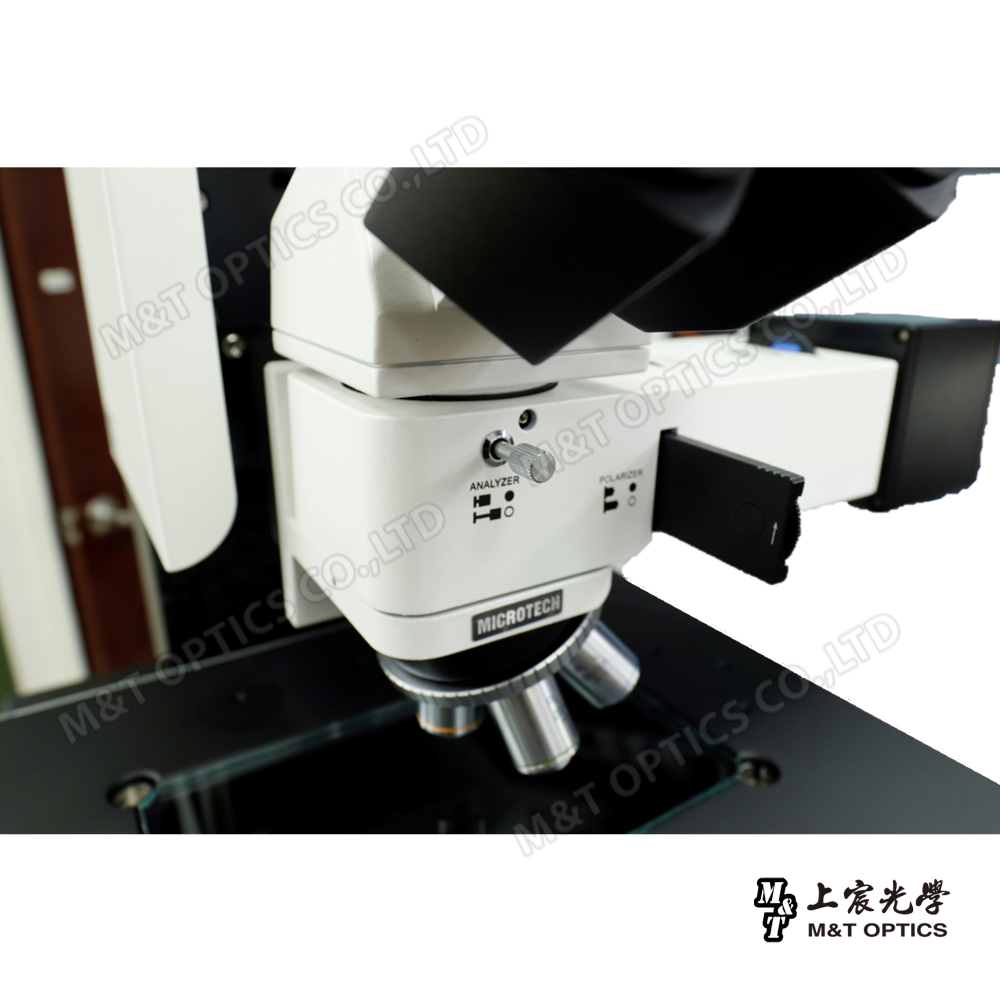

epi lighting system The LED light has adjustable brightness, built-in field diaphragm, aperture diaphragm, (yellow, blue, green, frosted glass) color filter dial, push-pull polarizer and depolarizer.
Focusing mechanism Thickness and fine adjustment coaxial handwheel with tightness adjustment, micro-movement accuracy 0.1um.
nose chakra Five-hole type (retracted ball positioning)
Measuring stroke X axis 200mm, Y axis 100mm, Z axis 150mm
Working platform dimensions The working platform travel can reach 200mm on the X-axis, 100mm on the Y-axis, and 100mm on the Z-axis.
Two-axis optical ruler Resolution 0.001mm, including optical scale display.
Platform material and surface treatment The working platform is made of T6-aerospace aluminum alloy with anodized surface.
Structure and surface treatment The machine mechanism is cantilever type and is painted with multi-layer powder coating.
Slide rail Adopting Japanese NB cross roller slide rail, it has excellent precision and sliding properties

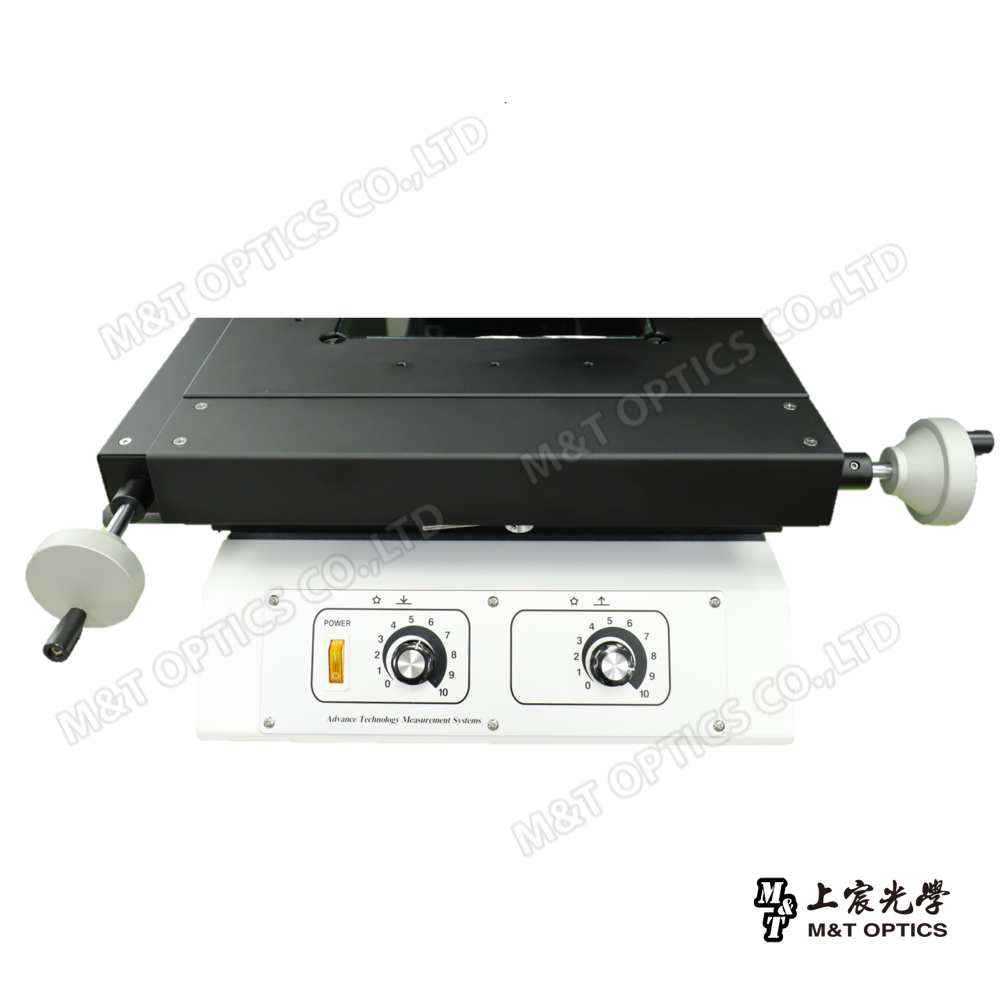

Platform double shaft transmission The XY axis transmission of the work platform adopts toothless screws, which can be quickly moved and fine-tuned.
mobile protection
The glass platform is equipped with XY axis stops
base Cast iron base
Machine size (LxWxH) 700mmx1,030mmx1,100mm
Measurement accuracy Uxy＝（3＋L／200）um
